What is B&R Industrial Automation Panel Pcs?

B&B Automation: Around the world, B&R Industrial Automation has earned a reputation for excellence in a variety of automation applications.Keen foresight and entrepreneurial courage helped us rise quickly into the ranks of top global players in industrial automation. The pursuit of Perfection in Automation has inspired and guided B&R for over 35 years.
To B&R HMI touchscreen, perfection means more than developing the best solutions in industrial automation.

B&R Automation comes from a land where quality matters. In the countryside outside Salzburg, Austria, you’ll find our highly automated 800,000 square foot factory…and an engineering department numbering over 500 strong.
It’s the perfect equation for innovation, performance, quality and low cost production. It turns out that B&R is a powerhouse in automation technology, consuming 60,000,000 electronic components per month!

How to find the B&R Power Panel HMI models?

In this table, list all the models of B&R Automation Panel HMI. You can call up the search box by holding down the keyboardCtrl+Fand enter the model you want to find. Then send inquiries to Kernfix for more product details and price.

What series does B&R Automation Panel HMI have?

B&R Automation Panel HMI develops different series of HMIs for different industrial production scenarios. At present, at least 10 series of products have been developed.

B&R Power Panel HMI Parts Video

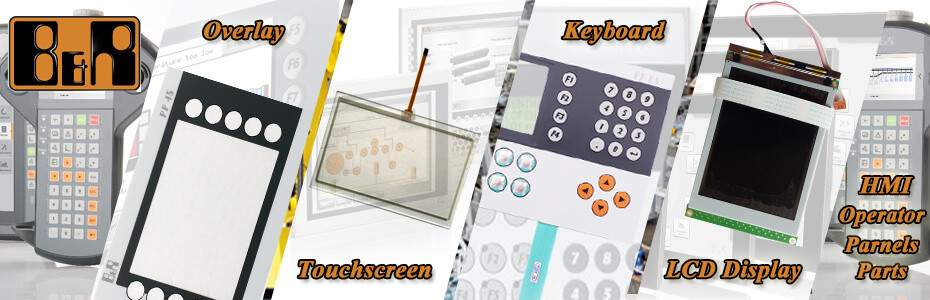

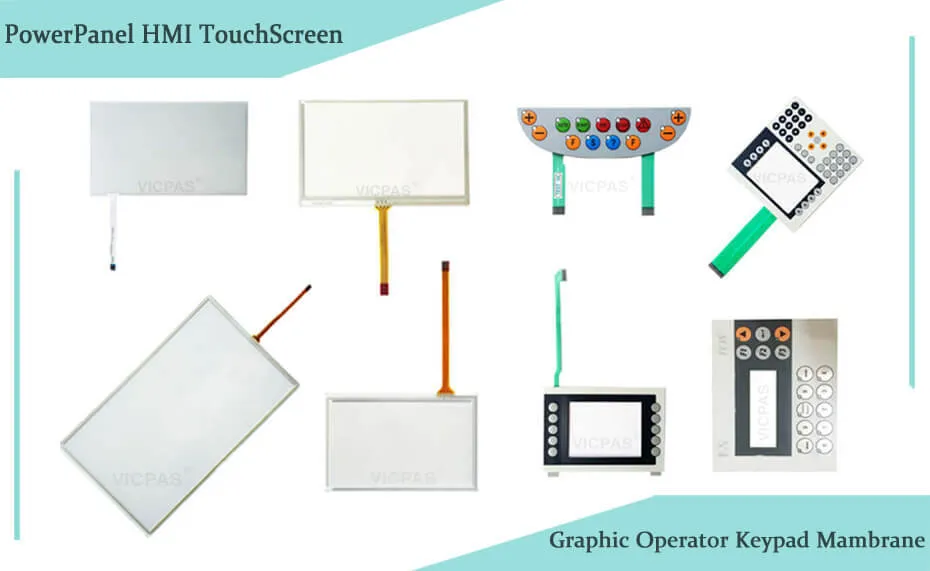

This video describes all the contents of B&R Power Panel HMI accessories, including touch screen panel, membrane keyboard switch, protective film, LCD Display Screen, inverter board, protective shell case.

• Automation Panel PC: Automation Panel 5000, Panel PC 3100 single-touch, Panel PC 2200 single-touch, Panel PC 2100 single-touch, Panel PC 900 single-touch, Automation Panel 800


  Panel PC 3100 single-touch:All variants are fanless, so the Panel PC 3100 features no rotating parts. This makes maintenance tasks like replacing air filters a thing of the past. The scalable memory options range from 4 to 32 GB.




  Panel PC 2200 single-touch:The deceptively compact housing of the Panel PC conceals a colossal performance that can turn any Automation Panel into a full-fledged Panel PC system.
  This innovative PC design is based on Intel Apollo Lake architecture, whose dual- and quad-core processor technology represents a milestone for embedded systems – all while offering an optimal price/performance ratio.




  Panel PC 2100 single-touch:With an ultracompact housing that corresponds to the dimensions of a Smart Display Link receiver, the Panel PC 2100 is an extremely powerful PC system that can handle virtually any application. The control cabinet variant of the Automation PC 2100 also provides a complete PC system with minimized dimensions.




  Panel PC 900 single-touch:The full range of Panel PC 900 processors – from the single-core Celeron up to the quad-core Core i7 – provide a versatile selection of CPU performance levels to make it the best platform for any application. Even in fanless operation, the Panel PC 900 outperforms the high-end version of its predecessor.




  Automation Panel 800:Fully enclosed Automation Panel 800 display units provide maximum flexibility. Mounting on swing arm systems allows the operator panel to be placed at the most ergonomically convenient position – a decisive advantage for comfortable operation of the machine.



• B&R Power Panel T-/C-Series:Power Panel T30, Power Panel T50, Power Panel C30, Power Panel C70


  Simple HMI The Power Panel T-Series (terminal design) is equipped with an embedded browser and can also be used as a Visual Components client. These Power Panels have Ethernet and USB interfaces as well as various configuration options.




  High-performance with a wide range of connection options The Power Panel C-Series (controller design) is available in a wide range of performance classes with cycle times down to 0.4 ms. In addition, variants with different interfaces cover a wide array of applications: POWERLINK, standard Ethernet, USB 2.0, X2X Link as well as optional RS232, RS485 and CAN make sure that all bases are covered when it comes to connectivity.



• B&R Power Panel 300/400/500: include Power Panel PP 300, Power Panel PP 400, Power Panel PP 500,


• B&R Power Panel PP: include Power Panel PP65, Power Panel PP15, Power Panel PP21, Power Panel PP35, Power Panel PP41, Power Panel PP45


  The Power Panel 65 provides maximum flexibility with two different display types with identical installation dimensions: a 5.7" model with touch screen (and no function keys) and a 3.5" model with touch screen and 30 function keys. Equipped with 2 USB interface and a Fast Ethernet port for exchanging data with higher-level systems, the Power Panel 65 is also available with integrated X2X Link or POWERLINK interface options for connecting remote I/O modules and drives. These systems can be further extended with RS232/RS485, CAN bus and PROFIBUS DP slave interfaces to meet any requirement.




  Power Panel PP45 combines integrated control, visualization and I/O interface in one solution for machine control. Ethernet and X2X Link are used for the communication system. Additionally, these devices have been equipped with a slot for interface cards. PP45 can be expanded using Ethernet Powerlink, CAN bus, Profibus DP, or RS485/232. B&R Industrial Automation;




  Power Panel PP15, B&R offers an operator panel with integrated I/O points for control, positioning, and visualization tasks. Distinguished by a compact design that guarantees full functionality for a wide variety of applications the PP15 has been further enhanced in 2005 and is now available with additional keys.



• B&R Mobile Panel Series: include Mobile Panel 40, Mobile Panel 50, Mobile Panel 100, Mobile Panel 200

  The mobile operator panels are designed so that they are comfortable to hold and do not cause fatigue even after working for longer periods of time. This benefit is enjoyed by left and right handed operators alike. The low-weight construction also helps ensure safe operation and monitoring.



• B&R PANELWARE

  PANELWARE compact terminals combined with B&R control systems are the ideal solution for space-saving machine visualization.




• If you want to get more informatoin visit B&R Automation HMI Website

Related B&R Automation Panel PC HMI user manual PDF download

• B&R Automation Panel 800 User's Manual
• B&R Automation Panel 1000 user's manual
• B&R Automation Panel 5000 user's manaul
• B&R Power Panel User's Manual
• B&R Power Panel T30 User's manual
• B&R Power Panel T50 User Manual
• B&R Power Panel C30 User's manual
• B&R Power Panel C70 User's manual
• B&R Power Panel 65 User's manual
• B&R Mobile Panel user's manual
• Power Panel 15 21 35 41 User's Manual

What services can VICPAS provide?

Kernfix provide all kind of HMI Parts for repair/replacement, we are working closely with lot`s of automation and electric repair company from all over the world, Euro, North America, South America, Middle East, Asia, Africa and Australia etc, all of them stock the safety stock quantity make sure your HMI panel could be fixed in no time, all the touch screen spare part are brand new, good quality with 365 days warranty. If you are interesting, you could replace the touch screen from the HMI panel by yourself, very easy.  Eery competitive price and we will ship by DHL express, normally only take 2-5 working days to reach your hand, you don`t need to wait a long time.
