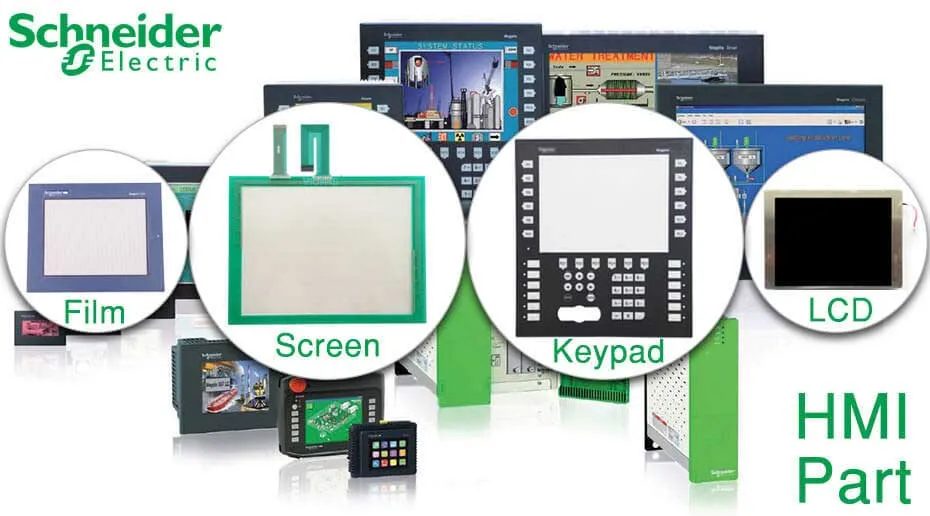

Supply Schneider Magelis HMI Panels Part--Screen, Film, LCD and Keypad

In this post, you can learn everything about Schneider Magelis Industrial HMI Panel PC that you want to know.

What are they?
What can they do?
What are the series of Schneider Electric HMI?
Let's learn together

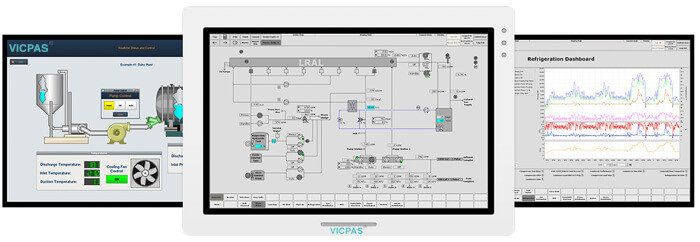

What can Schneider Electric Magelis Panel Pcs do?

Schneider Electric HMIs communicate with Programmable Logic Controllers (PLCs) Panel and input/output sensors to get and touchscreen display information for users to view.

The Schneider electric magelis display can be used for a single function, like monitoring and tracking, or for performing more sophisticated operations, like switching machines off or increasing production speed, depending on how they are implemented.

The Schneider HMI is called differently according to different application scenarios. Such as Schneider terminals, modular industrial pc, industrial touch panel pc and industrial computer monitor.

The Schneider HMIs are used to optimize an industrial process by digitizing and centralizing data for a viewer. By leveraging HMI, operators can see important information displayed in graphs, charts, or digital dashboards, view and manage alarms, and connect with SCADA and MES systems, all through one console.

What series does Schneider HMI PLC have?

Schneider Electric develops different series of HMIs for different industrial production scenarios. At present, at least 8 series of products have been developed.
Include

• Magelis GTO--Standard HMI panels

  HMI panels with optimized features



• Magelis GTU-- High-performance modular HMI

  Modular HMI with a smartphone-like interface and Wireless technology: Unmatched comfort of use without compromise on performance and openness



• Magelis STO & STU--Compact color HMI panels

  The Magelis STO and STU provides more flexibility, more communication, and an easy mounting system, providing a cost-effective solution for machine builders



• Magelis Industrial PC and Display

  Magelis Panels iPCs run at the Edge Control level of Biostructure, the Schneider Electric IIoT architecture for a wide range of industries. They enable secured communication from the shop floor to IT, improving profitability and offering new business opportunities through enhanced asset performance for more efficient operation and maintenance of capital assets. They offer smart application design and engineering to leverage asset performance, with end-to-end cybersecurity.



• Magelis XBT GC, GT--Basic HMI panel with 18 to 96 I/O

  A compact and flexible HMI controller range delivering you up to 15% savings on design, setup, operation, and maintenance



• Magelis GK--Advanced Touchscreen/Keyboard Panels

  Terminal with keyboard and configurable touch screen



• Magelis XBT N, R, RT--Small basic HMI panels

  This Magelis range of small HMI panels provides operators with enhanced text and image display, utilizing graphics objects for display flexibility



• Magelis XBT GH--Hand-held panel

  Enlarging the Magelis Advanced Panel range, this hand-held HMI panel provides you flexibility for mobility, operability, and safety



• Magelis ST6--High-resolution and cost effective basic HMI

  A basic HMI panel, delivering an intuitive user experience utilizing the latest software and visualization innovations from EcoStruxure Operator Terminal Expert

You can also visit Schneider's official website to get more information:
HMI Panels Terminals and Industrial PCS

Schneider Magelis HMI Panels Series Part No. Table:

In this table, list all the models of Schneider's HMI touch panel. You can call up the search box by holding down the keyboardCtrl+Fand enter the model you want to find. Then send inquiries to Kernfix for more product details and price by email.

Related Schneider Magelis HMI user manual and programming Software download

Schneider Electric Magelis HMI Manual Download

• Magelis HMI STU 655 855 user manual
• MagelisTM GTO Advanced Optimum panels manual
• Mageli ST6 Basic HMI panels manual
• Terminaux Magelis GTU Universal catalog
• Magelis XBTGH Advanced hand-held panels catalog
• Magelis STU and STO Small Panels Catalog
• Mageli SCU Small HMI Controllers Catalog
• Magelis Panels and Industrial PCs global selection guide
• Magelis GK Advanced keypad-touchscreen panels catalog

Schneider HMI Product Datasheet or Manual PDF Download

• Magelis HMIPSPS752D1801 Product datasheet
Schneider Electric HMIGTW73545 datasheet
