6AV6647-0AE11-3AX0 Simatic HMI KTP1000 Basic Color DP Panel

6AV6647-0AE11-3AX0 Simatic HMI KTP1000 Basic Color DP Panel
6AV6647-0AE11-3AX0 Simatic HMI KTP1000 Basic Color DP Panel6AV6647-0AE11-3AX0 Simatic HMI KTP1000 Basic Color DP Panel6AV6647-0AE11-3AX0 Simatic HMI KTP1000 Basic Color DP Panel6AV6647-0AE11-3AX0 Simatic HMI KTP1000 Basic Color DP Panel6AV6647-0AE11-3AX0 Simatic HMI KTP1000 Basic Color DP Panel
BrandSIEMENS
Model6AV6 647-0AE11-3AX0
Warranty365 Days
Product LineKTP1000 Basic
SupplySiemens KTP1000 HMI Touch Panel LCD Display
PartsTouch Screen Panel Membrane Keypad Switch
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Download
Update Time2026-01-30 20:20:13
Leading Time{{selectedConditionObj.leading}}
{{item.value}}
{{nameObj.name}}{{nameObj.selectedValue}}
{{valueObj.name}}

Shipping

Free Shipping

Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.

Detail Information

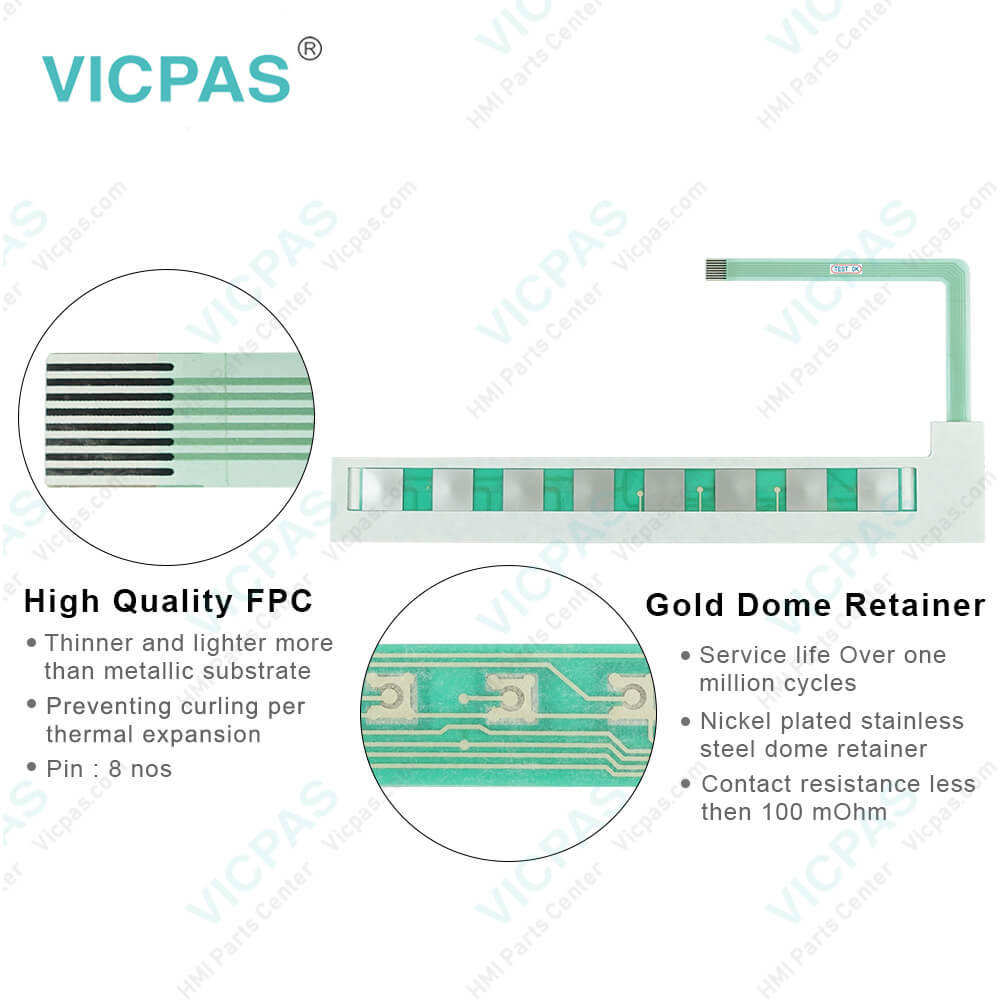

6AV6647-0AE11-3AX0 Simatic HMI KTP1000 Basic Color DP Touch Screen Panel Glass, Membrane Keypad, Plastic Shell, Power Supply Connector, LCD Gasket, Case Gasket, Mounting Clips, Screws, Cable and LCD Display

Order each part separately is available

6AV6647-0AE11-3AX0 Simatic HMI KTP1000 Basic Color DP Touch Screen Panel Glass, Overlay, Enclosure, Case Gasket, LCD Gasket, Power Supply Connector, Screws, Mounting Clips, Cable and LCD Display Repair Replacement

SIMATIC HMI KTP1000 Basic Color DP, Basic Panel, Key/touch operation, 10" TFT display, 256 colors, MPI/PROFIBUS DP interface, configurable as of WinCC flexible 2008 SP2 Compact/ WinCC BasicV11/ STEP 7 Basic V11, contains open-source software, which is provided free of charge see enclosed CD


The visualization of Siemens KTP1000 Basic allows for considerably increased process quality with compact plants or smaller applications. Featuring all important HMI basic functions, SIMATIC HMI Basic Panels Generation thus opens up completely new possibilities in terms of operation and monitoring in the field of mechanical engineering at a particularly attractive price. Besides, These also support vertical configuration. Their high resolution and color depth of 64,000 colors facilitate improved process visualization. The displays’ brightness is dimmable up to 100 %, offering optimum flexibility.


Kernfix supply 6AV6647-0AE11-3AX0 Siemens KTP1000 Basic touch panel, Overlay, Mounting Clips, Power Supply Connector, LCD Gasket, Case Gasket, Screws, HMI Case, Cable and LCD display. All of them with Kernfix 365 days warranty and support Urgent Worldwide Shipping.






  Contact Best Price

Specifications:

Part Number:6AV6647-0AE11-3AX0
Touchscreen:colour LCD display
Design of display:TFT widescreen display
Warranty:365 days Warranty
Product Line:Siemens KTP1000 Basic
Power consumption, typ.:15 W
Mounting position:vertical
Key Features:Touch screen support
Language:Worldwide
Processor type:RISC 32 bit


Related BB Teach Pendant Part No. :

6AV6 647-0AE11-3AX0Description Inventory status
6AV6647-0AE11-3AX0SIMATIC HMI KTP1000 BASIC COLOR DPIn Stock
6AV6647-0AF11-3AX0SIMATIC HMI KTP1000 BASIC COLOR PNIn Stock
6AG1647-0AE11-4AX0SIPLUS KTP1000 BASIC COLOR DP 10,4"Available Now
6AG1647-0AF11-4AX0SIMATIC HMI KTP1000 BASIC DPIn Stock

6AV6647-0AE11-3AX0 Simatic HMI KTP1000 Basic Color DP Panel PDF Download:

  • SIMATIC KTP Basic
  • 6AV6647-0AE11-3AX0 SIMATIC HMI KTP1000 BASIC COLOR datasheet pdf
  • Siemens Simatic KTP1000 Basic HMI touchpanel manual

    • FAQ:

    Question: What is the size of 6AV6647-0AE11-3AX0 Siemens KTP1000 touch panel??

    Answer: The Siemens KTP1000 Basic TouchScreen is 10.4-inch.It is 234.2 millimeter long and 181.2 millimeters wide.

    Question: How to reset Siemens Simatic KTP1000 to factory state?

    Answer: To restore the factory settings on the HMI device, follow these steps:1. Set the HMI device to "bootstrapping" mode.– Open the "OP Properties" dialog on the HMI device in the Control Panel.– Switch to the "Device" tab and select "Reboot".The "Attention" dialog box opens.– Select "Prepare for Reset".The HMI device restarts and switches to "bootstrapping" mode. If you do not reset the HMI device to the factory settings, the HMI device restarts after 10 minutes.2. Select the "Update operating system" command in the "Online > HMI device maintenance" menu on the configuration PC in WinCC.The "SIMATIC ProSave [OS-Update]" dialog box opens. The path to the image of the operating system is already set.3. If needed, select another path for the operating system image that you wish to transfer to the HMI device.4. Enable "Reset to factory settings".5. Enter the MAC address of the HMI device.6. Click "Update OS".The operation can take some time.

    Question: What is the 6AV6647-0AE11-3AX0 Siemens KTP1000 Basic HMI parts price?

    Answer: Submit a fast quote, send Kernfix an email for best price.


    Common misspellings:

    6V6647-0AE11-3AX0

    6A6647-0AE11-3AX0

    6AV647-0AE11-3AX0

    6AV667-0AE11-3AX0
