6AG1123-2MA03-2AX0 Siemens KTP1200 Basic DP Touchscreen Panel

6AG1123-2MA03-2AX0 Siemens KTP1200 Basic DP Touchscreen Panel
6AG1123-2MA03-2AX0 Siemens KTP1200 Basic DP Touchscreen Panel6AG1123-2MA03-2AX0 Siemens KTP1200 Basic DP Touchscreen Panel6AG1123-2MA03-2AX0 Siemens KTP1200 Basic DP Touchscreen Panel6AG1123-2MA03-2AX0 Siemens KTP1200 Basic DP Touchscreen Panel6AG1123-2MA03-2AX0 Siemens KTP1200 Basic DP Touchscreen Panel
BrandSIEMENS
Model6AG1123-2MA03-2AX0
Warranty365 Days
Product LineKTP1200 Basic
SupplySiemens KTP1200 HMI Touch Panel LCD Display
PartsTouch Screen Panel Glass
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Download
Update Time2026-01-30 20:20:21
Leading Time{{selectedConditionObj.leading}}
{{item.value}}
{{nameObj.name}}{{nameObj.selectedValue}}
{{valueObj.name}}

Shipping

Free Shipping

Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.

Detail Information

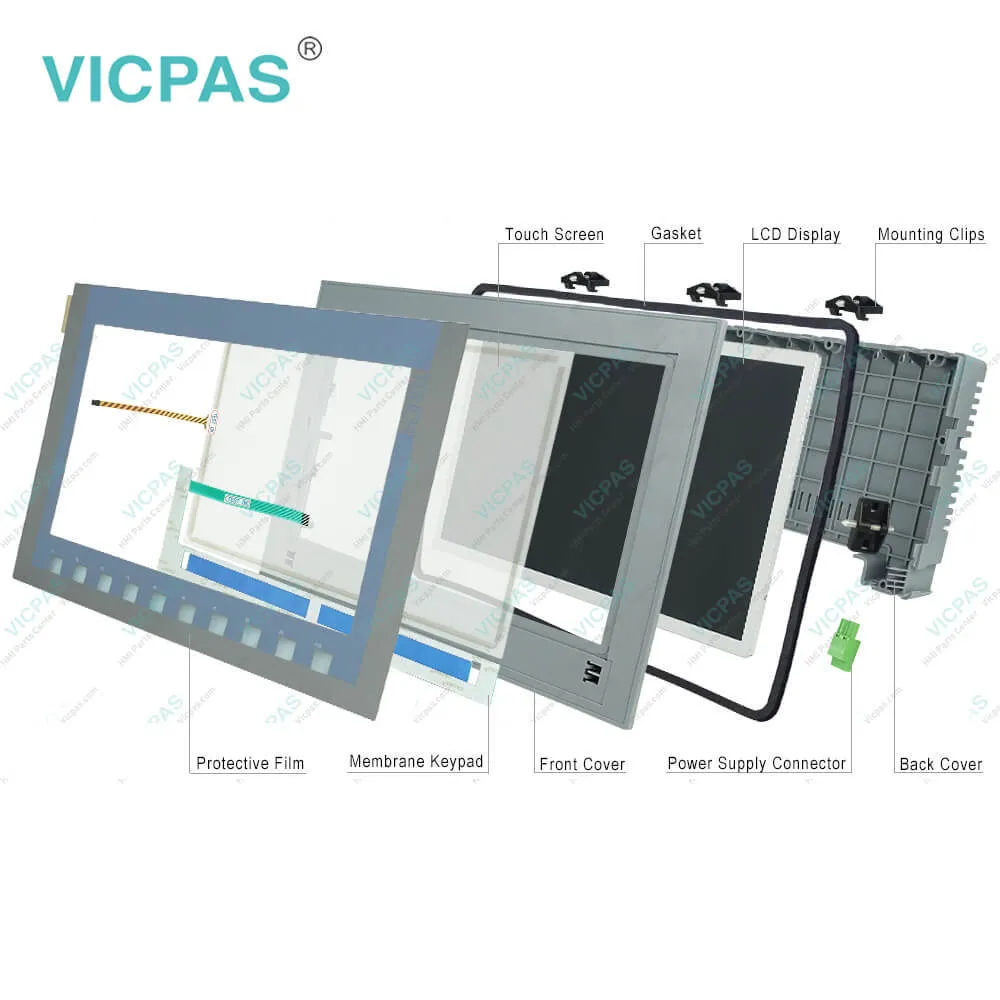

6AG1123-2MA03-2AX0 Siemens SIPLUS HMI KTP1200 Basic DP Touchscreen Panel Glass, Membrane keypad, Mounting Clips, Power Supply Connector, LCD Gasket, Case Gasket, Screws, HMI Case and LCD Display

Order each part separately is available

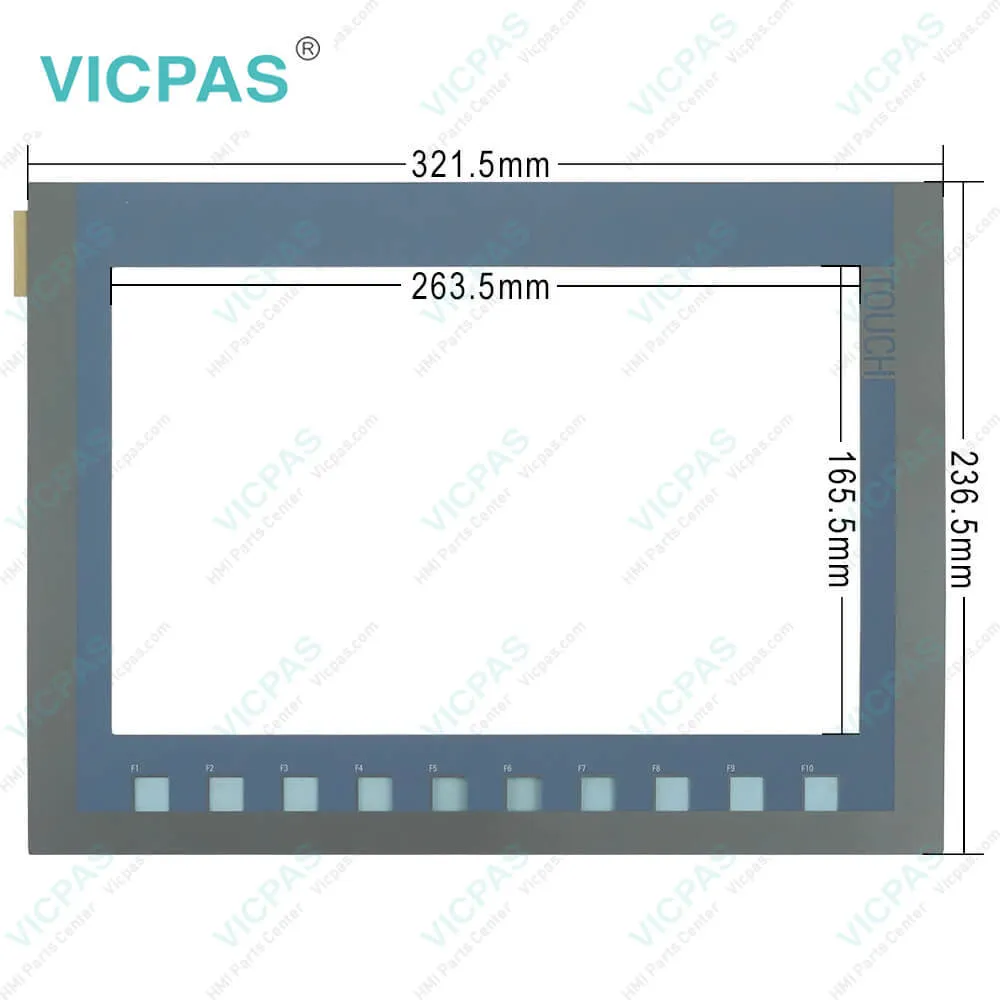

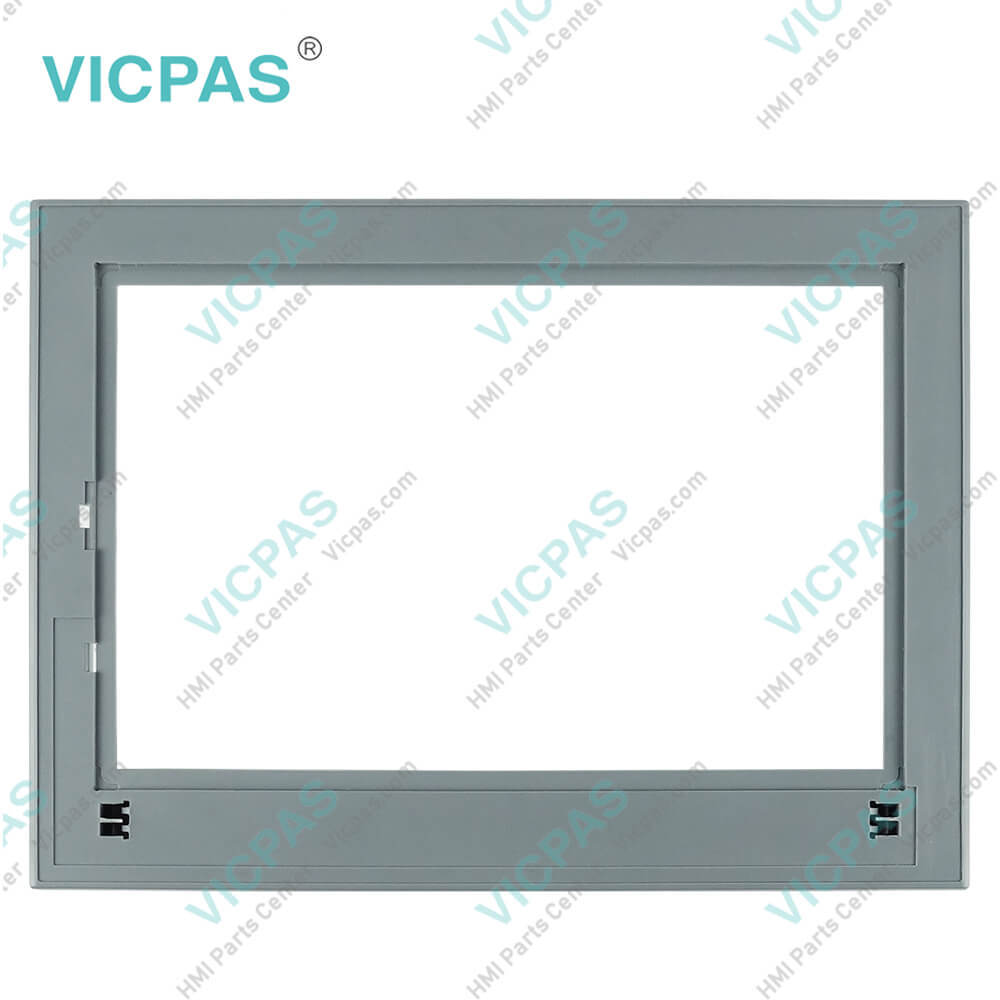

6AG1123-2MA03-2AX0 Siemens SIPLUS HMI KTP1200 Basic DP Touchscreen Panel Glass, Overlay, Case Gasket, LCD Gasket, Screws, Power Supply Connector, Mounting Clips, Plastic Case and LCD Display Repair Replacement

SIPLUS HMI KTP1200 Basic DP -10...+50 °C with conformal coatingbased on 6AV2123-2MA03-0AX0 . Key/touch operation, "12"" TFT display, 65536 colors PROFIBUS interface, configurable as ofWinCC Basic V13/ STEP 7 Basic V13, contains open source software, which is provided free of charge See enclosed CD-ROM


The visualization of Siemens KTP1200 Basic allows for considerably increased process quality with compact plants or smaller applications. Featuring all important HMI basic functions, SIMATICHMI Basic Panels Generation thus opens up completely new possibilities in terms of operation and monitoring in the field of mechanical engineering at a particularly attractive price. Besides, These also support vertical configuration. Their high resolution and color depth of 64,000 colors facilitate improved process visualization. The displays’ brightness is dimmable up to 100 %, offering optimum flexibility.


Kernfix supply 6AG1 123-2MA03-2AX0 Siemens KTP1200 Basic touch panel, Overlay, LCD Gasket, Case Gasket, Mounting Clips, Plastic Cover Body, Power Supply Connector, Screws and LCD display. All of them with Kernfix 365 days warranty and support Urgent Worldwide Shipping.






  Contact Best Price

Specifications:

Part Number:6AG1123-2MA03-2AX0
Touchscreen:colour LCD display
Design of display:TFT widescreen display
Warranty:365 days Warranty
Product Line:Siemens KTP1200 Basic
Active power input, typ.:13.2 W
Mounting position:vertical
Key Features:Touch screen support
Language:Worldwide
Processor type:ARM


Related BB Teach Pendant Part No. :

6AG1123-2MA03-2AX0Description Inventory status
6AG1123-2MA03-2AX0SIPLUS HMI KTP1200 BASIC DPIn Stock
6AG1123-2MB03-2AX0SIPLUS HMI KTP1200 BASICIn Stock
6AV2123-2MA03-0AX0SIMATIC HMI KTP1200 BASIC DPAvailable Now
6AV2123-2MB03-0AX0SIMATIC HMI KTP1200 BASICIn Stock

6AG1123-2MA03-2AX0 Siemens KTP1200 Basic DP Touchscreen Panel PDF Download:

  • SIMATIC KTP Basic
  • 6AG1123-2MA03-2AX0 SIMATIC HMI KTP1200 BASIC COLOR datasheet pdf
  • Siemens Simatic KTP1200 Basic HMI touchpanel manual

    • FAQ:

    Question: What is the size of 6AG1123-2MA03-2AX0 Siemens KTP1200 touch panel??

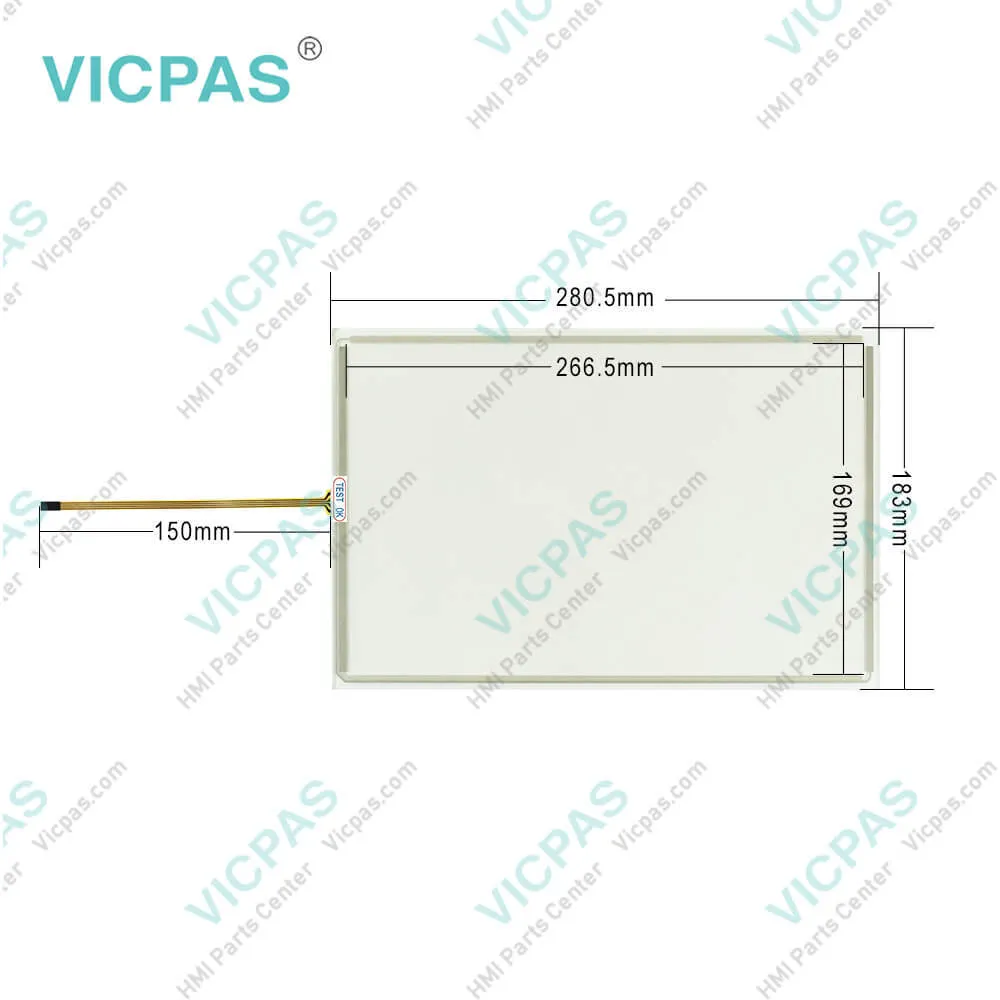

    Answer: The Siemens KTP1200 Basic TouchScreen is 12.1-inch.It is 280.5 millimeter long and 183 millimeters wide.

    Question: How to reset Siemens Simatic KTP1200 to factory state?

    Answer: To restore the factory settings on the HMI device, follow these steps:1. Set the HMI device to "bootstrapping" mode.– Open the "OP Properties" dialog on the HMI device in the Control Panel.– Switch to the "Device" tab and select "Reboot".The "Attention" dialog box opens.– Select "Prepare for Reset".The HMI device restarts and switches to "bootstrapping" mode. If you do not reset the HMI device to the factory settings, the HMI device restarts after 10 minutes.2. Select the "Update operating system" command in the "Online > HMI device maintenance" menu on the configuration PC in WinCC.The "SIMATIC ProSave [OS-Update]" dialog box opens. The path to the image of the operating system is already set.3. If needed, select another path for the operating system image that you wish to transfer to the HMI device.4. Enable "Reset to factory settings".5. Enter the MAC address of the HMI device.6. Click "Update OS".The operation can take some time.

    Question: What is the 6AG1123-2MA03-2AX0 Siemens KTP1200 Basic HMI parts price?

    Answer: Submit a fast quote, send Kernfix an email for best price.


    Common misspellings:

    6AG1123-2MA3-2AX0

    6AG1123-2MA0-2AX0

    6AG1123-2MA032AX0

    6AG1123-2MA03-AX0

    6AG1123-2MA03-2X0
