Home / All / for Siemens / Simatic C7-613~C7-636 Series / 6ES7635-2EB01-0AE3 C7-635 Touch Screen Membrane Switch Shell

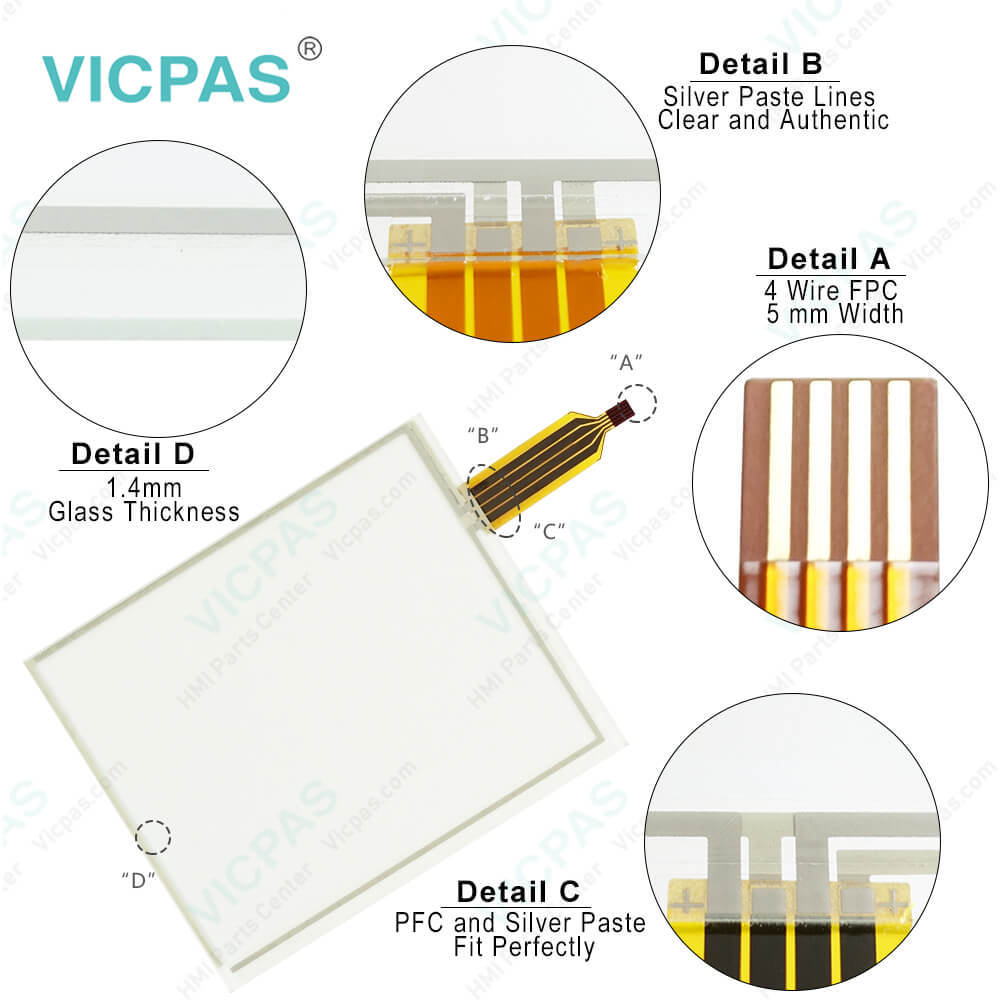

6ES7635-2EB01-0AE3 C7-635 Touch Screen Membrane Switch Shell

6ES7635-2EB01-0AE3 C7-635 Touch Screen Membrane Switch Shell
6ES7635-2EB01-0AE3 C7-635 Touch Screen Membrane Switch Shell6ES7635-2EB01-0AE3 C7-635 Touch Screen Membrane Switch Shell6ES7635-2EB01-0AE3 C7-635 Touch Screen Membrane Switch Shell6ES7635-2EB01-0AE3 C7-635 Touch Screen Membrane Switch Shell6ES7635-2EB01-0AE3 C7-635 Touch Screen Membrane Switch Shell
BrandSIEMENS
Model6ES7635-2EB01-0AE3
Warranty365 Days
Product LineSiemens C7 series
SupplySiemens C7 series Touchscreen Protective Film
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, T/T ,Credit Card, Western Union
Download
Update Time2026-01-30 20:23:58
Leading Time{{selectedConditionObj.leading}}
{{item.value}}
{{nameObj.name}}{{nameObj.selectedValue}}
{{valueObj.name}}

Shipping

Free Shipping

Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.

Detail Information

6ES7635-2EB01-0AE3 Siemens SIMATIC HMI C7-635 Touchscreen Protective Film LCD Plastic Shell Metal Back Cover

Order each part separately is available

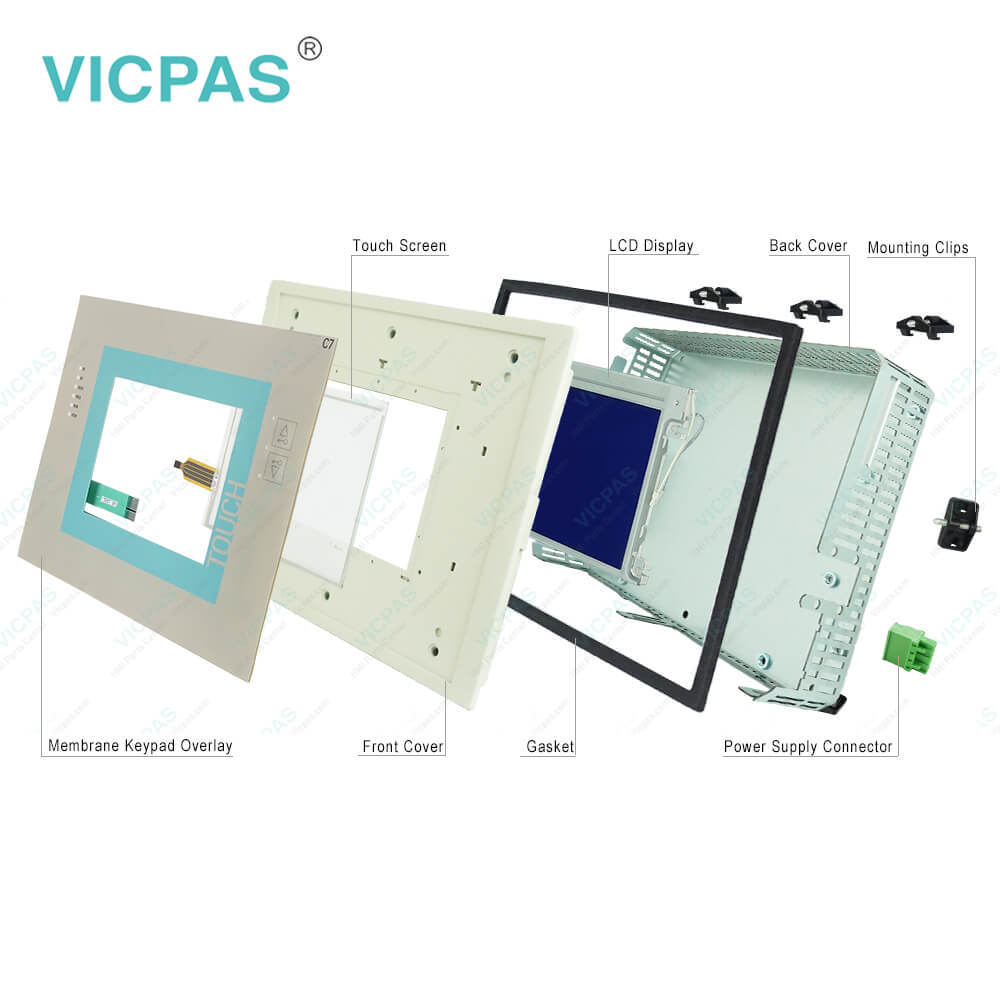

6ES7635-2EB01-0AE3 Siemens SIMATIC HMI C7-635 Touchscreen, Front Overlay, Membrane Keyboard, LCD Display, Plastic Shell, Gasket, Mounting Clips, Metal Back Cover and Power Supply Connector Repair Replacement

6ES7635-2EB01-0AE3 SIMATIC C7-635 Touch, Complete unit with integrated components: S7-300 CPU314C-2 DP and TP170B, 24 DI, 16 DO, 5 AI, 2 AO; Micro Memory Card and connector set required


The SIMATIC C7-635 consists of the following components:
• SIMATIC S7 314C-2 DP CPU
• SIMATIC touch panel TP170 B or operator panel OP170 B

The 6ES7635-2EB01-0AE3 touch panel and the operator panel of the C7-635 are based on the standard Windows CE operating system. You can visually display operating modes, current process values, and faults. You can also make entries on the C7-635. Simple machine diagnostic functions are also possible.

You can also incorporate your own graphics, digital pictures, and scanned images into your project. Moreover, you can represent elements such as temperature variations graphically using bar graphs and diagrams.

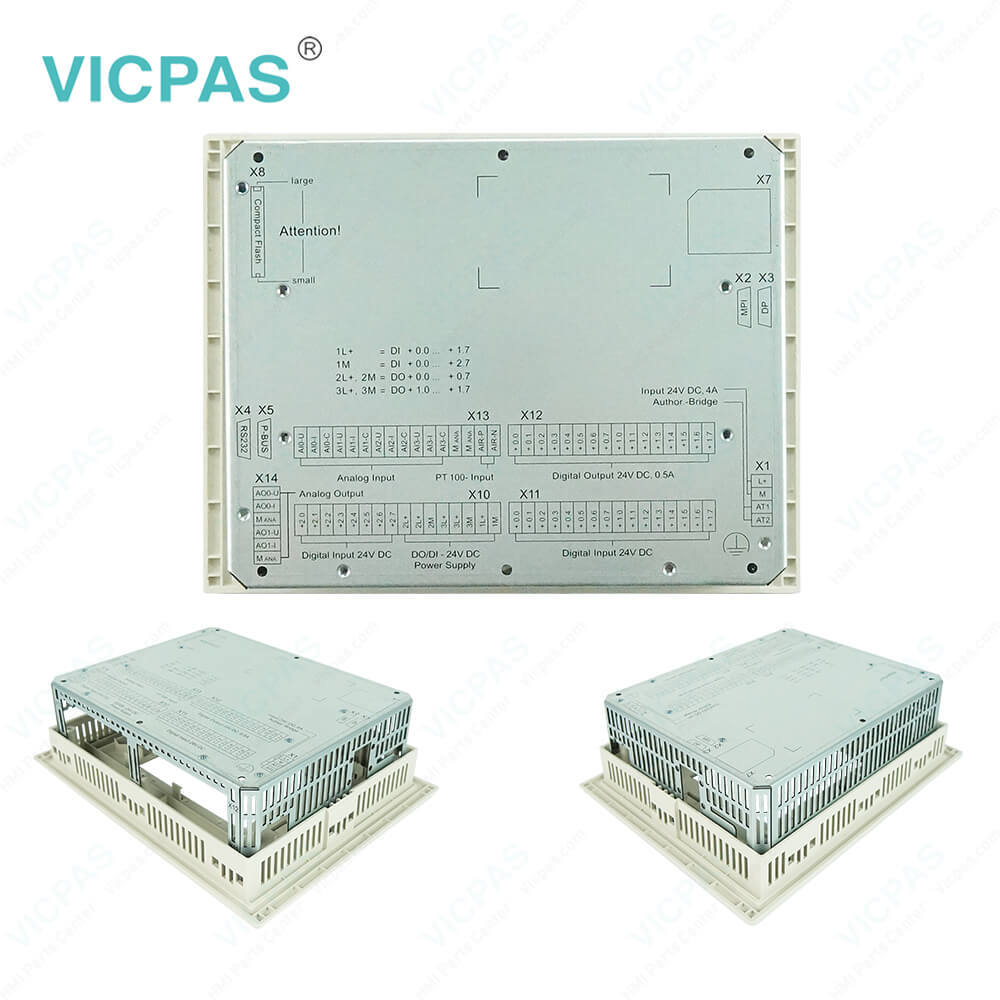

Kernfix supply 6ES7635-2EB01-0AE3 Siemens C7 635 touch panel, LCD display, Plastic Housing, membrane switch, Mounting Clips, Gasket, Metal Back Cover and Power Supply Connector with 365 days warranty and support Urgent Worldwide Shipping.






  Contact Best Price

Specifications:

Part Number:6ES7635-2EB01-0AE3
Firmware version:V2.0.12
Programming:STEP 7 V5.2 + SP1
Warranty:6-Months Warranty
Product Line:Siemens c7-635
Rated value (DC):24 V
Number of digital outputs:16
Design as touch screen:YES
Keyboard fonts:US English
Interface type:Integrated RS 485 interface


Related BB Teach Pendant Part No. :

6ES7635-2EB01-0AE3Description Inventory status
6ES7635-2EC00-0AE3SIMATIC C7-635 KEYSIn Stock
6ES7635-2EC01-0AE3SIMATIC C7-635 KEYSIn Stock
6ES7635-2EC02-0AE3SIMATIC C7-635 KEYSAvailable Now
6ES7635-2SE00-0AE3SIMATIC C7-635 KEYSIn Stock
6AG1635-2EC02-4AE3SIPLUS C7-635 KEYIn Stock
6AG1635-2SB02-4AC0SIPLUS C7-635 KEY GEA LS2Available Now
6AG1935-2SB00-4AC0SIPLUS C7-635 KEY GEAIn Stock
6ES7635-2EB00-0AE3SIMATIC C7-635 TOUCHAvailable Now
6ES7635-2EB01-0AE3SIMATIC C7-635 TOUCHIn Stock
6ES7635-2EB02-0AE3SIMATIC C7-635 TOUCHAvailable Now
6ES7635-3SE00-0AE3SIMATIC C7-635 TOUCHIn Stock

6ES7635-2EB01-0AE3 C7-635 Touch Screen Membrane Switch Shell PDF Download:

  • Simatic C7 Series
  • 6ES7635-2EB01-0AE3 SIMATIC HMI c7-635 datasheet pdf
  • Siemens Simatic KP1500 series HMI touchpanel manual

    • FAQ:

    Question: What should we know when programing??

    Answer: You program the C7-635 Touch with STEP 7 as of V 5.2 + Service Pack 1 +Hardware Update C7-635 Touch V2.0.You program the C7-635 Key with STEP 7 as of V 5.2 + Service Pack 1 +Hardware Update C7-635 Key V2.0.

    Question: How to install 6ES7635-2EB01-0AE3 Simatic c7-635 ?

    Answer: 1.C7-635 Touch:Make a cutout in the control cabinet door(dimensions 231+1.0 x 183+1.0 mm).C7-635 Key:Make a cutout in the control cabinet door(dimensions 231+1.0 x 257+1.0 mm).2.Ensure that no Compact Flash Card (CF Card) is inserted into the C7-635.The CF Card protrudes from the C7-635 and could be damaged when thedevice is installed.3.Place the C7-635 in the prepared cutout in the control cabinet door. Ensurethat the gasket is applied evenly to the metal plate.4.Guide the fastening hooks of the provided mounting supports (for theC7-635 Touch, 8 mounting supports; for the C7-635 Key, 10 mountingsupports) into the intended recesses in the C7-635 housing. Figure 3-2provides an example of the mechanical fastening of the C7-635 Touch.5.Using a screwdriver, tighten the C7-635 evenly and crosswise from behindin the control cabinet door until the front panel of the C7-635 rests on thecontrol cabinet door. Situate the device so that there is even spacing onall sides between the housing and the cutout section

    Question: What is the 6ES7635-2EB01-0AE3 Siemens C7-635 mebrane switch and shell HMI parts price?

    Answer: Submit a fast quote, send Kernfix an email for best price.


    Common misspellings:

    6S7635-2EB01-0AE3

    6E7635-2EB01-0AE3

    6ES635-2EB01-0AE3

    6ES735-2EB01-0AE3
