6AG1607-1JC20-4AX1 6AG1607-1JC20-4AX2 OP7 Keypad Case

6AG1607-1JC20-4AX1 6AG1607-1JC20-4AX2 OP7 Keypad Case
6AG1607-1JC20-4AX1 6AG1607-1JC20-4AX2 OP7 Keypad Case6AG1607-1JC20-4AX1 6AG1607-1JC20-4AX2 OP7 Keypad Case6AG1607-1JC20-4AX1 6AG1607-1JC20-4AX2 OP7 Keypad Case6AG1607-1JC20-4AX1 6AG1607-1JC20-4AX2 OP7 Keypad Case6AG1607-1JC20-4AX1 6AG1607-1JC20-4AX2 OP7 Keypad Case
BrandSiemens Simatic OP7
Model6AG1607-1JC20-4AX2
Warranty180 Days
Supply partsMembrane Keypad and protective plastic Case
Shipping2-4 workdays
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, T/T ,Credit Card, Western Union
Download
Update Time2026-01-30 20:26:13
Leading Time{{selectedConditionObj.leading}}
{{item.value}}
{{nameObj.name}}{{nameObj.selectedValue}}
{{valueObj.name}}

Shipping

Free Shipping

Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.

Detail Information

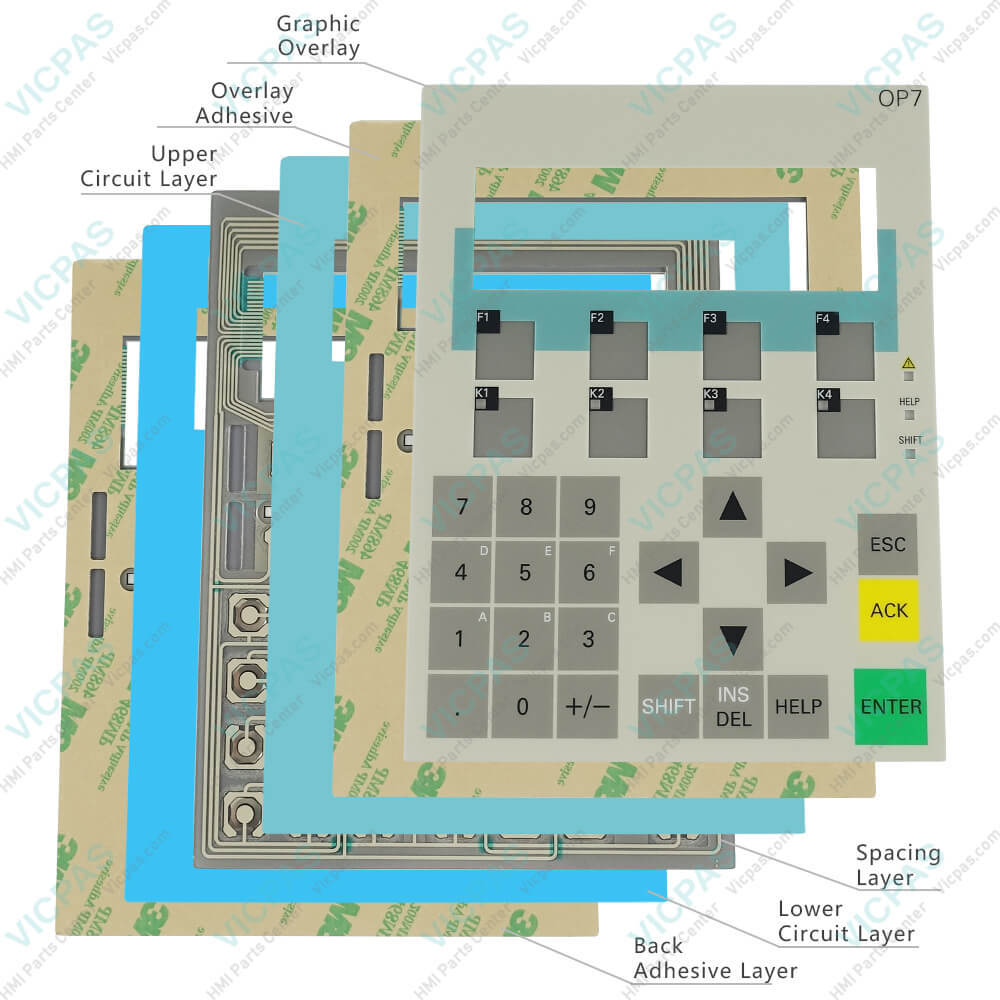

Siemens 6AG1607-1JC20-4AX1 6AG1607-1JC20-4AX2 SIPLUS HMI OP7/DP Keypad Case Membrane Keyboard Keypad Switch, Power Supply Connector, Case Gasket, Mounting Clips, Cable and Plastic Case

Order each part separately is available

Siemens 6AG1607-1JC20-4AX1 6AG1607-1JC20-4AX2 SIPLUS HMI OP7/DP Keypad Membrane Keyboard Keypad Switch, Power Supply Connector, Mounting Clips, Case Gasket, Cable and Plastic Case Replacement

This 6AG1607-1JC20-4AX1 6AG1607-1JC20-4AX2 OP7 Keypad Case operator panel Membrane Keypad, Case Gasket, Mounting Clips, Power Supply Connector, Cable and protective shell case are brand news and support 180 days Kernfix warranties. The Keypad has 23 system keys, 8 freely-configurable and freely-inscribable function keys (4 with LEDs), displays numeric and alphanumeric input facilities. The ratio of this plastic shell to the OP77B Siemens case is 1:1, identical and 100% compatible.


The Siemens Simatic OP7 Operator panel help text consists of configurable additional information and operator instructions relating to event messages, alarm messages and screens. If for example, an alarm message arises, this enables additional information on how to eliminate faults to be displayed. Help text can also be displayed by pressing a key if required when the HELP LED is on.


The 6AG1607-1JC20-4AX1 Siemens op7 display type is lines black/white LCD display, and has 4 lines keys with 20 characters per line function keys. The mtbf backlighting is about 1000000 hours at 25 °C. The supply voltage is 24 V DC and the input current with 0.19 A.





  Contact Best Price

Specifications:



Related BB Teach Pendant Part No. :

6AG1607-1JC20-4AX2Description Inventory status
6AG1607-1JC20-4AX1SIPLUS HMI OP7/DP Keyboard and CaseIn Stock
6AG1607-1JC20-4AX2SIPLUS HMI OP7/DP switch and shellIn Stock
6AG1607-1JC30-4AX1SIPLUS HMI OP7 switch and shellAvailable Now
6AG1607-1JC30-4AX2SIPLUS HMI OP7 Keyboard and CaseIn Stock
6AV3607-1JC00-0AX0OP7/PP OPERATOR PANEL keypad caseAvailable Now
6AV3607-1JC00-0AX1OP7/PP OPERATOR PANEL keyboard caseIn Stock
6AV3607-1JC00-0AX2OP7/PP OPERATOR PANEL switch caseIn Stock
6AV3607-1JC20-0AX0OPERATOR PANEL OP7/DP keypad shellIn Stock
6AV3607-1JC20-0AX1OPERATOR PANEL OP7/DP keyboard shellIn Stock
6AV3607-1JC20-0AX2OP7/DP OPERATOR PANEL switch shellIn Stock
6AV3607-1JC30-0AX0Siemens Operator Panel OP7/DP12 Keyboard and CaseIn Stock
6AV3607-1JC30-0AX1Siemens OP7/DP12 OPERATOR PANEL Keypad CaseIn Stock
6AV3607-1JC30-0AX2OPERATOR PANEL OP7/DP12 Keyboard ShellAvailable Now
6AV3607-5AA00-0AC0Simenes OP7 PP Keypad and CaseIn Stock
6AV3607-5BA00-0AK0Simatic OP7 DP Keyboard and CaseAvailable Now
6AV3607-5BB00-0AE0Simenes OP7 DP Keypad and CaseIn Stock
6AV3607-5BB00-0AF0Simatic OP7 DP Keypad and CaseAvailable Now
6AV3607-5BB00-0AG0Simenes OP7 DP switch and shellIn Stock
6AV3607-5BB00-0AH0Simatic OP7 DP switch and shellIn Stock
6AV3607-5BB00-0AL0Simenes OP7 DP Keyboard and CaseIn Stock
6AV3607-5CA00-0AD0Simatic OP7 DP12 switch and shellAvailable Now

6AG1607-1JC20-4AX1 6AG1607-1JC20-4AX2 OP7 Keypad Case PDF Download:

  • HMI device OP 73, OP 77A, OP 77B Operating Instructions
  • Siemens Simatic OP7 user manual
  • Siemens SIMATIC HMI OP7, OP17 Operator Panel Equipment Manual
  • OP7, OP17 Operator Panel manual
  • ProTool-configure text based units user manual

    • FAQ:

    Question: How do I to transfer 6AG1607-1JC20-4AX1 6AG1607-1JC20-4AX2 SIPLUS HMI OP7/DP with mode or back up project?

    Answer: When you use the buttons ESC + Cursor Right + Cursor Down and at the same time switch on the Power, you will go to Transfer mode, but also delete the project on panelWhen you use the buttons ESC + Cursor UP and at the same time switch on the power, you will go to Transfer mode and the project will stay on the panel.So you can use Prosave software to back up Siemens OP7 project. Please have a look in manual: OP7, OP17 Operator PanelSee chapter 3.1 (page 3-5)

    Question: How to Backup and restore a program on 6AG1607-1JC20-4AX2 SIPLUS HMI OP7/DP Operator Panel?

    Answer: At first must connect to the OP directly. Then follow the instructions of Siemens technical support: Siemens Simatic OP7 Backup

    Question: How to configure text based units?

    Answer: Download the PDf User manual: ProTool-configure text based units user manual

    Question: What is the 6AG1607-1JC20-4AX1 6AG1607-1JC20-4AX2 SIPLUS HMI OP7/DP price of membrane keypad with case(shell)?

    Answer: Submit a fast quote, send Kernfix an email for best price.
