| Brand | SIEMENS |
|---|---|
| Model | 6AV6545-6CA00-0BW0 |
| Warranty | 365 Days |
| Product Line | MP270 |
| Supply | Siemens MP270 HMI Touch Panel LCD Display |
| Terms of Payment | Western Union, MoneyGram, T/T, Paypal, PayPal, Credit Card |
| Download | |
| Update Time | 2026-02-06 14:11:57 |
Shipping
Free Shipping
Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.
6AV6545-6CA00-0BW0 Siemens HMI MP270 Touchscreen Panel Glass, LCD Display Panel, Housing, Case Gasket, LCD Gasket, Mounting Clips, Power Supply Connector, Screws, Cable and Overlay Repair Replacement
Order each part separately is available
6AV6545-6CA00-0BW0 SIMATIC MP270B 6" TOUCH MULTI PANEL5.7" TFT DISPLAY 4 MB CONFIGURING MEMORY, CONFIGURABLE WITH WINCC FLEXIBLE STANDARD V1.0 ORHIGHER
The MP270 enables operating statuses, current process values and errors concerning a connected PLC to be graphically displayed and the relevant machine or system to be easily monitored and operated. Display and operation of the MP270 can be adapted optimally for the respective process requirements by using the ProTool CS configuration software and, for example, extended by user-defined functions with the user's own scripts.

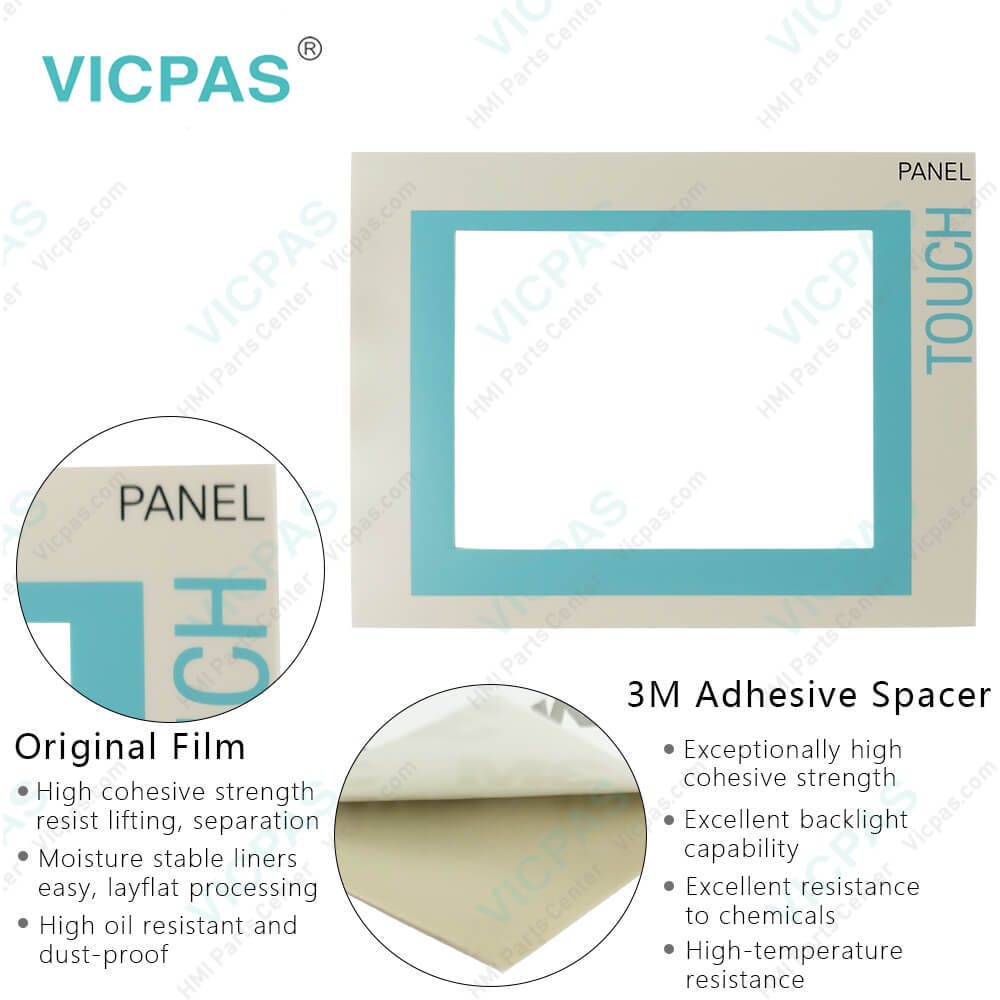

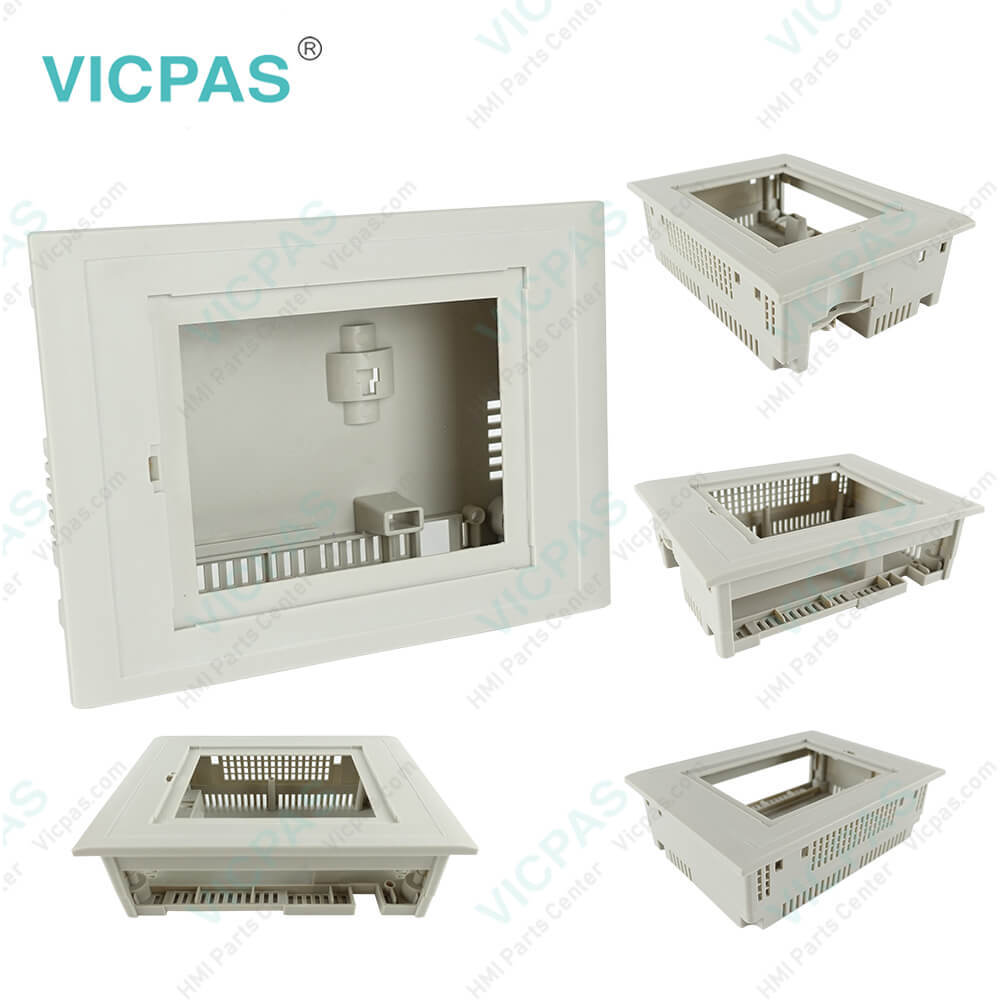

Kernfix supply 6AV6545-6CA00-0BW0 Siemens MP270 6" lcd screen, plastic enclosure, touch panel, Mounting Clips, Power Supply Connector, Screws, Cable, Case Gasket, LCD Gasket and overlay. All of them with Kernfix 365 days warranty and support Urgent Worldwide Shipping.
Specifications:
| Part Number: | 6AV6545-6CA00-0BW0 |
| Screen diagonal: | 5.7 in |
| Design of display: | TFT |
| Warranty: | 365 days Warranty |
| Product Line: | Siemens MP270 |
| Active power input, typ.: | 12 W |
| MTBF backlighting (at 25 °C): | 50 000 h |
| Number of colors: | 65 536 |
| Mounting position: | vertical |
| Type of supply voltage: | DC |
Related BB Teach Pendant Part No. :
| 6AV6545-6CA00-0BW0 | Description | Inventory status |
| 6AV6545-0AH10-0AX0 | MP270 6 TFT TOUCH | In Stock |
| 6AV6545-0AH10-0AX1 | MP270 6 TFT TOUCH | In Stock |
| 6AV6545-6CA00-0BW0 | MP270 6 TFT TOUCH | In Stock |
12 Months PDF Download:
FAQ:
Question: Which software for Siemens MP270 programming software?
Answer: WinCC.WinCC (TIA Portal) is an engineering software for configuring SIMATIC Panels, SIMATIC Industrial PCs, and Standard PCs with the WinCC Runtime Advanced or the SCADA System.WinCC Runtime Professional visualization software.WinCC (TIA Portal) is available in four editions, depending on the configurable operator control.
Question: What is the size of Siemens MP270 6AV6545-6CA00-0BW0 touch panel??

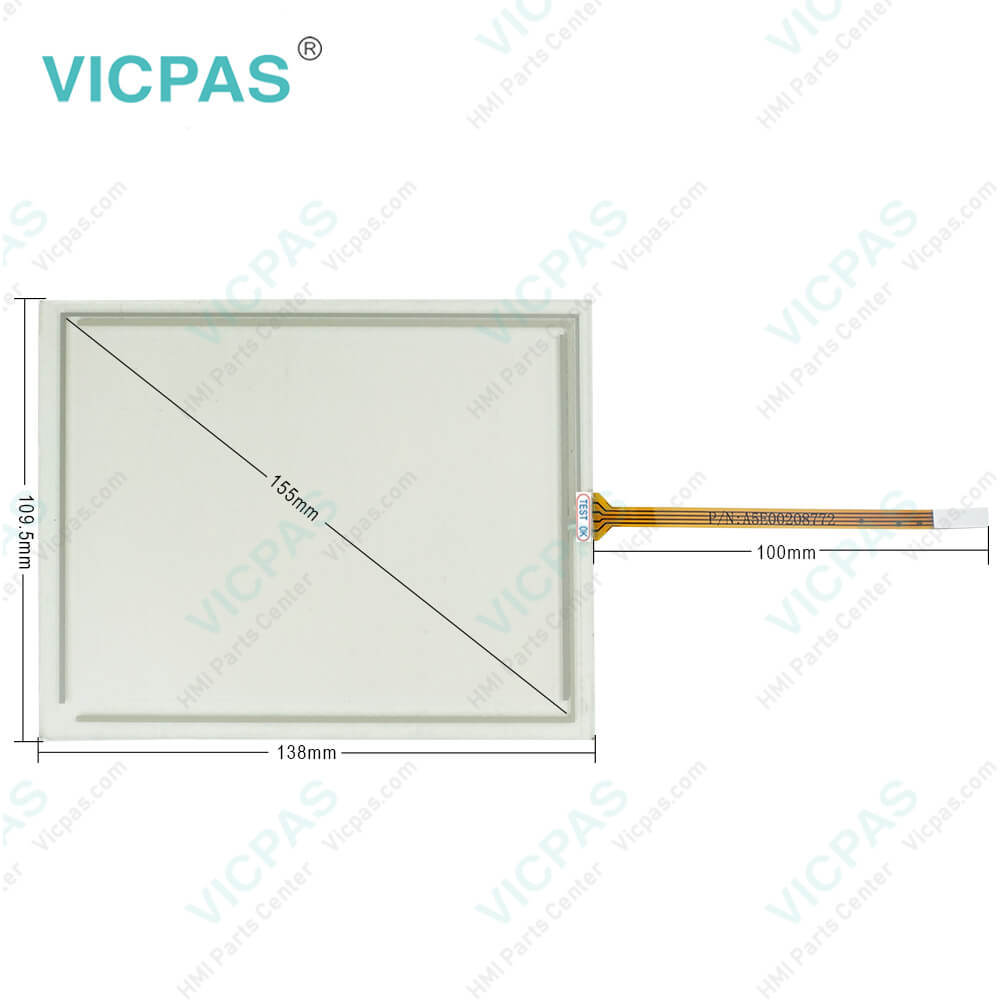

Answer: The Siemens MP270 TouchScreen is 5.7-inch.It is 138.1 millimeter long and 109.4 millimeters wide.
Question: What is the 6AV6545-6CA00-0BW0 Siemens MP270 HMI parts price?
Answer: Submit a fast quote, send Kernfix an email for best price.
Common misspellings:
6AV6545-6C00-0BW0
AV6545-6CA00-0BW0
6AV6545-6CA00-0B0W
6AV6545-6CA00-08W0
6AV65645-6CA00-0BW0
