Home / All / for Siemens / Simatic Multi Panel Series / 6AV6643-0CB01-1AX2 Siemen MP277 8 Touch Screen Overlay

6AV6643-0CB01-1AX2 Siemen MP277 8 Touch Screen Overlay

6AV6643-0CB01-1AX2 Siemen MP277 8 Touch Screen Overlay
6AV6643-0CB01-1AX2 Siemen MP277 8 Touch Screen Overlay6AV6643-0CB01-1AX2 Siemen MP277 8 Touch Screen Overlay6AV6643-0CB01-1AX2 Siemen MP277 8 Touch Screen Overlay6AV6643-0CB01-1AX2 Siemen MP277 8 Touch Screen Overlay6AV6643-0CB01-1AX2 Siemen MP277 8 Touch Screen Overlay
BrandSIEMENS
Model6AV6643-0CB01-1AX2
Warranty365 Days
Product LineMP 277 8
SupplySiemens MP277 8 HMI Touch Panel Protective Film
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Download
Update Time2026-01-30 20:32:50
Leading Time{{selectedConditionObj.leading}}
{{item.value}}
{{nameObj.name}}{{nameObj.selectedValue}}
{{valueObj.name}}

Shipping

Free Shipping

Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.

Detail Information

6AV6643-0CB01-1AX2 Siemens SIMATIC HMI Multi Panel MP277 8 Touchscreen Panel Glass Overlay LCD Display Plastic Case Repair Replacement

Order each part separately is available

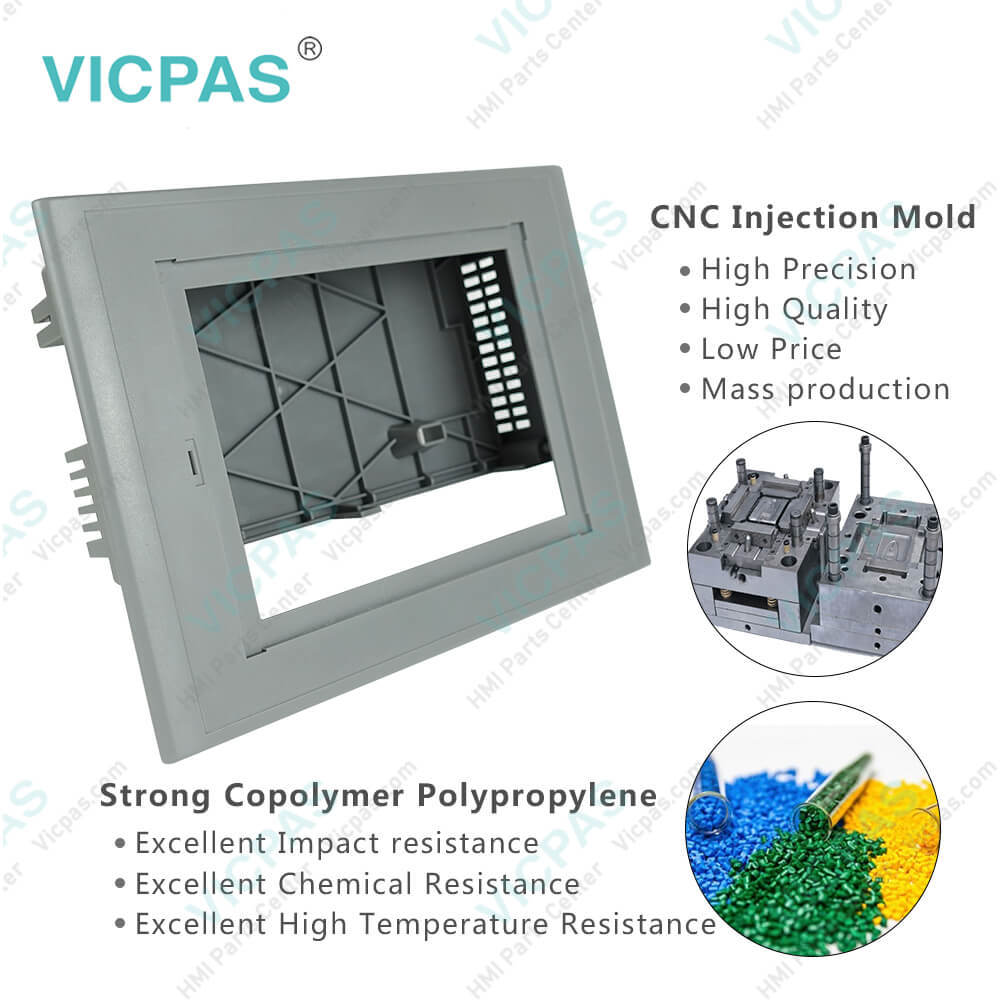

6AV6643-0CB01-1AX2 Siemens SIMATIC HMI Multi Panel MP277 8 Touchscreen Panel Glass and Overlay LCD Display Plastic Case, Power Supply Connector, Mounting Clips, Case Gasket, Screws, LCD Gasket, Cable Repair Replacement


The MP277-8 6AV6643-0CB01-1AX2 touch screen of the HMI device can be cleaned when it is switched on and a project is running. An operating element must be available in the project with which the clean screen can be called. Once the clean screen is activated, touch screen operation is locked for a configured period of time. The time the touch screen is locked can be set between 5 and 30 seconds. The time remaining for the lockout is indicated by a progress bar.


If the MP277-8 6AV6643-0CB01-1AX2 connection cable of the HMI device is disconnected from the connection box, the LEDs F2, F4, F6, F8 and F10 indicate the charge status of the bridging battery. The MP277-8 6AV6643-0CB01-1AX2 LED for function key F1 also lights up for max. 9.5 minutes. This duration applies to a 100% charge status. The duration reduces as the charge reduces. The LED F1 flashes for 30 seconds. The MP277-8 6AV6643-0CB01-1AX2 HMI device then switches off. Runtime is terminated.


The MP277-8 6AV6643-0CB01-1AX2 converter is required for the connection of controllers of other manufacturers. Connect the RS 422 to RS 232 converter to the RS 422 / RS 485 interface. The converter converts the input signals to RS-232 signals.


Kernfix supply 6AV6643-0CB01-1AX2 Siemens MP 277 8 touch panel, LCD Gasket, Power Supply Connector, Case Gasket, Mounting Clips, Screws, LCD Screen, Housing, Cable and overlay. All of them with Kernfix 365-day warranty and support Urgent Worldwide Shipping.






  Contact Best Price

Specifications:

Part Number:6AV6643-0CB01-1AX2
Screen diagonal:8.4 in
Design of display:TFT
Warranty:365 days Warranty
Product Line:Siemens MP277 8
Active power input, typ.:36 W
MTBF backlighting (at 25 °C):50 000 h
Number of colors:65 536
Mounting position:vertical
Type of supply voltage:DC


Related BB Teach Pendant Part No. :

6AV6643-0CB01-1AX2Description Inventory status
6AV6643-0CB01-1AX0MP277 8" TOUCHIn Stock
6AV6643-0CB01-1AX1SIMATIC MP 277 8" TOUCHAvailable Now
6AV6643-0CB01-1AX2SIMATIC MP 277 8" TOUCHIn Stock
6AV6643-0CB01-1AX5MP 277 8In Stock
6AV6643-5CB00-0ND1SIMATIC MP 277 8" Touch Multi PanelIn Stock
6AV6643-5CB10-0HW0SIMATIC MP 277 8″ TOUCH MULTI PANELAvailable Now
6AV6652-3MB01-0AA0SIMATIC Multi Panel MP277-8Available Now
6AV6652-3MC01-1AA0SIMATIC MP277-8Available Now

6AV6643-0CB01-1AX2 Siemen MP277 8 Touch Screen Overlay PDF Download:

  • Simatic Multi Panel
  • Siemens HMI MP277 8 6AV6643-0CB01-1AX2 Operating Instructions
  • Siemens Simatic MP277 Panel manual
  • Siemens Simatic MP277-8 Touch manual

    • FAQ:

    Question: How to set the MP277-8 6AV6643-0CB01-1AX2 device name of the HMI device?

    Answer: 1. Enter the device name for the HMI device in the "Device name" text box. 2. Enter a description for the HMI device in the "Device description" text box. 3. Confirm your entries. The dialog box and the screen keyboard are closed. The device name for the HMI device is now set.

    Question: What is the dimension of Siemens MP277 8 6AV6643-0CB01-1AX2 touch panel?

    Answer: The Siemens MP277 8 TouchScreen is 8.4-inch. It is 153.7 millimeter long and 115.8 millimeters wide.

    Question: How to setting the Siemens MP277-8 HMI 6AV6643-0CB01-1AX2's Date and Time?

    Answer: 1. Select the appropriate time zone for the HMI device in the "Time Zone" selection box.2. Touch the "Apply" button to confirm your entry.The time of day shown in the "Current Time" field is adjusted correspondingly to the selected time zone.3. Set the date in the selection box.4. Set the current time of day in the "Current Time" text box.5. If you want to switch from standard time to daylight saving time, select the "Daylight saving time currently in effect" check box.When you press the "Apply" button, the time is brought forward by one hour.6. If you want to switch from daylight saving time to standard time, deactivate the "Daylight saving time currently in effect" check box.When you press the "Apply" button, the time is brought back by one hour.7. Confirm your entries.The dialog box closes.The settings for the date and time of day have now been changed.

    Question: What is the 6AV6643-0CB01-1AX2 Siemens MP277-8 HMI parts price?

    Answer: Submit a fast quote, send Kernfix an email for best price.


    Common misspellings:

    6AV6643-OCB01-1AX2

    6AV6643-0CB0l-1AX2

    6AV6643-0CBO1-1AX2

    6AV6643-0CB01-lAX2
