6AV6545-4BA16-0CX0 SIMATIC MOBILE PANEL 170 WITH INTEGRATED ENABLING BUTTON CONFIGURABLE W.PROTOOL/LITE VERSION V6.0+SP2 AND HIGHER

The second generation of SIMATIC HMI Mobile Panels impresses with its convenience, performance and quality. The highlights: A brilliant widescreen display, particularly simple configuration and the unique illuminated emergency stop button. This series of devices offers panels with 7", 9" and 10" displays, some of which are available with or without safety-related operator controls. The Mobile Panels of the 2nd Generation are the successors of the SIMATIC HMI Mobile Panels x77 with cable connections.

The Mobile Panels of the 2nd generation have the same aspect ratio and resolution as the Comfort Panels. With the WinCC engineering software of the TIA Portal, operating screens are easily configured both for stationary as well as mobile applications – or adopted with the push of a button. For TIA Portal configuration, users simply need to select the new Mobile Panel. The configuration can then be expanded with specific functions for mobile utilization. The new style editor offers an additional advantage, allowing you to simply integrate your corporate design with the control unit for central management

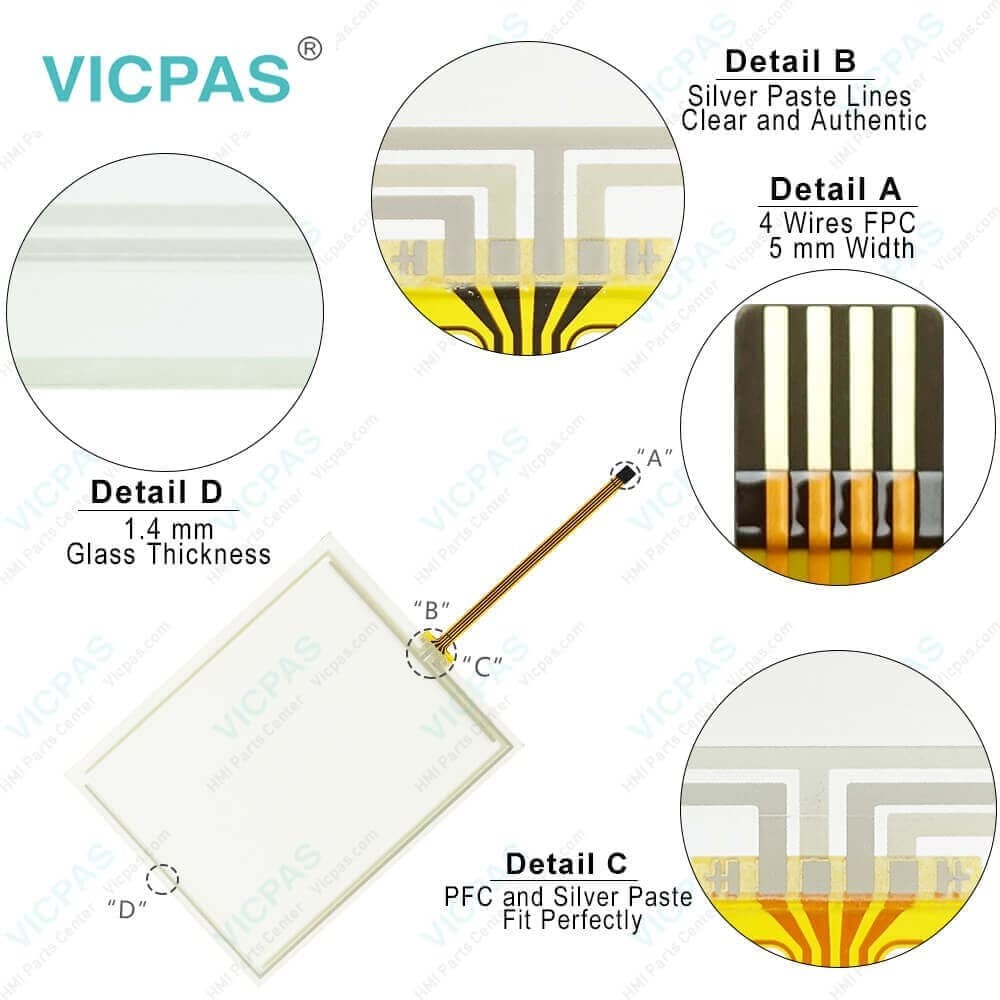

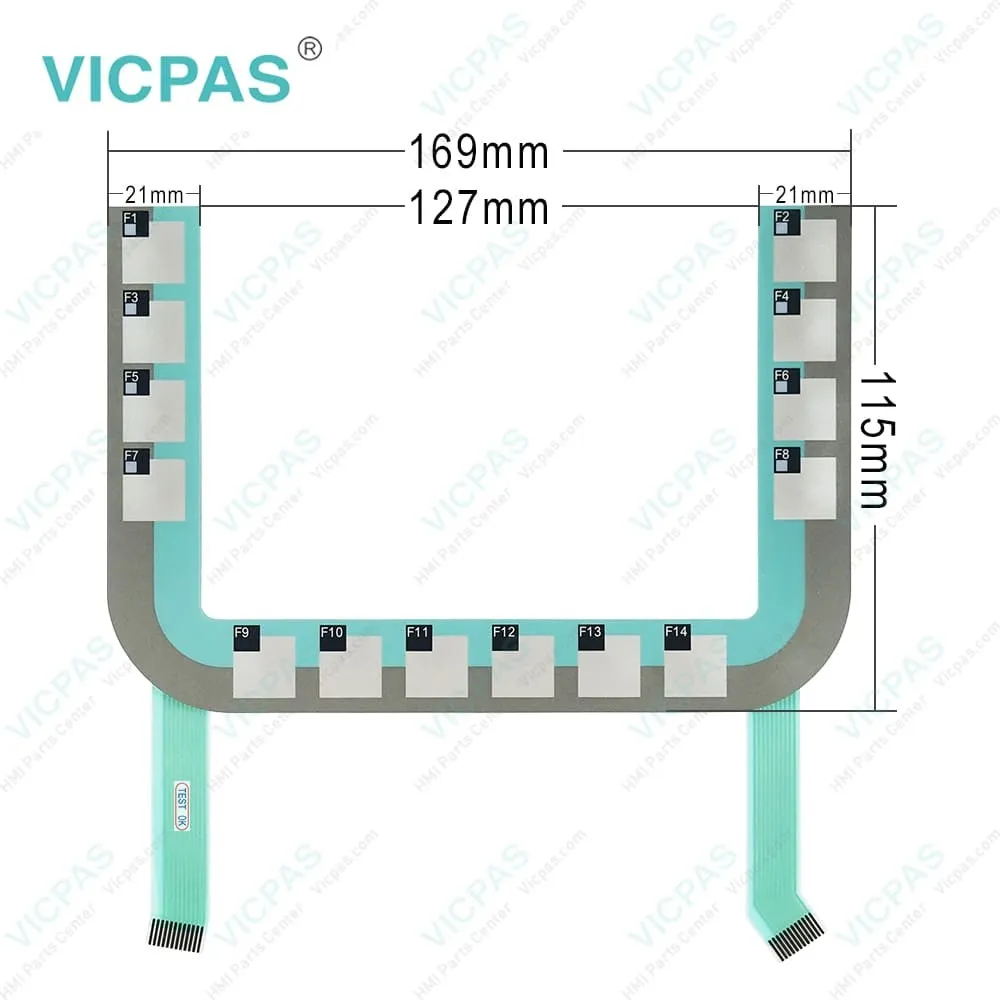

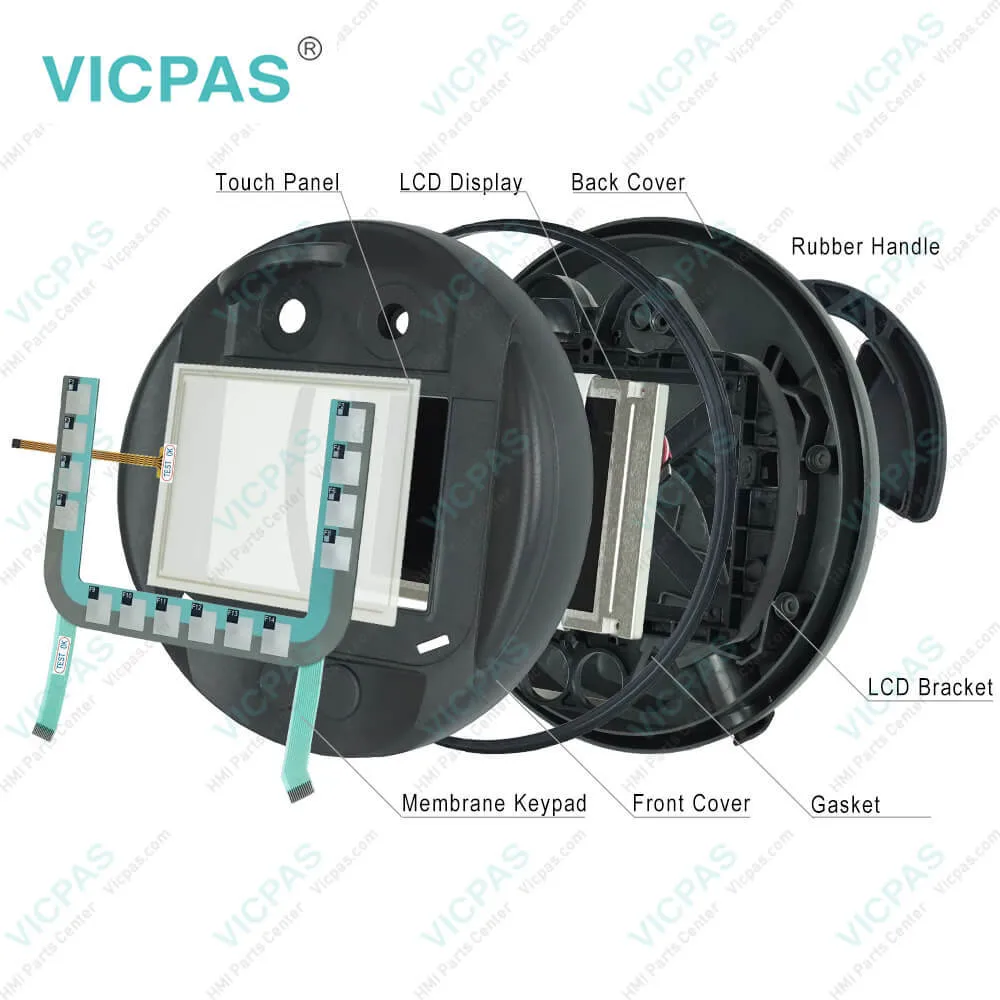

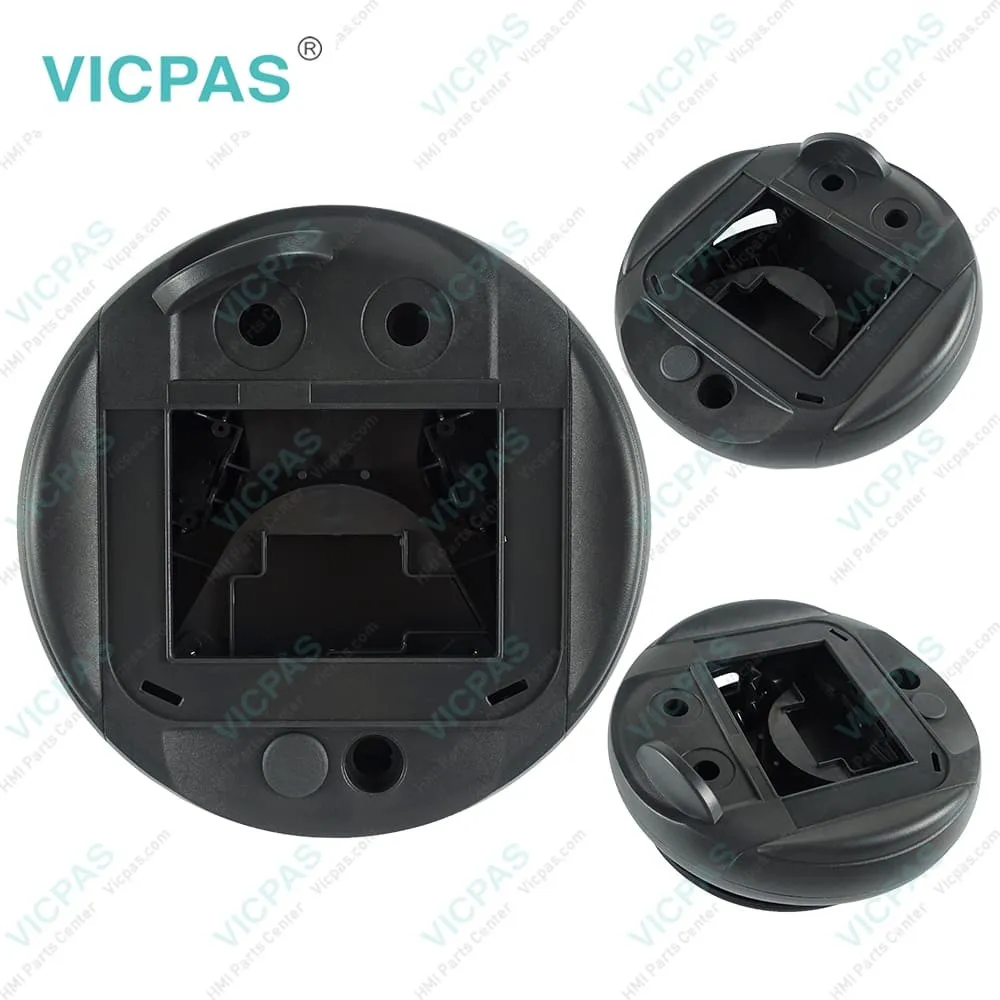

Kernfix supply 6AV6545-4BA16-0CX0 Siemens Mobile Panel 170 Plastic Shell, Membrane Switch, touch panel, Case Gasket, Rubber Handle, Screws, Touchscreen Gasket, Cable, LCD Bracket, Label, Pushbutton With Integrated LED, Knob, Pushbutton Contact, Acknowledgement Button Covers, Stop Button, Key-Operated Switch Contact, Key-Operated Switch, Stop Button Contact and LCD display. All of them with Kernfix 365-day warranty and support Urgent Worldwide Shipping.
