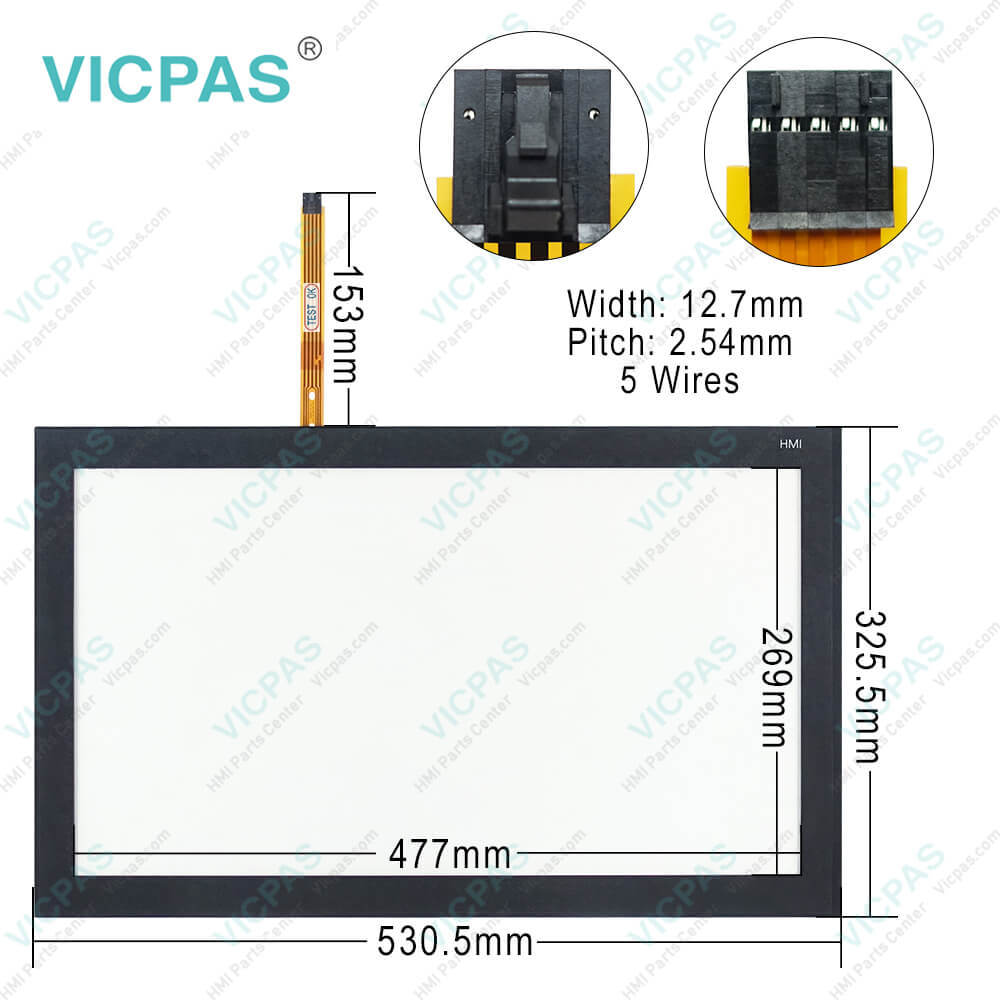

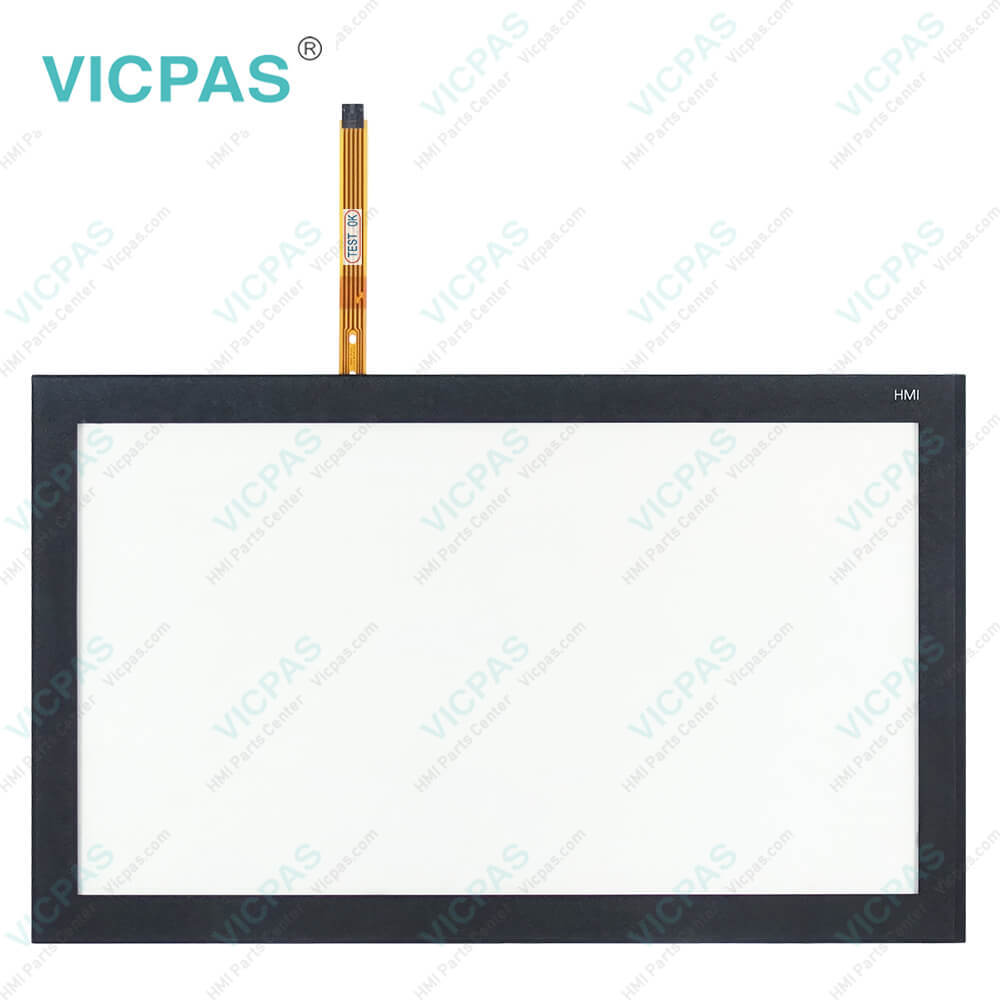

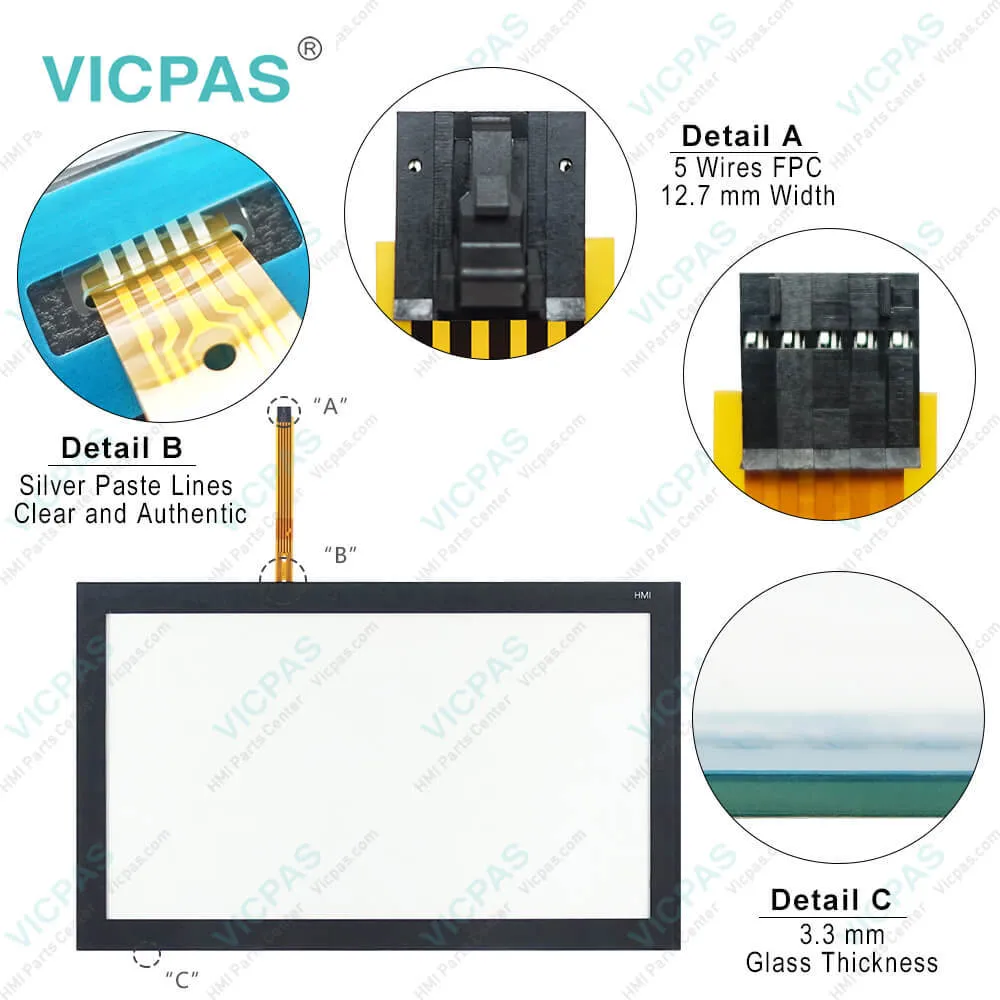

6AV7231-0FC21-2BA0 Simatic IPC377G 22'' Overlay Touch

Order each part separately is available

The degrees of protection of 6AV7 231-0FC21-2BA0 Touchscreen Protective Film Siemens SIMATIC HMI IPC377G 22 can only be guaranteed if the following requirements are met:
● In order to achieve IP65 protection degree or NEMA type4X/type12, the material thickness for the mounting cutout should be: 2 mm to 6 mm
● Permissible deviation from plane at the mounting cutout: ≤ 0.5 mm This condition must be fulfilled for the mounted device
● Permissible surface roughness in the area of the seal: ≤ 120 µm (Rz 120)

The 6AV72310FC212BA0 Touch Screen Glass Protective Foil Siemens SIMATIC HMI IPC377G 22 has been designed for use in a normal industrial environment in accordance with IEC 60721-3-3 (pollutant class 3C2 for chemical influences, 3S2 for sand and dust). You can also fasten the 6AV7 231-0FC21-2BA0 Touch Screen Digitizer Protective Film Siemens SIMATIC HMI IPC377G 22 using a VESA (Video Electronics Standards Association) adapter. Different models of VESA adapters are offered by third-party manufacturers. The 6AV7231-0FC21-2BA0 Resistive touch screen Protective Foil Siemens SIMATIC HMI IPC377G 22 is VESA compliant and can be mounted on all kinds of applications utilizing the standard VESA100 mounting interfaces. Fasten the VESA adapter with the designated screws (M4).
