6AG1643-0AA01-4AX0 Siemens Touch Panel TP277 Touchscreen
| Brand | SIEMENS |
|---|---|
| Model | 6AG1643-0AA01-4AX0 |
| Warranty | 365 Days |
| Product Line | TP277 |
| Supply | Siemens TP277 HMI Touch Panel and Protecitve film |
| FOB port | Guangzhou, Shenzhen, Hongkong |
| Terms of Payment | Western Union, MoneyGram, T/T, Paypal, PayPal, Credit Card |
| Download | |
| Update Time | 2026-01-30 20:43:35 |
Shipping
Free Shipping
Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.

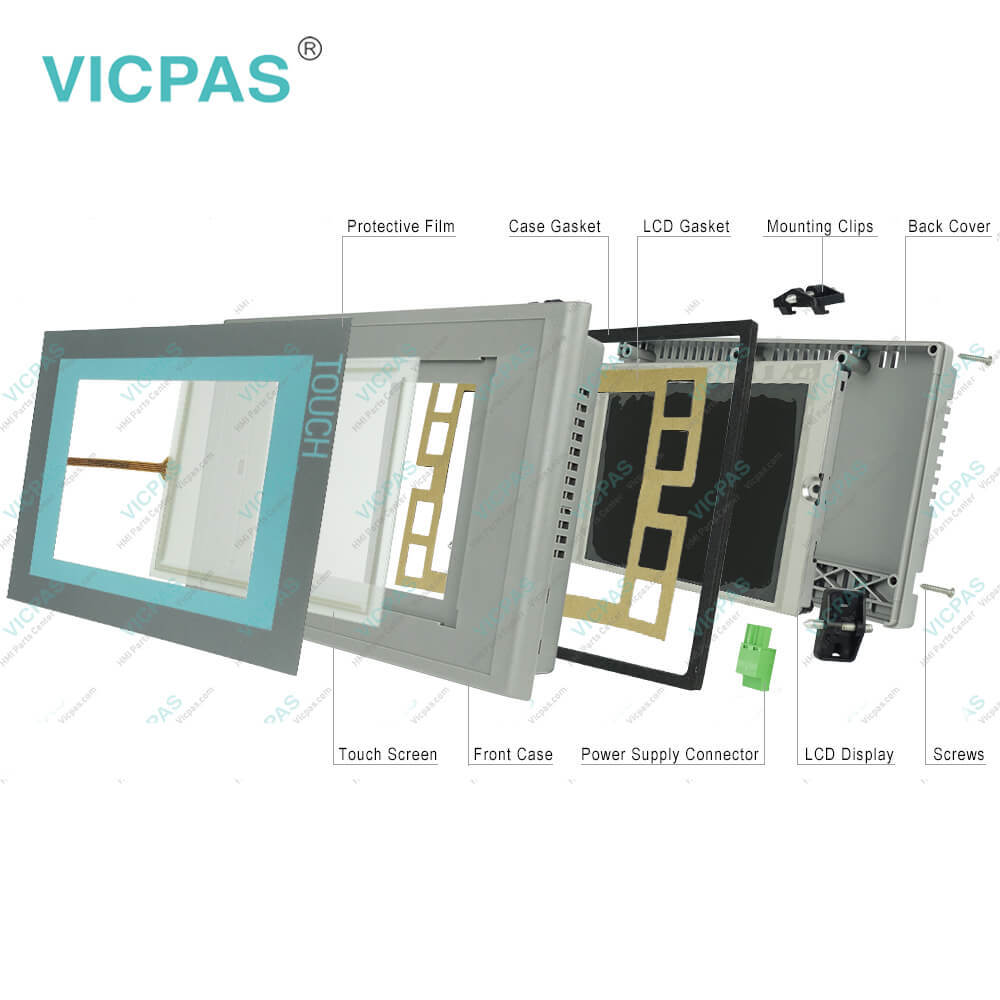

6AG1643-0AA01-4AX0 Siemens SIMATIC HMI TP277 6 Touch Screen Panel, Overlay, Case Gasket, LCD Gasket, Power Supply Connector, Plastic Cover Body, Mounting Clips, Screws, Cable and LCD Display Repair Replacement
Order each part separately is available
6AG1643-0AA01-4AX0 SIPLUS HMI TP 277 6"Touch for medial exposure based on 6AV6643-0AA01-1AX0
The HMI devices TP 277 and OP 277 represent a further stage of development of the HMI devices TP 270-6 and OP 270-6.
The HMI devices are based on the standard operating system Microsoft Windows CE.Compared with the Multi Panel MP 277, the TP 277 and the OP 277 offer an inexpensive scale option. The mounting options and the functional scope of the TP 277 and OP 277 are compatible with the HMI devices in the 270 series.
The TP 277 and OP 277 also have the following features:
• The HMI devices can be operated on PROFINET via the Ethernet port.
• The HMI devices feature a TFT screen with 256 colors.
• The use of projects with scripts and logs is supported.
Kernfix supply 6AG1643-0AA01-4AX0 Siemens TP277 touch panel, Overlay, Plastic Shell, Power Supply Connector, Case Gasket, LCD Gasket, Mounting Clips, Screws, Cable and LCD display. All of them with Kernfix 365 days warranty and support Urgent Worldwide Shipping.
Specifications:
| Part Number: | 6AG1643-0AA01-4AX0 |
| Size: | 5.7 inch; |
| Display: | TFT |
| Warranty: | 365 days Warranty |
| Product Line: | Siemens TP277 |
| Resolution: | 320 x 240; |
| Number of colors: | 256 |
| Control elements: | Touch screen |
| MTBF: | 60 000 h |
| PLC Connection: | SIMATIC S7-200 |
Related BB Teach Pendant Part No. :
| 6AG1643-0AA01-4AX0 | Description | Inventory status |
| 6AV6643-0AA01-1AX1 | TP277 6 | In Stock |
| 6AG1643-0AA01-4AX0 | SIPLUS TP277 6 TOUCH | In Stock |
| 6AV6643-0AA01-1AX0 | SIMATIC TP 277 6" | In Stock |
6AG1643-0AA01-4AX0 Siemens Touch Panel TP277 Touchscreen PDF Download:
FAQ:
Question: What is the dimension of the Siemens TP277 Touchscrenn?
Answer: The touchscreen of 6AG1643-0AA01-4AX0 SIMATIC TP277 is 5.7 inch,with 138.1 millimeter long and 109.4 millimeter wide
Question: How to backup and restore the Siemens SIMATIC TP277?
Answer: You can back up and restore the following data found in the internal flash memory of the HMIdevice with a PC:br/>• Project and HMI device image• Password listbr/>• Recipe databr/>Use one of the following tools for backup and restore:br/>• WinCC flexiblebr/>• ProSave
Question: What is the 6AG1643-0AA01-4AX0 Siemens TP277 HMI parts price?
Answer: Submit a fast quote, send Kernfix an email for best price.
