6AG1642-0BA01-4AX0 Siemens SIMATIC HMI TP177B Touch Panel

6AG1642-0BA01-4AX0 Siemens SIMATIC HMI TP177B Touch Panel
6AG1642-0BA01-4AX0 Siemens SIMATIC HMI TP177B Touch Panel6AG1642-0BA01-4AX0 Siemens SIMATIC HMI TP177B Touch Panel6AG1642-0BA01-4AX0 Siemens SIMATIC HMI TP177B Touch Panel6AG1642-0BA01-4AX0 Siemens SIMATIC HMI TP177B Touch Panel6AG1642-0BA01-4AX0 Siemens SIMATIC HMI TP177B Touch Panel
BrandSIEMENS
Model6AG1642-0BA01-4AX0
Warranty365 Days
Product LineSIPLUS HMI TP177B color PN/DP
SupplySiemens TP177 HMI Touch Panel and Protecitve film
Partstouchscreen, protective film, lcd display, plastic case housing
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Download
Update Time2026-01-30 20:44:03
Leading Time{{selectedConditionObj.leading}}
{{item.value}}
{{nameObj.name}}{{nameObj.selectedValue}}
{{valueObj.name}}

Shipping

Free Shipping

Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.

Detail Information

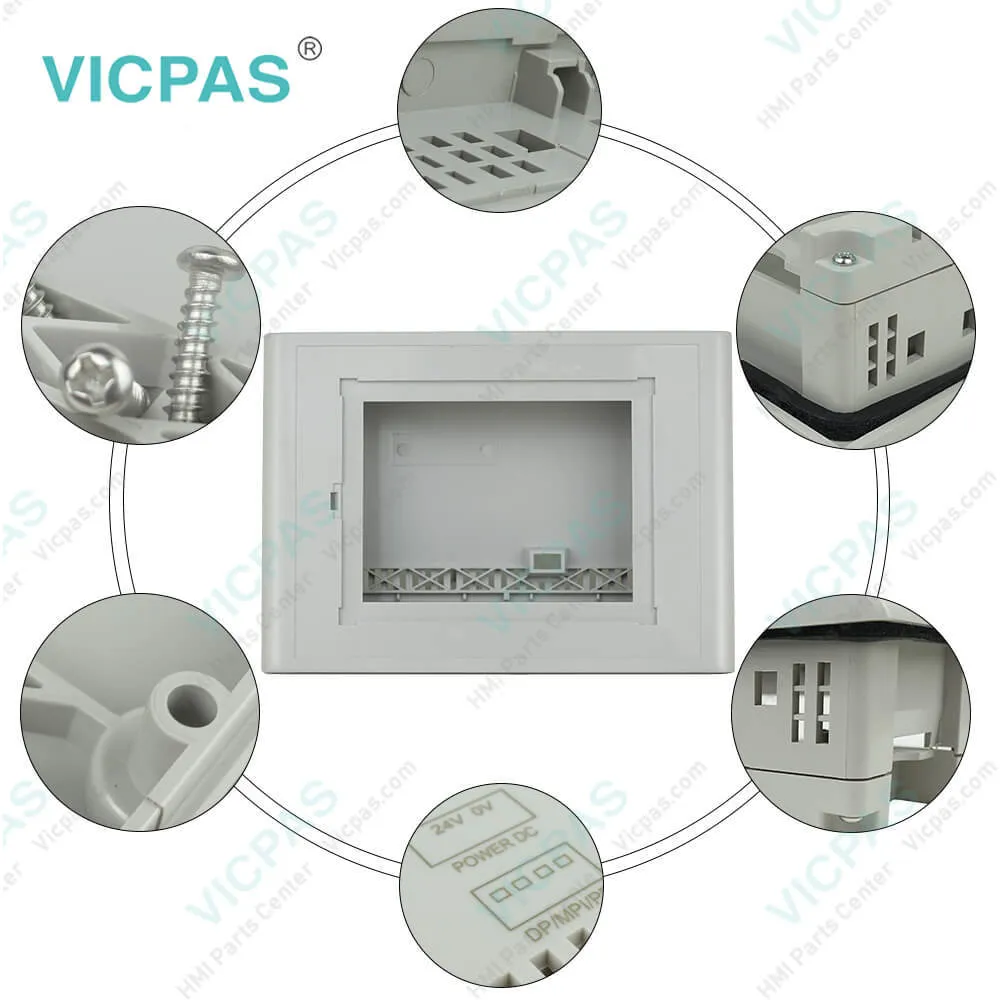

6AG1642-0BA01-4AX0 Siemens SIPLUS HMI TP177B color PN/DP Touch Screen Panel, Overlay, LCD Bracket, Mounting Clips, Power Supply Connector, LCD Gasket, Case Gasket, Plastic Cover, Screws, Cable and LCD Display Repair Replacement

Order each part separately is available

6AG1642-0BA01-4AX0 Siemens SIPLUS HMI TP177B color PN/DP Touch Screen Panel, Overlay, Plastic Shell, Power Supply Connector, Case Gasket, LCD Gasket, Mounting Clips, LCD Bracket, Screws, Cable and LCD Display Repair Replacement


6AG1642-0BA01-4AX0 SIPLUS HMI SIPLUS HMI TP177B color PN/DP for medial exposure based on 6AV6642-0BA01-1AX0


The 177 series of panels represents a further advance in the development of the well-known 170 HMI devices. The new TP 177A, TP 177B and OP 177B panels make for more efficient use of text or graphic-based projects for simple to medium-level HMI operating and monitoring tasks in machines and plants. Projects with Asian and Cyrillic character sets can be configured, as usual. The ability to vertically mount the TP 177A and the non-volatile alarm buffer of the TP 177B offer new application possibilities. In addition, the TP 177B and OP 177B – depending on the models – provide interfaces for connecting to PROFIBUS andPROFINET.


The TP 177A, TP 177B and OP 177B panels offer quick commissioning times, large user memory and high performance, and they are optimized for projects based on WinCC flexible.


Kernfix supply 6AG1642-0BA01-4AX0 Siemens SIPLUS HMI TP177B color PN/DP touch panel, Overlay, Case Gasket, Enclosure, LCD Gasket, Mounting Clips, LCD Bracket, Power Supply Connector, Screws, Cable and LCD display. All of them with Kernfix 365 days warranty and support Urgent Worldwide Shipping.






  Contact Best Price

Specifications:

Part Number:6AG1642-0BA01-4AX0
Size:5.7 inch;
Display:STN
Warranty:365 days Warranty
Product Line:Siemens TP177
Resolution:320 x 240;
Number of colors:256
Control elements:Touch screen
MTBF:30 000 h
PLC Connection:SIMATIC S7-200


Related BB Teach Pendant Part No. :

6AG1642-0BA01-4AX0Description Inventory status
6AV6640-0CA11-0AX1TOUCH PANEL TP177 MICROIn Stock
6AV6640-0CA11-0AX0TP177 MICROIn Stock
6AV6642-0AA11-0AX1TOUCH PANEL TP177A 6"In Stock
6AV6642-5BA10-0DU0SIPLUS HMI TP177B COLOR PN/DPIn Stock
6AV6642-0BC01-1AX0TP177B DP MONOIn Stock
6AG1642-0BC01-4AX1SIPLUS TP177B mono DPIn Stock
6AV6642-0BA01-1AX1TP177B 6" PN/DP COLORIn Stock
6AV6642-0BC01-1AX1TP177B 6" DP BLUE MODEIn Stock
6AG1642-0BA01-4AX0SIPLUS HMI TP177B color PN/DPIn Stock
6AV6642-0BA01-1AX0TP177B PN/DP COLORIn Stock
6AG1642-0BA01-4AX1SIPLUS HMI TP177B COLOR PN/DPIn Stock
6AV6642-0AA11-0AX0TOUCH PANEL TP177A 6"In Stock
6AV6642-8BA10-0AA0TP177B PN/DP COLOR INOXIn Stock

6AG1642-0BA01-4AX0 Siemens SIMATIC HMI TP177B Touch Panel PDF Download:

  • Touch Panel
  • 6AG1642-0BA01-4AX0 Siemens HMI TP177 datasheet manual pdf
  • Siemens Simatic TP177 Panel manual

    • FAQ:

    Question: What is the use of Siemens TP177 Protective membrane?

    Answer: A protective membrane is available for the HMI device touch screens. The relevant orderinginformation is provided in the Siemens Catalog ST 80. The protective membrane is notincluded in the HMI device package.The self-adhesive membrane prevents the screen from being scratched and soiled. The matsurface of the membrane reduces reflections under unfavorable lighting conditions.The protective membrane can be removed without leaving any adhesive residue on thescreen.

    Question: What is the dimension of the Siemens SIPLUS HMI TP177B color PN/DP Touchscrenn?

    Answer: The touchscreen of 6AG1642-0BA01-4AX0 SIMATIC TP177 is 5.7 inch,with 138 millimeter long and 109.5 millimeter wide

    Question: Which software options are available for the Siemens TP177?

    Answer: "WinCC flexible 2004," for example, refers to the configuration software.The term "WinCC flexible" is used in a general context. The full name, for example"WinCC flexible 2004", is always used when it is necessary to differentiate betweendifferent versions of the configuration software.

    Question: What is the 6AG1642-0BA01-4AX0 Siemens SIPLUS HMI TP177B color PN/DP HMI parts price?

    Answer: Submit a fast quote, send Kernfix an email for best price.
