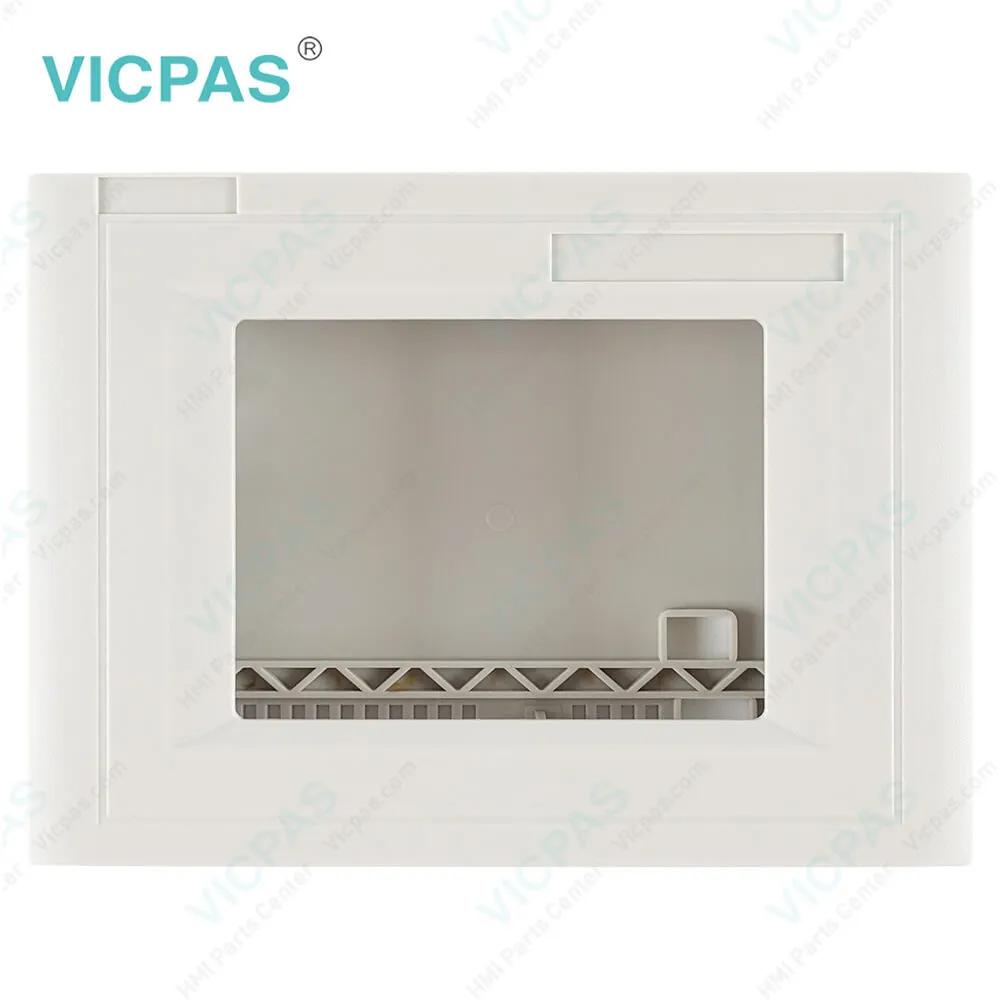

6AG1545-0BC15-2AX0 Siemens SIMATIC TP170 B Touchscreen Panel
| Brand | SIEMENS |
|---|---|
| Model | 6AG1545-0BC15-2AX0 |
| Warranty | 365 Days |
| Product Line | TP170 |
| Supply | Siemens TP170 HMI Touch Panel And Protecitve film |
| Parts | Touch Panel Glass Lcd Display Protective Case |
| FOB port | Guangzhou, Shenzhen, Hongkong |
| Terms of Payment | Western Union, MoneyGram, T/T, Paypal, PayPal, Credit Card |
| Download | |
| Update Time | 2026-01-30 20:44:35 |
Shipping
Free Shipping
Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.

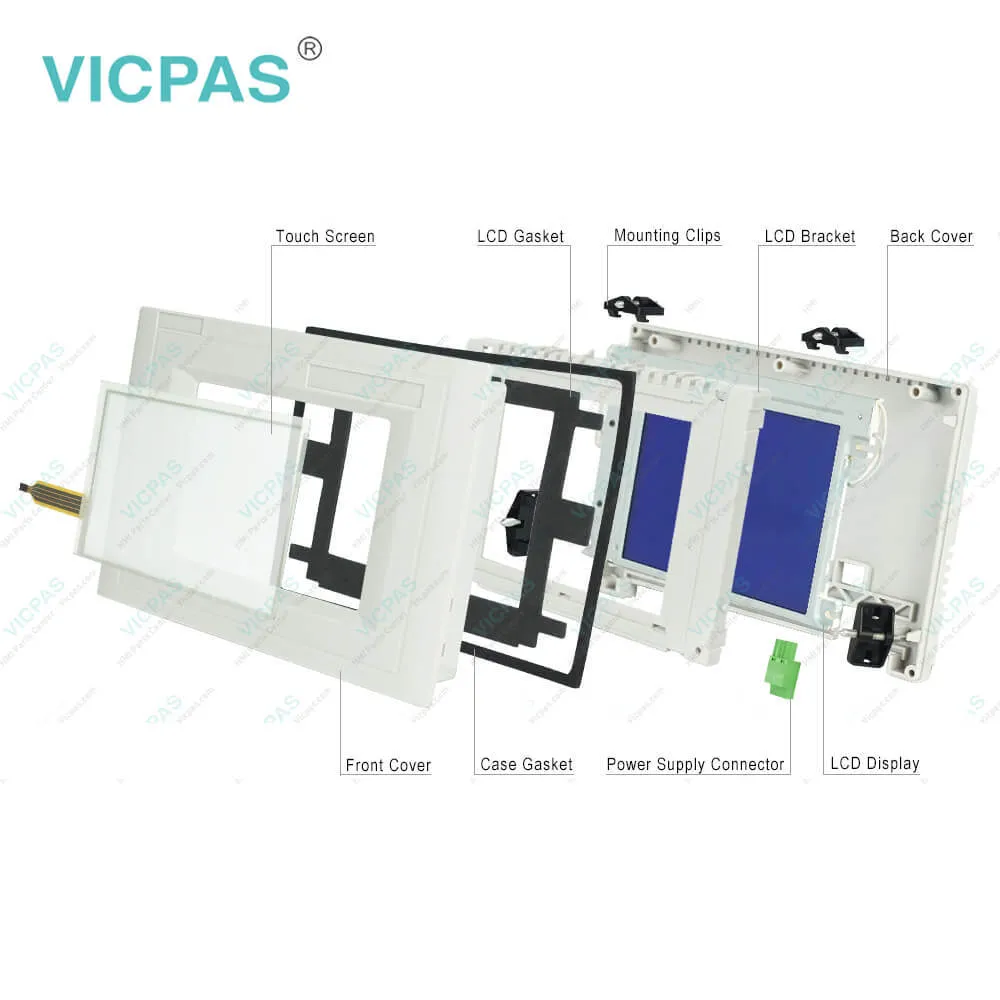

6AG1545-0BC15-2AX0 Siemens SIMATIC HMI TP170 Touch Screen Panel, Overlay, Plastic shell, Case Gasket, LCD Gasket, LCD Bracket, Power Supply Connector, Mounting Clips, Screws, Cable and LCD Display Repair
Order each part separately is available
6AG1545-0BC15-2AX0 SIPLUS HMI TP 170B Color -10...+50 °C based on 6AV6545-0BC15-2AX0
The SIPLUS TP 177B color panel from the SIPLUS extreme product range is available for substitution of the affected SIPLUS TP 170B color panel for applications under harsh ambient conditions. A SIPLUS version for use at extended temperature ranges is presently not available.SIPLUS extreme is the product family with ruggedized and refined components on the basis of SIMATIC standard products.
TP 170micro Features
● 5.7" STN display; resolution of 320 x 240 pixels
● Rugged and compact; shallow mounting depth of 45 mm (device dimensions compatible to the TP 070)
● Multi-Master communication for the integration into networks
● Onboard MPI/PPI
● Alarm system with freely definable alarm classes and alarm history
● Password system
● Alarm indicator for displaying machine and system states
● 5 Languages (can be switched online), including Asian and Cyrillic
● Short configuration and commissioning times
● Service-friendly due to maintenance-free construction and long life of the display backlight
Kernfix supply 6AG1545-0BC15-2AX0 Siemens TP170 touch panel, Overlay, Case Gasket, LCD Gasket, Mounting Clips, LCD Bracket, Power Supply Connector, Screws, Cable, Plastic Case Cover and LCD display. All of them with Kernfix 365 days warranty and support Urgent Worldwide Shipping.
Specifications:
| Part Number: | 6AG1545-0BC15-2AX0 |
| Size: | 5.7" |
| Display: | STN Display (LCD) |
| Warranty: | 365 days Warranty |
| Product Line: | Siemens TP170 |
| Resolution: | 320 x 240; |
| Color Depth: | 4 Blue Levels |
| Touchscreen: | Analog/resistive |
| MTBF of Backlight: | approx. 50,000 h |
| PLC Connection: | SIMATIC S7-200 |
Related BB Teach Pendant Part No. :
| 6AG1545-0BC15-2AX0 | Description | Inventory status |
| 6AV6640-0CA01-0AX0 | TP170 MICRO | In Stock |
| 6AG1545-0BC15-2AX0 | SIPLUS HMI TP170B COLOR | In Stock |
| 6AV6545-0BA15-2AX0 | TP170A TOUCH PANEL BLUE MODE STN-DISPLAY | In Stock |
| 6AV6545-0BB15-2AX0 | TP170 TOUCH PANEL | In Stock |
| 6AV6545-0BC15-2AX0 | TP170 TOUCH PANEL | In Stock |
6AG1545-0BC15-2AX0 Siemens SIMATIC TP170 B Touchscreen Panel PDF Download:
FAQ:
Question: How to install the TP170 HMI device?
Answer: To complete the installation, four spring terminals are required from the accessories for the TP 170micro, TP 170A and TP 170B and six spring terminals are required for the OP 170B. The installation seal must be mounted on the HMI device. If the installation seal is damaged, order a replacement.
Question: Which software options are available for the Siemens TP170?
Answer: WinCC Flexible/Sm@rtServiceThe Sm@rtService option enables you to access a remote HMI device from theHMI device or PC via Ethernet.
Question: What is the 6AG1545-0BC15-2AX0 Siemens TP170 HMI parts price?
Answer: Submit a fast quote, send Kernfix an email for best price.
Common misspellings:
6G1545-0BC15-2AX0
6A1545-0BC15-2AX0
6AG545-0BC15-2AX0
6AG145-0BC15-2AX0
6AG155-0BC15-2AX0
