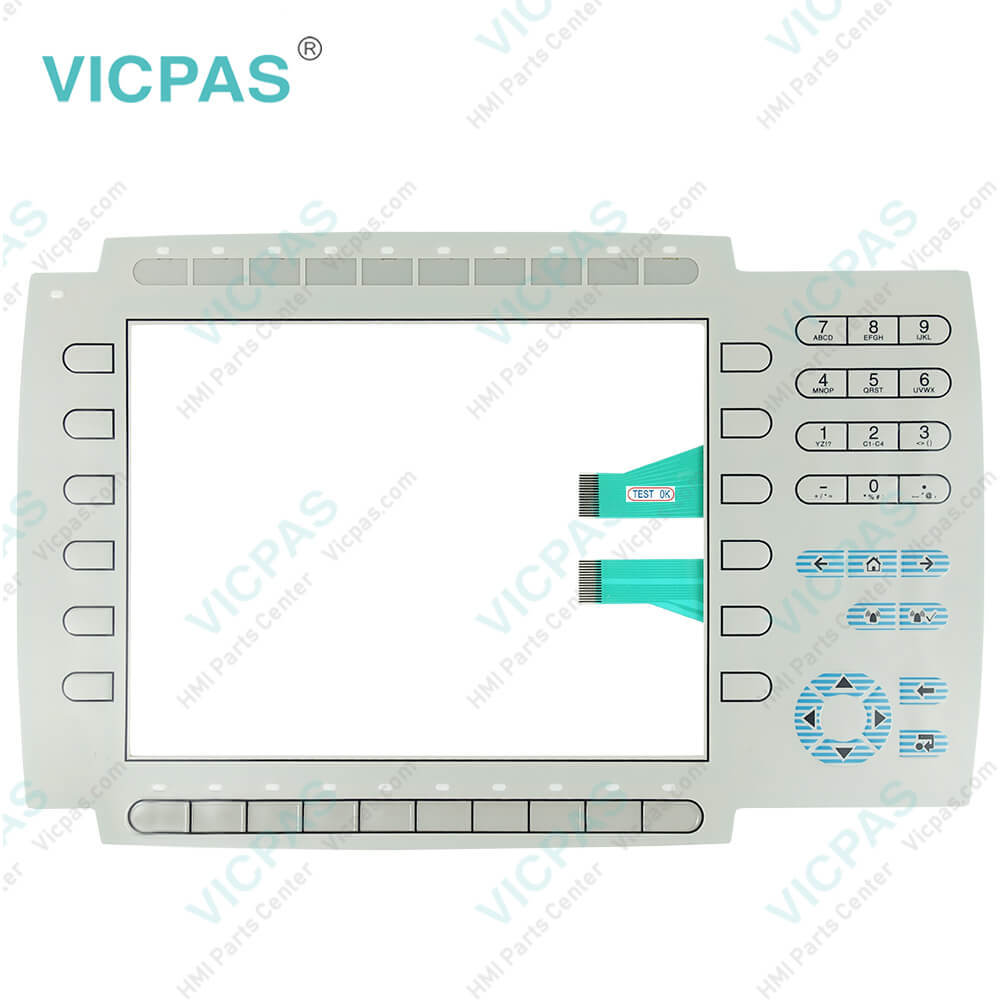

PP846A 3BSE042238R2 10.4'' Membrane Keypad Repair
| Model | PP846A 3BSE042238R2 |
|---|---|
| Warranty | 365 Days |
| Product Line | Panel 800 |
| Shipping | 2-3 workdays |
| FOB port | Guangzhou, Shenzhen, Hongkong |
| Terms of Payment | Western Union, MoneyGram, T/T, Paypal, PayPal, Credit Card |
| Download | |
| Update Time | 2026-01-30 21:15:33 |
Shipping
Free Shipping
Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.
Panel 800 PP846A 3BSE042238R2 Operator Panel Keypad Repair Replacement
The description of the PP846A 3BSE042238R2 operator terminal:
Keyboard material: Membrane switch keyboard with metal domes. Overlay film of Autotex F157 * with print on reverse side. 1 million operations.
Serial port RS422/RS485: 25-pin D-sub contact, chassis-mounted female with standard locking screws 4-40 UNC.
Serial port RS232C: 9-pin D-sub contact, male with standard locking screws 4-40 UNC.
Real time clock: ±20 PPM + error because of ambient temperature and supply voltage. Total maximum error: 1 min/month at 25 °C Temperature coefficient: -0.034±0.006 ppm/°C2
Real time clock battery: Rechargeable battery.
Display: TFT-LCD. 800 x 600 pixels, 64K color. CCFL backlight lifetime at the ambient temperature of +25 °C: >50,000 h.
Kernfix supply Panel 800 PP846A 3BSE042238R2 Membrane Keypad with 365 Days warranty and support Urgent Worldwide Shipping.
Specifications:
| Part Number: | PP846A 3BSE042238R2 |
| Warranty: | 365 Days |
| Relative Humidity: | 5 - 85 % non-condensed |
| Active Area Of Display: | 211.2 x 158.4 mm |
| NEMA: | 4x indoor use only |
| Part Type: | New |
| Display Type: | TFT-LCD |
| Backlight: | CCFL |
| Storage Temperature: | -20 … +70 °C |
| Operating Temperature: | 0 … +50 °C |
Related BB Teach Pendant Part No. :
| PP846A 3BSE042238R2 | Description | Inventory status |
| PP815A 3BSE042239R1 | Panel 800 PP815A Front Overlay Touch Membrane | In Stock |
| PP815A 3BSE042239R2 | Panel 800 Series PP815A Touch Glass Front Overlay Repair | In Stock |
| PP820A 3BSE042243R1 | Panel 800 Series PP820A Membrane Keyboard Keypad Repair | Available Now |
| PP820A 3BSE042243R2 | Panel 800 PP820A HMI Panel Glass Protective Film | Available Now |
| PP825A 3BSE042240R1 | Panel 800 Series PP825A Touch Screen Monitor Front Overlay | In Stock |
| PP826 3BSE042244R1 | Panel 800 Series PP826 Membrane Keypad Switch Replacement | In Stock |
| PP826A 3BSE042244R3 | Panel 800 Series PP826A HMI Operator Panel Keypad | Available Now |
| PP835 3BSE042234R1 | Panel 800 Series PP835 Protective Film Touchscreen Repair | In Stock |
| PP835A 3BSE042234R2 | Panel 800 Series PP835A HMI Protective Film Touch Screen Glass | Available Now |
| PP836 3BSE042237R1 | Panel 800 Series PP836 Operator Keyboard Replacement Repair | In Stock |
| PP836A 3BSE042237R2 | Panel 800 Series PP836A Switch Membrane Repair Replacement | In Stock |
PP846A 3BSE042238R2 10.4'' Membrane Keypad Repair PDF Download:
FAQ:
Question: How to ground the PP846A 3BSE042238R2 operator panel?
Answer:
Question: How to install an internal Compact Flash card in the operator
Answer:
