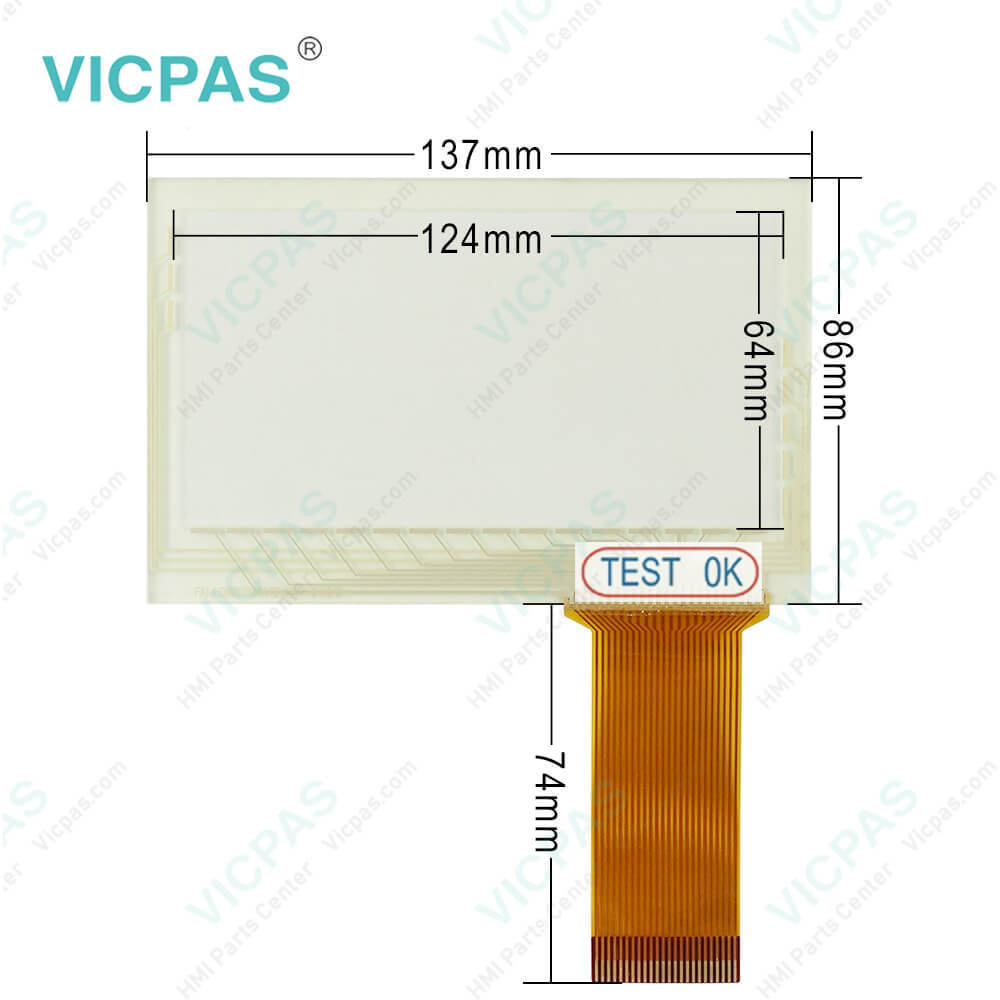

2711-B5A10L1 Touch Screen Glass with Membrane Switch

Order each part separately is available

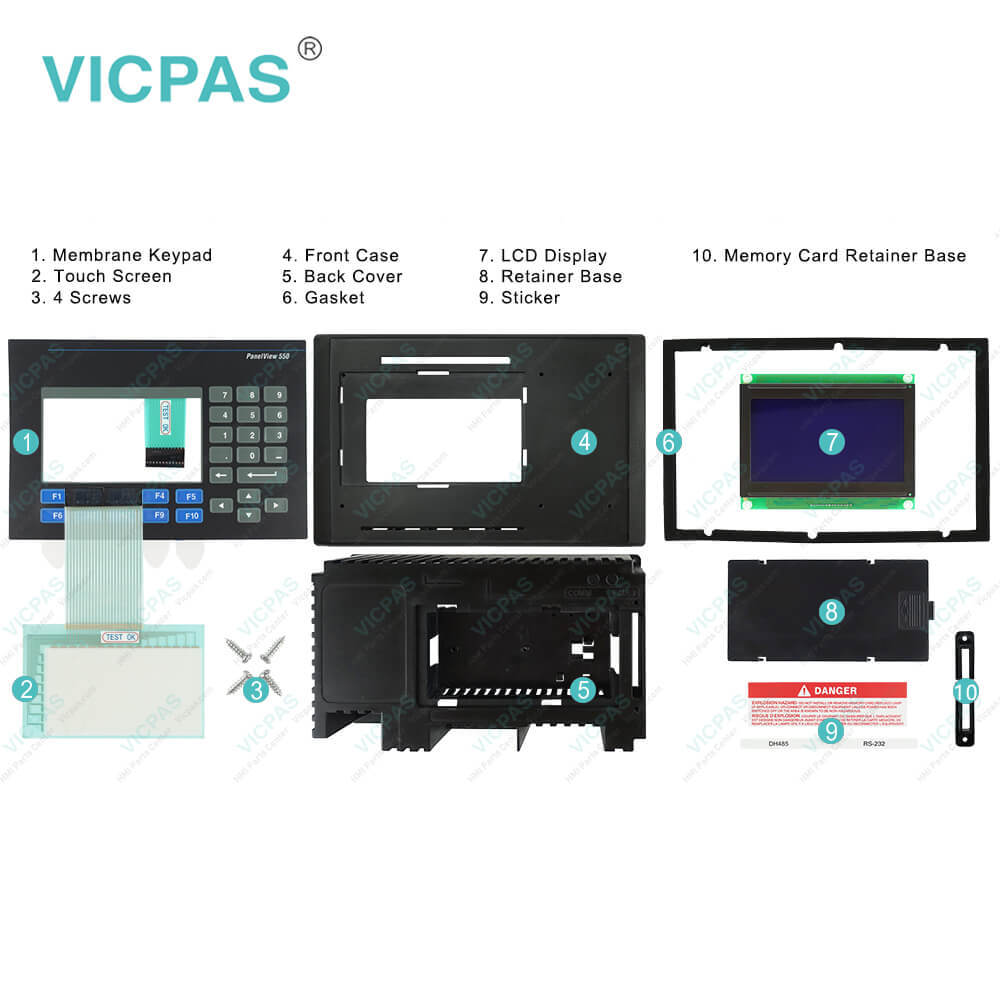

Kernfix supply 2711-B5A10L1 teach pendant parts, touchscreen glass, membrane keyboard switch, Memory Card Retainer Base, LCD Screen, Gasket, Sticker, Gasket, Case Accessories and protective case shell housing. All of them with Kernfix 365 days warranty and support Urgent Worldwide Shipping.

Allen Bradley’s PanelView 550 series is a series of rugged PanelViews, designed with a variety of user input options to allow a user to interface with a machine. The 2711-B5A10L1 specifically is a dual-input type module, containing both a keypad input and a touchscreen option. This module’s one-million-press touchscreen is also the unit’s display, with its 5 and ½ inch blue monochrome LCD screen acting as both an input tool and an output display. The user can input information through this unit’s keypad as well, with its domed-membrane-finished keys that are set in a durable, stainless steel bezel. This keypad has 10 function keys (F1 through F10), along with arrow keys and a numeric keypad. The 2711-B5A10L1 uses the software PanelBuilder32, making its internal programming system easy to navigate. In addition, this PanelBuilder software can also be run on a personal computer.

This module’s communication requirements are met with its RS-232 and DeviceNet ports, which do require a 2711-NC13 cable or cables to actually connect to the network. On 18 to 30 Volts of DC input power, the 2711-B5A10L1 will usually consume around 18 Watts of power (or 0.76 Amps at 24 Volts DC). It dissipates nearly the same wattage, with its Heat dissipation being retained around 20 Watts (or 69 BTU per hour).

While operating, the 2711-B5A10L1 should not be subjected to more than 30 g of shock, or 50 g if non-operational. This PanelView Terminal has specific temperature requirements, for both its “On” state and its “Off” state. While operating it, keep the 2711-B5A10L1 at a temperature between 32 and 131 degrees Fahrenheit (0 to 55 degrees Celsius). When storing this module, ensure that the surrounding temperature is between -4 and 158 degrees Fahrenheit (-20 to 70 degrees Celsius). To avoid early deterioration of this PanelView, mount it at or lower than 6,561 feet (2000 meters).
