2711-B6C12 Touch Screen Membrane Keyboard Replaced

Order each part separately is available

The discontinued Allen Bradley Panelview 600 2711-B6C12 is an operator terminal that enables the user to interface with their machine. This HMI has a 5 in. Color Display. This Panelview allows the user to connect using Panelbuilder 32 software and a Profibus and RS-232 Printer communication port with a 2711-NC13 communication cable(s). The user is able to control the HMI using the Keypad/Touchscreen to input information and data. This unit is powered using 85-264 VAC power. This unit has the following internal memory: 240 KB. If applicable this unit has an internal backlight replacement part number of 2711-NL5.

The approximate shipping weight and dimensions are 6 lbs. and 14 x 11 x 8 in. The most common Series are: A, B, C, D, E, F, G, H, I, J, K, and L and the most common firmware include 1.00-4.48. The Profibus Terminal communicates using the Profibus DP standard for high-speed (up to 1.5M baud) data transmission to Siemens® and other controllers that support the Profibus DP protocol. Profibus is a non-Rockwell Automation network that uses the polling principle for communication. It is a remote I/O protocol consisting of a DP Master(s) and DP slave(s).

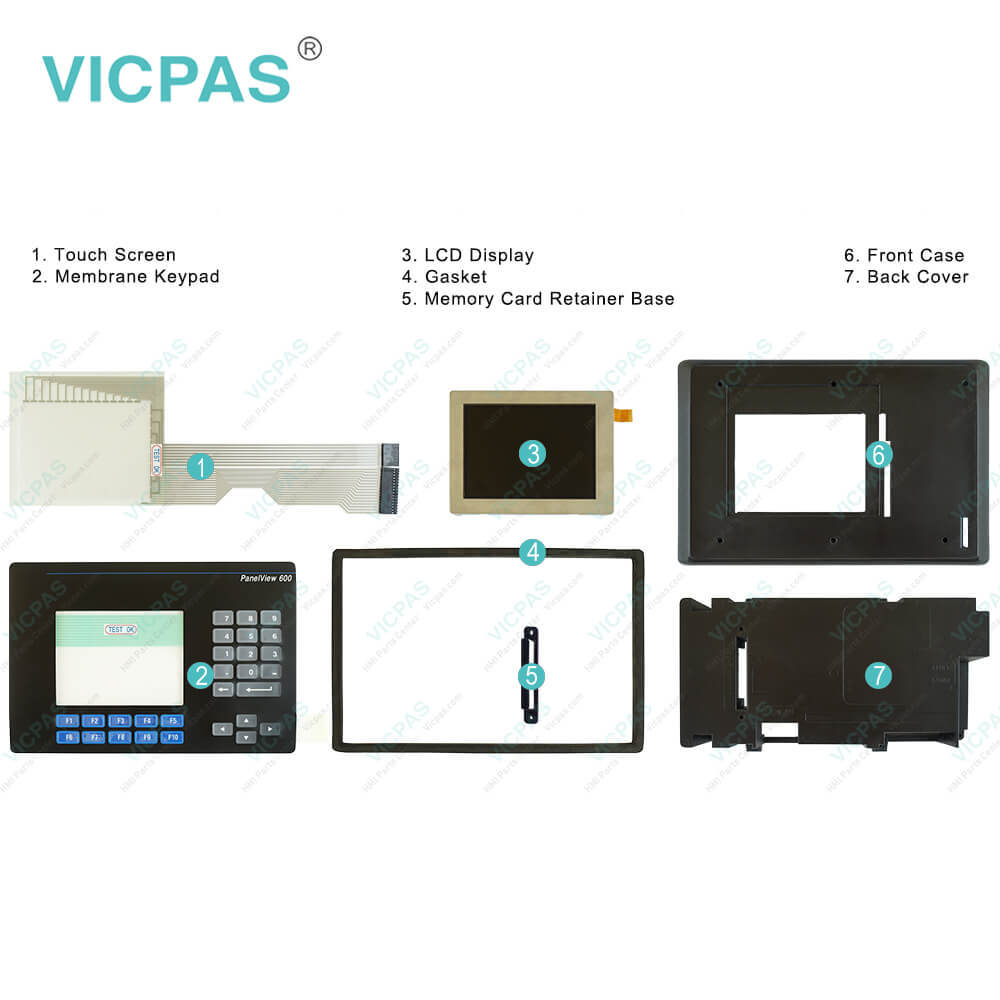

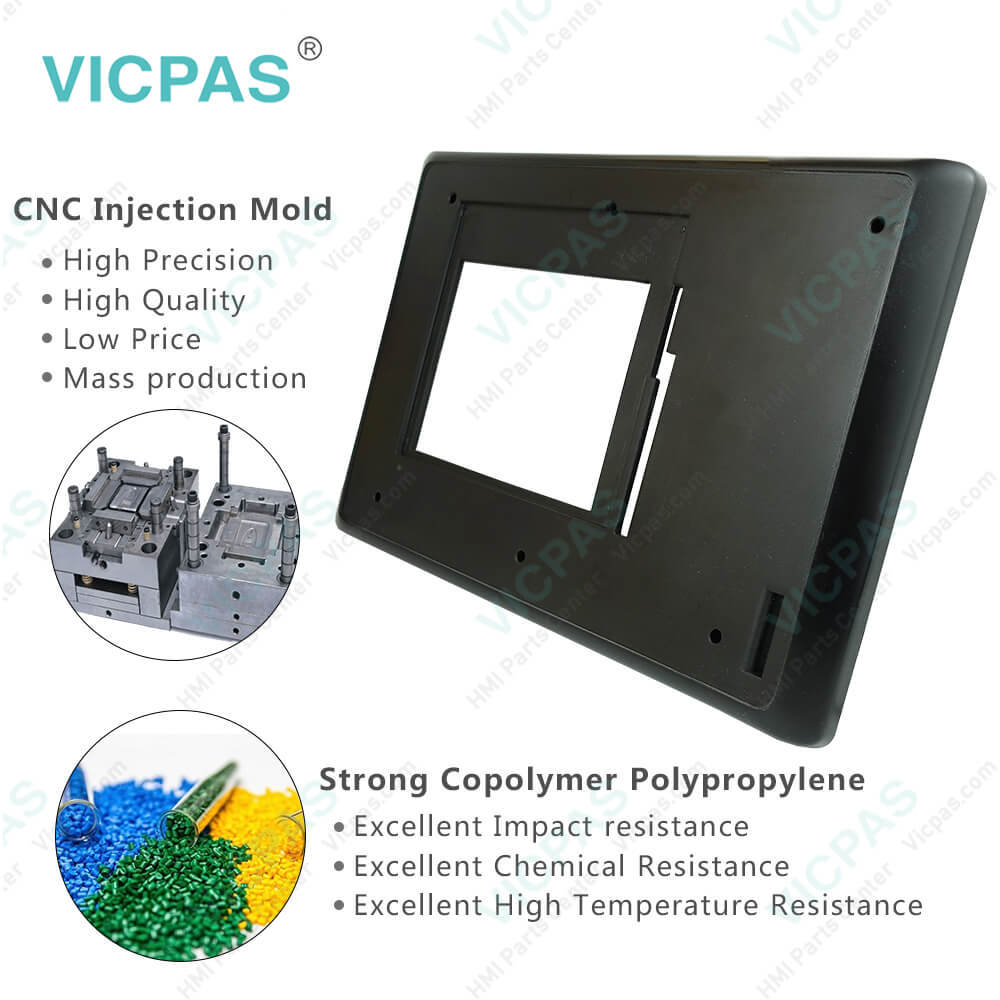

Kernfix supply Allen Bradley Panelview 600 2711-B6C12 touch screen panel glass, HMI Case, LCD Display Screen, Memory Card Retainer Base, Gasket with membrane keyboard switch for repair replacement, make the HMI running. We provide a 1-year warranty of the most product, which include most of touch screen panel, membrane keypad, LCD Display, Gasket, Memory Card Retainer Base and protective case shell housing.
