2711P-B7C15D1 Touch Screen Panel Membrane Keypad Repair

Order each part separately is available

The discontinued Allen-Bradley 2711P-B7C15D1 is an old PanelView Plus graphics terminal. It has the same specifications as the next-generation 2711P-B7C4D8 PanelView Plus 6 terminal. It is an HMI (Human-Machine Interface) that lets the user control, monitor, or display information graphically. It has a 6.5-inch flat-panel color display with a minimum resolution of 640 x 480 pixels and 18-bit graphics. It supports operator input via 22 function keys or a touchscreen. Its keypad’s dimensions are 7.58 x 11.40 x 2.18 inches and its weight is 4.1 pounds. and its touchscreen dimensions are 7.04 x 9.68 x 2.18 inches and its weight is 3.7 pounds. It has 18 to 32 Volts DC input power and 64 MB RAM.

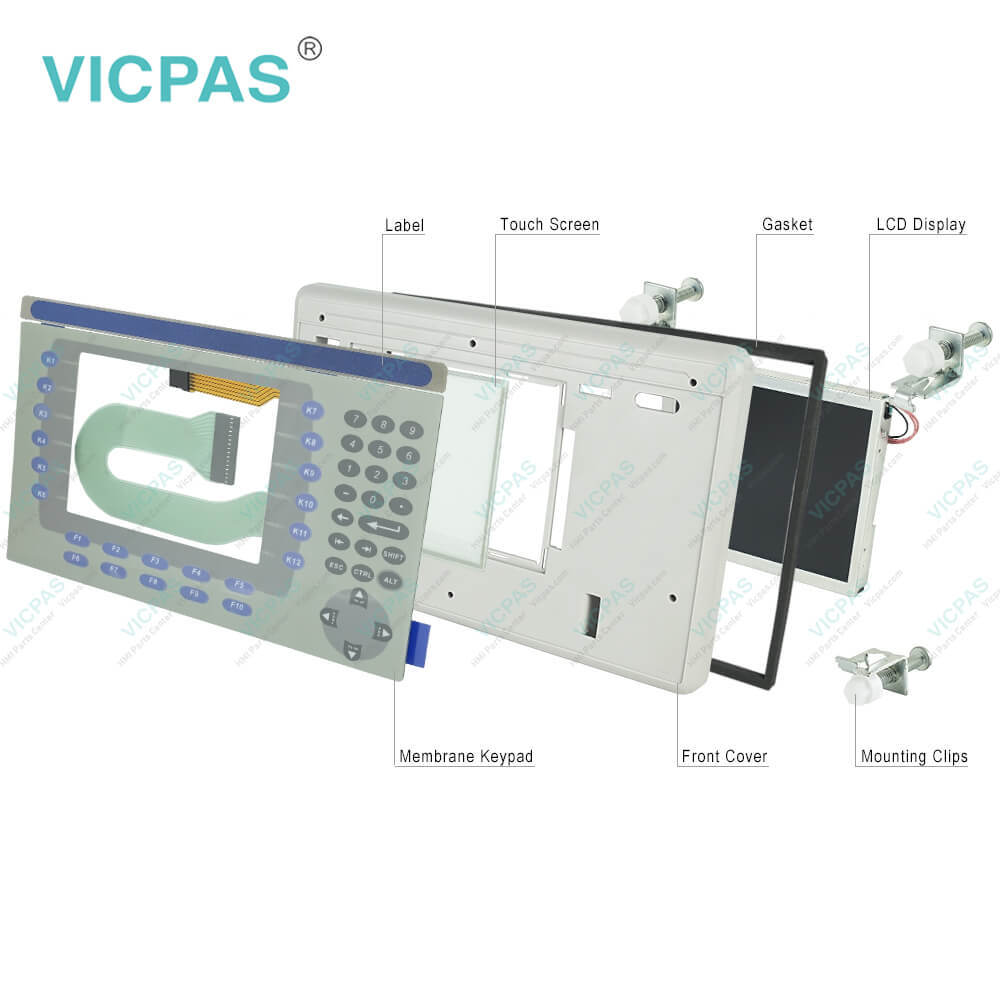

Kernfix supply Panelview Plus 700 2711P-B7C15D1 keypad LCD screen enclosure housing touchscreen Gasket Label and Mounting Clips for repair replacement, make the HMI running. We provide a 365 days Kernfix warranty of the most product, which include most of touch screen panel, membrane keypad, LCD display and protective case shell housing.

The 2711P-B7C15D1 runs the Windows CE 4.1 OS and ships by default as a closed system which launches a FactoryTalk View Machine Edition application on startup. It can be configured as an open system for desktop access. For communication, a ControlNet module is provided. The 2711P-B7C15D1 has many improvements over older PanelView Plus 400 terminals like increased processor speed, system memory, storage space, and illumination. It can be connected to various external peripherals such as a mouse, keyboard, or printer. It also supports ActiveX controls and remote connectivity. The 2711P-B7C15D1 terminal provides standard Windows features like a command processor, Explorer shell, Network user interface, and a VNC server. It has a built-in PDF viewer for reading content documents. It also has a mechanism for creating backups which can be restored in case of a system malfunction. The 2711P-B7C15D1 uses vector-based graphics and provides data management through .CSV files. With the Login feature, it facilitates data storage and modification.
