4PP035.E300-K11 Operator Panel Keypad LCD Screen Plastic Case

4PP035.E300-K11 Operator Panel Keypad LCD Screen Plastic Case
4PP035.E300-K11 Operator Panel Keypad LCD Screen Plastic Case4PP035.E300-K11 Operator Panel Keypad LCD Screen Plastic Case4PP035.E300-K11 Operator Panel Keypad LCD Screen Plastic Case4PP035.E300-K11 Operator Panel Keypad LCD Screen Plastic Case4PP035.E300-K11 Operator Panel Keypad LCD Screen Plastic Case
BrandB&R
ModelB&R Power Panel 35 4PP035.E300-K11
Warranty1 Year VICPAS Warranty
ShippingDHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
Terms of PaymentWestern Union, T/T, PayPal, T/T ,Credit Card, Western Union
Download
Update Time2026-02-09 17:33:30
Leading Time{{selectedConditionObj.leading}}
{{item.value}}
{{nameObj.name}}{{nameObj.selectedValue}}
{{valueObj.name}}

Shipping

Free Shipping

Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.

Detail Information

B&R Power Panel 35 4PP035.E300-K11 Plastic Shell Membrane Keypad Keyboard LCD Screen

Order each part separately is available

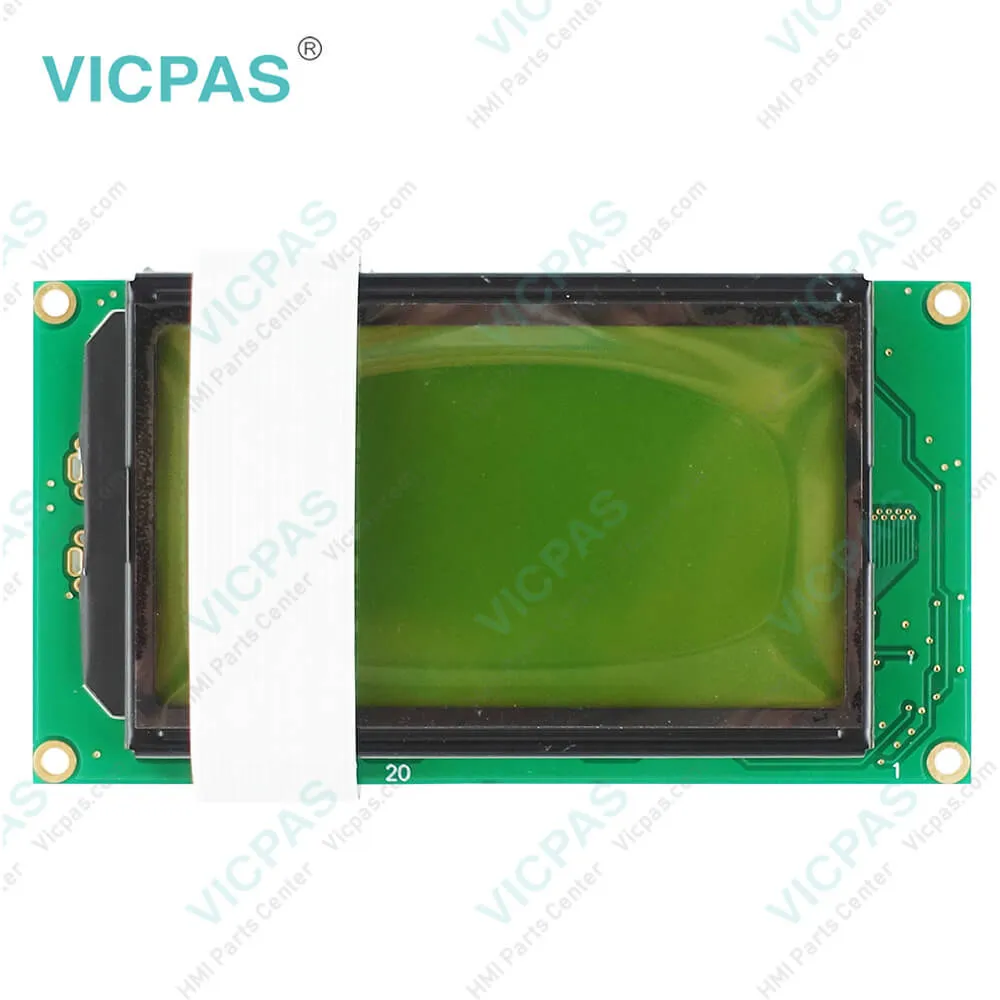

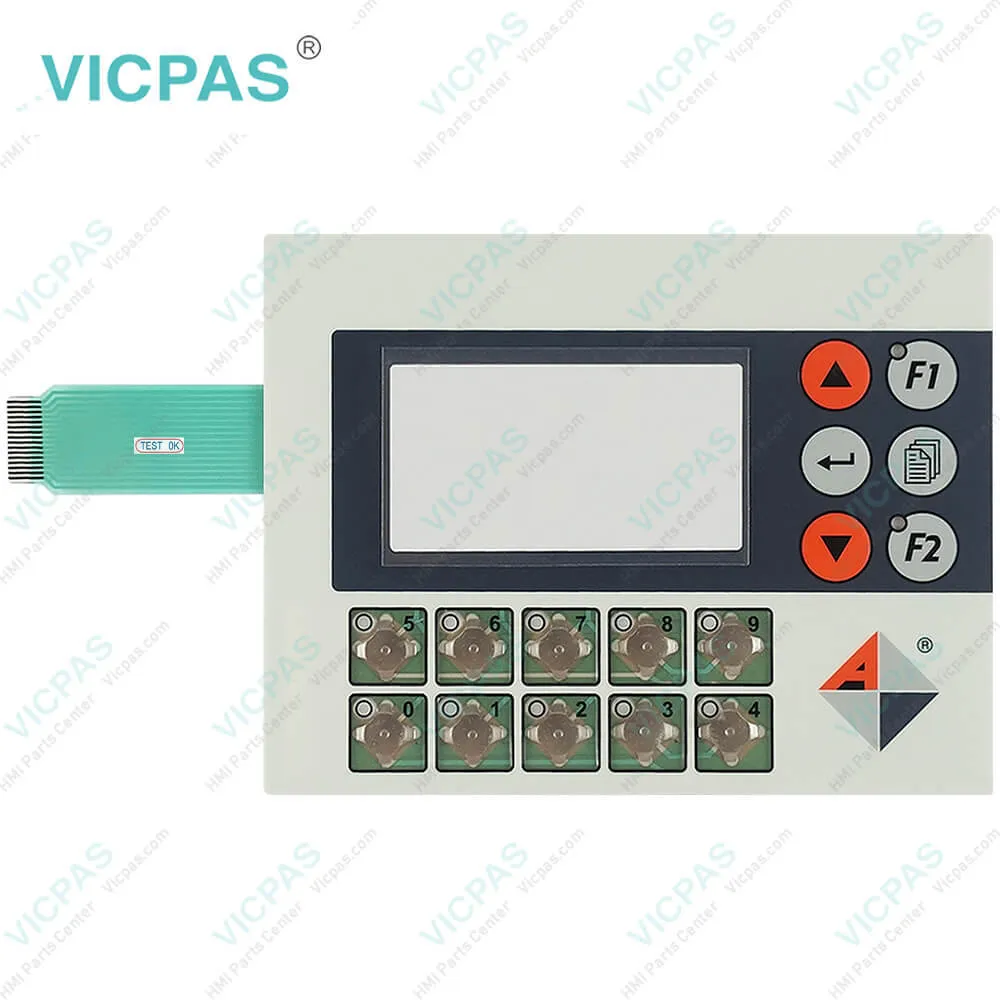

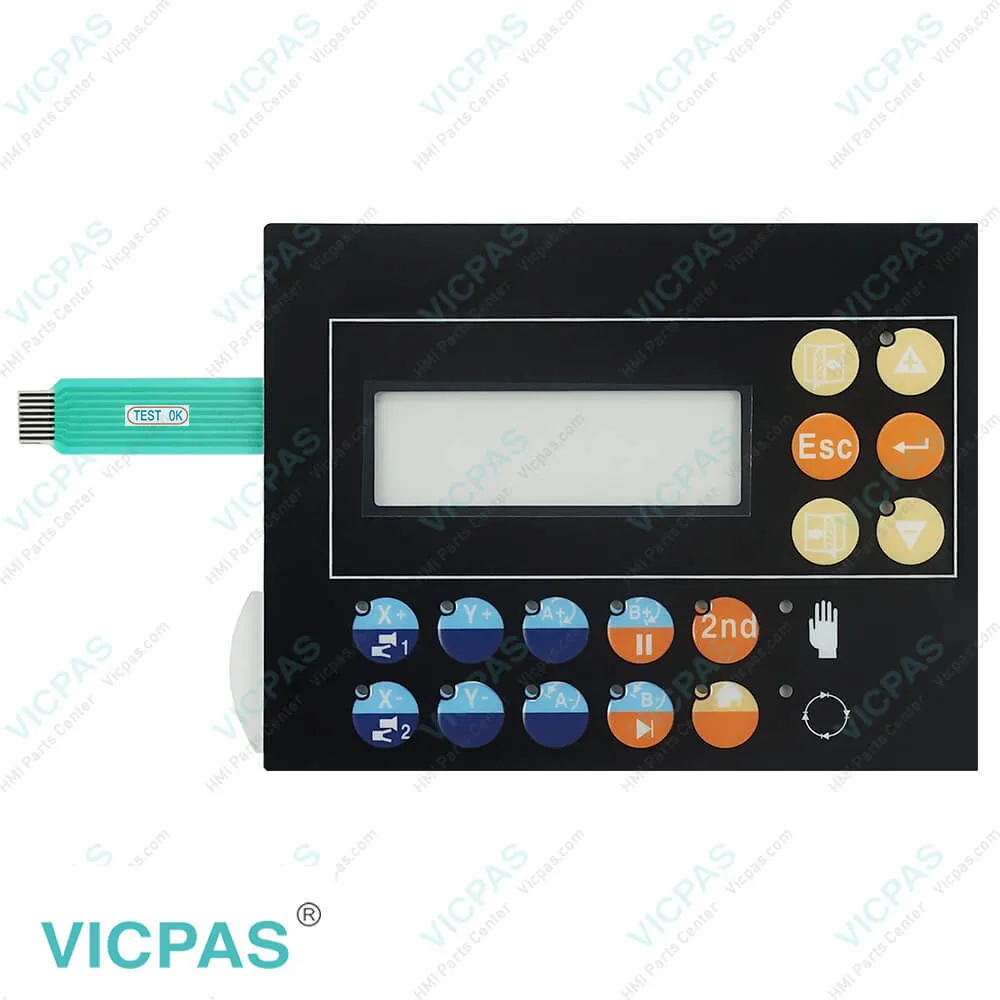

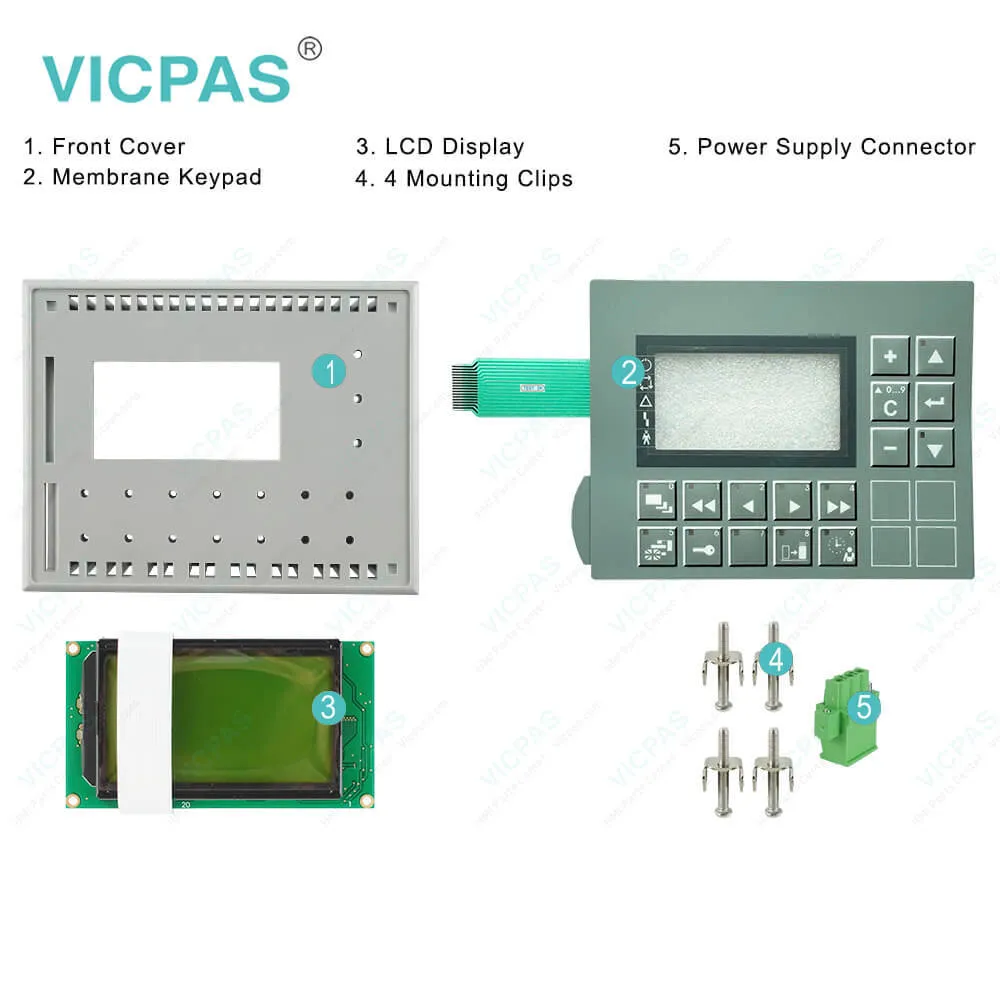

Power Panel 35 4PP035.E300-K11 Front Cover Keyboard Membrane LCD Display Screen Mounting Clips Power Supply Connector

B&R offers the B&R Power Panel 15, 21, 35, and 41 to automate small to midsize machines and systems. These Power Panels are a combination of an operator panel and a controller in one device. A 4 x 20 character text display, a 3-inch display with 160 x 80 pixels, or a ¼ VGA graphic display can be selected. Each Power Panel is equipped with a powerful PLC CPU including integrated digital or analog I/O. The series PP21 and PP41 panels have an additional six slots for B&R SYSTEM 2003 screw-in modules. An expansion module is offered for the Power Panel 41 which allows the operation of B&R SYSTEM 2005 interface module inserts. The visualization application is created using B&R Automation Studio™. B&R Automation Studio™ is used to program the CPU.


B&R Automation Device Interface (ADI) 4PP035.E300-K11 Development Kit Features:
• One Microsoft Visual Basic module with ADI function declarations
• Header files and import libraries for Microsoft Visual C++
• Help files for Visual Basic and Visual C++
• Sample projects for Visual Basic and Visual C++
• ADI DLL (for application testing if no ADI driver is installed)


Kernfix supply B and R Power Panel 35 4PP035.E300-K11 Keyboard membrane for repair replacement, make the HMI running. We provide a 365-day Kernfix warranty on most products, which include most touch screen panel, membrane keypad, protective film, LCD display and protective case shell housing.





  Contact Best Price

Specifications:

Part Number:4PP035.E300-K11
Product Line:Power Panel 35
Screen diagonal:5.7 in
Warranty:365 Days Warranty
Input Power:24 VDC
Display Type:TFT color
Mounting Position:Vertical
Input Type:Keypad
Serial Interface Type:RS232
Storage:-20 to 70°C


Related BB Teach Pendant Part No. :

B&R Power Panel 35 4PP035.E300-K11Description Inventory status
4PP035.0300-01B and R Power Panel 35 Membrane Switch LCD Display Panel Front CoverIn Stock
4PP035.0300-36Power Panel 35 B&R HMI Membrane Keyboard Keypad LCD Display HousingIn Stock
4PP035.0300-K08B and R Power Panel 35 Switch Membrane LCD Display Screen Plastic CaseAvailable Now
4PP035.0300-K09B&R Power Panel 35 Operator Keyboard LCD Display Screen Plastic ShellIn Stock
4PP035.0300-K12PP35 B&R Membrane Keypad Keyboard LCD Display Front CoverAvailable Now
4PP035.0300-K18B&R PP35 Membrane Switch Keypad LCD Screen Housing RepairAvailable Now
4PP035.E300-01Power Panel 35 B&R Membrane Keypad Switch LCD Screen Plastic ShellIn Stock
4PP035.E300-136B and R Power Panel 35 Operator Panel Keypad LCD Display Panel Outer CasingAvailable Now
4PP035.E300-36B&R Power Panel 35 Keypad Membrane LCD Display Screen EnclosureIn Stock
4PP035.E300-K05B&R Power Panel 35 Membrane Keypad Switch LCD Screen HMI CaseIn Stock
4PP035.E300-K10PP35 B and R Membrane Keyboard Keypad LCD Display Panel Plastic Cover BodyAvailable Now
4PP035.E300-K11B and R Power Panel 35 Keyboard Membrane LCD Display Panel Plastic ShellIn Stock
4PP035.E300-K12Power Panel 35 B&R HMI Keypad Membrane LCD Display Plastic EnclosureAvailable Now
4PP035.0300-01B and R Power Panel 35 Membrane Switch LCD Display Panel Front CoverIn Stock
4PP035.0300-36Power Panel 35 B&R HMI Membrane Keyboard Keypad LCD Display HousingIn Stock
4PP035.0300-K08B and R Power Panel 35 Switch Membrane LCD Display Screen Plastic CaseAvailable Now
4PP035.0300-K09B&R Power Panel 35 Operator Keyboard LCD Display Screen Plastic ShellIn Stock
4PP035.0300-K12PP35 B&R Membrane Keypad Keyboard LCD Display Front CoverAvailable Now
4PP035.0300-K18B&R PP35 Membrane Switch Keypad LCD Screen Housing RepairAvailable Now
4PP035.E300-01Power Panel 35 B&R Membrane Keypad Switch LCD Screen Plastic ShellIn Stock
4PP035.E300-136B and R Power Panel 35 Operator Panel Keypad LCD Display Panel Outer CasingAvailable Now
4PP035.E300-36B&R Power Panel 35 Keypad Membrane LCD Display Screen EnclosureIn Stock
4PP035.E300-K05B&R Power Panel 35 Membrane Keypad Switch LCD Screen HMI CaseIn Stock
4PP035.E300-K10PP35 B and R Membrane Keyboard Keypad LCD Display Panel Plastic Cover BodyAvailable Now
4PP035.E300-K11B and R Power Panel 35 Keyboard Membrane LCD Display Panel Plastic ShellIn Stock
4PP035.E300-K12Power Panel 35 B&R HMI Keypad Membrane LCD Display Plastic EnclosureAvailable Now

4PP035.E300-K11 Operator Panel Keypad LCD Screen Plastic Case PDF Download:

  • Power Panel 15/21/35/41/45
  • B&R Power Panel User's Manual
  • B&R Power Panel 15/21/35/41 User's Manual
  • Power Panel 15/21/35/41/45
  • B&R Power Panel User's Manual
  • B&R Power Panel 15/21/35/41 User's Manual

    • FAQ:

    Question: What is the B&R Power Panel 35 4PP035.E300-K11 terminal keypad price?

    Answer: Submit a fast quote, send Kernfix an email for best price.

    Question: How to change the B&R Power Panel 35 4PP035.E300-K11 battery?

    Answer: The product design allows the battery to be changed with the Power Panel switched on or off. In some countries, safety regulations do not allow batteries to be changed while the module is switched on. The battery is changed as follows: • Touch the mounting rail or ground connection (not the power supply!) in order to discharge any electrostatic charge from your body. • Remove the cover from the lithium battery holder using a screwdriver. • Remove the battery from the holder by pulling the removal strip (don't use uninsulated tools -> risk of short circuiting). • The battery should not be held by its edges. Insulated tweezers may also be used for removing the battery. • Insert the new battery with correct polarity. The removal strip should be protruding from the battery holder and the "+" side of the battery should be facing downward. In order to be able to remove the battery again in future, the removal strip must protrude from the upper side of the battery. • Now wrap the end of the removal strip over the top of the battery and insert it underneath the battery so that it does not protrude from the battery holder.

    Question: How can the Power Panel 35 4PP035.E300-K11 lifespan of backlights be extended?

    Answer: • Set the display brightness to the lowest value that is still comfortable for the eyes• Use dark images• Reducing the brightness by 50% can result in an approximate 50% increase of the halfbrightness time.


    Common misspellings:

    4PP035.E300-11

    4PP035.E00-K11

    4PP035E.300-K11

    4PP035.E3OO-K11

    4PPP035.E300-K11
