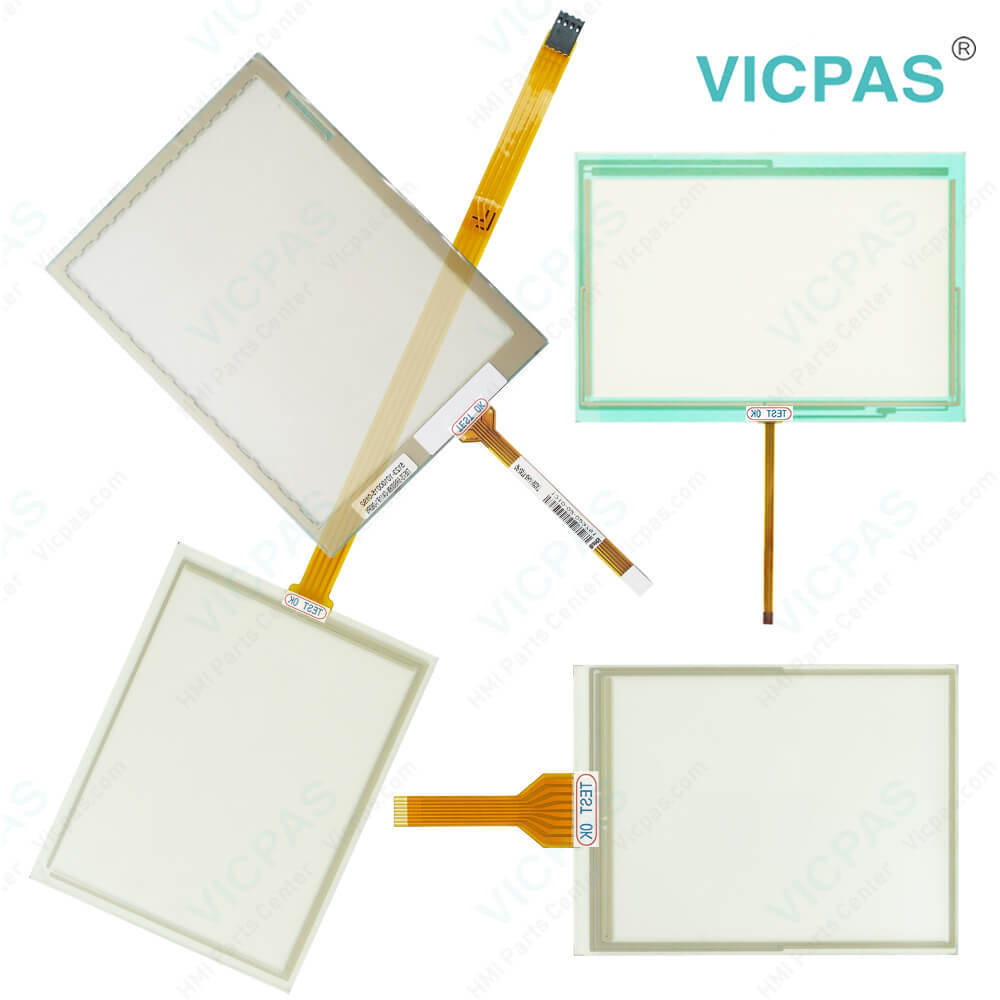

4PP045.0571-K30 B&R Touch Digitizer Glass

FAQ:

Question: What is the B&R Power Panel 45 4PP045.0571-K30 touch screen monitor protective film LCD screen enclosure price?

Answer: Submit a fast quote, send Kernfix an email for best price.

Question: How to change the B&R Power Panel 45 4PP045.0571-K30 battery?

Answer: The product design allows the battery to be changed with the Power Panel switched on or off. In some countries, safety regulations do not allow batteries to be changed while the module is switched on. The battery is changed as follows: • Touch the mounting rail or ground connection (not the power supply!) in order to discharge any electrostatic charge from your body. • Remove the cover from the lithium battery holder using a screwdriver. • Remove the battery from the holder by pulling the removal strip (don't use uninsulated tools -> risk of short circuiting). • The battery should not be held by its edges. Insulated tweezers may also be used for removing the battery. • Insert the new battery with correct polarity. The removal strip should be protruding from the battery holder and the "+" side of the battery should be facing downward. In order to be able to remove the battery again in future, the removal strip must protrude from the upper side of the battery. • Now wrap the end of the removal strip over the top of the battery and insert it underneath the battery so that it does not protrude from the battery holder.

Question: How can the Power Panel 45 4PP045.0571-K30 lifespan of backlights be extended?

Answer: • Set the display brightness to the lowest value that is still comfortable for the eyes• Use dark images• Reducing the brightness by 50% can result in an approximate 50% increase of the halfbrightness time.
