Home / All / B&R Power Panel / Power Panel PP65 / Touchscreen panel for 4PP065.0571-X74 touch screen membrane touch sensor glass replacement repair

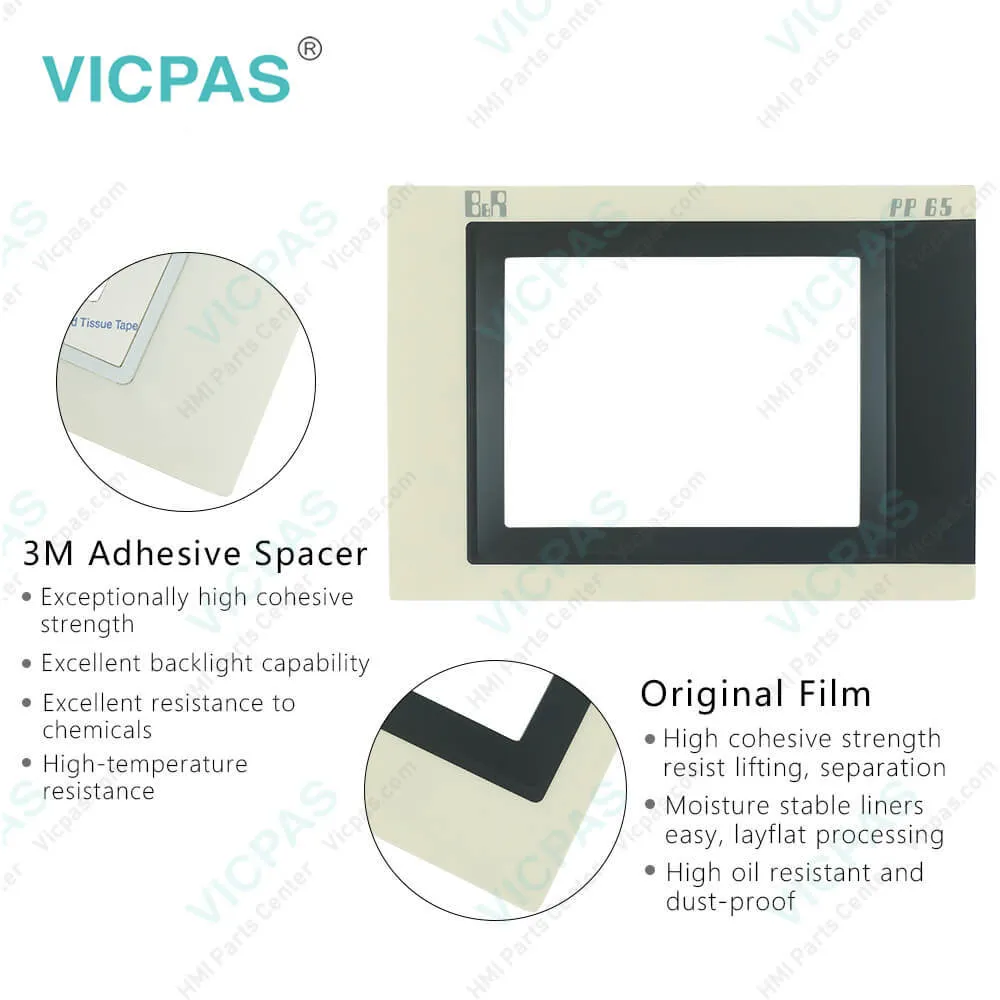

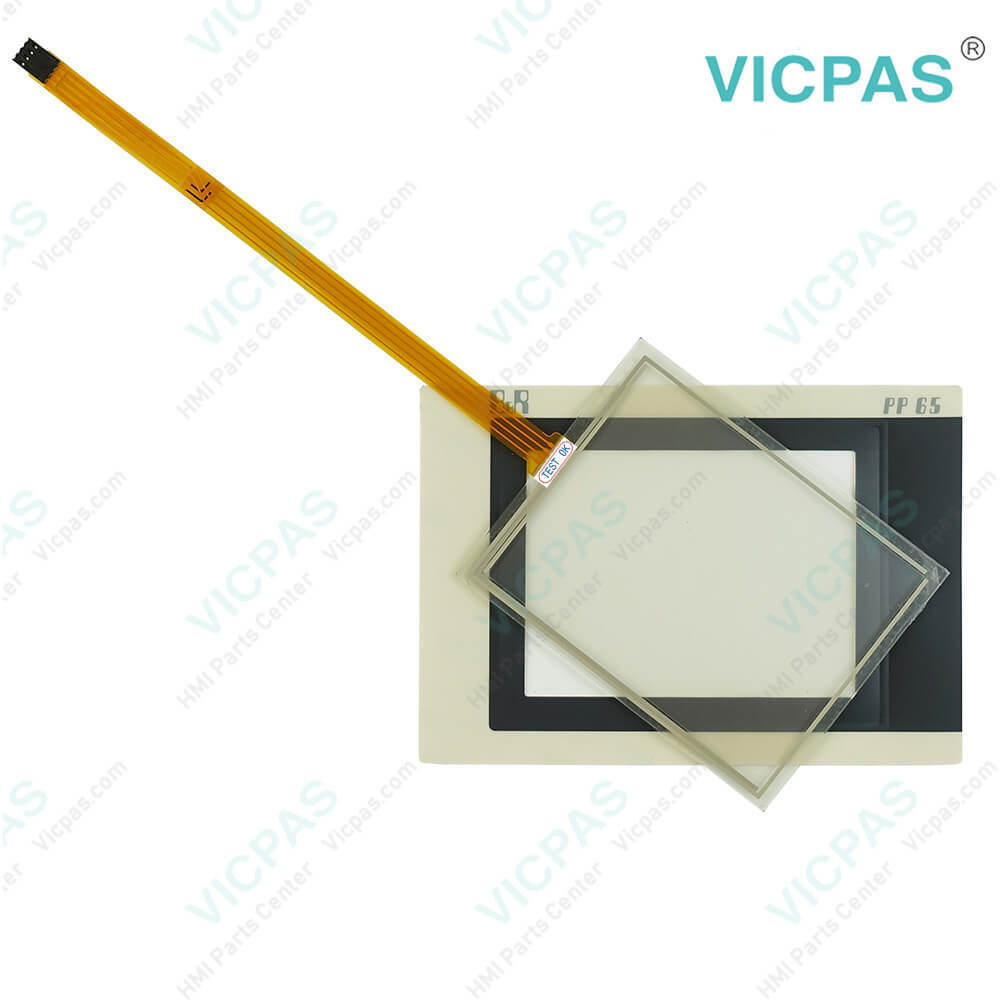

Touchscreen panel for 4PP065.0571-X74 touch screen membrane touch sensor glass replacement repair

Touchscreen panel for 4PP065.0571-X74 touch screen membrane touch sensor glass replacement repair
Touchscreen panel for 4PP065.0571-X74 touch screen membrane touch sensor glass replacement repairTouchscreen panel for 4PP065.0571-X74 touch screen membrane touch sensor glass replacement repairTouchscreen panel for 4PP065.0571-X74 touch screen membrane touch sensor glass replacement repairTouchscreen panel for 4PP065.0571-X74 touch screen membrane touch sensor glass replacement repairTouchscreen panel for 4PP065.0571-X74 touch screen membrane touch sensor glass replacement repair
BrandB&R
ModelB&R Power Panel 65 4PP065.0571-X74
Warranty1 Year VICPAS Warranty
ShippingDHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, T/T, PayPal, Credit Card
Download
Update Time2026-02-09 17:34:58
Leading Time{{selectedConditionObj.leading}}
{{item.value}}
{{nameObj.name}}{{nameObj.selectedValue}}
{{valueObj.name}}

Shipping

Free Shipping

Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.

Detail Information

B&R Power Panel 65 4PP065.0571-X74 Protective Film Touch Screen Enclosure LCD Panel Repair

Order each part separately is available

Power Panel 65 4PP065.0571-X74 LCD Panel, Housing, Power Supply Connector, Gasket, Extension Cable, Battery Cover, Touch Screen Glass, Interface Module Cover, Mounting Clips, Protective Film and Screws Replacement

The PP65 4PP065.0571-X74 is both a controller and an operator panel, with various repair parts Back Cover, LCD Display, Mounting Clips, Gasket, Power Supply Connector, Screws, Touch Screen Monitor, Interface Module Cover, Front Case, Front Overlay, Battery Cover and Extension Cable. Any necessary peripherals can be connected using the integrated X2X interface. Using the optional interface modules, it is also possible to connect other B&R products or even to integrate the PP65 into control systems from other manufacturers. All components are situated in a compact housing with a 3.5" or 5.7" QVGA TFT display.


4PP065.0571-X74 Equipped with 2 USB interfaces and a Fast Ethernet port for exchanging data with higher-level systems, the PP65 4PP065.0571-X74 is also available with integrated X2X or POWERLINK interface options for connecting remote I/O modules and drives. These systems can be further extended with RS232/RS485, CAN and PROFIBUS DP slave interfaces to meet any requirement.


Kernfix supply B and R Power Panel 65 4PP065.0571-X74 HMI part Back Cover, LCD Display, Mounting Clips, Gasket, Power Supply Connector, Screws, Touch Screen Monitor, Interface Module Cover, Front Case, Front Overlay, Battery Cover and Extension Cable to replace, make the HMI running. We provide a 1-year warranty of the most product, which includes most of touch screen panel, front overlay and display.



  Contact Best Price

Specifications:

Part Number:4PP065.0571-X74
Product Line:Power Panel 65
Screen diagonal:5.7 in
Warranty:365 Days Warranty
Input Power:24 VDC
Display Type:TFT color
Mounting position:vertical
Input Type:Touchscreen
Remanent Variables:32 kB
Storage:-20 to 70°C


Related BB Teach Pendant Part No. :

B&R Power Panel 65 4PP065.0571-X74Description Inventory status
4PP065-0351-P74Power Panel 65 Membrane Keypad Keyboard Touch Screen ReplacementIn Stock
4PP065-0351-X74B&R PP65 Membrane Keypad Touchscreen Panel ReplacementAvailable Now
4PP065-0351-K01B and R Power Panel 65 Touch Screen Panel Keyboard MembraneAvailable Now
4PP065-0571-K01Power Panel 65 B&R Touch Panel Protective Film Repair KitIn Stock
4PP065-0571-P74Power Panel 65 B and R Protective Film Touchscreen GlassIn Stock
4PP065-0571-X74B and R PP65 HMI Touch Screen Panel Front Overlay ReplacementAvailable Now
4PP065-0571-P4Power Panel 65 Touch Screen Panel Protective Film Replacement KitIn Stock
4PP065-0571-K28B and R Power Panel 65 Touchscreen Membrane Front Overlay Repair KitAvailable Now
4PP065-0571-K58Power Panel 65 B and R Touch Screen Protective Film ReplacementIn Stock
4PP065-0571-K02B and R Power Panel 65 Touch Screen Panel Glass ReplacementAvailable Now
4PP065-0571-K03B and R Power Panel 65 Touch Membrane Repair ReplacementAvailable Now
4PP065-0571-K04Power Panel 65 B&R Touch Screen Panel Replacement RepairAvailable Now
4PP065-0351-P74Power Panel 65 Membrane Keypad Keyboard Touch Screen ReplacementIn Stock
4PP065-0351-X74B&R PP65 Membrane Keypad Touchscreen Panel ReplacementAvailable Now
4PP065-0351-K01B and R Power Panel 65 Touch Screen Panel Keyboard MembraneAvailable Now
4PP065-0571-K01Power Panel 65 B&R Touch Panel Protective Film Repair KitIn Stock
4PP065-0571-P74Power Panel 65 B and R Protective Film Touchscreen GlassIn Stock
4PP065-0571-X74B and R PP65 HMI Touch Screen Panel Front Overlay ReplacementAvailable Now
4PP065-0571-P4Power Panel 65 Touch Screen Panel Protective Film Replacement KitIn Stock
4PP065-0571-K28B and R Power Panel 65 Touchscreen Membrane Front Overlay Repair KitAvailable Now
4PP065-0571-K58Power Panel 65 B and R Touch Screen Protective Film ReplacementIn Stock
4PP065-0571-K02B and R Power Panel 65 Touch Screen Panel Glass ReplacementAvailable Now
4PP065-0571-K03B and R Power Panel 65 Touch Membrane Repair ReplacementAvailable Now
4PP065-0571-K04Power Panel 65 B&R Touch Screen Panel Replacement RepairAvailable Now

Touchscreen panel for 4PP065.0571-X74 touch screen membrane touch sensor glass replacement repair PDF Download:

  • Power Panel 65
  • B and R PP65 4PP065.0571-X74 Data Sheet
  • B&R Power Panel 65 4PP065.0571-X74 User's Manual
  • Power Panel 65
  • B and R PP65 4PP065.0571-X74 Data Sheet
  • B&R Power Panel 65 4PP065.0571-X74 User's Manual

    • FAQ:

    Question: What is the procedure for replacing the B&R Power Panel 65 4PP065.0571-X74 battery?

    Answer: • Disconnect the power supply to the Power Panel.• Touch the housing or ground connection in order to discharge any electrostatic charge from your body.• Remove the battery cover from the top of the Power Panel device using a screwdriver (1).• Carefully remove the used battery from its fitting by pulling the removal strip (2).• In order to prevent a short circuit, do not touch the new battery with pliers or uninsulated tweezers. The battery should not be held by its edges.• Insert the new battery with the correct polarity. To make the next battery change easier, be sure the removal strip is in place when inserting the battery.• Replace the battery cover.• Reconnect the power supply to the Power Panel.• Reset the date and time (using B&R Automation Studio).

    Question: How to clean B&R Power Panel 4PP065.0571-X74 devices?

    Answer: Power Panel devices should be cleaned with a moist cloth. The cloth should be moistened with water and detergent, a screen cleaning agent or alcohol (ethanol). The cleaning agent should be applied to the cloth beforehand, not sprayed directly on the Power Panel! Never use aggressive solvents, chemicals, scouring agents, pressurized air or steam-jet air ejectors.

    Question: What is the 4PP065.0571-X74 B&R PP65 touch digitizer glass front overlay case LCD screen price repair parts?

    Answer: Submit a fast quote, send Kernfix an email for best price.
