Home / All / B&R Power Panel / Power Panel PP65 / B&R PP65 4PP065.0571-P4 Front Overlay Touch Screen

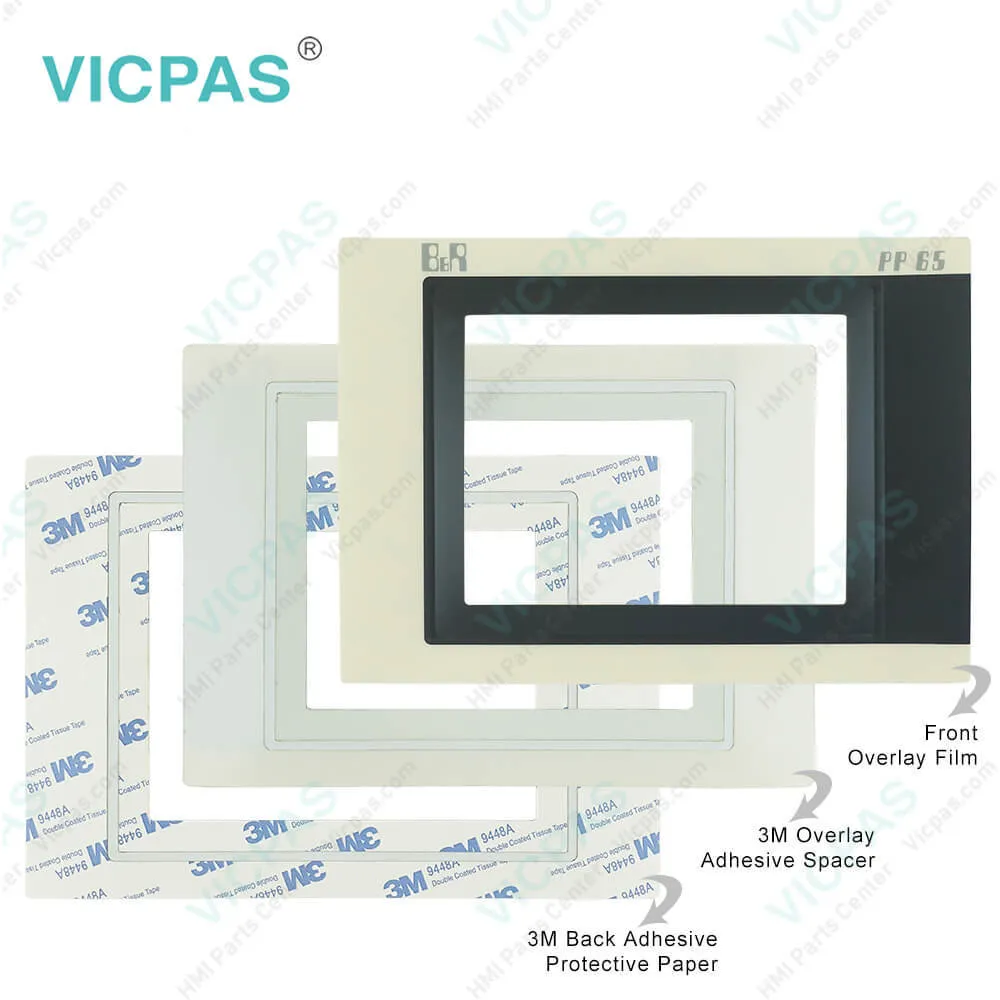

B&R PP65 4PP065.0571-P4 Front Overlay Touch Screen

B&R PP65 4PP065.0571-P4 Front Overlay Touch Screen
B&R PP65 4PP065.0571-P4 Front Overlay Touch ScreenB&R PP65 4PP065.0571-P4 Front Overlay Touch ScreenB&R PP65 4PP065.0571-P4 Front Overlay Touch ScreenB&R PP65 4PP065.0571-P4 Front Overlay Touch ScreenB&R PP65 4PP065.0571-P4 Front Overlay Touch Screen
BrandB&R
ModelB&R Power Panel 65 4PP065.0571-P4
Warranty1 Year VICPAS Warranty
ShippingDHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, T/T, PayPal, Credit Card
Download
Update Time2026-02-09 17:35:00
Leading Time{{selectedConditionObj.leading}}
{{item.value}}
{{nameObj.name}}{{nameObj.selectedValue}}
{{valueObj.name}}

Shipping

Free Shipping

Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.

Detail Information

B&R Power Panel 65 4PP065.0571-P4 Front Overlay Touch Digitizer Glass Housing LCD Screen HMI Spre Parts Replacement

Order each part separately is available

Power Panel 65 Screws, Battery Cover, Front Overlay, Mounting Clips, Gasket, Power Supply Connector, Extension Cable, Interface Module Cover, Front Case, LCD Display, Back Cover and Touch Screen Monitor Repair

B&R PP65 4PP065.0571-P4 touch screen devices are equipped with a touch controller that supports hardware calibration. This means that devices are pre-calibrated when delivered. This feature is a particularly helpful advantage for replacement parts because recalibration is usually no longer necessary when replacing the device (identical model/type). Nevertheless, calibrating the device is still recommended to achieve the best results and to better adapt the touch screen to the user's preferences. In addition, Vicpas also provides repair parts Front Case, Back Cover, Gasket, Screws, Mounting Clips, Power Supply Connector, Interface Module Cover, Battery Cover, Extension Cable, Front Overlay, Touch Screen Glass and LCD Display.


The PP65 4PP065.0571-P4 is equipped with a powerful Geode LX800 processor with 500 MHz clock frequency. With this computing power, the PP65 provides performance that was previously only achieved by the PP400. The PP65 is therefore especially suitable for multi-axis applications that require lots of computing power but only have limited space in the control cabinet. The compact dimensions of the PP45 have been taken over in this case.


The Power Panel 65 4PP065.0571-P4 is an especially compact addition to the proven Power Panel product family, including spare parts Screws, Battery Cover, Front Overlay, Mounting Clips, Gasket, Power Supply Connector, Extension Cable, Interface Module Cover, Front Case, LCD Display, Back Cover and Touch Screen Monitor. Modular fieldbus interfaces ensure flexible integration in all configurations.
Ethernet, POWERLINK and X2X Link are used for the communication system. Additionally, these devices have been equipped with a slot for interface modules. Depending on requirements, the Power Panel 65 can be expanded with CAN bus, a PROFIBUS DP slave or an RS485/RS232 interface, making it perfectly suited for demanding tasks. Customized panel overlay designs are also available.
• Cost-effective complete solution
• Compact dimensions
• Integrates controller, visualization and I/O interface



  Contact Best Price

Specifications:

Part Number:4PP065.0571-P4
Product Line:Power Panel 65
Screen diagonal:5.7 in
Warranty:365 Days Warranty
Input Power:24 VDC
Display Type:TFT color
Mounting position:vertical
Input Type:Touchscreen
Remanent Variables:32 kB
Storage:-20 to 70°C


Related BB Teach Pendant Part No. :

B&R Power Panel 65 4PP065.0571-P4Description Inventory status
4PP065-0351-P74Power Panel 65 Membrane Keypad Keyboard Touch Screen ReplacementIn Stock
4PP065-0351-X74B&R PP65 Membrane Keypad Touchscreen Panel ReplacementAvailable Now
4PP065-0351-K01B and R Power Panel 65 Touch Screen Panel Keyboard MembraneAvailable Now
4PP065-0571-K01Power Panel 65 B&R Touch Panel Protective Film Repair KitIn Stock
4PP065-0571-P74Power Panel 65 B and R Protective Film Touchscreen GlassIn Stock
4PP065-0571-X74B and R PP65 HMI Touch Screen Panel Front Overlay ReplacementAvailable Now
4PP065-0571-P4Power Panel 65 Touch Screen Panel Protective Film Replacement KitIn Stock
4PP065-0571-K28B and R Power Panel 65 Touchscreen Membrane Front Overlay Repair KitAvailable Now
4PP065-0571-K58Power Panel 65 B and R Touch Screen Protective Film ReplacementIn Stock
4PP065-0571-K02B and R Power Panel 65 Touch Screen Panel Glass ReplacementAvailable Now
4PP065-0571-K03B and R Power Panel 65 Touch Membrane Repair ReplacementAvailable Now
4PP065-0571-K04Power Panel 65 B&R Touch Screen Panel Replacement RepairAvailable Now
4PP065-0351-P74Power Panel 65 Membrane Keypad Keyboard Touch Screen ReplacementIn Stock
4PP065-0351-X74B&R PP65 Membrane Keypad Touchscreen Panel ReplacementAvailable Now
4PP065-0351-K01B and R Power Panel 65 Touch Screen Panel Keyboard MembraneAvailable Now
4PP065-0571-K01Power Panel 65 B&R Touch Panel Protective Film Repair KitIn Stock
4PP065-0571-P74Power Panel 65 B and R Protective Film Touchscreen GlassIn Stock
4PP065-0571-X74B and R PP65 HMI Touch Screen Panel Front Overlay ReplacementAvailable Now
4PP065-0571-P4Power Panel 65 Touch Screen Panel Protective Film Replacement KitIn Stock
4PP065-0571-K28B and R Power Panel 65 Touchscreen Membrane Front Overlay Repair KitAvailable Now
4PP065-0571-K58Power Panel 65 B and R Touch Screen Protective Film ReplacementIn Stock
4PP065-0571-K02B and R Power Panel 65 Touch Screen Panel Glass ReplacementAvailable Now
4PP065-0571-K03B and R Power Panel 65 Touch Membrane Repair ReplacementAvailable Now
4PP065-0571-K04Power Panel 65 B&R Touch Screen Panel Replacement RepairAvailable Now

B&R PP65 4PP065.0571-P4 Front Overlay Touch Screen PDF Download:

  • Power Panel 65
  • B&R Power Panel 65 User's Manual
  • Power Panel 65
  • B&R Power Panel 65 User's Manual

    • FAQ:

    Question: How to removing the Power Panel 65 4PP065.0571-P4 CompactFlash card?

    Answer: Rotate the orange CompactFlash safety latch away from the CompactFlash slot (1). Then press the CompactFlash ejection lever (2) with a screwdriver until the CompactFlash card is ejected. The CompactFlash card can now be removed by hand (3).

    Question: How to install the B and R PP65 4PP065.0571-P4 interface modules?

    Answer: 1) Remove the screws from the cover.2) Remove the cover.3) Insert the interface module into the PP65.4) Apply light pressure until the interface module is inserted all the way.5) Secure the interface module with the screws (max. 0.6 Nm).

    Question: How can B and R Power Panel 65 4PP065.0571-P4 screen burn-in be avoided?

    Answer: There is no perfect solution. There are ways to significantly reduce this effect, however:• Avoid static images or screen content.• Use screensavers (animated) if the display is not in use.• Frequent picture change• Turn off the display when not in use.Turning off the backlight does not help prevent screen burn-in.


    Common misspellings:

    4P065.0571-P4

    4PP056.0571-P4

    4PPo65.0571-P4

    4PP065.057l-P4

    44PP065.0571-P4
