B&R 4PP180.1505-31 Keypad Membrane Touchscreen Film
| Brand | B&R |
|---|---|
| Model | B&R Power Panel 100 4PP180.1505-31 |
| Warranty | 1 Year VICPAS Warranty |
| Shipping | DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX |
| FOB port | Guangzhou, Shenzhen, Hongkong |
| Terms of Payment | Western Union, T/T, PayPal, Credit Card |
| Update Time | 2026-01-30 23:14:28 |
Shipping
Free Shipping
Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.

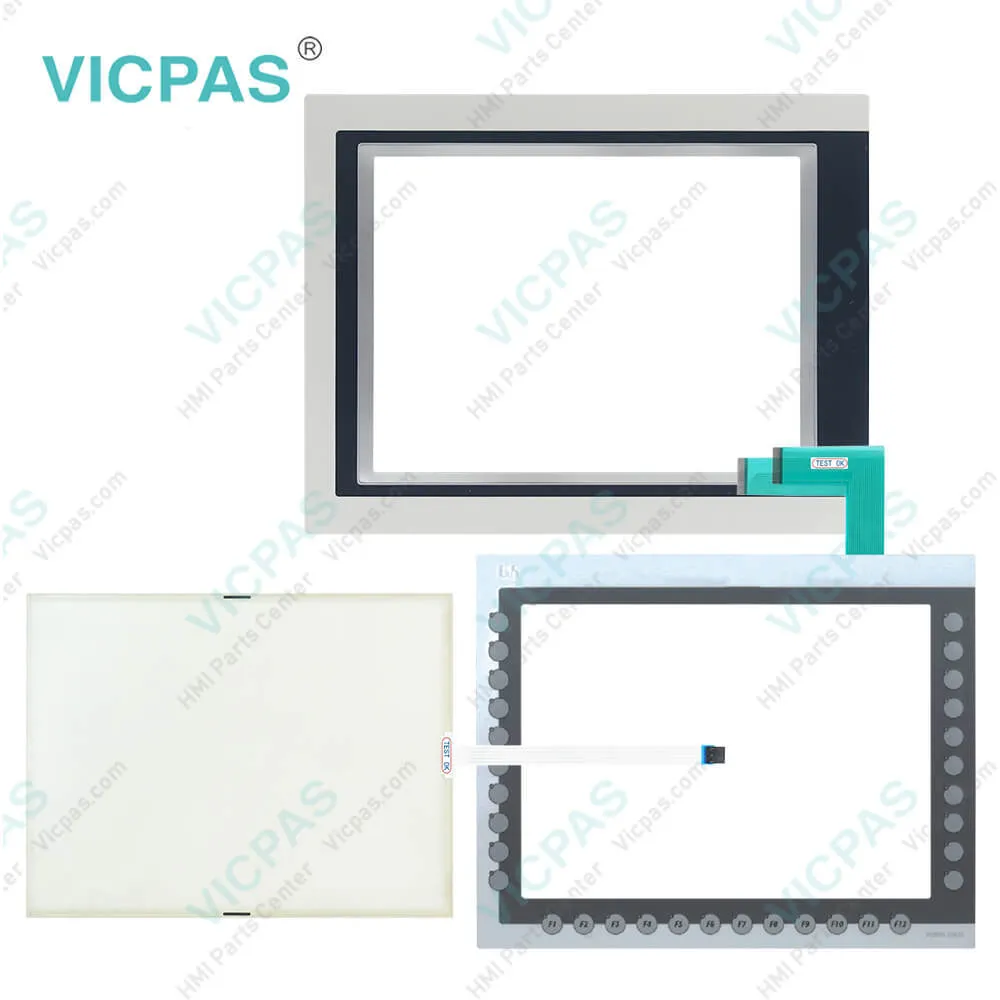

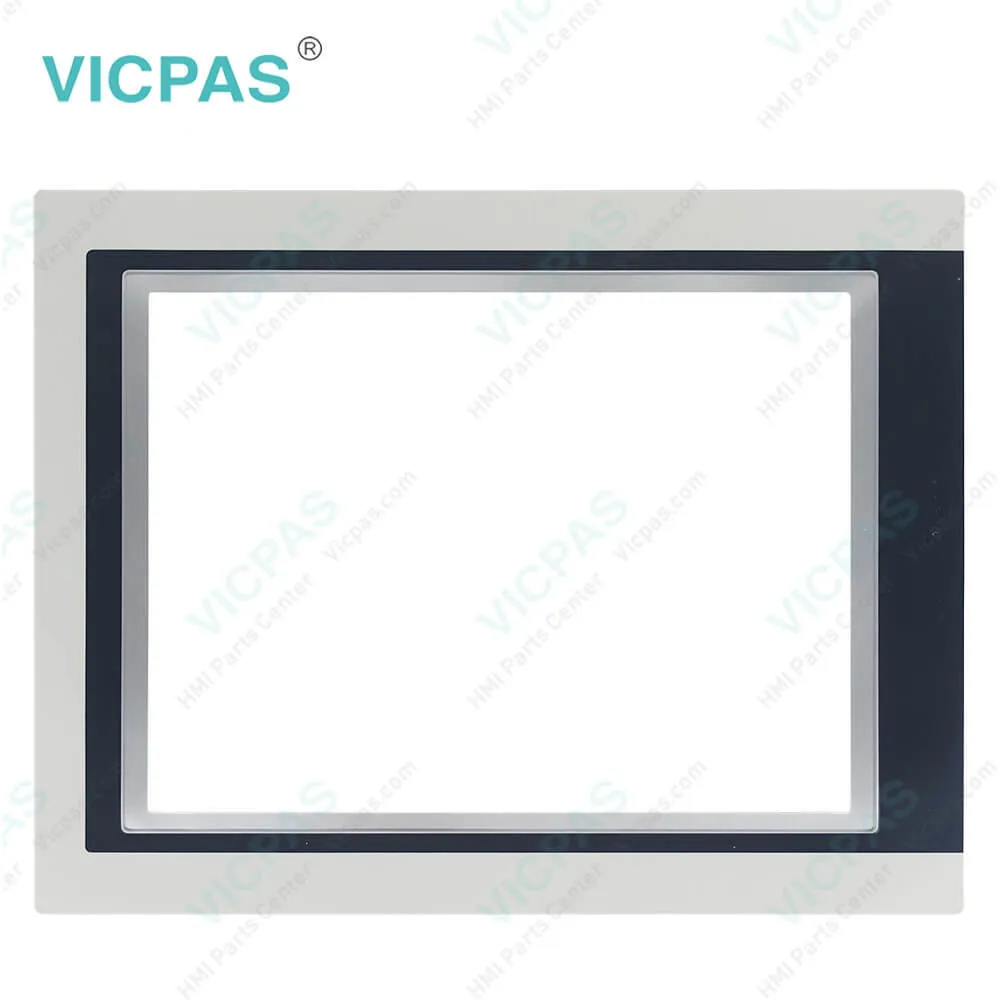

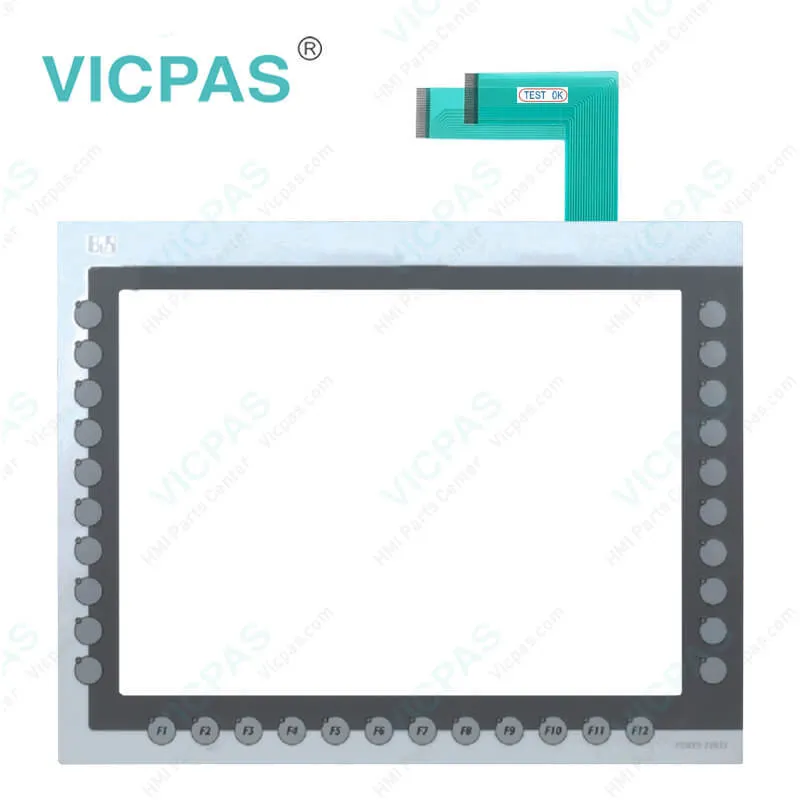

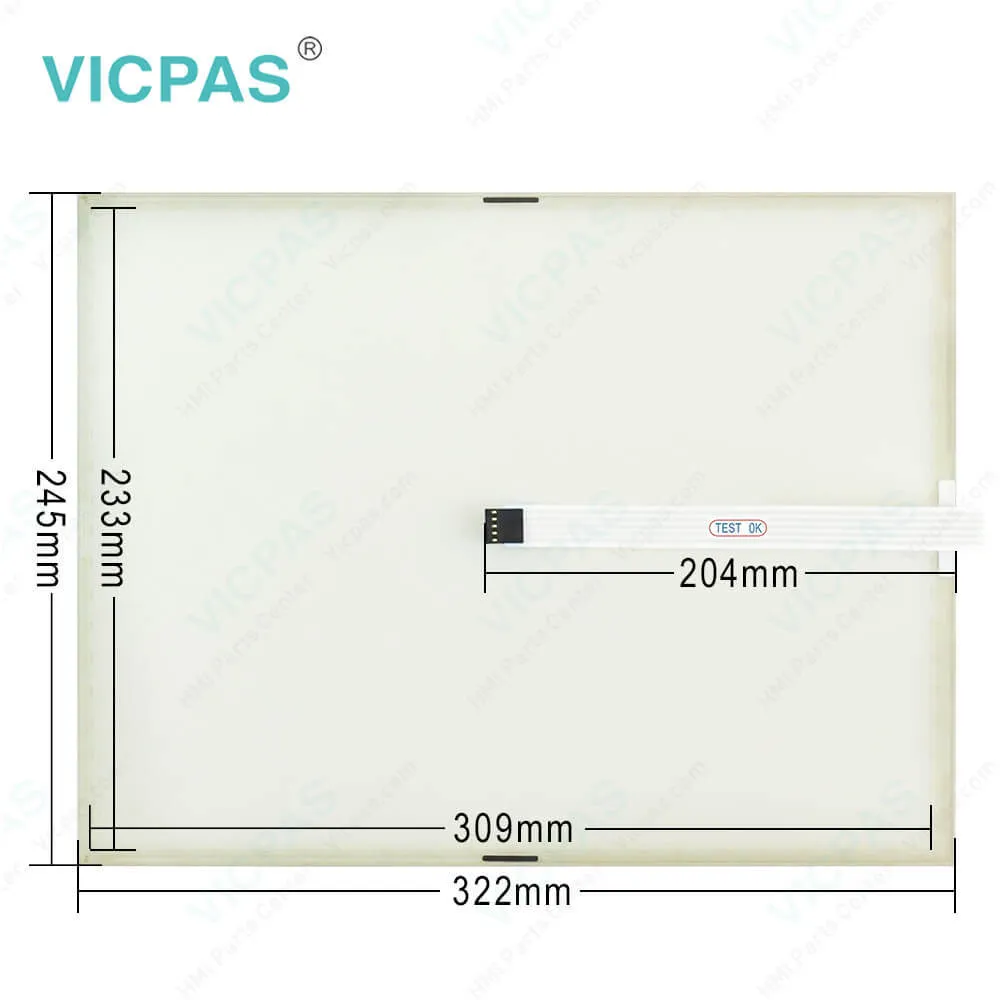

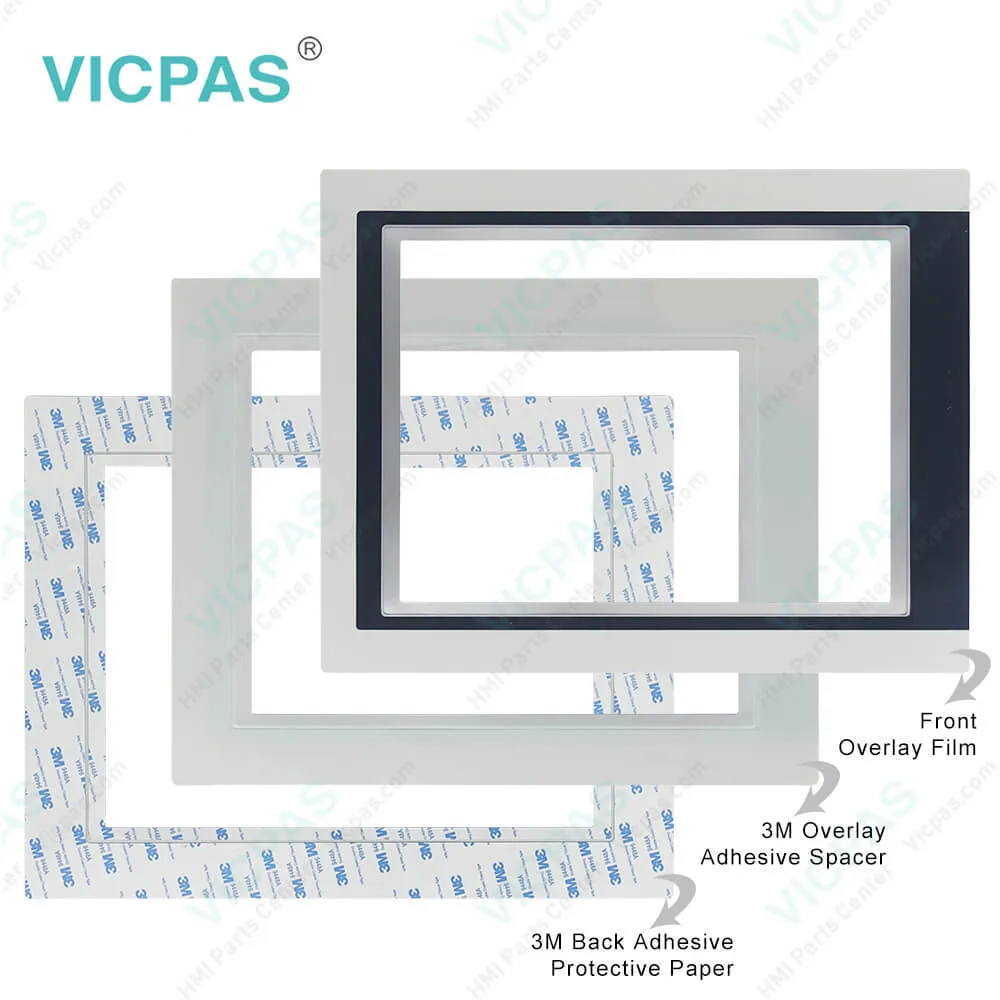

B&R Power Panel 100 4PP180.1505-31 Keypad Membrane Touch Panel Protective Film
Order each part separately is available
The following issues for the PP100/200 devices are known: Using two different types of CompactFlash cards can cause problems in Automation PCs and Panel PCs. This can result in one of the two cards not being detected during system startup. This is caused by varying startup speeds. CompactFlash cards with older technology require significantly more time during system startup than CompactFlash cards with newer technology. This behavior occurs near the limits of the time frame provided for startup. The problem described above can occur because the startup time for the CompactFlash cards fluctuates due to the variance of the components being used. Depending on the CompactFlash cards being used, this error might never, sometimes or always occur.
The 3-pin socket required for the supply voltage connection is not included in delivery. This can be ordered from B&R using the model number 0TB103.9 (screw clamps) or 0TB103.91 (cage clamps). The cable required for the connection must be supplied by the customer. The supply voltage is internally protected so that the device cannot be damaged if there is an overload or if the voltage supply is connected incorrectly. Pin assignments can be found either in the following table or printed on the Power Panel plate or device label.
Specifications:
| Part Number: | 4PP180.1505-31 |
| Product Line: | Power Panel 100 |
| Screen diagonal: | 10.4 in |
| Warranty: | 365 Days Warranty |
| Input Power: | 24 VDC |
| Display Type: | TFT color |
| Mounting position: | Vertical |
| Input Type: | Keypad |
| Serial interface Type: | RS232 |
| Storage: | -20 to 70°C |
Related BB Teach Pendant Part No. :
| B&R Power Panel 100 4PP180.1505-31 | Description | Inventory status |
| 4PP120.1043-K05 | B&R Power Panel 100 Touch Screen Panel Glass Protective Film | In Stock |
| 4PP120.1043-K06 | PP100 B and R Touch Panel Glass Front Overlay Repair | Available Now |
| 4PP151.1043-31 | B&R Power Panel 100 Operator Panel Keypad Repair | In Stock |
| 4PP152.1043-31 | B and R Power Panel 100 Membrane Keypad Switch Replacement | In Stock |
| 4PP180.1043-31 | PP100 B&R Membrane Keypad Touch Screen Front Overlay | In Stock |
| 4PP181.1043-31 | B and R Power Panel 100 Keypad Membrane Repair | In Stock |
| 4PP182.1043-31 | PP100 B&R Membrane Keypad Keyboard Replacement | Available Now |
| 4PP120.1505-31 | Power Panel 100 B&R Membrane Keypad Switch Touch Panel Protective Film | In Stock |
| 4PP151.1505-31 | B and R Power Panel 100 Operator Panel Keypad | Available Now |
| 4PP180.1505-31 | B&R Power Panel 100 Keypad Membrane Touch Screen Front Overlay | In Stock |
| 4PP181.1505-31 | Power Panel 100 B and R Keypad Membrane Repair | Available Now |
B&R 4PP180.1505-31 Keypad Membrane Touchscreen Film PDF Download:
FAQ:
Question: How can the Automation Panel B&R 4PP180.1505-31 service life of the backlight be extended?
Answer: • By setting the display brightness to the lowest value that is still comfortable for the eyes• By using dark images• By reducing the brightness by 50%, which can result in an approximately 50% increase in the half-brightness time
Question: How to clean the B&R Power Panel 100 4PP180.1505-31 Terminal Devices?
Answer: This device should be cleaned with a moist cloth. The cloth should be moistened with water and detergent, a screen cleaning agent or alcohol (ethanol). The cleaning agent should be applied to the cloth beforehand, not sprayed directly on the device! Aggressive solvents, chemicals, scouring agents, pressurized air or steam jets should never be used.
