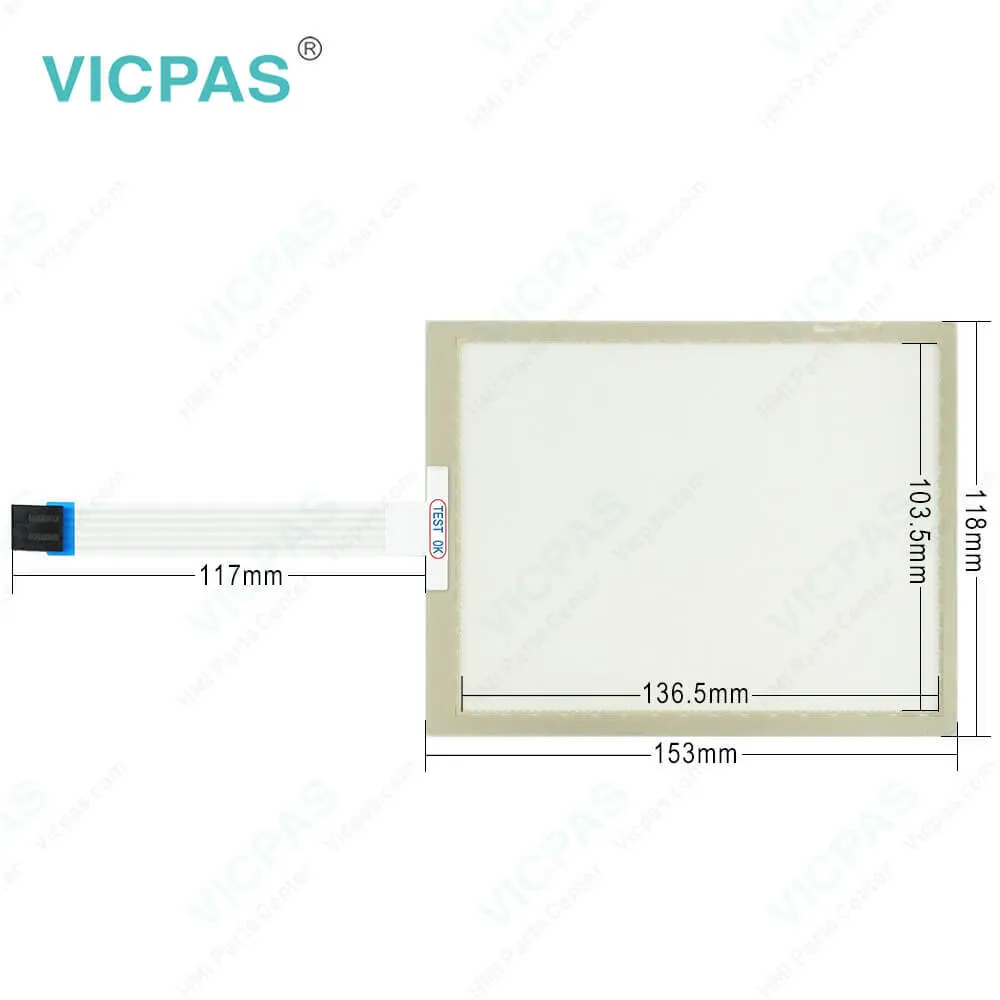

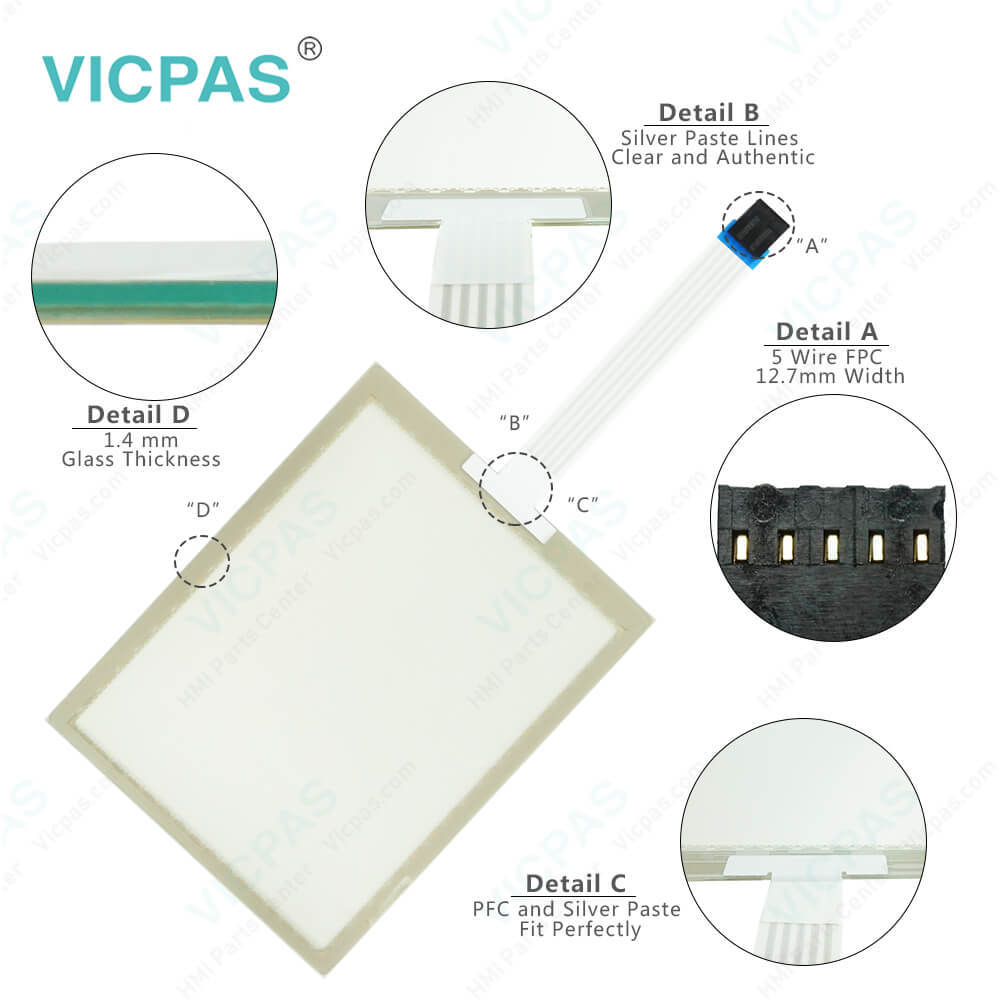

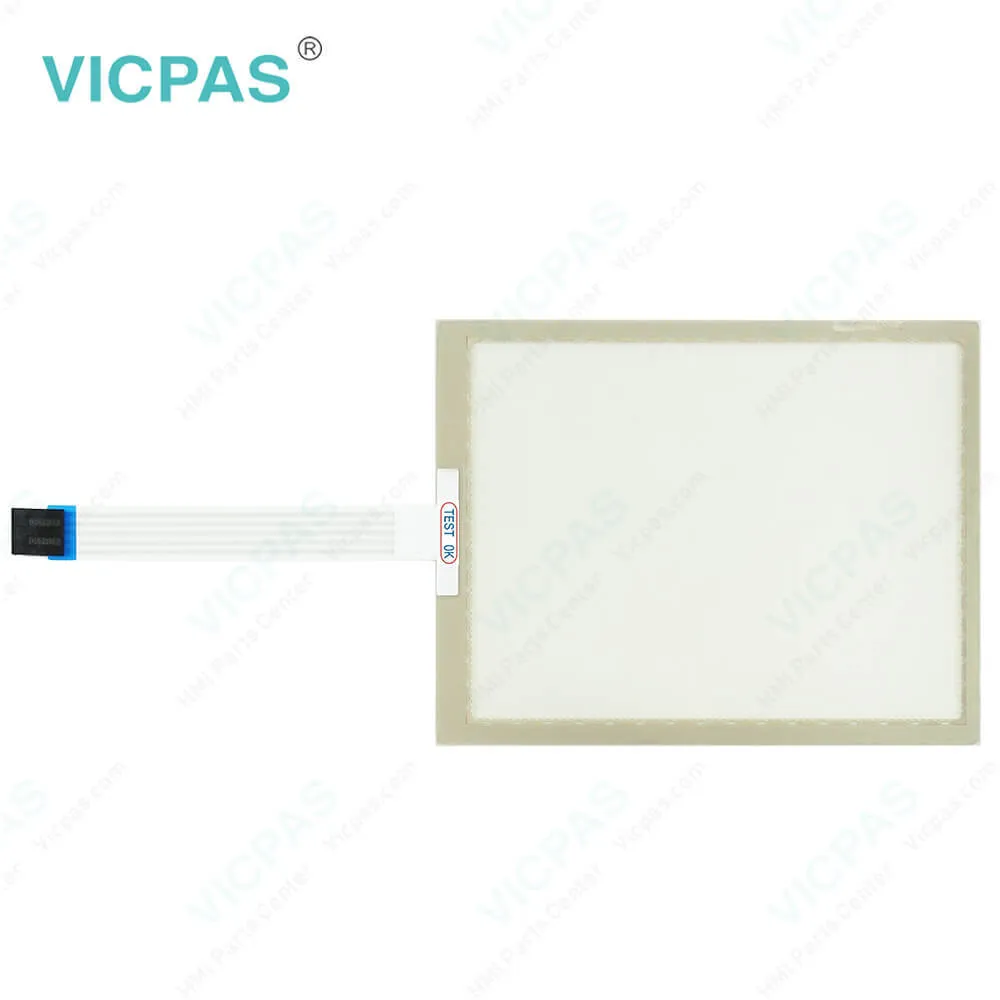

PP300 5PP320.0653-K03 B&R Touch Screen Panel Glass
| Brand | B&R |
|---|---|
| Model | B&R Power Panel 300 5PP320.0653-K03 |
| Warranty | 1 Year VICPAS Warranty |
| Touch Screen Panel Type | Resistance touch screen |
| Shipping | DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX |
| FOB port | Guangzhou, Shenzhen, Hongkong |
| Terms of Payment | Western Union, T/T, PayPal, Credit Card |
| Download | |
| Update Time | 2026-01-30 23:18:24 |
Shipping
Free Shipping
Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.
B&R Power Panel 300 5PP320.0653-K03 Front Overlay Touch Screen Panel Repair Replacement
5PP320.0653-K03 BIOS stands for "Basic Input Output System". It is the most basic standardized communication between the user and the system (hardware). A B&R-modified BIOS from Insyde is used in the Power Panel devices. BIOS setup lets you modify basic system configuration settings. These settings are saved in CMOS RAM. The CMOS RAM is a nonvolatile, battery-backed memory that retains information when power is not applied to the Power Panel. BIOS is immediately activated when switching on the power supply of the Power Panel. BIOS reads the system configuration information in CMOS RAM, checks the system, and configures it using the power-on self-test (POST).
Kernfix supply B and R Power Panel 300 5PP320.0653-K03 touchscreen panel and protective film for repair replacement, make the HMI running. We provide a 365-day Kernfix warranty on most products, which include most of touch screen panel, membrane keypad, protective film, LCD display and protective case shell housing.
The Power Panel 300/400 devices have a USB 2.0 (Universal Serial Bus) host controller with multiple USB ports, two of which are on the outside for easy user access. Power Panel devices are equipped with 2 hex switches that serve as operating mode switches. Switch positions 01 to FD are available for any purpose in an application and can be evaluated by the application program. Due to the complete ATX power supply support, the power button serves several functions, which can be configured in BIOS setup.
Specifications:
| Part Number: | 5PP320.0653-K03 |
| Product Line: | Power Panel 300 |
| Screen diagonal: | 6.5 in |
| Warranty: | 365 Days Warranty |
| Input Power: | 24 VDC |
| Display Type: | TFT color |
| Mounting position: | Vertical |
| Input Type: | Touchscreen |
| Serial interface Type: | RS232 |
| Storage: | -20 to 70°C |
Related BB Teach Pendant Part No. :
| B&R Power Panel 300 5PP320.0653-K03 | Description | Inventory status |
| 4PP320.0653-K01 | B&R Power Panel 300 Protective Film Touch Screen Panel Glass | In Stock |
| 5PP320.0653-K02 | Power Panel 300 Touch Panel Glass Replacement | Available Now |
| 5PP320.0653-K03 | B&R Power Panel 300 Touch Screen Panel Repair Kit | In Stock |
| 4PP380.0844-K01 | B&R Power Panel 300 Touch Glass Protective Film Repair | In Stock |
| 4PP320.1043-31 | B and R Power Panel 300 Touch Digitizer Overlay Replacement | In Stock |
| 4PP320.1043-75 | Power Panel 300 HMI Touch Screen Organizer Protective Film | In Stock |
| 4PP320.1043-85 | Power Panel 300 Touch Panel Protective Film Overlay Repair | In Stock |
| 5PP320.1043-39 | Power Panel 300 B&R HMI Touch Screen Front Overlay | Available Now |
| 5PP320.1043-K0 | PP300 B&R Touch Screen Monitor Protective Film | In Stock |
| 4PP320.1043-K06 | B and R Power Panel 300 Touch Screen Hmi Repair | Available Now |
| 4PP320.1043-K11 | B&R Power Panel 300 Touch Screen Panel Glass | In Stock |
| 5PP320.1043-K18 | B&R Power Panel 300 Touch Screen Replacement | In Stock |
| 5PP320.1044-K04 | Power Panel 300 B&R MMI Touch Screen Glass | In Stock |
| 5PP320.1043-K04 | Power Panel 300 B and R Touch Screen Organizer | Available Now |
| 5PP320.1043-K07 | B&R Power Panel 300 Touch Digitizer Glass Repair | In Stock |
| 5PP320.1043-K10 | B and R Power Panel 300 Touch Screen Hmi Repair | Available Now |
PP300 5PP320.0653-K03 B&R Touch Screen Panel Glass PDF Download:
FAQ:
Question: How to upgrade B&R Power Panel 300 5PP320.0653-K03 BIOS Software?
Answer: The following steps should be carried out to upgrade or save 5PP320.0653-K03 BIOS:• Create bootable media.• Copy the contents of the *.zip file to the bootable media. If the B&R upgrade was already added when the bootable media was created using the B&R Embedded OS Installer, then this step is not necessary. • Connect the bootable media to the Power Panel and reboot the device. • The following start menu will be shown after booting.• The system must be rebooted after a successful upgrade.
Question: What is the procedure of creating a bootable USB flash drive for B&R 5PP320.0653-K03 upgrade files?
Answer: • Connect the USB flash drive to the PC. • If the drive list is not refreshed automatically, the list must be updated using the command Drives > Refresh. • Mark the desired USB flash drive in the drive list. • Change to the Action tab and select Install a B&R Update to a USB flash drive as type of action. • Enter the path to the MS-DOS operating system files. If the files are part of a ZIP archive, then click on the button By ZIP file.... If the files are stored in a directory on the hard drive, then click on the button By folder.... • In the B&R Upgrade text box, it's also possible to enter the path to the ZIP file for the B&R Upgrade Disk and select the file. • Click on the Start action button in the toolbar.
Question: What is the B&R Power Panel 5PP320.0653-K03 touch screen panel price?
Answer: Submit a fast quote, send Kernfix an email for best price.
