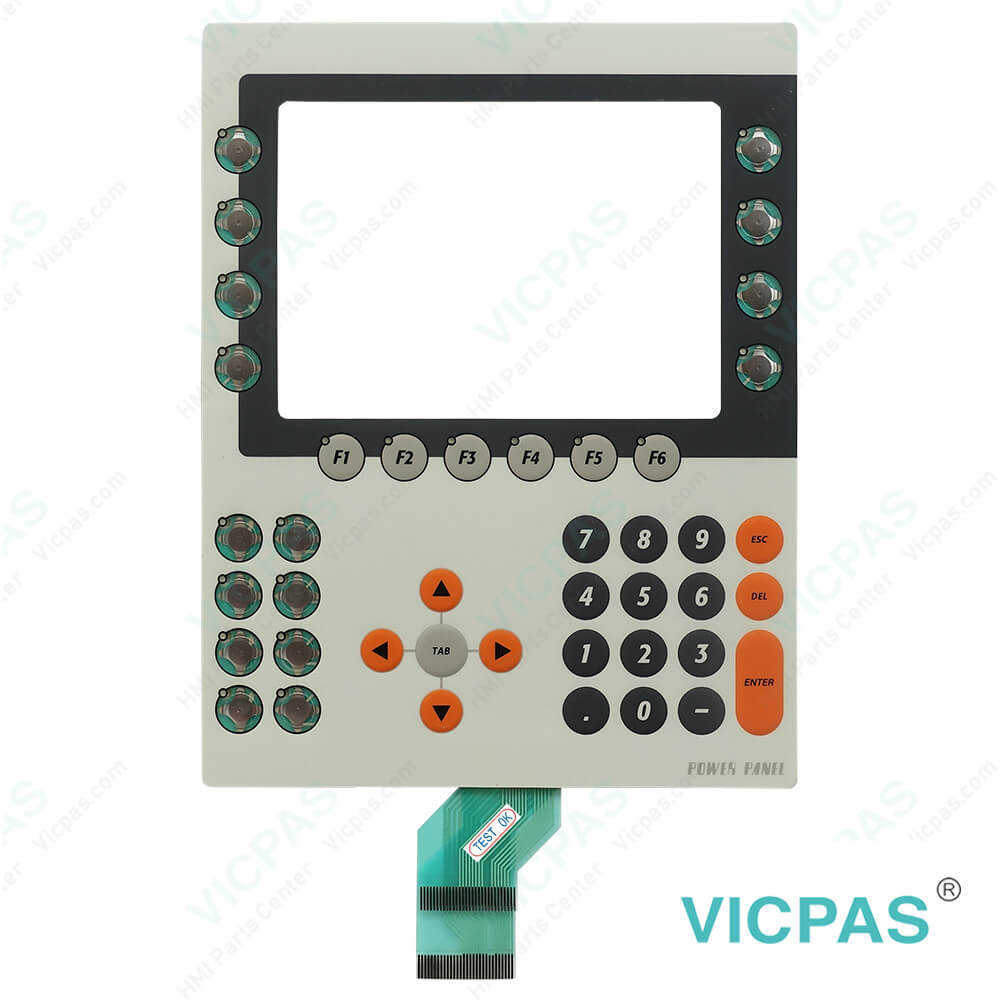

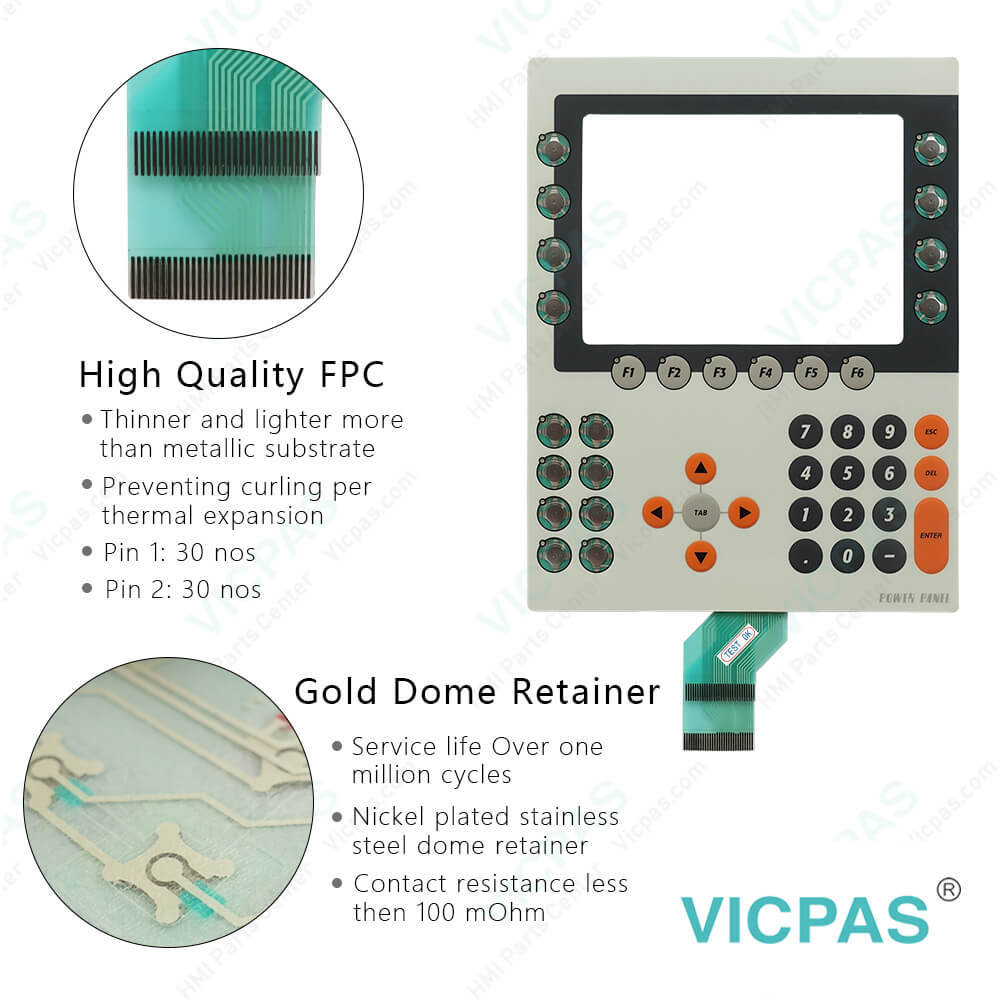

Power Panel 400 4PP450.0571-K28 Touch Digitizer Glass

FAQ:

Question: How to upgrade B&R Power Panel 400 4PP450.0571-K28 MTCX Firmware (MTCX FPGA, MTCX PX32)?

Answer: A current MTCX Firmware (MTCX FPGA and MTCX PX32) upgrade can be downloaded directly from the service portal on the B&R homepage (www.br-automation.com). To carry out a firmware upgrade, the following steps should be taken: • Create bootable media. • Copy the contents of the *.zip file to the bootable media. If the B&R upgrade was already added when the bootable media was created using the B&R Embedded OS Installer, then this step is not necessary. • Connect the bootable media to the Power Panel and reboot the device. • A boot menu with the following options is displayed after booting:Concerning item 1: The MTCX Firmware FPGA and PX32 is automatically updated (default after 5 sec).Concerning item 2: Returns to the shell (MS-DOS). • Select the desired action. • Remove the bootable media and reboot the device (only after a successful update!).

Question: How to creating a B&R Power Panel DOS boot diskette in 4PP450.0571-K28 Windows XP?

Answer: • Place an empty 1.44 MB HD diskette in the disk drive. • Open Windows Explorer. • Right-click on the 3?" floppy icon and select "Format...". • Then select the checkbox "Create an MS-DOS startup disk", press "Start" and acknowledge the warning message with "OK".After creating the startup disk, some of the files must be deleted because of the size of the update. When doing this, all files (hidden, system files, etc.) must be shown on the diskette. In Explorer, go to the Tools menu, select Folder Options... and open the View tab. Now deactivate the option Hide protected operating system files (Recommended) (activated by default) and activate the option Show hidden files and folders. Now all files (marked) except Command.com, IO.sys and MSDOS.sys can be deleted.
