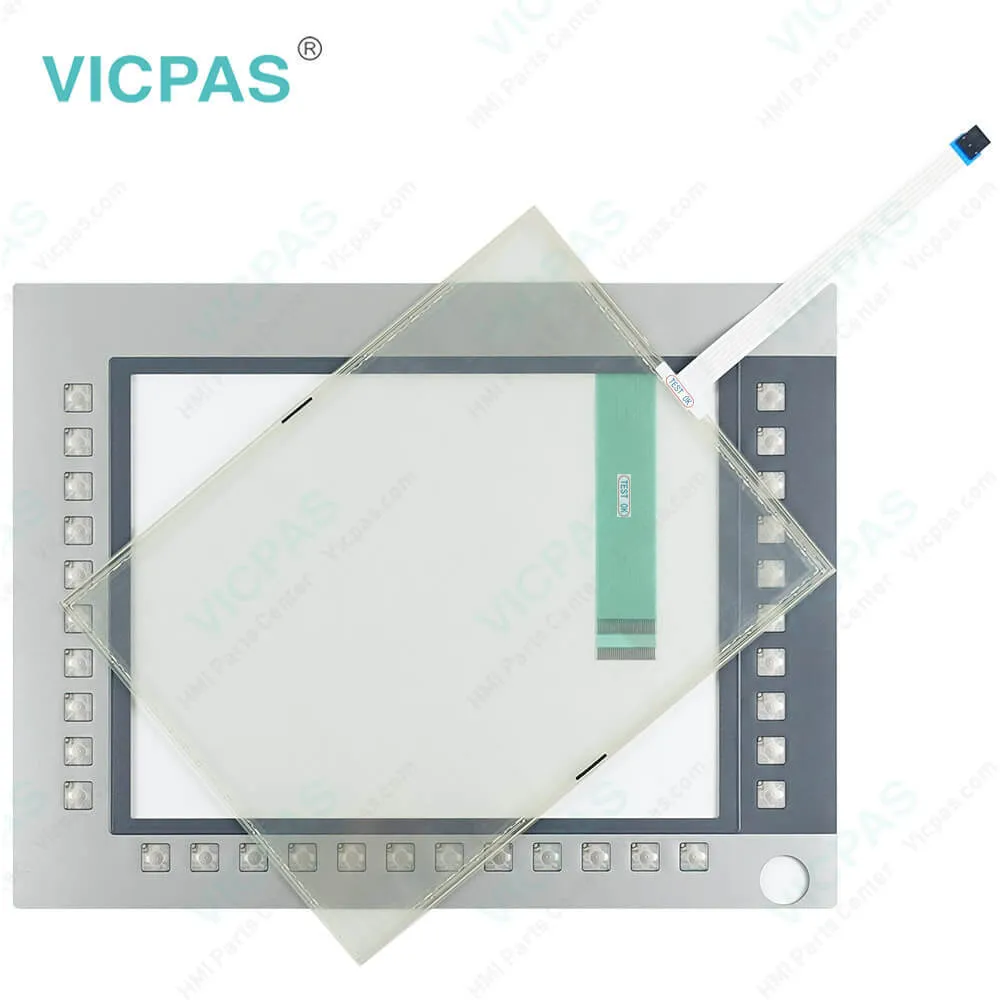

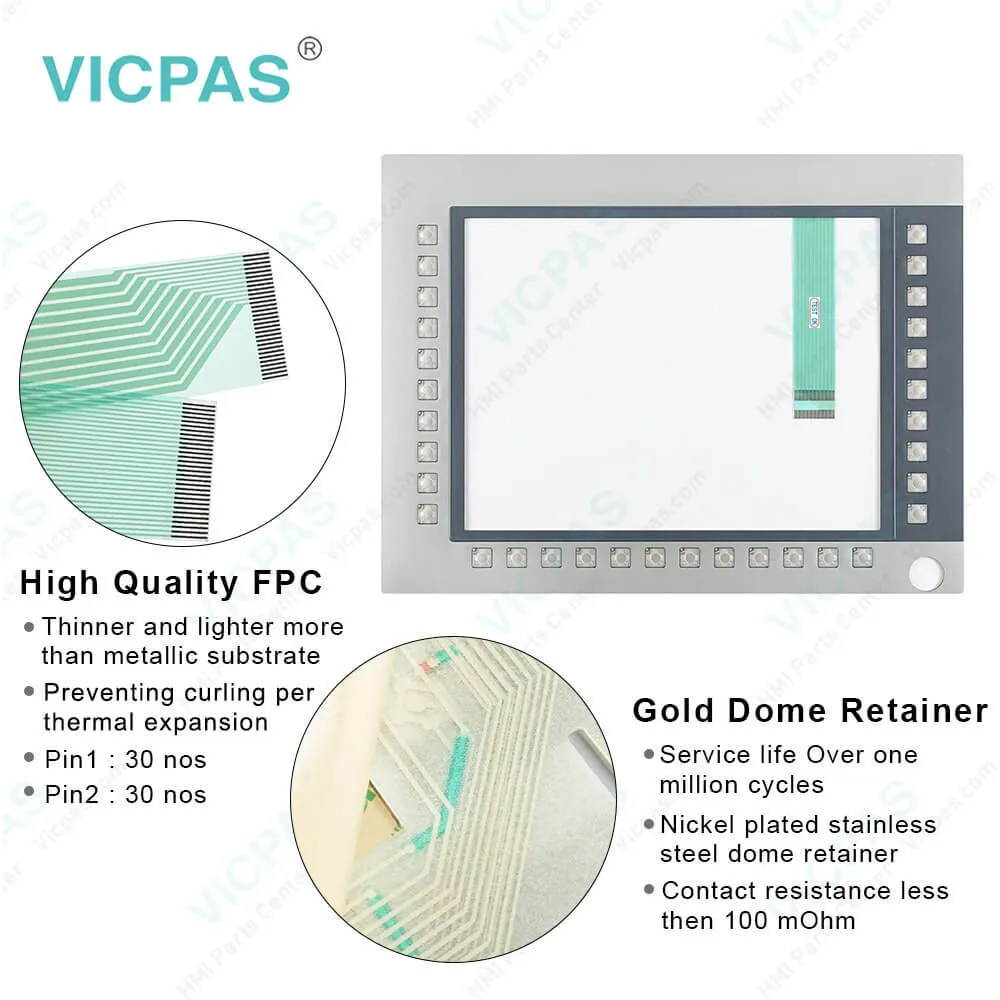

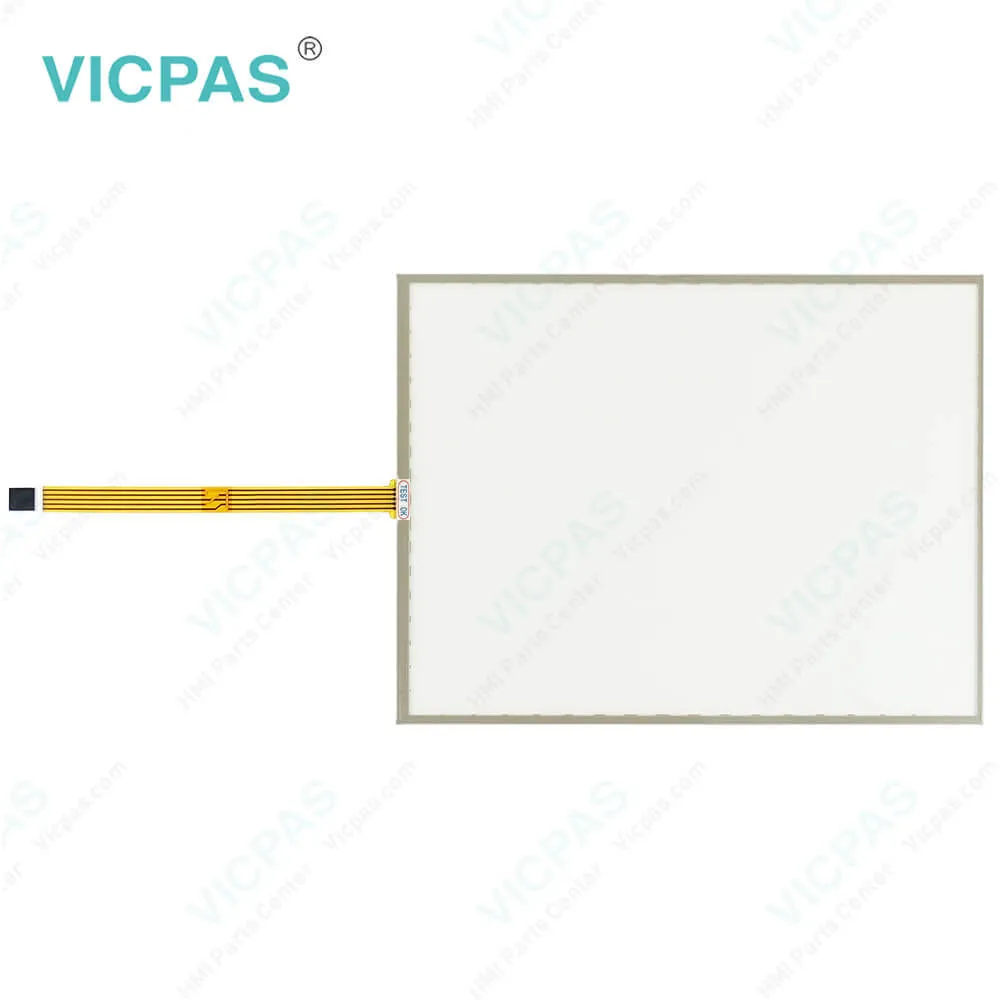

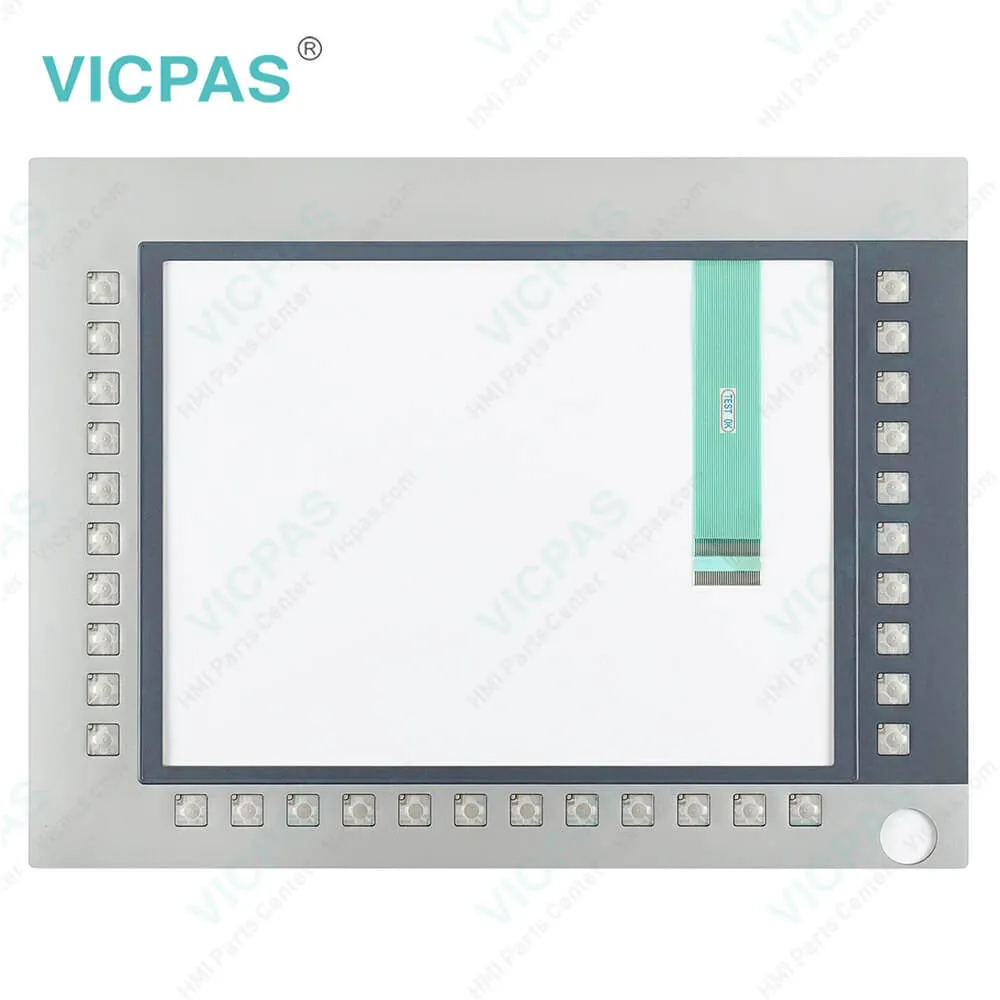

B&R 5AP1180.1505-000 Touch Digitizer Glass
| Brand | B&R |
|---|---|
| Model | B&R Automation Panel 1000 5AP1180.1505-000 |
| Warranty | 1 Year VICPAS Warranty |
| Touch Screen Panel Type | Resistance touch screen |
| Shipping | DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX |
| FOB port | Guangzhou, Shenzhen, Hongkong |
| Terms of Payment | Western Union, T/T, PayPal, Credit Card |
| Download | |
| Update Time | 2026-02-09 17:25:50 |
Shipping
Free Shipping
Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.
B&R Automation Panel 1000 5AP1180.1505-000 Terminal Keypad Touch Panel Repair
Order each part separately is available
AP1000 5AP1180.1505-000 panels form the basis for the Automation Panel 1000, Panel PC 900, Panel PC 2100, Panel PC 2200, and Panel PC 3100 system families. Different display diagonals and touchscreen technologies as well as panels with touch screen and keys are available. The 5AP1180.1505-000 panels are installed using retaining clips or clamping blocks. Panels 5AP1180.1505-000 can only be operated as a complete system in combination with a link module (Automation Panel 1000) or CPU board and system unit (Panel PC).
5AP1180.1505-000 Link modules have various graphics interfaces and connections. An Automation Panel 5AP1180.1505-000 is put together by installing a link module onto a panel. Automation Panel 1000 devices with 10.4", 12.1" (4:3 format only), 15" (4:3 format only) and 19" diagonals are equipped with a front USB 2.0 interface. The 5AP1180.1505-000 USB In interface is a USB 2.0 type B interface that is used to transfer USB data. It must be connected to a USB interface on the output device (e.g. B&R industrial PC) if DVI operation or SDL operation with a USB type A/B cable was chosen as the transfer method. If the Automation Panel 1000 5AP1180.1505-000 interface is connected to an output device (e.g. B&R industrial PC), then USB 2.0 transfer rates are possible on the USB1 and USB2 interfaces.
Specifications:
| Part Number: | 5AP1180.1505-000 |
| Product Line: | Automation Panel 1000 |
| Screen diagonal: | 15 in |
| Warranty: | 365 Days Warranty |
| Input Power: | 24 VDC |
| Display Type: | TFT color |
| Mounting position: | Vertical |
| Input Type: | Touchscreen |
| Serial interface Type: | RS232 |
| Storage: | -20 to 50°C |
Related BB Teach Pendant Part No. :
| B&R Automation Panel 1000 5AP1180.1505-000 | Description | Inventory status |
| 5AP1181.1043-000 | B&R Automation Panel 1000 Touch Screen | In Stock |
| 5AP1182.1043-000 | B&R Automation Panel 1000 Touch Panel Repair | In Stock |
| 5AP1120.1214-000 | B and R Automation Panel 1000 Touchscreen | Available Now |
| 5AP1120.1215-C02 | B&R Automation Panel 1000 Touch Screen Glass | Available Now |
| 5AP1120.121E-000 | Automation Panel 1000 HMI Front Overlay Touch Screen Panel | In Stock |
| 5AP1120.1505-000 | B&R AP1000 Front overlay Touch Screen Monitor | In Stock |
| 5AP1120.1505-C01 | B&R Automation Panel 1000 Touch Digitizer Glass | In Stock |
| 5AP1120.156B-000 | AP1000 B and R HMI Panel Glass Overlay Replacement | Available Now |
| 5AP1125.1505-I00 | B&R AP1000 Protective Film Touch Screen Monitor | In Stock |
| 5AP1125.1505-C03 | B&R AP1000 Touch Digitizer Glass Protective Film | In Stock |
| 5AP1180.1505-000 | Automation Panel 1000 B and R HMI Front Overlay Touch Screen | Available Now |
| 5AP1120.1906-000 | B&R Automation Panel 1000 Touch Screen Panel Protective Film | In Stock |
| 5AP1181.1043-000 | B&R Automation Panel 1000 Touch Screen | In Stock |
| 5AP1182.1043-000 | B&R Automation Panel 1000 Touch Panel Repair | In Stock |
| 5AP1120.1214-000 | B and R Automation Panel 1000 Touchscreen | Available Now |
| 5AP1120.1215-C02 | B&R Automation Panel 1000 Touch Screen Glass | Available Now |
| 5AP1120.121E-000 | Automation Panel 1000 HMI Front Overlay Touch Screen Panel | In Stock |
| 5AP1120.1505-000 | B&R AP1000 Front overlay Touch Screen Monitor | In Stock |
| 5AP1120.1505-C01 | B&R Automation Panel 1000 Touch Digitizer Glass | In Stock |
| 5AP1120.156B-000 | AP1000 B and R HMI Panel Glass Overlay Replacement | Available Now |
| 5AP1125.1505-I00 | B&R AP1000 Protective Film Touch Screen Monitor | In Stock |
| 5AP1125.1505-C03 | B&R AP1000 Touch Digitizer Glass Protective Film | In Stock |
| 5AP1180.1505-000 | Automation Panel 1000 B and R HMI Front Overlay Touch Screen | Available Now |
| 5AP1120.1906-000 | B&R Automation Panel 1000 Touch Screen Panel Protective Film | In Stock |
B&R 5AP1180.1505-000 Touch Digitizer Glass PDF Download:
FAQ:
Question: What causes Automation Panel 1000 B&R 5AP1180.1505-000 screen burn-in?
Answer: • Static images• No screensaver• Sharp transitions in contrast (e.g. black/white)• High ambient temperatures• Operation outside of specifications
Question: How can the B&R AP1000 5AP1180.1505-000 service life of the backlight be extended?
Answer: • By setting the display brightness to the lowest value that is still comfortable for the eyes• By using dark images• By reducing the brightness by 50%, which can result in an approximately 50% increase in the half-brightness time
