Home / All / B&R Power Panel / Automation Panel Terminal / 5AP1120.1043-C09 Membrane Switch Touch Digitizer Glass

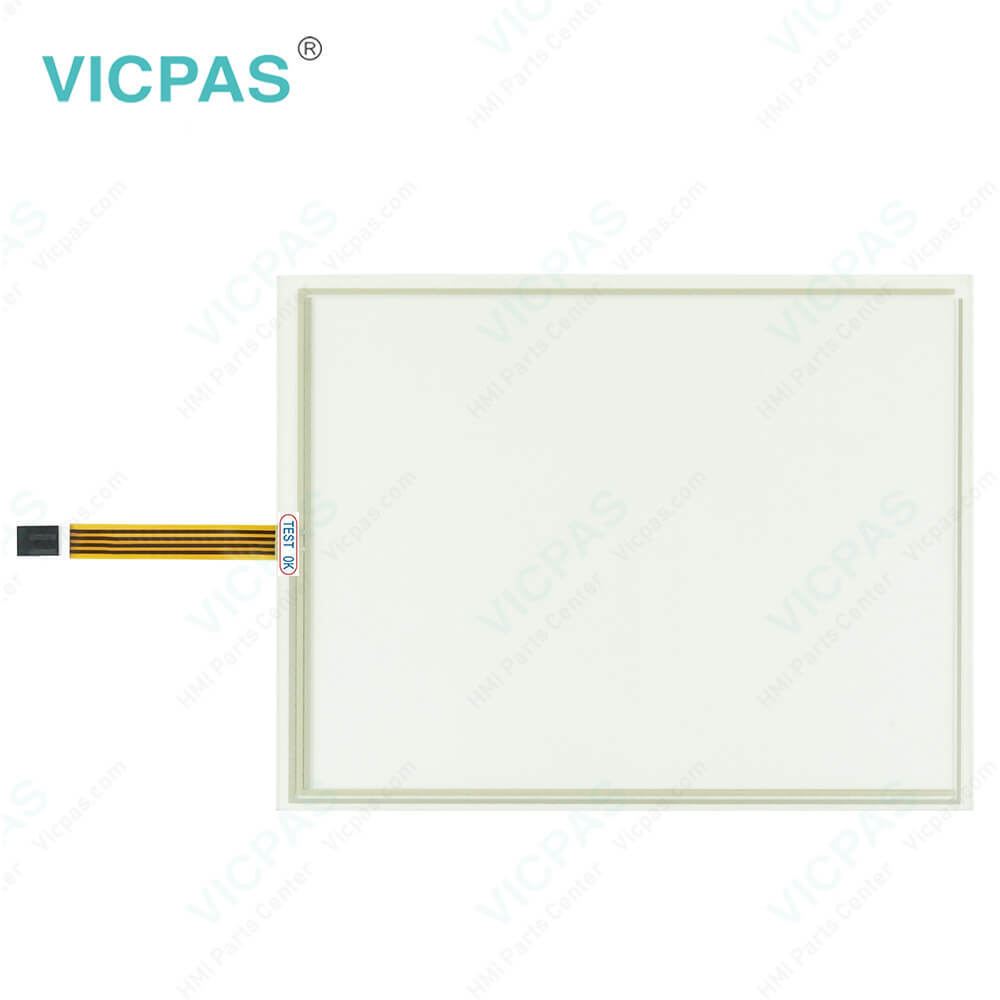

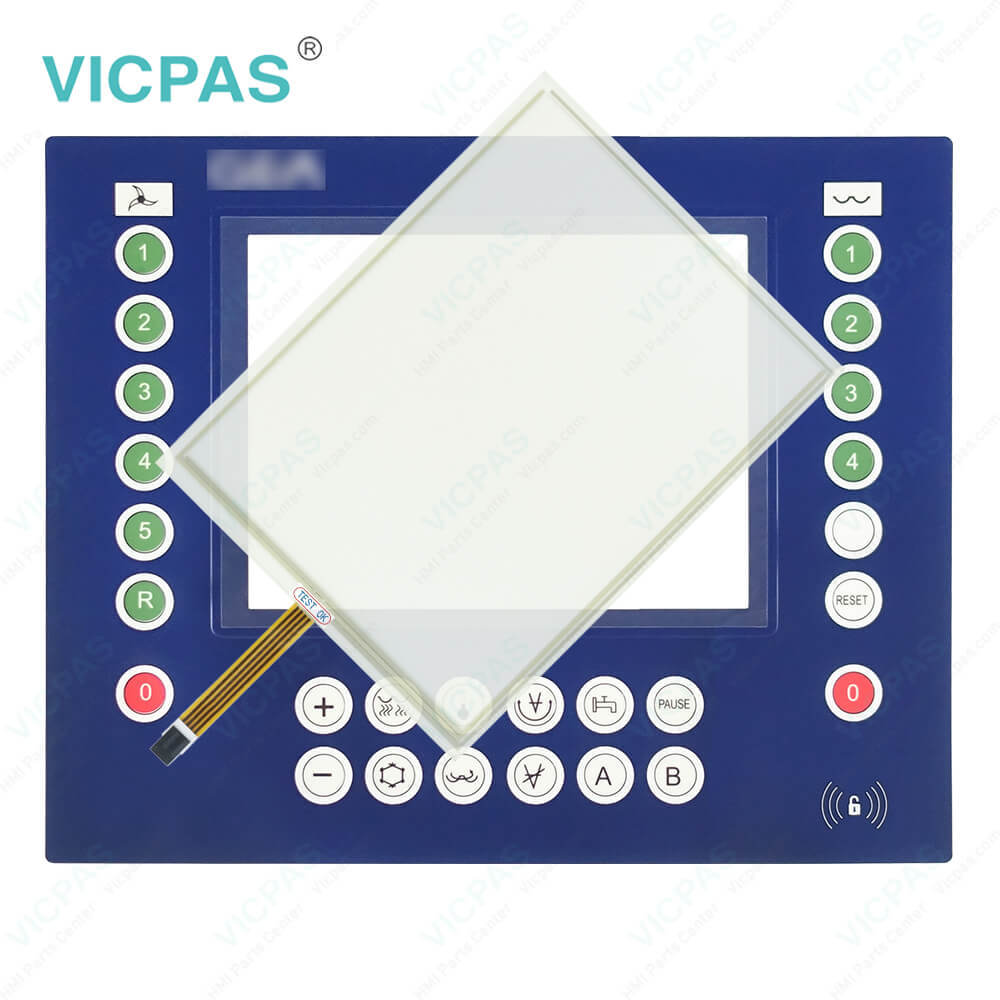

5AP1120.1043-C09 Membrane Switch Touch Digitizer Glass

5AP1120.1043-C09 Membrane Switch Touch Digitizer Glass
5AP1120.1043-C09 Membrane Switch Touch Digitizer Glass5AP1120.1043-C09 Membrane Switch Touch Digitizer Glass5AP1120.1043-C09 Membrane Switch Touch Digitizer Glass5AP1120.1043-C09 Membrane Switch Touch Digitizer Glass
BrandB&R
ModelB&R Automation Panel 1000 5AP1120.1043-C09
Warranty1 Year VICPAS Warranty
Touch Screen Panel TypeResistance touch screen
ShippingDHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, T/T, PayPal, Credit Card
Download
Update Time2026-02-09 17:26:52
Leading Time{{selectedConditionObj.leading}}
{{item.value}}
{{nameObj.name}}{{nameObj.selectedValue}}
{{valueObj.name}}

Shipping

Free Shipping

Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.

Detail Information

B&R Automation Panel 1000 5AP1120.1043-C09 Terminal Keypad Touch Panel Repair

Order each part separately is available

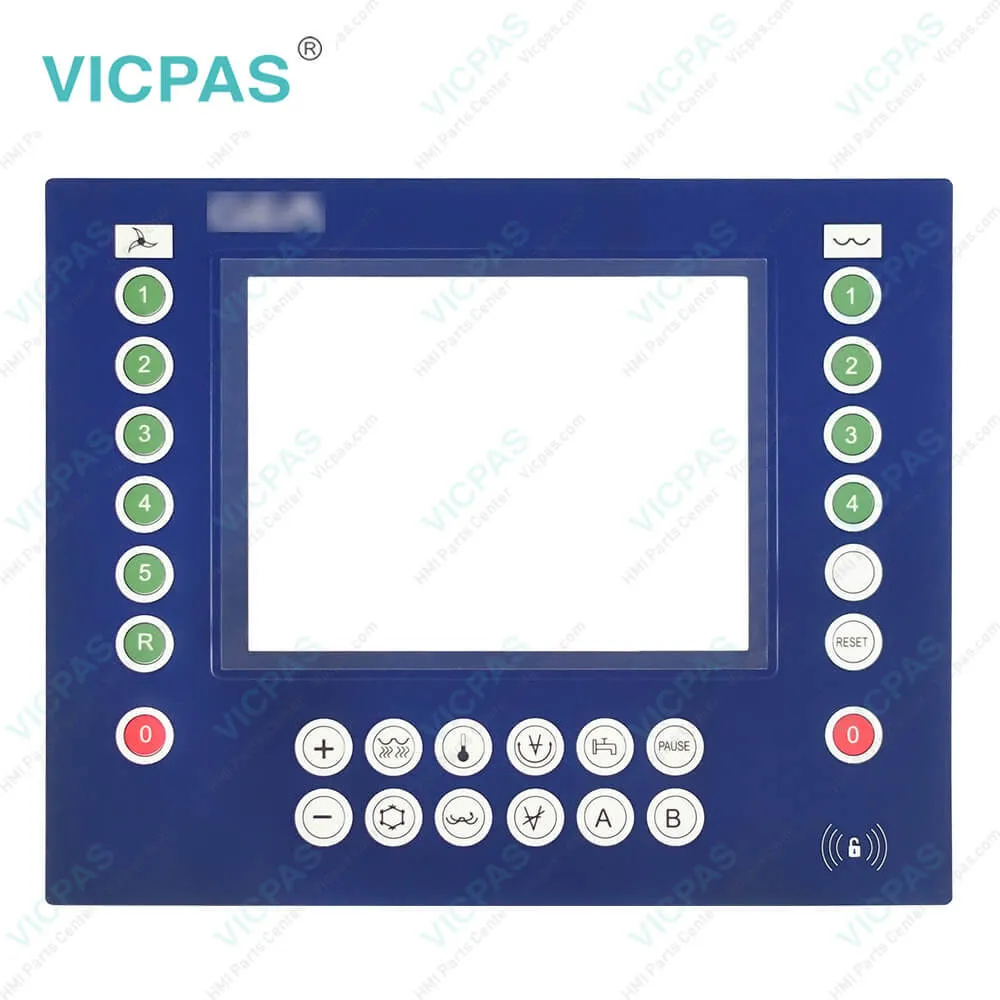

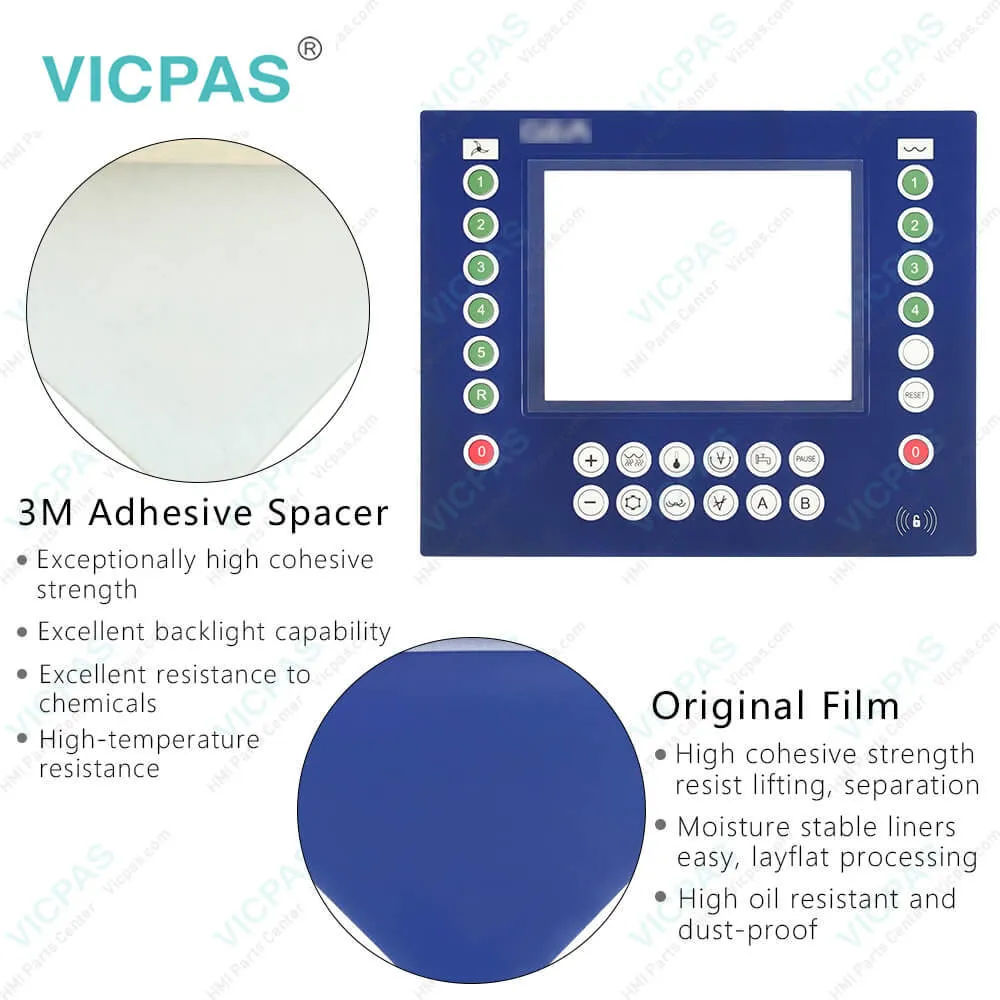

Automation Panel 1000 5AP1120.1043-C09 Membrane Keyboard Touchscreen Glass

AP1000 5AP1120.1043-C09 panels form the basis for the Automation Panel 1000, Panel PC 900, Panel PC 2100, Panel PC 2200, and Panel PC 3100 system families. Different display diagonals and touchscreen technologies as well as panels with touch screen and keys are available. The 5AP1120.1043-C09 panels are installed using retaining clips or clamping blocks. Panels 5AP1120.1043-C09 can only be operated as a complete system in combination with a link module (Automation Panel 1000) or CPU board and system unit (Panel PC).


5AP1120.1043-C09 Link modules have various graphics interfaces and connections. An Automation Panel 5AP1120.1043-C09 is put together by installing a link module onto a panel. Automation Panel 1000 devices with 10.4", 12.1" (4:3 format only), 15" (4:3 format only) and 19" diagonals are equipped with a front USB 2.0 interface. The 5AP1120.1043-C09 USB In interface is a USB 2.0 type B interface that is used to transfer USB data. It must be connected to a USB interface on the output device (e.g. B&R industrial PC) if DVI operation or SDL operation with a USB type A/B cable was chosen as the transfer method. If the Automation Panel 1000 5AP1120.1043-C09 interface is connected to an output device (e.g. B&R industrial PC), then USB 2.0 transfer rates are possible on the USB1 and USB2 interfaces.



  Contact Best Price

Specifications:

Part Number:5AP1120.1043-C09
Product Line:Automation Panel 1000
Screen diagonal:10.4 in
Warranty:365 Days Warranty
Input Power:24 VDC
Display Type:TFT color
Mounting position:Vertical
Input Type:Touchscreen
Serial interface Type:RS232
Storage:-20 to 50°C


Related BB Teach Pendant Part No. :

B&R Automation Panel 1000 5AP1120.1043-C09Description Inventory status
5AP1120.1043-C03B&R Automation Panel 1000 HMI Touch Glass ReplacementAvailable Now
5AP1120.1043-C04 Rev.C0B&R Automation Panel 1000 Touch Digitizer GlassIn Stock
5AP1120.1043-C06B&R Automation Panel 1000 Touch Screen MonitorIn Stock
5AP1120.1043-C09Automation Panel 1000 B and R HMI Panel Glass Operator Keyboard RepairAvailable Now
5AP1120.1043-F11B&R Automation Panel 1000 Touch Screen MonitorIn Stock
5AP1120.1214-C02Automation Panel 1000 B and R Front Overlay MMI Touch ScreenAvailable Now
5AP1120.1505-C06B&R Automation Panel 1000 HMI Touch Screen Protective Film ReplacementIn Stock
5AP1120.1043-C03B&R Automation Panel 1000 HMI Touch Glass ReplacementAvailable Now
5AP1120.1043-C04 Rev.C0B&R Automation Panel 1000 Touch Digitizer GlassIn Stock
5AP1120.1043-C06B&R Automation Panel 1000 Touch Screen MonitorIn Stock
5AP1120.1043-C09Automation Panel 1000 B and R HMI Panel Glass Operator Keyboard RepairAvailable Now
5AP1120.1043-F11B&R Automation Panel 1000 Touch Screen MonitorIn Stock
5AP1120.1214-C02Automation Panel 1000 B and R Front Overlay MMI Touch ScreenAvailable Now
5AP1120.1505-C06B&R Automation Panel 1000 HMI Touch Screen Protective Film ReplacementIn Stock

5AP1120.1043-C09 Membrane Switch Touch Digitizer Glass PDF Download:

  • B&R Automation Panel 1000 User's Manual
  • B&R Automation PC 2100 User's Manual
  • B&R Panel PC 2100 Built-in Devices User's Manual
  • B&R Panel PC 2200 Built-in Devices User's Manual
  • B&R Panel PC 3100 Built-in Devices User's Manual
  • B&R Automation Panel 1000 User's Manual
  • B&R Automation PC 2100 User's Manual
  • B&R Panel PC 2100 Built-in Devices User's Manual
  • B&R Panel PC 2200 Built-in Devices User's Manual
  • B&R Panel PC 3100 Built-in Devices User's Manual

    • FAQ:

    Question: What causes Automation Panel 1000 B&R 5AP1120.1043-C09 screen burn-in?

    Answer: • Static images• No screensaver• Sharp transitions in contrast (e.g. black/white)• High ambient temperatures• Operation outside of specifications

    Question: How can the B&R AP1000 5AP1120.1043-C09 service life of the backlight be extended?

    Answer: • By setting the display brightness to the lowest value that is still comfortable for the eyes• By using dark images• By reducing the brightness by 50%, which can result in an approximately 50% increase in the half-brightness time


    Common misspellings:

    5AP1120.1043-C0

    5AP1120.043-C09

    5AP1210.1043-C09

    5AP112o.1043-C09

    5AP1120.10433-C09
