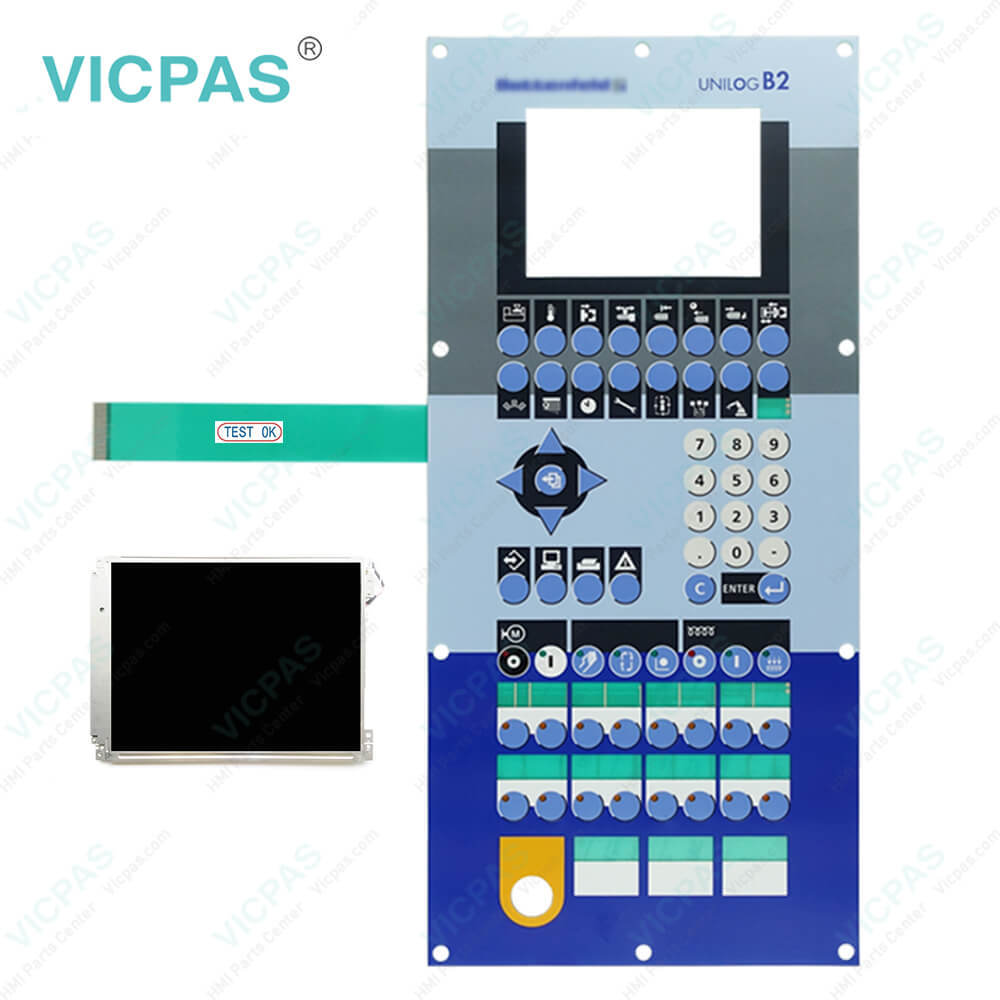

4D1166.00-K04 Keypad Membrane Switch LCD Screen Repair
| Brand | B&R |
|---|---|
| Model | B&R PANELWARE 4D1166.00-K04 |
| Warranty | 1 Year VICPAS Warranty |
| Shipping | DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX |
| Terms of Payment | Western Union, T/T, PayPal, T/T ,Credit Card, Western Union |
| Download | |
| Update Time | 2026-01-30 23:45:50 |
Shipping
Free Shipping
Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.
B&R PANELWARE 4D1166.00-K04 LCD Screen Membrane Keypad Keyboard Repair
Order each part separately is available
Energy provision for the electronics of the B&R PANELWARE 4D1166.00-K04 Terminal Keypad LCD Display Panel MMI is done from the controller in order to save on volume and power in the panel. A 2 x 20 character LCD is used as the 4D1166.00-K04 display. A 4D1166.00-K04 LED background lighting with an automatic shut-off and a practically unending life expectancy has also been integrated. In addition to the alphanumeric display, operator guidance is also assisted with key LEDs.
The B&R PANELWARE 4D1166.00-K04 LCD Display Membrane Keyboard COMPACT MMI in combination with the COMPACT PLC BRCOMP1-0 makes an extra low cost and very attractive automation package (control and visualization). It is also possible to use the COMPACT MMI with a MINI, MIDI, MULTICONTROL or an M264. All 4D1166.00-K04 keys are equipped with key LEDs which can be switched on and off individually. The key LEDs can be used to make application control easier to see and to simplify panel operation. To control a certain LED, the respective key code (x) is given (valid key codes can be found under point "Key Code Requests").
Specifications:
| Part Number: | 4D1166.00-K04 |
| Product Line: | PANELWARE |
| Warranty: | 365 Days Warranty |
| Input Power: | 24 VDC |
| Display Type: | TFT color |
| Mounting Position: | Vertical |
| Input Type: | Keypad |
| Serial Interface Type: | RS232 |
Related BB Teach Pendant Part No. :
| B&R PANELWARE 4D1166.00-K04 | Description | Inventory status |
| 4B1260.00-K03 Rev.B0 | B&R PANELWARE Operator Keyboard Repair | In Stock |
| 4B1260.00-K06 | PANELWARE B and R Keyboard Membrane Replacement | Available Now |
| 4B1260.00-K09 | B&R PANELWARE Switch Membrane Repair | In Stock |
| 4B1270.00-K04 | PANELWARE B and R HMI Terminal Keypad | Available Now |
| 4C1300.02-510 | B&R PANELWARE Keyboard Membrane Repair | In Stock |
| 4D1165.00-590 | B&R PANELWARE Membrane Keypad Keyboard | In Stock |
| 4D1166.00-590 | B&R PANELWARE Switch Membrane Repair | In Stock |
| 4D1166.00-K04 | B and R PANELWARE Membrane Keypad LCD Screen | Available Now |
| 4D1166.00-K19 | B&R PANELWARE HMI Switch Membrane Repair | Available Now |
| 4PW035.E300-K09 | PANELWARE Keyboard Membrane LCD Display Plastic Case Replacement | In Stock |
4D1166.00-K04 Keypad Membrane Switch LCD Screen Repair PDF Download:
FAQ:
Question: How to remove B and R PANELWARE COMPACT 4D1166.00-K04 MMI?
Answer: • Remove spring clips • Remove panel • Remove and reapply sealant before a new installation • The mounting pins do not have to be removed
Question: How can the PANELWARE 4D1166.00-K04 service life of backlights be extended?
Answer: • Set the display brightness to the lowest value comfortable for the eyes.• Use dark images.• Reducing the brightness by 50% can increase the half-brightness time by approximately 50%.
