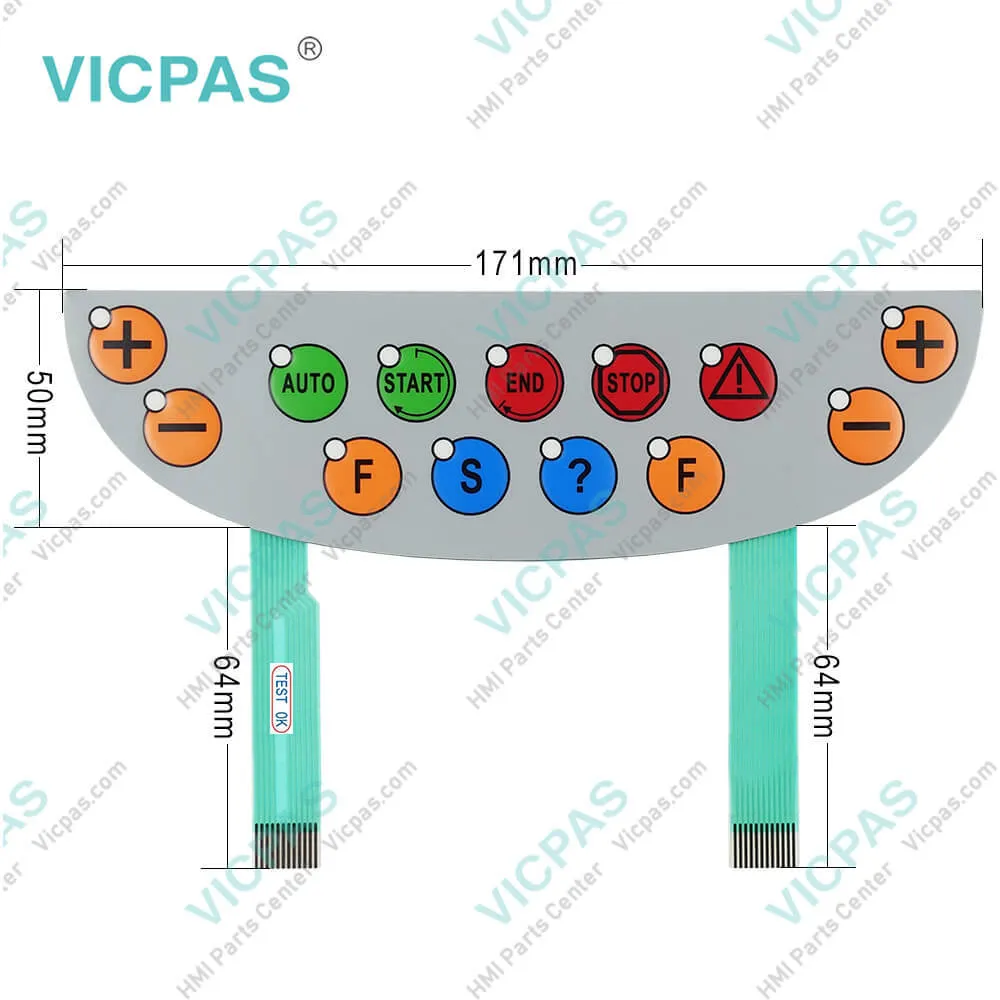

B&R 4MP281.0843-13 Keypad Membrane Touch Panel

B&R 4MP281.0843-13 Keypad Membrane Touch Panel
B&R 4MP281.0843-13 Keypad Membrane Touch PanelB&R 4MP281.0843-13 Keypad Membrane Touch PanelB&R 4MP281.0843-13 Keypad Membrane Touch PanelB&R 4MP281.0843-13 Keypad Membrane Touch PanelB&R 4MP281.0843-13 Keypad Membrane Touch Panel
BrandB&R
ModelB&R Mobile Panel 200 4MP281.0843-13
Warranty1 Year VICPAS Warranty
ShippingDHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
Terms of PaymentWestern Union, T/T, PayPal, T/T ,Credit Card, Western Union
Download
Update Time2026-01-30 23:48:51
Leading Time{{selectedConditionObj.leading}}
{{item.value}}
{{nameObj.name}}{{nameObj.selectedValue}}
{{valueObj.name}}

Shipping

Free Shipping

Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.

Detail Information

B&R Mobile Panel 200 4MP281.0843-13 Terminal Keypad Touch Screen Panel Repair

Order each part separately is available

Mobile Panel 200 Membrane Keyboard Touch Screen Panel

Kernfix supply B and R Mobile Panel 200 4MP281.0843-13 touchscreen panel and membrane keypad keyboard for repair replacement, make the HMI running. We provide a 365-day Kernfix warranty on most products, which includes most of touch screen panel, membrane keypad, protective film, LCD display and protective case shell housing.


An MP100/200 can be connected to the system in place of an MP40/50. The attachment cables feature the same circular connectors allowing for simple exchange by removing and inserting. When connecting an MP40/50, the differences between the devices must be taken into consideration.


Depending on the model, Mobile Panel 200 devices can have a 5.7" QVGA color display with or without touch screen or an 8.4" VGA color display with touch screen. In addition, Mobile Panel devices have a foil keypad (numeric and alphanumeric keys). Integrated safety functions consist of a three-step enable switch (2-channel) and an E-stop button (2-channel). They are operated using a foil keypad and a touch screen (with a touch screen pen).



  Contact Best Price

Specifications:

Part Number:4MP281.0843-13
Product Line:Mobile Panel 200
Screen diagonal:8.4 in
Warranty:365 Days Warranty
Input Power:24 VDC
Display Type:TFT color
Mounting position:Vertical
Input Type:Keypad
Serial interface Type:RS232
Storage:-20 to 60°C


Related BB Teach Pendant Part No. :

B&R Mobile Panel 200 4MP281.0843-13Description Inventory status
4MP251.0571-12B&R Mobile Panel 200 Operator Keyboard RepairIn Stock
4MP251.0571-K02Mobile Panel 200 Keyboard Membrane ReplacementAvailable Now
4MP281.0571-12B&R Mobile Panel 200 Touch Screen Panel Switch Membrane RepairIn Stock
4MP281.0571-K01B and R Mobile Panel 200 Touch Digitizer LCD Display ScreenAvailable Now
4MP281.0843-13Mobile Panel 200 HMI Touch Screen Organizer Switch MembraneAvailable Now
4MP281.0843-K03Mobile Panel 200 Touch Panel Keyboard Membrane RepairIn Stock
4MP281.0843-K04B&R Mobile Panel 200 Touch Screen Membrane Keypad KeyboardIn Stock

B&R 4MP281.0843-13 Keypad Membrane Touch Panel PDF Download:

  • B&R Mobile Panel 100/200 User's Manual

    • FAQ:

    Question: What measures can be taken against preventing after-image effect in B&R Mobile Panel 200 4MP281.0843-13 LCD/TFT monitors?

    Answer: There is no total solution; however, measures can be taken to significantly reduce this effect: • Avoid static pictures or screen content • Use screen savers (moving) when the display is not in use • Frequent picture change • Shut off the display when not in use Turning off the background lighting (backlight) does not influence the prevention of the afterimage effect.

    Question: What is the procedure of creating a bootable USB flash drive for B&R 4MP281.0843-13 upgrade files?

    Answer: • Connect the USB flash drive to the PC. • If the drive list is not refreshed automatically, the list must be updated using the command Drives > Refresh. • Mark the desired USB flash drive in the drive list. • Change to the Action tab and select Install a B&R Update to a USB flash drive as type of action. • Enter the path to the MS-DOS operating system files. If the files are part of a ZIP archive, then click on the button By ZIP file.... If the files are stored in a directory on the hard drive, then click on the button By folder.... • In the B&R Upgrade text box, it's also possible to enter the path to the ZIP file for the B&R Upgrade Disk and select the file. • Click on the Start action button in the toolbar.

    Question: What is the B&R Mobile Panel 200 4MP281.0843-13 touch screen panel price?

    Answer: Submit a fast quote, send Kernfix an email for best price.


    Common misspellings:

    MP281.0843-13

    4MP81.0843-13

    4MP28l.0843-13

    4MP281.o843-13

    4MP281.08430-13
