B&R 4MP281.0843-K04 Panel Glass Keypad Repair

B&R 4MP281.0843-K04 Panel Glass Keypad Repair
B&R 4MP281.0843-K04 Panel Glass Keypad RepairB&R 4MP281.0843-K04 Panel Glass Keypad RepairB&R 4MP281.0843-K04 Panel Glass Keypad RepairB&R 4MP281.0843-K04 Panel Glass Keypad RepairB&R 4MP281.0843-K04 Panel Glass Keypad Repair
BrandB&R
ModelB&R Mobile Panel 200 4MP281.0843-K04
Warranty1 Year VICPAS Warranty
Touch Screen Panel TypeResistance touch screen
ShippingDHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, T/T, PayPal, Credit Card
Download
Update Time2026-01-30 23:48:57
Leading Time{{selectedConditionObj.leading}}
{{item.value}}
{{nameObj.name}}{{nameObj.selectedValue}}
{{valueObj.name}}

Shipping

Free Shipping

Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.

Detail Information

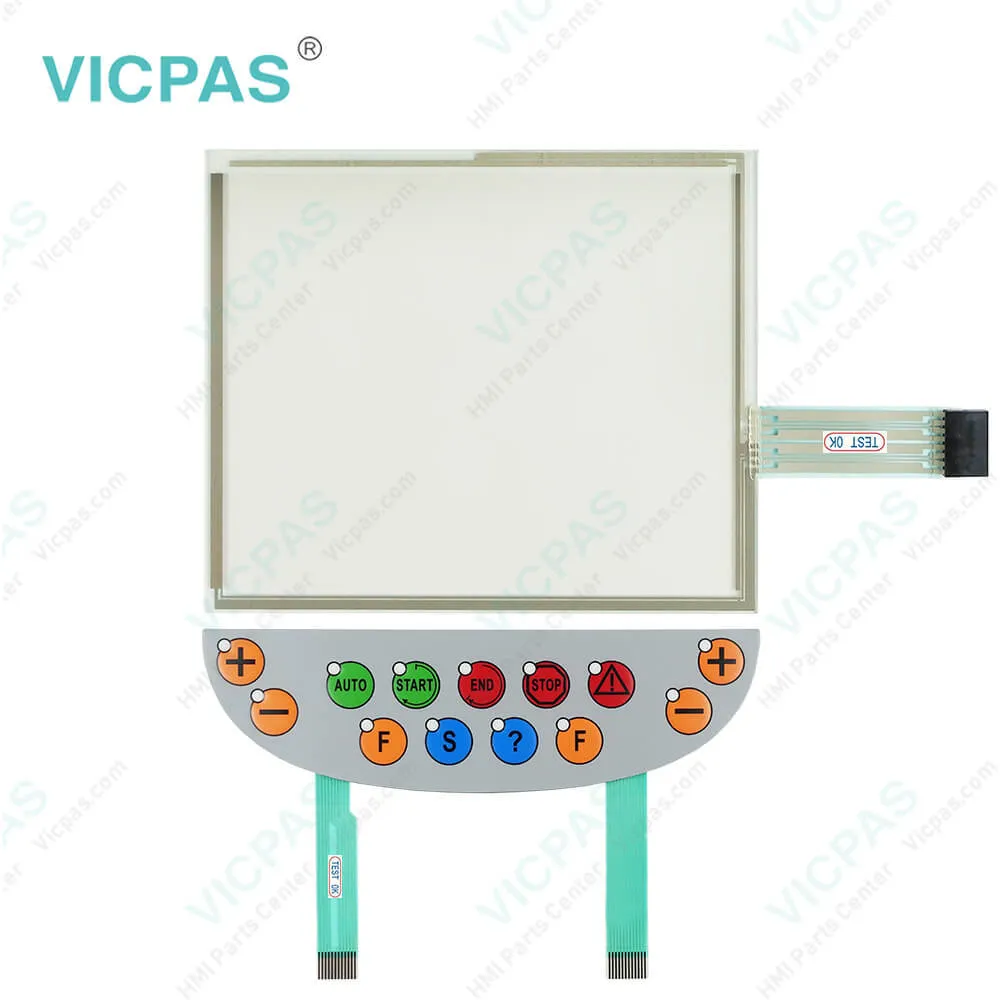

B&R Mobile Panel 200 4MP281.0843-K04 Touch Screen Glass Membrane Keypad Keyboard Repair

Order each part separately is available

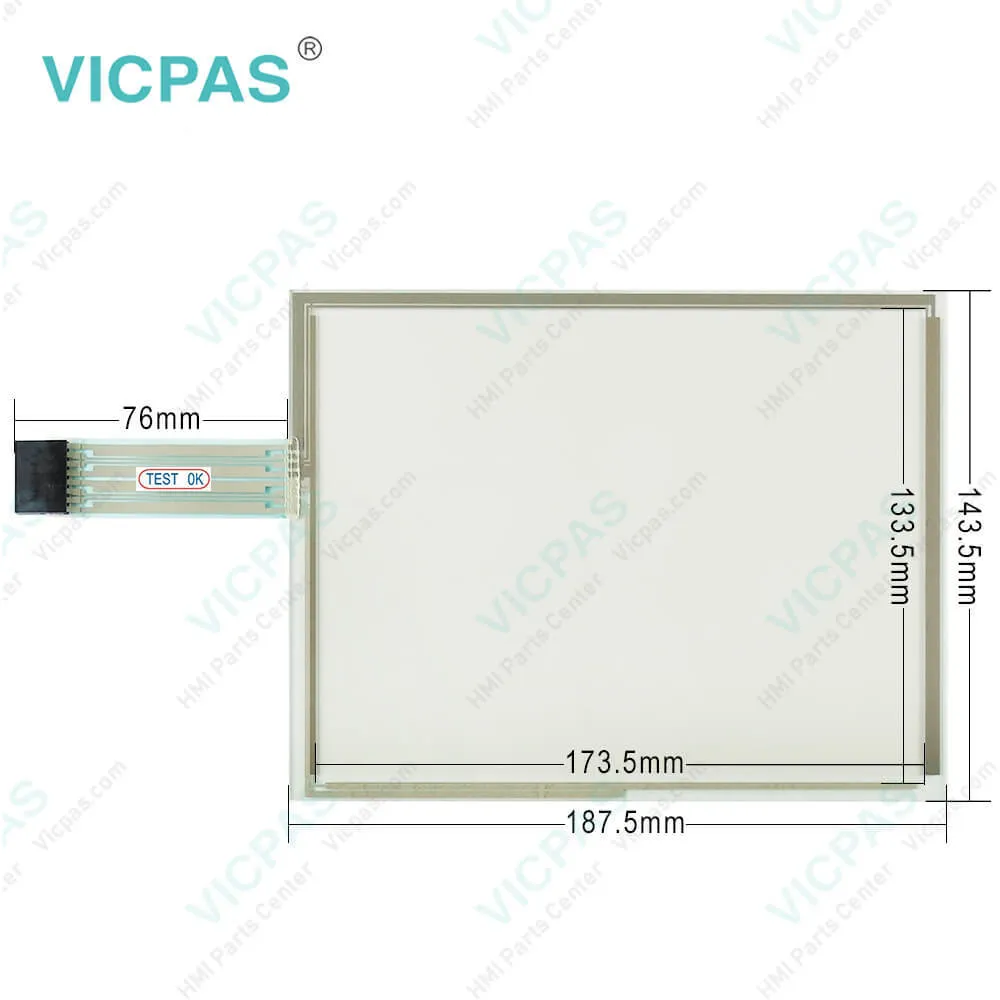

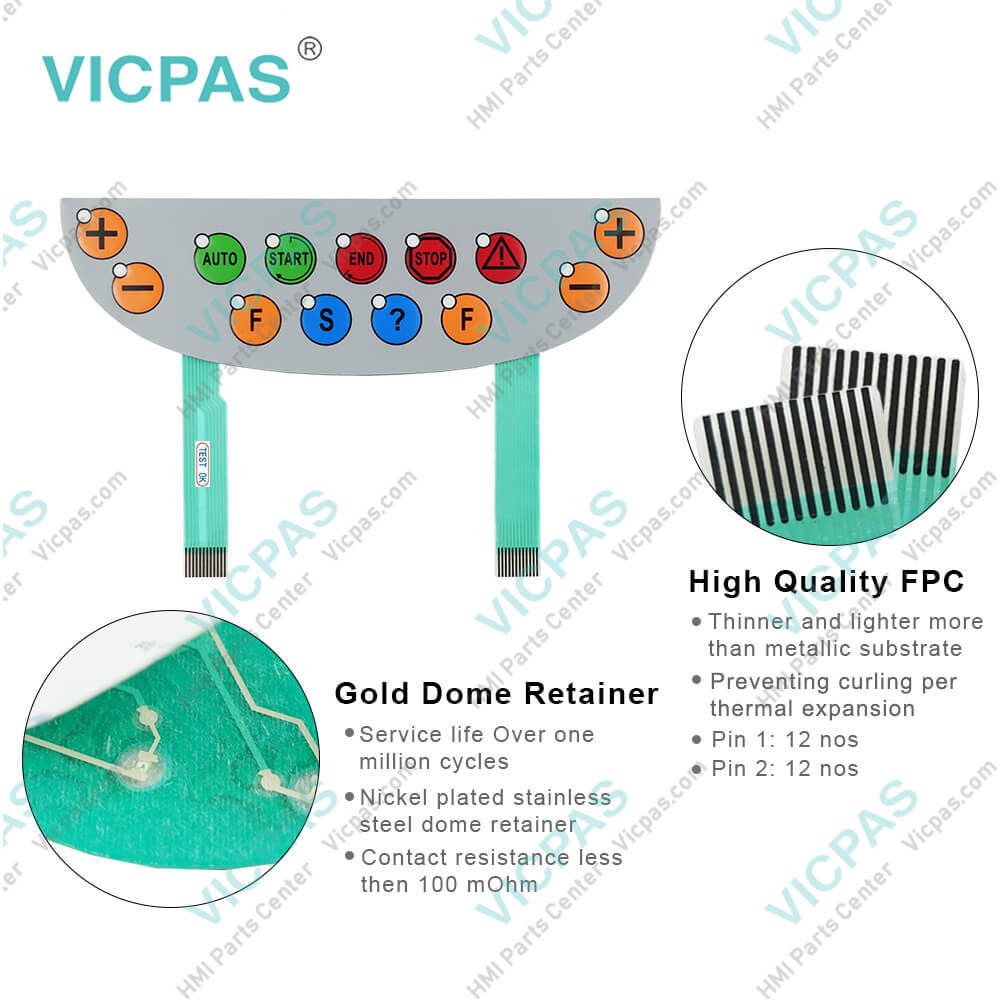

Mobile Panel 200 4MP281.0843-K04 Touch Screen Panel Keypad Membrane

Mobile Panel 200 4MP281.0843-K04 devices are wired systems, i.e. they are connected to the control cabinet using a cable. The following individual components are needed for operation:
• Control device including handle
• Attachment cables


The Mobile Panel 200 4MP281.0843-K04 is equipped with two enable switches that are arranged on both sides of the device. It allows both left- and right-handed operation. Both enable switches are connected in parallel and have the exact safe effect on the shared safety circuits in the attachment cable. Only one enable switch must be enabled. The enable switch consists of a three-position control element and separate evaluation electronics. An important feature is the uniform dual-circuit design that spans everything from the control elements to the connection terminals. The evaluation circuits have been implemented using various technologies and switching circuitry. The electronic design of the switching contacts means that their service life remains independent of the load up to their rated values (resistive, inductive and capacitive).



  Contact Best Price

Specifications:

Part Number:4MP281.0843-K04
Product Line:Mobile Panel 200
Screen diagonal:8.4 in
Warranty:365 Days Warranty
Input Power:24 VDC
Display Type:TFT color
Mounting position:Vertical
Input Type:Keypad
Serial interface Type:RS232
Storage:-20 to 70°C


Related BB Teach Pendant Part No. :

B&R Mobile Panel 200 4MP281.0843-K04Description Inventory status
4MP251.0571-12B&R Mobile Panel 200 Operator Keyboard RepairIn Stock
4MP251.0571-K02Mobile Panel 200 Keyboard Membrane ReplacementAvailable Now
4MP281.0571-12B&R Mobile Panel 200 Touch Screen Panel Switch Membrane RepairIn Stock
4MP281.0571-K01B and R Mobile Panel 200 Touch Digitizer LCD Display ScreenAvailable Now
4MP281.0843-13Mobile Panel 200 HMI Touch Screen Organizer Switch MembraneAvailable Now
4MP281.0843-K03Mobile Panel 200 Touch Panel Keyboard Membrane RepairIn Stock
4MP281.0843-K04B&R Mobile Panel 200 Touch Screen Membrane Keypad KeyboardIn Stock

B&R 4MP281.0843-K04 Panel Glass Keypad Repair PDF Download:

  • B&R Mobile Panel 100/200 User's Manual

    • FAQ:

    Question: How to creating a B&R Mobile Panel 200 DOS boot diskette in 4MP281.0843-K04 Windows XP?

    Answer: • Place an empty 1.44 MB HD diskette in the disk drive. • Open Windows Explorer. • Right-click on the 3?" floppy icon and select "Format...". • Then select the checkbox "Create an MS-DOS startup disk", press "Start" and acknowledge the warning message with "OK".After creating the startup disk, some of the files must be deleted because of the size of the update. When doing this, all files (hidden, system files, etc.) must be shown on the diskette. In Explorer, go to the Tools menu, select Folder Options... and open the View tab. Now deactivate the option Hide protected operating system files (Recommended) (activated by default) and activate the option Show hidden files and folders. Now all files (marked) except Command.com, IO.sys and MSDOS.sys can be deleted.

    Question: How can the Mobile Panel 200 4MP281.0843-K04 service life of backlights be extended?

    Answer: • Set the display brightness to the lowest value comfortable for the eyes.• Use dark images.• Reducing the brightness by 50% can increase the half-brightness time by approximately 50%.
