B&R 5MP7140.070N-000 Keypad Membrane Repair
| Brand | B&R |
|---|---|
| Model | B&R Mobile Panel 7100 5MP7140.070N-000 |
| Warranty | 1 Year VICPAS Warranty |
| Shipping | DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX |
| FOB port | Guangzhou, Shenzhen, Hongkong |
| Terms of Payment | Western Union, T/T, PayPal, Credit Card |
| Download | |
| Update Time | 2026-01-30 23:49:12 |
Shipping
Free Shipping
Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.

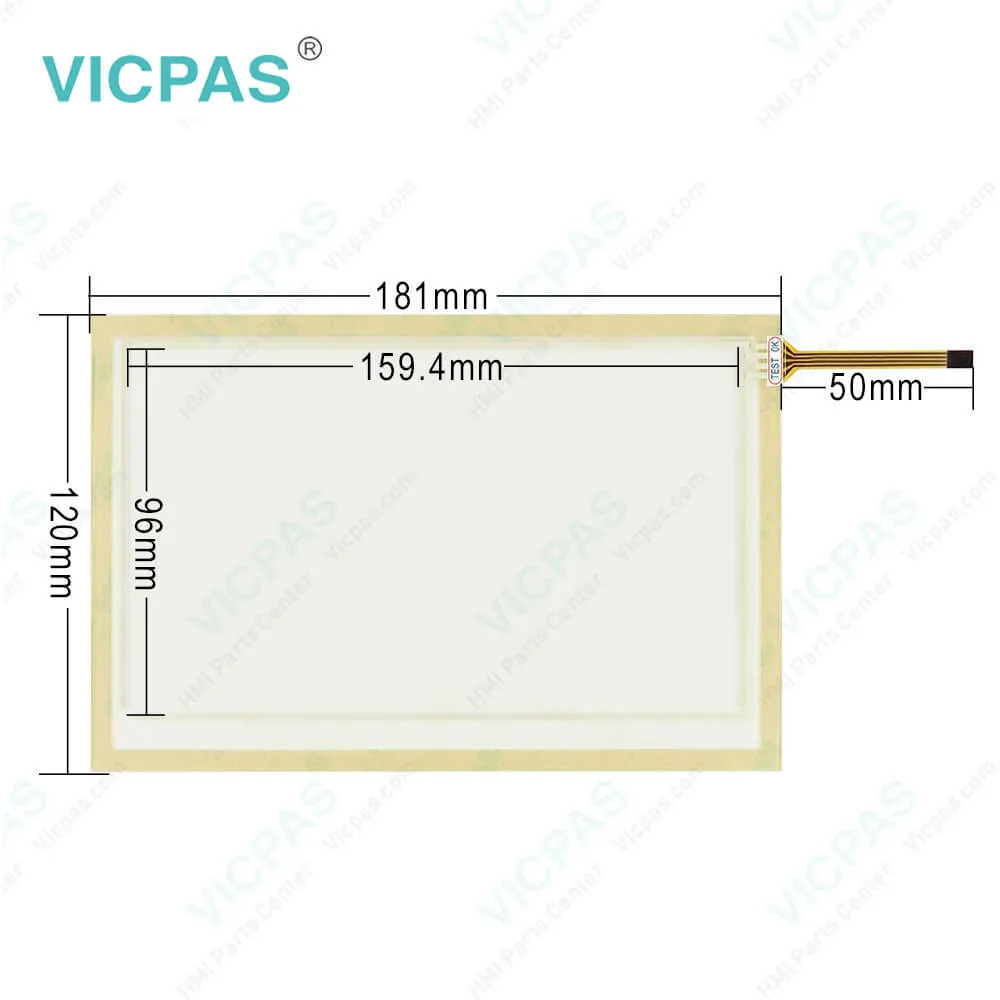

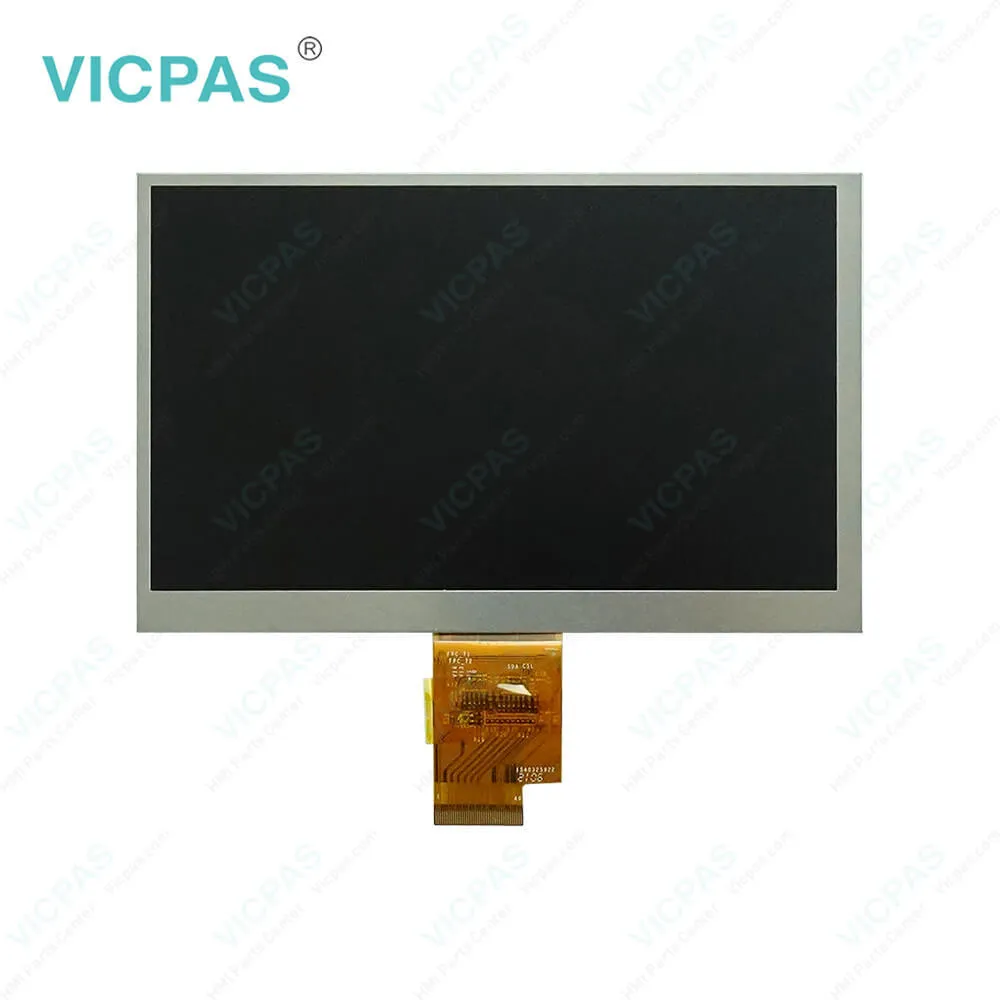

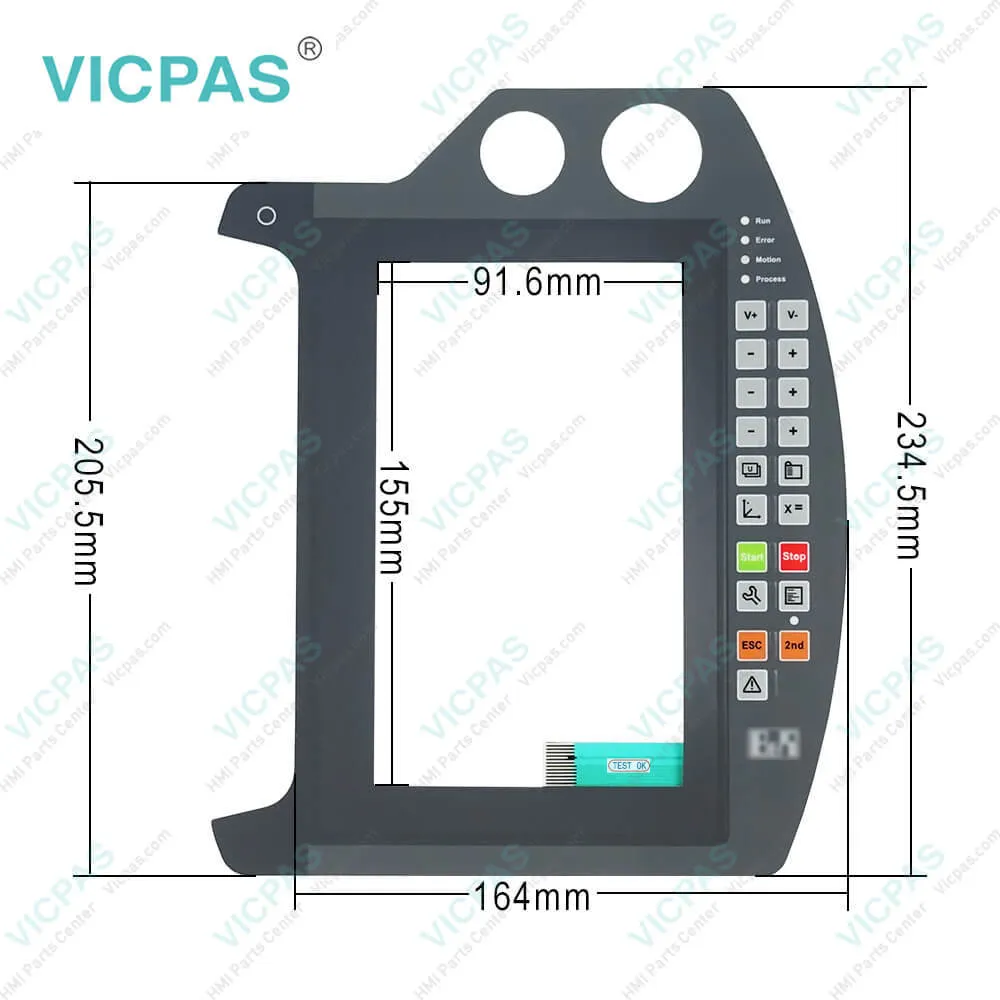

B&R Mobile Panel 7100 5MP7140.070N-000 Terminal Keypad Touch Digitizer Glass Plastic Enclosure LCD Display Screen
Order each part separately is available

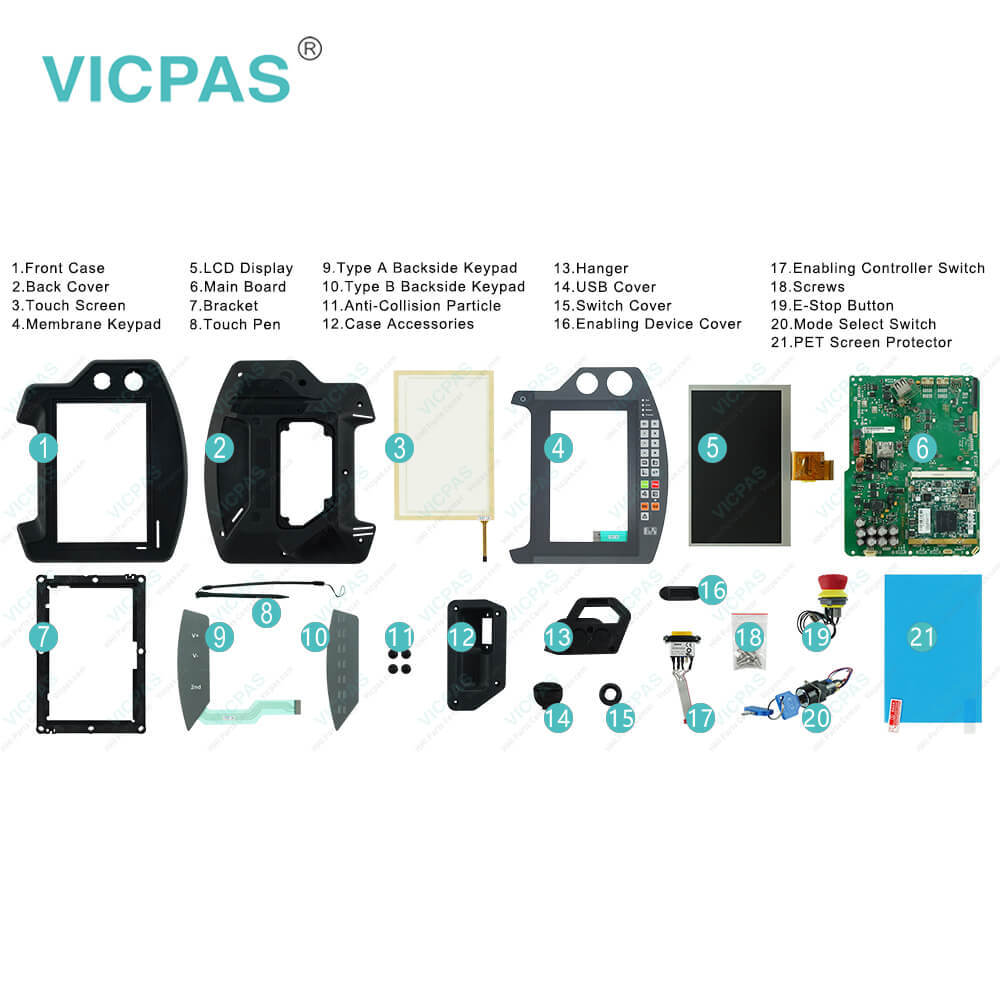

Kernfix supply B and R Mobile Panel 7100 5MP7140.070N-000 membrane keypad keyboard, LCD Display Screen, Front Cover, Back Cover, Main Board, Bracket, Touch Pen, Backside Keypad, Anti-Collision Particle, Case Accessories, Hanger, USB Cover, Switch Cover, Enabling Device Cover, Enabling Controller Switch, Screws, E-Stop Button, Mode Select Switch, PET Screen Protector and HMI Panel Glass for repair replacement, make the HMI running. We provide a 365-day Kernfix warranty on most products, which include most touch screen panel, membrane keypad, protective film, LCD display and protective case shell housing.
The Mobile Panel is a portable operating and display device featuring a rugged design and Windows CE-compatible electronics. Equipped with a powerful processor and Ethernet, the Mobile Panel is optimally suited for many different applications. Depending on the variant, Mobile Panel devices can have a 3.8" QVGA grayscale display without a touch screen or a 6.5" VGA color display with a touch screen.
Mobile Panel devices are wired systems, i.e. they are connected to the control cabinet using a cable. The following individual components are needed for operation:
• Control device including handle
• Attachment cables
Specifications:
| Part Number: | 5MP7140.070N-000 |
| Product Line: | Mobile Panel 7100 |
| Screen diagonal: | 7 in |
| Warranty: | 365 Days Warranty |
| Input Power: | 24 VDC |
| Display Type: | TFT color |
| Mounting position: | Vertical |
| Input Type: | Keypad |
| Serial interface Type: | RS232 |
| Storage: | -20 to 60°C |
Related BB Teach Pendant Part No. :
| B&R Mobile Panel 7100 5MP7140.070N-000 | Description | Inventory status |
| 5MP7120.034F-000 | B&R Mobile Panel 7100 Operator Keyboard HMI Panel Glass | In Stock |
| 5MP7121.034F-000 | Mobile Panel 7100 Keyboard Membrane Touch Screen Monitor Repair | Available Now |
| 5MP7140.070N-000 | B&R Mobile Panel 7100 MMI Touch Screen Switch Membrane Replacement | In Stock |
| 5MP7150.101E-000 | Mobile Panel 7100 B and R HMI Terminal Keypad Touch Digitizer | Available Now |
| 5MP7151.101E-000 | Mobile Panel 7100 Touch Screen Keyboard Membrane Repair | In Stock |
| 5MP7151.101E-001 | B&R Mobile Panel 7100 Touch Panel Membrane Keypad Keyboard | In Stock |
B&R 5MP7140.070N-000 Keypad Membrane Repair PDF Download:
FAQ:
Question: What measures can be taken against preventing after-image effect in B&R Mobile Panel 7100 5MP7140.070N-000 LCD/TFT monitors?
Answer: There is no total solution; however, measures can be taken to significantly reduce this effect: • Avoid static pictures or screen content • Use screen savers (moving) when the display is not in use • Frequent picture change • Shut off the display when not in use Turning off the background lighting (backlight) does not influence the prevention of the afterimage effect.
Question: What is the procedure of creating a bootable USB flash drive for B&R 5MP7140.070N-000 upgrade files?
Answer: • Connect the USB flash drive to the PC. • If the drive list is not refreshed automatically, the list must be updated using the command Drives > Refresh. • Mark the desired USB flash drive in the drive list. • Change to the Action tab and select Install a B&R Update to a USB flash drive as type of action. • Enter the path to the MS-DOS operating system files. If the files are part of a ZIP archive, then click on the button By ZIP file.... If the files are stored in a directory on the hard drive, then click on the button By folder.... • In the B&R Upgrade text box, it's also possible to enter the path to the ZIP file for the B&R Upgrade Disk and select the file. • Click on the Start action button in the toolbar.
Question: What is the B&R Mobile Panel 7100 5MP7140.070N-000 terminal keypad price?
Answer: Submit a fast quote, send Kernfix an email for best price.
Common misspellings:
5MP714.070N-000
5P7140.070N-000
5MP7l40.070N-000
5MP714O.070N-000
5MP71400.070N-000
