5MP7251.101P-000 Membrane Keypad MMI Touch Screen
| Brand | B&R |
|---|---|
| Model | B&R Mobile Panel 7200 5MP7251.101P-000 |
| Warranty | 1 Year VICPAS Warranty |
| Shipping | DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX |
| FOB port | Guangzhou, Shenzhen, Hongkong |
| Terms of Payment | Western Union, T/T, PayPal, Credit Card |
| Download | |
| Update Time | 2026-01-30 23:49:30 |
Shipping
Free Shipping
Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.
B&R Mobile Panel 7200 5MP7251.101P-000 Touch Screen Panel Membrane Keypad Repair
Order each part separately is available
The 5MP7251.101P-000 Membrane Keypad Switch Touch Screen Glass Mobile Panel is a portable operating and display device with a rugged design. Equipped with powerful processors and Ethernet technology, the 5MP7251.101P-000 Touch Membrane Operator Panel Keypad Mobile Panel is optimally suited for a wide range of applications.
All tasks can be solved graphically with the color display. The 5MP7251.101P-000 Touch Screen Panel enables intuitive user guidance.
Ergonomics
• Functional multigrip
• Rounded housing
• Desktop operation
• Wall mount operation
• Easy-to-read display
5MP7251.101P-000 uses a projected capacitive multi-touch screen.
The 5MP7251.101P-000 HMI Touch Glass can be operated with one or more fingers (with or without gloves). The following operation guidelines should be observed to ensure long life of the 5MP7251.101P-000 HMI Panel Glass:
• The 5MP7251.101P-000 Touch Digitizer Glass is not permitted to be operated with gloves or other suitable operating devices if they have been contaminated with chemicals or hard, sharp-edged substances (e.g. sand, grinding paste, metal cuttings of all kinds).
• The 5MP7251.101P-000 Touch Screen Monitor is not permitted to be operated with pointed, sharp metallic objects (e.g. screwdrivers) or with ballpoint pens or pencils.
• The 5MP7251.101P-000 MMI Touch Screen is not permitted to be exposed to continuous sunlight.

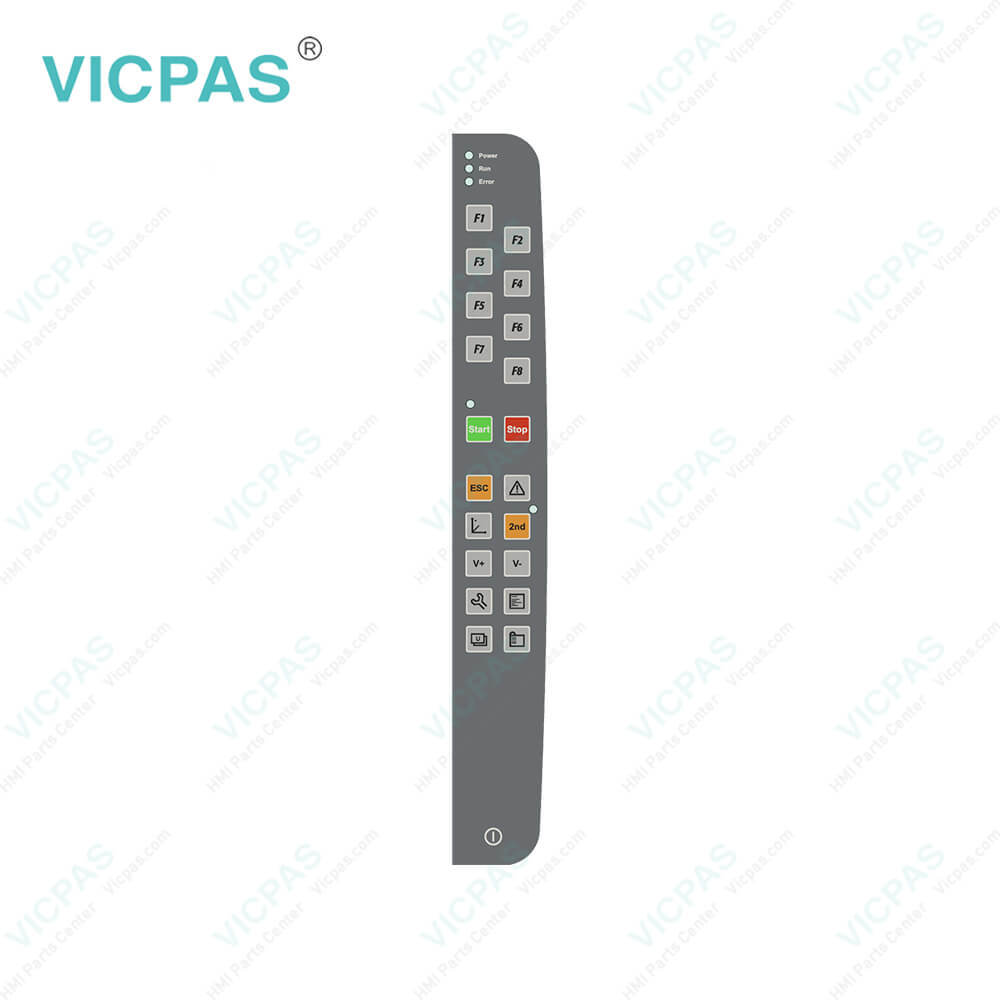

Mobile Panel 7251 - Membrane keypad
How keys/LEDs are assigned depends on how they will be used by the customer.
Some keys are preconfigured at the factory. The key configuration can be changed in a text file and transferred to the device using the ADI Control Center.
The states of the keys or LEDs can be read or switched by a program using the Automation Device Interface (ADI library).
Specifications:
| Part Number: | 5MP7251.101P-000 |
| Product Line: | Mobile Panel 7200 |
| Screen Diagonal: | 10.1 in |
| Warranty: | 365 Days Warranty |
| Display Colors: | 16.7 million |
| Display Type: | TFT color |
| Display Resolution: | WXGA, 1280 x 800 px |
| Backlight Brightness: | 400 cd/m² |
| Touch Screen: | Projected capacitive |
| Storage Temp.: | -25 to 70°C |
Related BB Teach Pendant Part No. :
| B&R Mobile Panel 7200 5MP7251.101P-000 | Description | Inventory status |
| 5MP7120.034F-000 | B&R Mobile Panel 7100 Operator Keyboard HMI Panel Glass | In Stock |
| 5MP7121.034F-000 | Mobile Panel 7100 Keyboard Membrane Touch Screen Monitor Repair | Available Now |
| 5MP7140.070N-000 | B&R Mobile Panel 7100 MMI Touch Screen Switch Membrane Replacement | In Stock |
| 5MP7150.101E-000 | Mobile Panel 7100 B and R HMI Terminal Keypad Touch Digitizer | Available Now |
| 5MP7151.101E-000 | Mobile Panel 7100 Touch Screen Keyboard Membrane Repair | In Stock |
| 5MP7151.101E-001 | B&R Mobile Panel 7100 Touch Panel Membrane Keypad Keyboard | In Stock |
5MP7251.101P-000 Membrane Keypad MMI Touch Screen PDF Download:
FAQ:
Common misspellings:
5MP7251.101P-00
5MP7251.11P-000
5MP7215.101P-000
5MP7251.1o1P-000
5MP7251.101P--000
