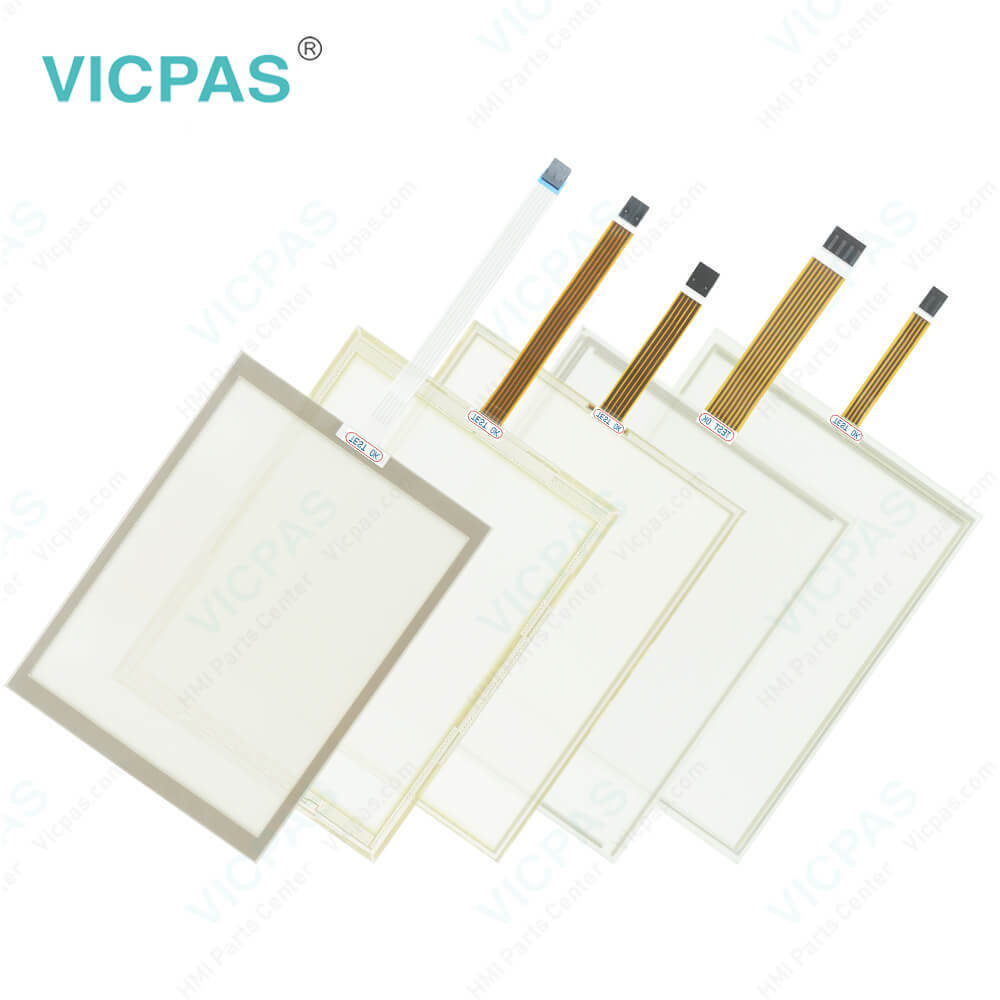

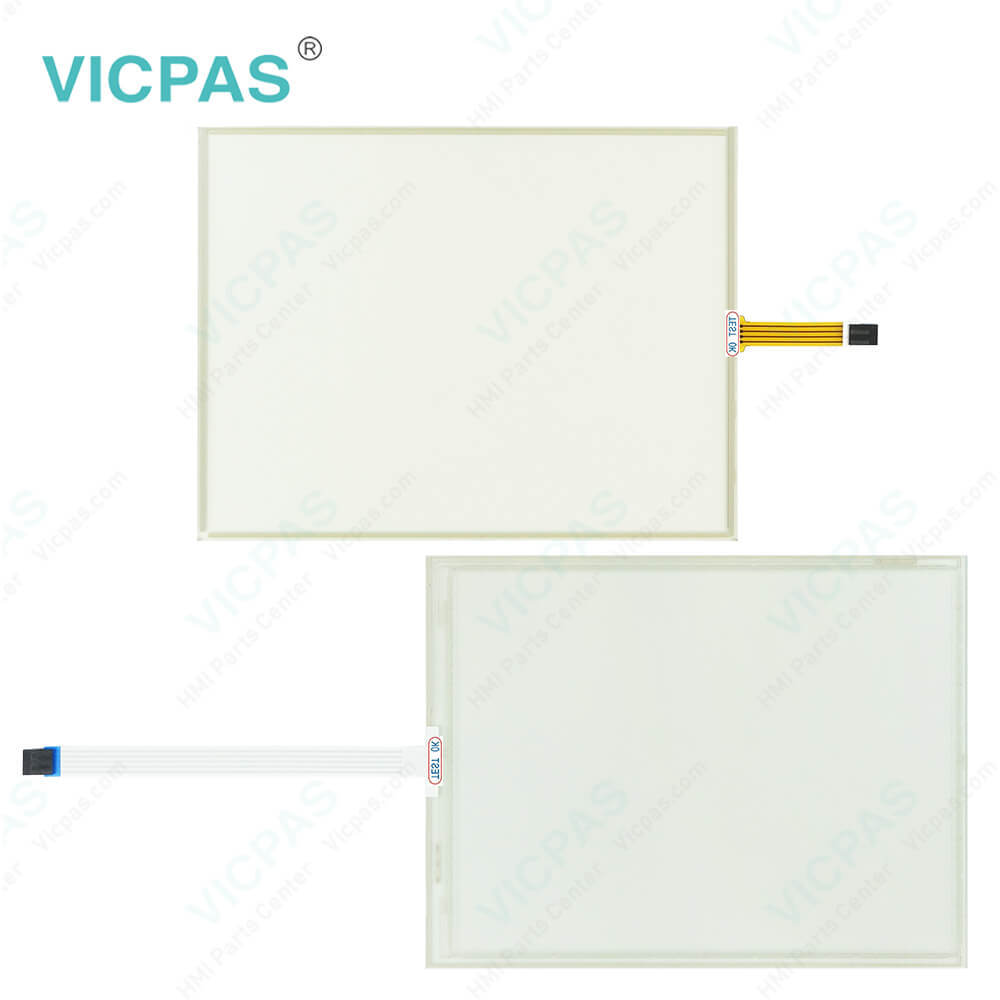

B&R 5D5200.04 Provit 5200 Touch Screen Panel Glass
| Brand | B&R |
|---|---|
| Model | B&R Provit 5200 5D5200.04 |
| Warranty | 1 Year VICPAS Warranty |
| Shipping | DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX |
| FOB port | Guangzhou, Shenzhen, Hongkong |
| Terms of Payment | Western Union, T/T, PayPal, Credit Card |
| Update Time | 2026-01-30 23:54:02 |
Shipping
Free Shipping
Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.
B&R Provit 5200 5D5200.04 Touch Screen Panel Repair Replacement
Order each part separately is available
The B&R Provit 5200 5D5200.04 MTC is a standalone processor system, which provides B&R Provit 5200 5D5200.04 additional functions that are not available with a "normal" PC. The B&R Provit 5200 5D5200.04 MTC communicates with the PC via the ISA bus (using a couple register). The address can be stored under the menu item "Additional Peripherals"
The B&R Provit 5200 5D5200.04 MTC is responsible for the following tasks and components:
• AT PS/2 keyboard
• Panelware keypad modules
• Acquisition of operating data (controller and display unit)
• Temperature monitoring with fan regulation
• Qualitative evaluation of the condition of the battery (good/bad)
Kernfix supply B and R Provit 5200 5D5200.04 touchscreen panel for repair replacement, make the HMI running. We provide a 365 days Kernfix warranty of the most product, which include most of touch screen panel, membrane keypad, protective film, LCD display and protective case shell housing.
Specifications:
| Part Number: | 5D5200.04 |
| Product Line: | Provit 5200 |
| Screen diagonal: | 13.8 in |
| Warranty: | 365 Days Warranty |
| Input Power: | 24 VDC |
| Display Type: | TFT color |
| Mounting position: | Vertical |
| Input Type: | Touchscreen |
| Serial interface Type: | RS232 |
| Storage: | -20 to 60°C |
Related BB Teach Pendant Part No. :
| B&R Provit 5200 5D5200.04 | Description | Inventory status |
| 5D5200.04 | B&R Provit 5200 Touch Digitizer Glass | In Stock |
| 5D5202.01 | Provit 5200 B and R Touch Screen Panel | Available Now |
| 5D5202.03 | B&R Provit 5200 HMI Touch Glass Repair | In Stock |
| 5D5212.01 | Provit 5200 B and R Touch Digitizer Glass | Available Now |
| 5D5202.05 | Provit 5200 B and R Touch Screen Monitor | In Stock |
| 5D5212.02 | B&R Provit 5200 Touch Screen Protective Film | In Stock |
| 5D5212.04 | B&R Provit 5200 Touch Screen Glass Repair | In Stock |
| 5D5212.26 | Provit 5200 B and R Touch Digitizer Glass | Available Now |
| 5D5213.01 | B and R Provit 5200 HMI Panel Glass Repair | Available Now |
| 5D5213.02 | B&R Provit 5200 Touch Screen Monitor | Available Now |
| 5D5501.20 | Provit 5500 B&R Keyboard Membrane Touch Screen | In Stock |
B&R 5D5200.04 Provit 5200 Touch Screen Panel Glass PDF Download:
FAQ:
Question: How to upgrade B&R Provit 5200 5D5200.04 BIOS Software?
Answer: The following steps should be carried out to upgrade or save 5D5200.04 BIOS:• Create bootable media.• Copy the contents of the *.zip file to the bootable media. If the B&R upgrade was already added when the bootable media was created using the B&R Embedded OS Installer, then this step is not necessary. • Connect the bootable media to the Power Panel and reboot the device. • The following start menu will be shown after booting.• The system must be rebooted after a successful upgrade.
Question: What is the procedure of creating a bootable USB flash drive for B&R 5D5200.04 upgrade files?
Answer: • Connect the USB flash drive to the PC. • If the drive list is not refreshed automatically, the list must be updated using the command Drives > Refresh. • Mark the desired USB flash drive in the drive list. • Change to the Action tab and select Install a B&R Update to a USB flash drive as type of action. • Enter the path to the MS-DOS operating system files. If the files are part of a ZIP archive, then click on the button By ZIP file.... If the files are stored in a directory on the hard drive, then click on the button By folder.... • In the B&R Upgrade text box, it's also possible to enter the path to the ZIP file for the B&R Upgrade Disk and select the file. • Click on the Start action button in the toolbar.
Question: What is the B&R Provit 5200 5D5200.04 touch screen panel price?
Answer: Submit a fast quote, send Kernfix an email for best price.
