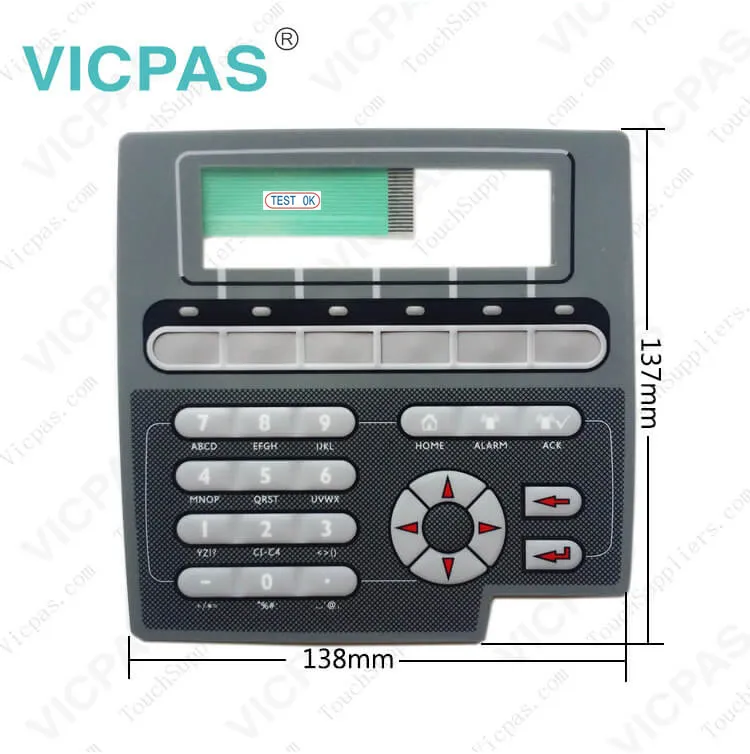

Beijer EXTER K20m 601110202 Monochrome Membrane Keypad
| Brand | BEIJER |
|---|---|
| Model | EXTER K20m |
| Warranty | 180 days |
| Product Line | EXTER operator panels |
| Supply | Beijer EXTER K20m Membrane Switch |
| Terms of Payment | Western Union, T/T, PayPal, T/T ,Credit Card, Western Union |
| Download | |
| Update Time | 2026-01-31 00:45:16 |
Shipping
Free Shipping
Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.
Beijer EXTER K20 m 601110202 Beijer EXTER Series Membrane Keyboard Repair Replacement
EXTER K20 m monochrome keypad HMI membrane switch replacement
The EXTER K20 m 603111202 features:
•240 x 64 pixels
•FSTN display
•240 x 64 pixels
•Project storage 512KB
•Operating temperature 0 to +50 °C
•Serial, Enet w/Exp module
•6 keys / 6 LEDs
The EXTER panels comply with the toughest industry standards such as CE, UL and DNV. The robust and reliable panels have shallow mounting-depths to enable full control with space saving efficiency. The panels are 100% dimmable and easy to clean, with a high-pressure water-resistant IP66 front, making them perfect for installation everywhere from onboard ships and oil rigs to sterile rooms and chemically challeng- ing environments.
Kernfix supply Beijer Exter EXTER K20 m membrane switch with 6 months warranty and support Urgent Worldwide Shipping.
Specifications:
| Brand: | Beijer |
| Numerical keypad: | YES |
| Input fuse: | Internal DC fuse |
| Warranty: | 6-Months Warranty |
| Product Line: | Beijer EXTER K20 m |
| Size diagonal: | 240 x 64 pixels |
| Part Number: | 601110202 |
| Housing material: | Powder-coated aluminium, grey |
| Input voltage: | 20 - 30 V DC |
| Display type: | Monochrome FSTN |
Beijer EXTER K20m 601110202 Monochrome Membrane Keypad PDF Download:
FAQ:
Question: How to ground the Beijer EXTER K20 m Operator Panel?
Answer: 1. The operator panel’s mounting clamps do not provide a secure grounding connectionbetween the panel and the device cabinet.2. Connect a 2.5 mm2 wire between the operator panel’s quick-connect plinth andthe panel chassis.3. Connect a 6 or 4 mm2 wire or grounding braid between the panel’s chassis andthe closest grounding point on the door.4. Connect a strong but short grounding braid between the door and the devicecabinet.5. Twist the cables onto the 24 V DC feed.6. A ferrite core suppresses disturbances to the 24 V feed.
Question: Why are Beijer 603111202 membrnae keypad with the chemical resisitace?
Answer: Beacuse Autotex F157 covers the membrane keyboard.
Question: What is EXTER K20 m 603111202 Beijer E1000 Series Operator Panel mebrane keyboard HMI parts price?
Answer: Submit a fast quote, send Kernfix an email for best price.
