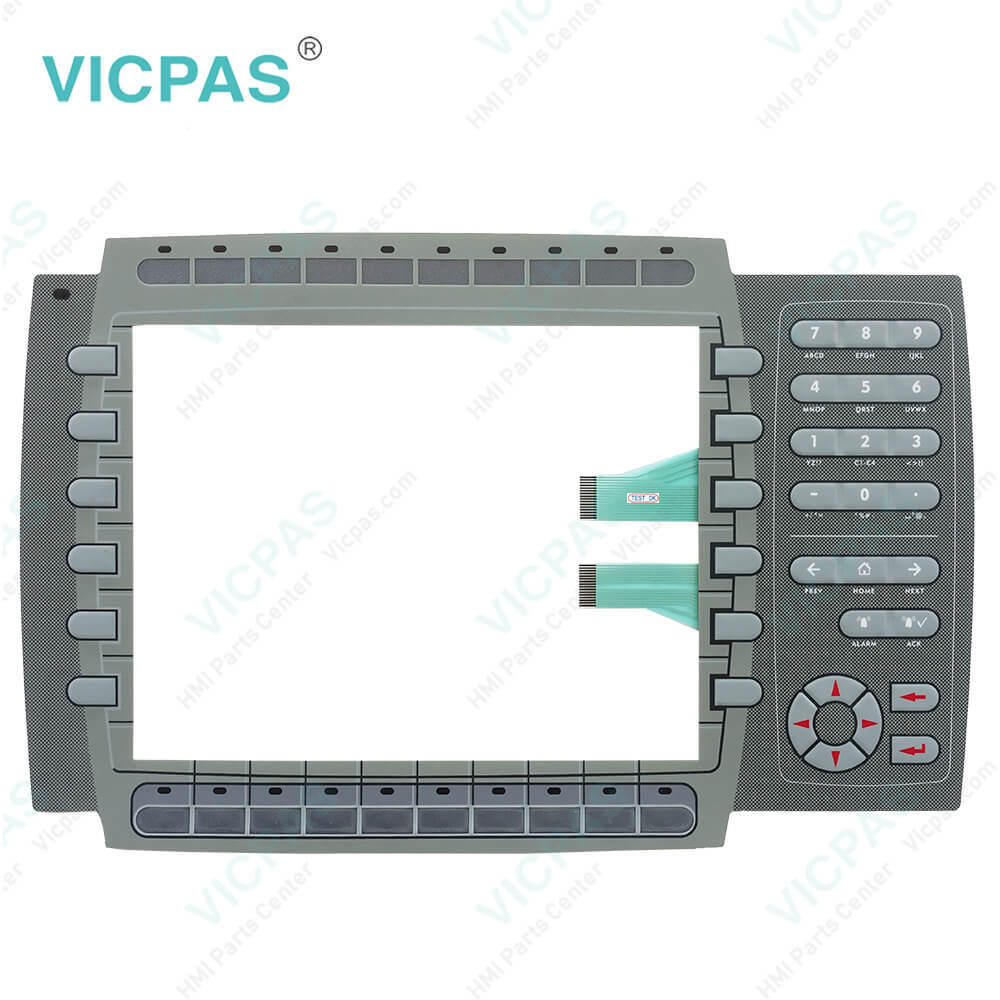

Membrane keypad for Beijer HMI EXTER K100 Replacement
| Brand | BEIJER |
|---|---|
| Model | EXTER K100 |
| Warranty | 180 days |
| Product Line | EXTER operator panels |
| Supply | Beijer EXTER K100 Membrane Switch |
| Terms of Payment | Western Union, T/T, PayPal, T/T ,Credit Card, Western Union |
| Download | |
| Update Time | 2026-01-31 00:45:25 |
Shipping
Free Shipping
Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.
Beijer EXTER K100 602220003 Beijer EXTER Series Membrane Keyboard Repair Replacement
EXTER K100 monochrome keypad HMI membrane switch replacement
The EXTER K100 602220003 features:
•800 x 600 pixels
•TFT display
•10" TFT-LCD screen
•Project storage 12 MB
•Operating temperature 0 to +50 °C
•Ethernet and serial
•22 keys / 20 LEDs
EXTER K100 Beijer Electronics TFT HMI Mitsubishi Electric Graphic Interface Operator Keypad Panel is an efficient interface for presentation of mainly textual data. Its compact format offers basic HMI functionality and support for communication expansion modules. The six function keys can be used for controlling, with an explanatory text in the display or on a text strip, and the six LEDs for status indication.All EXTER operator panels are configured with the software tool Information Designer.
Kernfix supply Beijer Exter EXTER K100 membrane switch with 6 months warranty and support Urgent Worldwide Shipping.
Specifications:
| Brand: | Beijer |
| Numerical keypad: | YES |
| Size: | 10.4 inch |
| Warranty: | 6-Months Warranty |
| Product Line: | Beijer EXTER K100 |
| Size diagonal: | 800 x 600 pixels |
| Part Number: | 602220003 |
| Backlight: | LED with dimming |
| Input voltage: | 20 - 30 V DC |
| Display type: | TFT CCFL |
Membrane keypad for Beijer HMI EXTER K100 Replacement PDF Download:
FAQ:
Question: How to ground the Beijer EXTER K100 Operator Panel?
Answer: 1. The operator panel’s mounting clamps do not provide a secure grounding connectionbetween the panel and the device cabinet.2. Connect a 2.5 mm2 wire between the operator panel’s quick-connect plinth andthe panel chassis.3. Connect a 6 or 4 mm2 wire or grounding braid between the panel’s chassis andthe closest grounding point on the door.4. Connect a strong but short grounding braid between the door and the devicecabinet.5. Twist the cables onto the 24 V DC feed.6. A ferrite core suppresses disturbances to the 24 V feed.
Question: Why are Beijer 602220003 membrnae keypad with the chemical resisitace?
Answer: Beacuse Autotex F157 covers the membrane keyboard.
Question: What is EXTER K100 602220003 Beijer E1000 Series Operator Panel mebrane keyboard HMI parts price?
Answer: Submit a fast quote, send Kernfix an email for best price.
Common misspellings:
62220003
60220003
60222003
