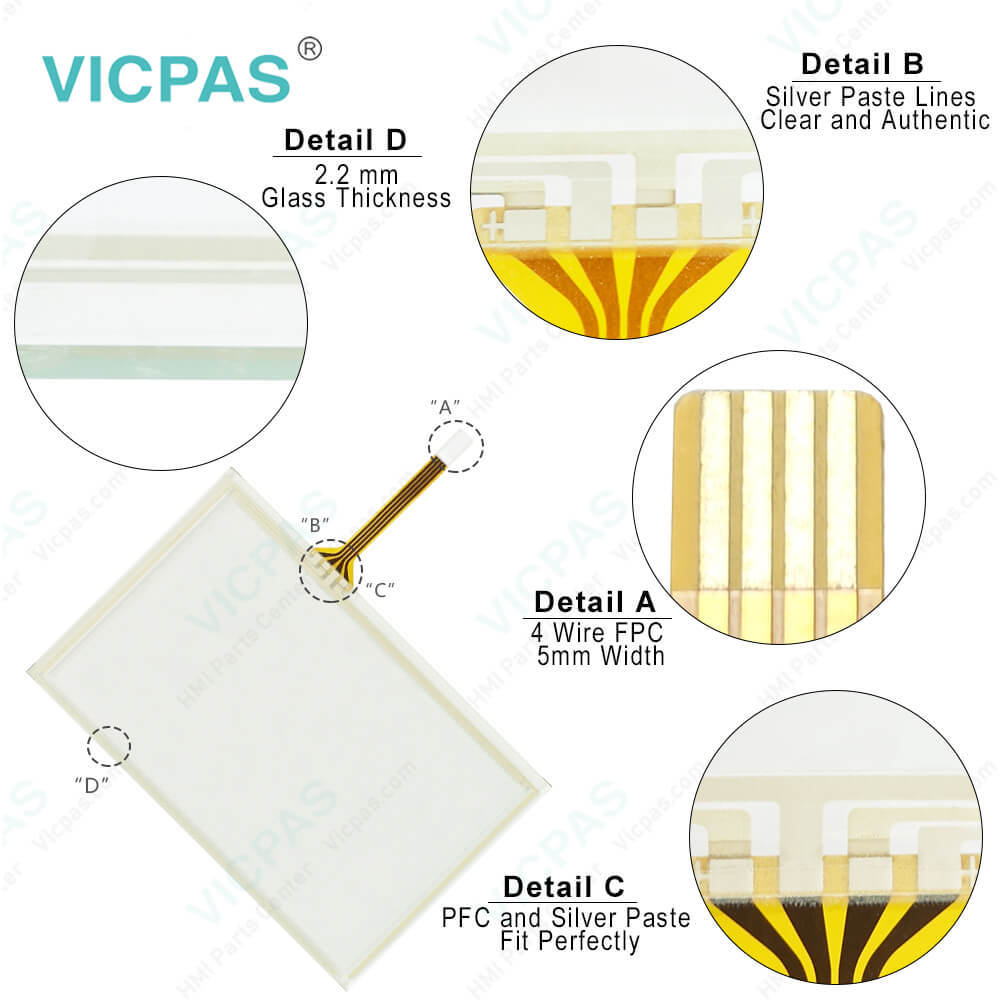

Beijer HMI iX T5F-2 630005101 Touch Screen Overlay
| Brand | BEIJER |
|---|---|
| Model | iX T5F-2 |
| Warranty | 365 Days |
| Product Line | iX TxX |
| Supply | Beijer iX T5F-2 Touchscreen Protective Film |
| FOB port | Guangzhou, Shenzhen, Hongkong |
| Terms of Payment | Western Union, T/T, PayPal, Credit Card |
| Download | |
| Update Time | 2026-01-31 00:46:19 |
Shipping
Free Shipping
Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.
Beijer HMI iX T5F-2 630000102 Touchscreen Protective Film Replacement
The iX T5F-2 Protective Film Touch Digitizer Glass HMI is a 5-inch industrial operator panel with high-resolution touch screen and modern design. The iX T5F-2 Touch screen panel glass Front Overlay model combines IP65 plastic housing with the full version of the iX HMI software, making it a cost-effective yet advanced HMI. The T5F-2 HMI panel offers Ethernet, serial and USB ports as standard.
▪ 5”, 800 × 480 pixel (16:9), TFT-LCD touch screen
▪ Application storage 200 MB
▪ 1 × Ethernet, 4 × serial, 1 × USB as standard
▪ Operating temperature -10 to +50 °C
▪ UL / cUL, CE, FCC and KCC certifications
Kernfix supply Beijer iX T5F-2 Touch Panel and Front Overlay with 365 days warranty and support Urgent Worldwide Shipping.
Specifications:
| Brand: | Beijer |
| Part number: | 630005101 |
| Size: | 5 INCH |
| Warranty: | 365 Days Warranty |
| Power voltage: | +24 VDC |
| Size diagonal: | 800x480 pixel |
| Display type: | TFT-LCD |
| Touch type: | Resistive |
| Backlight: | LED |
| Brightness: | 300 cd/m2 |
Beijer HMI iX T5F-2 630005101 Touch Screen Overlay PDF Download:
FAQ:
Question: How to ground the iX TxX Series Operator Panel?
Answer: 1. Connect a 2.5mm2 wire between the operator panel’s quick-connect plinth and the panel’s chassis, see 2 in drawing above.2. Connect a 6mm2 or 4mm2 wire or grounding braid between the operator panel’s chassis and the closest grounding point on the door, see 3 in drawing above. 3. Connect a strong but short grounding braid between the door and the devicecabinet, see 4 in drawing above.4. Twist the cables onto the 24VDCfeed, see 5 in drawing above. Minimumcross-section of the cable is 2.5mm2.2 turns around the ferrite core provide 4 times the suppression of 1 turn.3 turns around the ferrite core provide 9 times the suppression of 1 turn.
Question: Why the Beijer iX T5F-2 HMI have the chemical resistance?
Answer: T5F-2 covers the overlay surrounding the screen.
Question: What is Beijer iX T5F-2 Touchscreen and Overlay HMI parts price?
Answer: Submit a fast quote, send Kernfix an email for best price.
Common misspellings:
63000511
360005101
6300051o1
6300051011
