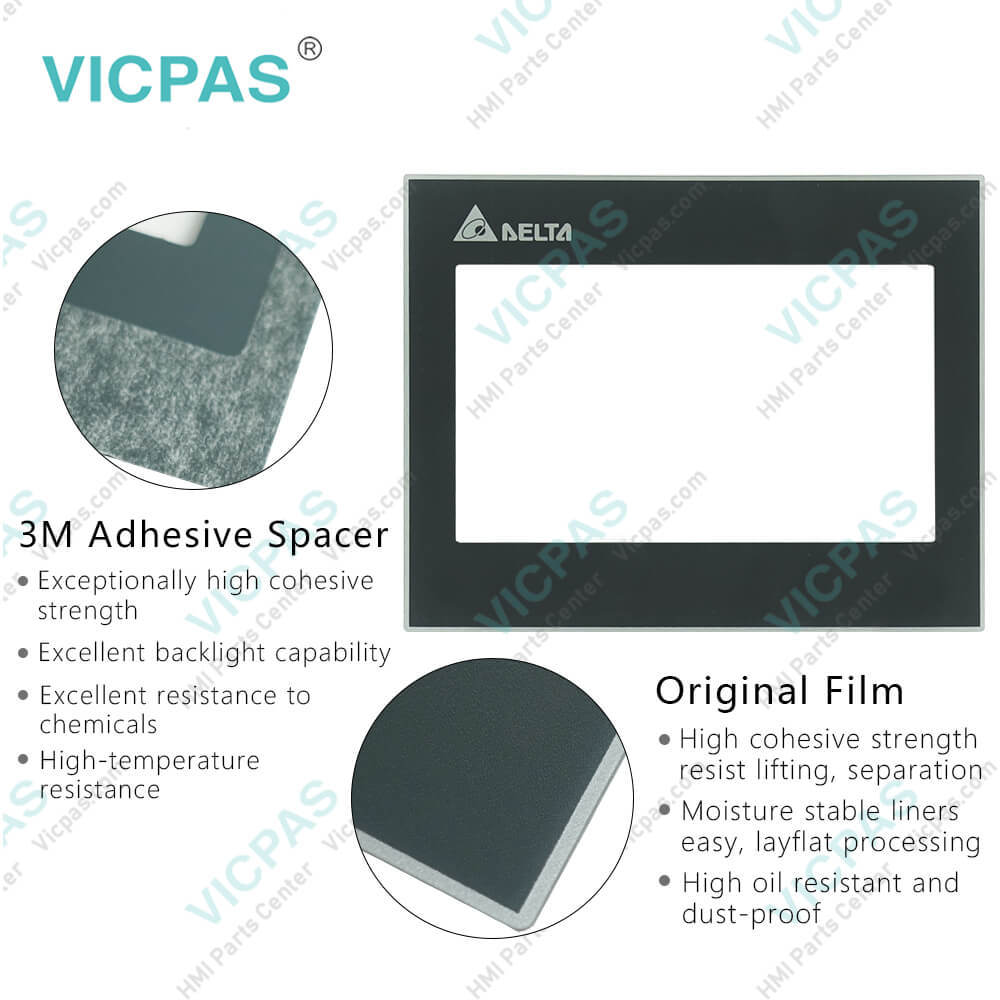

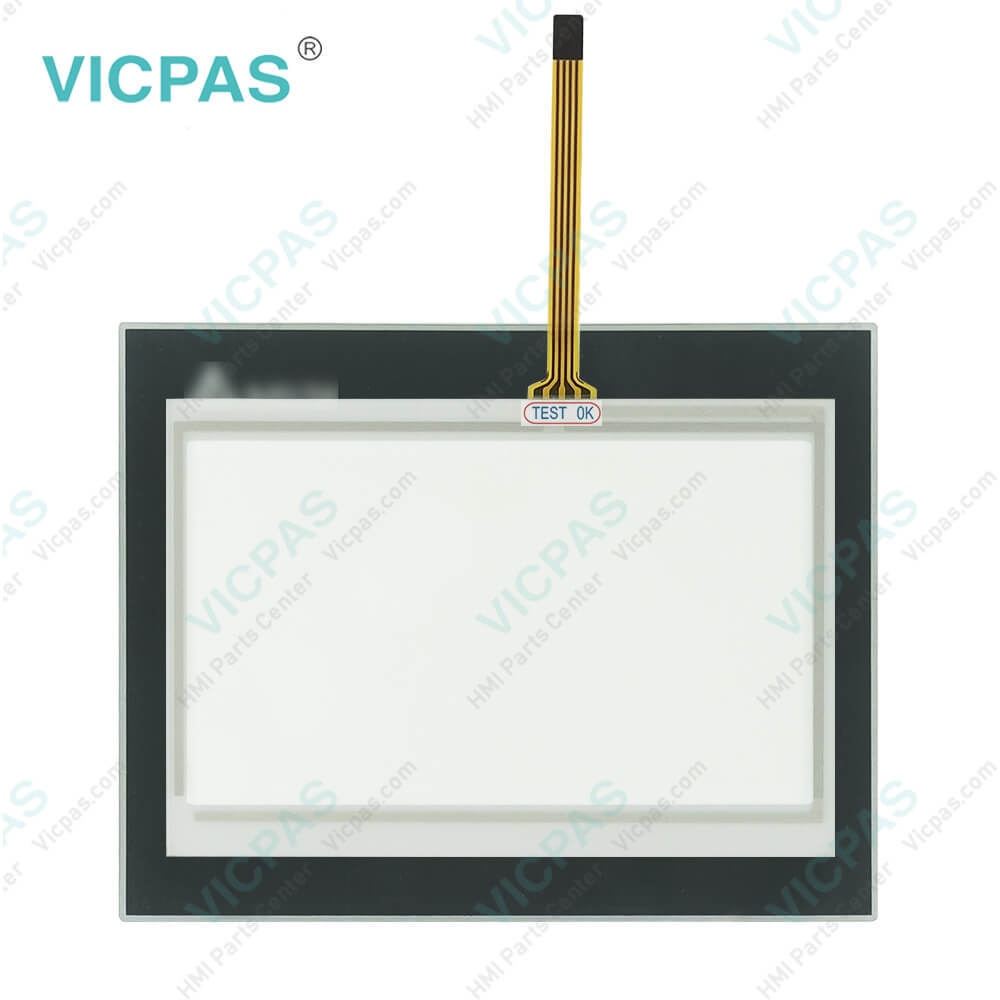

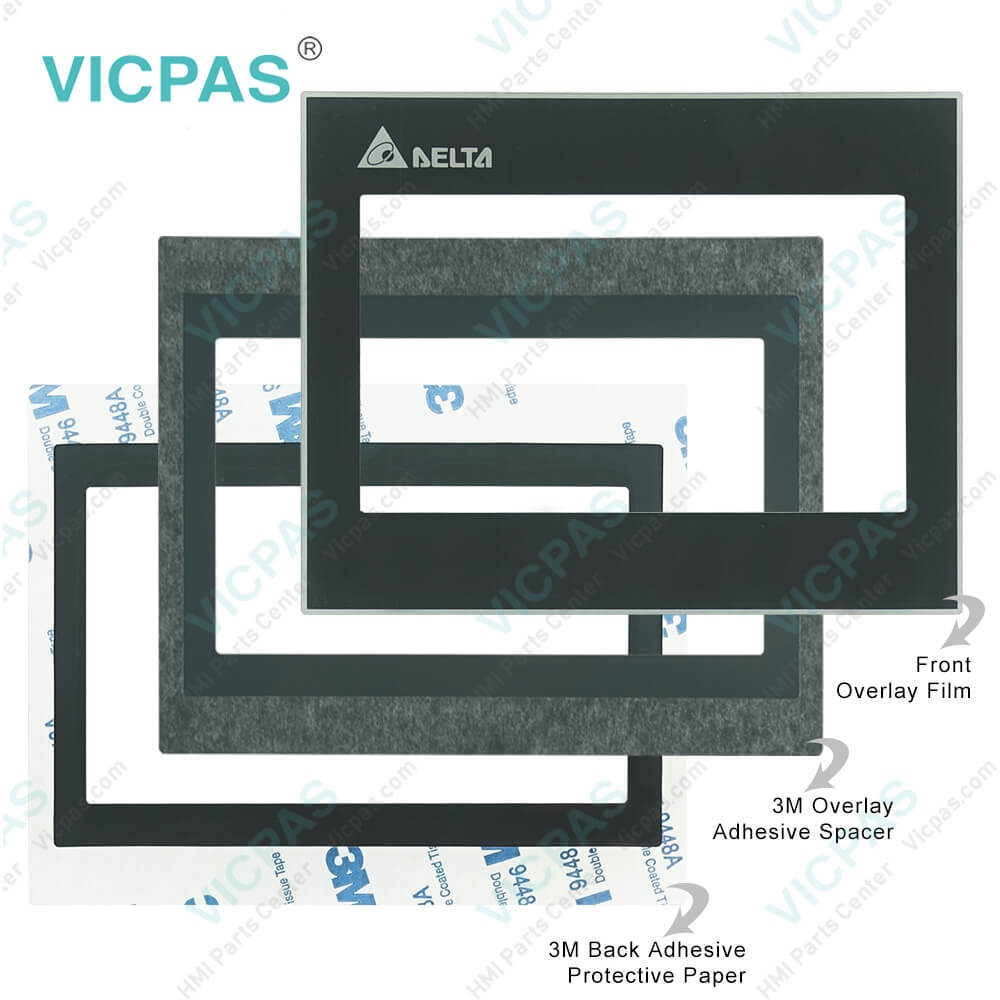

Delta DOP-103WQ Front Overlay Touch Glass Repair

Order each part separately is available

Different from the setting methods for the DOP-B and DOP-H series HMIs that use continuous Word addresses, DOP-W and DOP-100 series DOP-103WQ Touch Screen Panel Glass Protective Film HMI use non-continuous addresses. Thus, DOP-103WQ Front Overlay Touchscreen Panel HMI alarms can be triggered with either Bit or Word addresses, which is more flexible and user-friendly. In addition, alarm messages now support dynamic modification. In the old version, the displayed temperatures on the alarm messages were fixed, e.g. 100 degrees; now you can add ％d1 to the alarm message and use the monitoring address in [Alarm Settings] to input the value, so the DOP-103WQ Touch Screen Monitor Front Overlay HMI displays the modified value when the alarm is triggered next time.

Alarm message supports up to 4,096 data entries. DOP-100 DOP-103WQ Protective Film Touch Digitizer Glass HMI also provides a batch tasks tool for you to quickly complete the alarm group settings, allowing you to input the alarm group number easily. [Alarm History Table] provides more powerful functions: you can use the sorting and filter function to quickly view the alarm messages.
