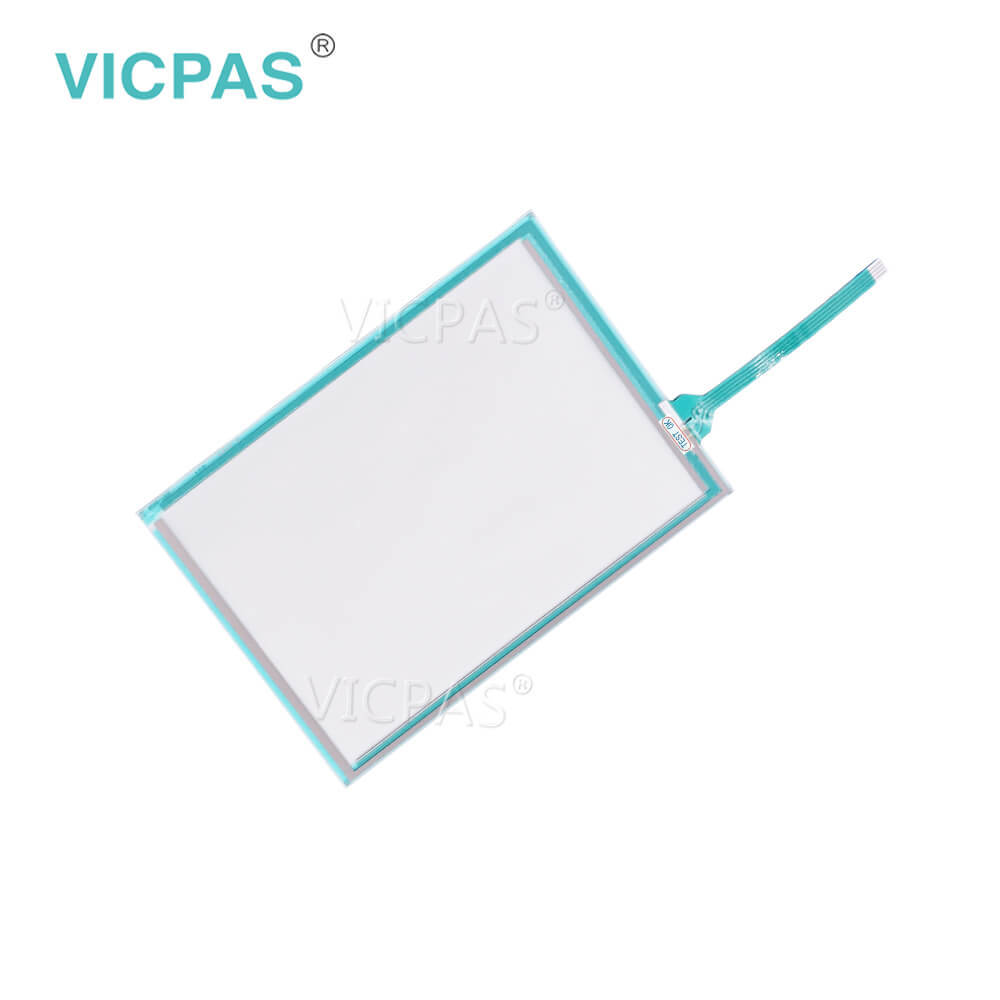

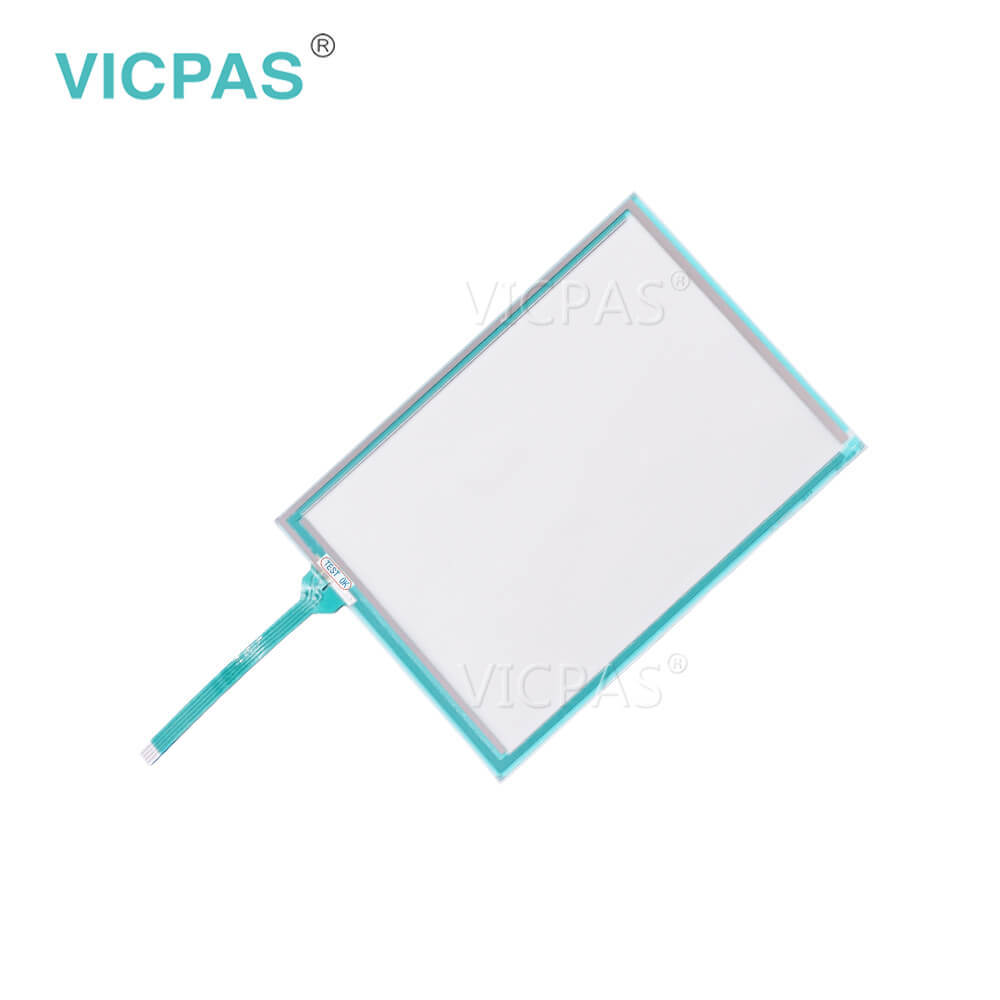

DMC TP-3162S1 Touch Screen Panel Replacement

Transparent electrodes are formed on one side of both the top and bottom of the device, and one side constitutes the X-coordinate circuit and the other side the Y-coordinate circuit. The voltage of the touched position is detected. There are three types of analog systems: 4-wire, 5-wire, and 8-wire, etc. DMC mainly uses the 4-wire system as the standard, and the 5-wire system for the high durability models. The DMC detects the position of the X and Y axes using parallel X and Y electrodes formed on the upper and lower substrates, respectively. Semi-Standard products TP-3162S1 Touch Digitizer Glass based on standard products. We customized the products such as size changes, cover glass mounting, and surface treatments that are often requested. DMC provide Semi-customized products TP-3162S1 Touch Screen Monitor that are particularly requested with combinations and specification that match the application. Ideal for alternatives where conditions are not met due to time and cost restrictions, or for applications that require quick evaluation with developed TP-3162S1 Touch Membrane products.

DMC TP-3162S1 HMI touch glass size: 6.5 inch, other general size is 3.0'' to 22'' . DMC TP-3162S1touch digitizer glass adopt to panel display device, DMC TP-3162S1touch screen temperature operating range: -10° C ~ 60° C. DMC TP-3162S1 touch panel display Resistance 300Ω

Specifications:

DMC TP-3162S1 Touch Screen Panel Replacement PDF Download:

Common misspellings:
