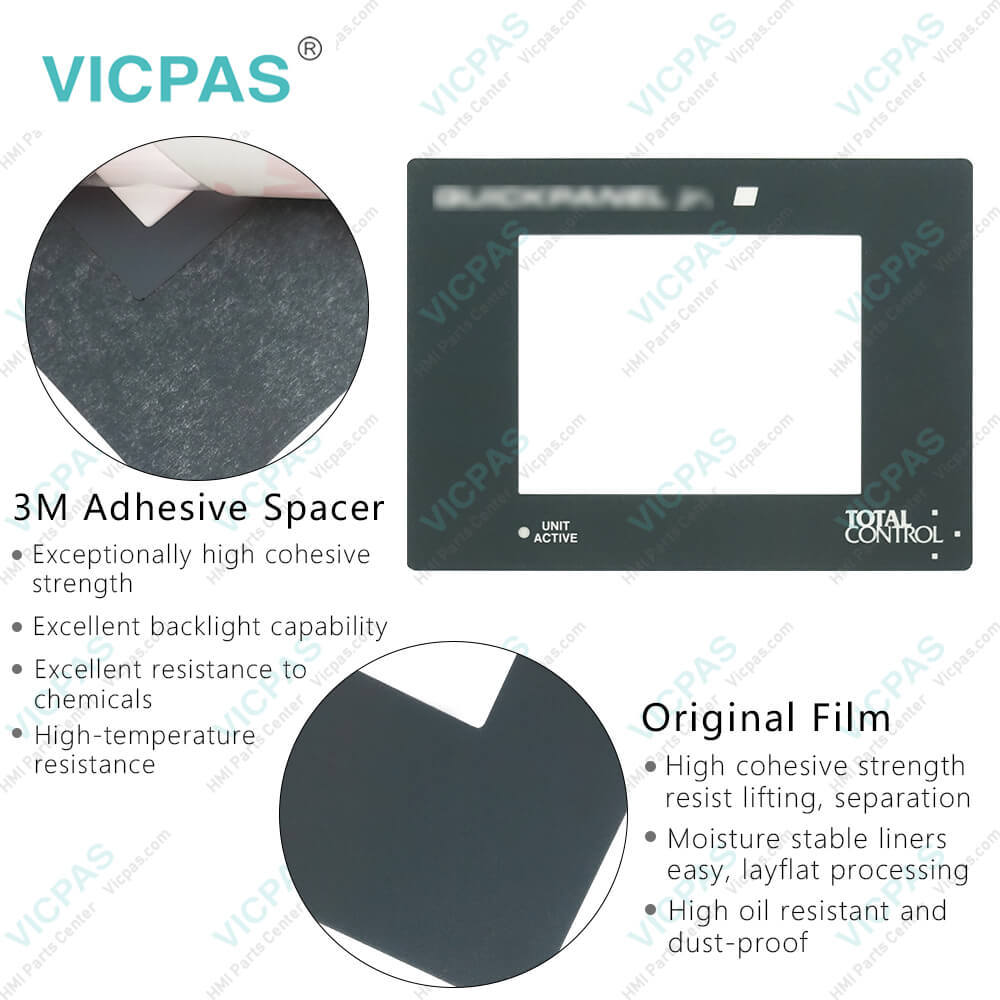

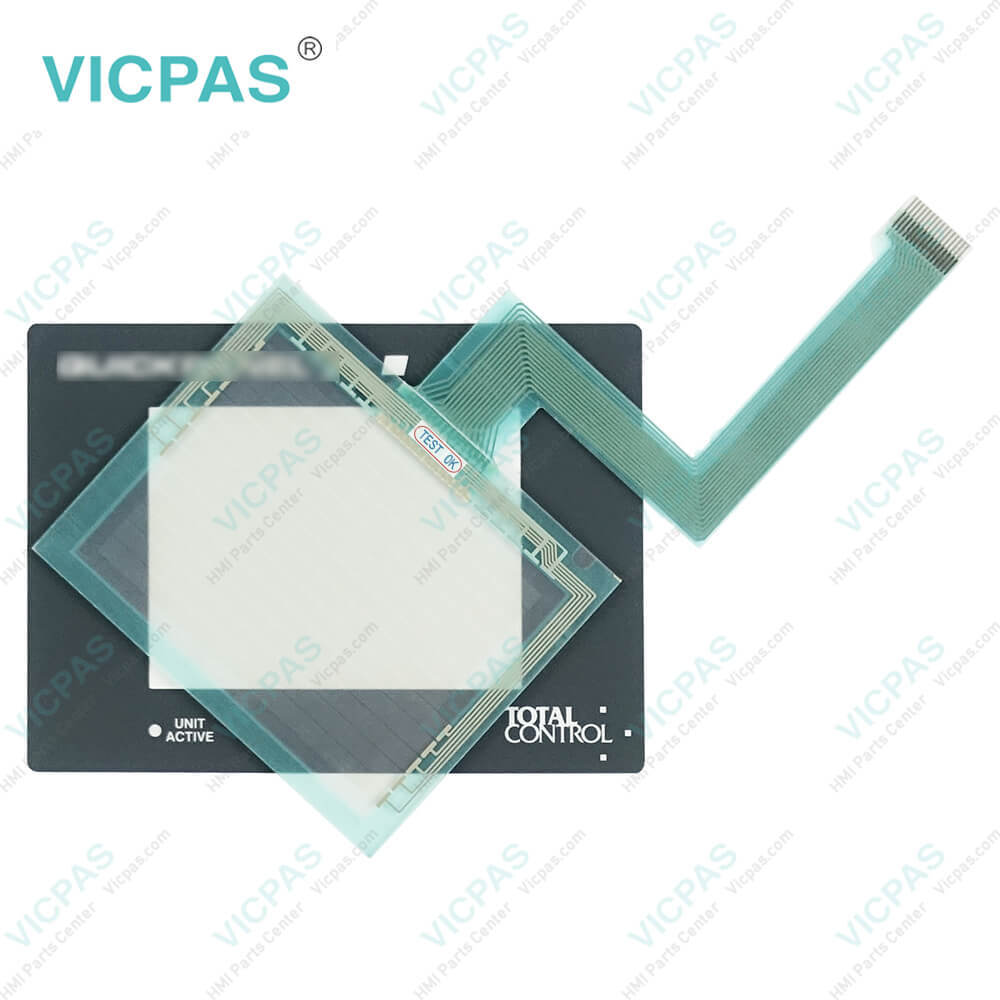

QPJ2D101L2P QPJ2D100S2P QPJ2D100S2P SERIES A Touchscreen Front Overlay

Order each part separately is available

The serial interface port connects the QPJ2D101L2P QPJ2D100S2P QPJ2D100S2P SERIES A HMI Touch Glass Protective Film QUICKPANEL to your PLC. Refer to the cable section to determine the correct cable to use with your PLC. Factory cables are cut to approximately 12’, which is suitable for most applications. Some cables are available in longer lengths on special order from Total Control Products, Inc. or you can fabricate your own. Use the cable diagrams found in the cable section for correct wiring. Remember that RS232 cables are reliable up to approximately 50’. The serial interface pin assignments are shown in the following drawing. *NOTE: Some cables, such as the HMI-CAB-C84, are designed for use on proprietary networks. These cable assemblies contain active network interface circuits. Because these cables are licensed from other manufacturers, there are no cable diagrams or circuit drawings.

CANopen Module on a QPJ-2D101-L2P QPJ-2D100-S2P QPJ2D100S2P SERIES A Front Overlay Touch Membrane QUICKPANEL jr.
Attach the power wires to the QPJ2D101L2P QPJ2D100S2P QPJ2D100S2P SERIES A Touch Screen Panel Front Overlay terminal block on the display. Align the option module connector with the mating connector on the display. Press the module firmly into the display chassis and tighten the screws. The option module is shown below.
