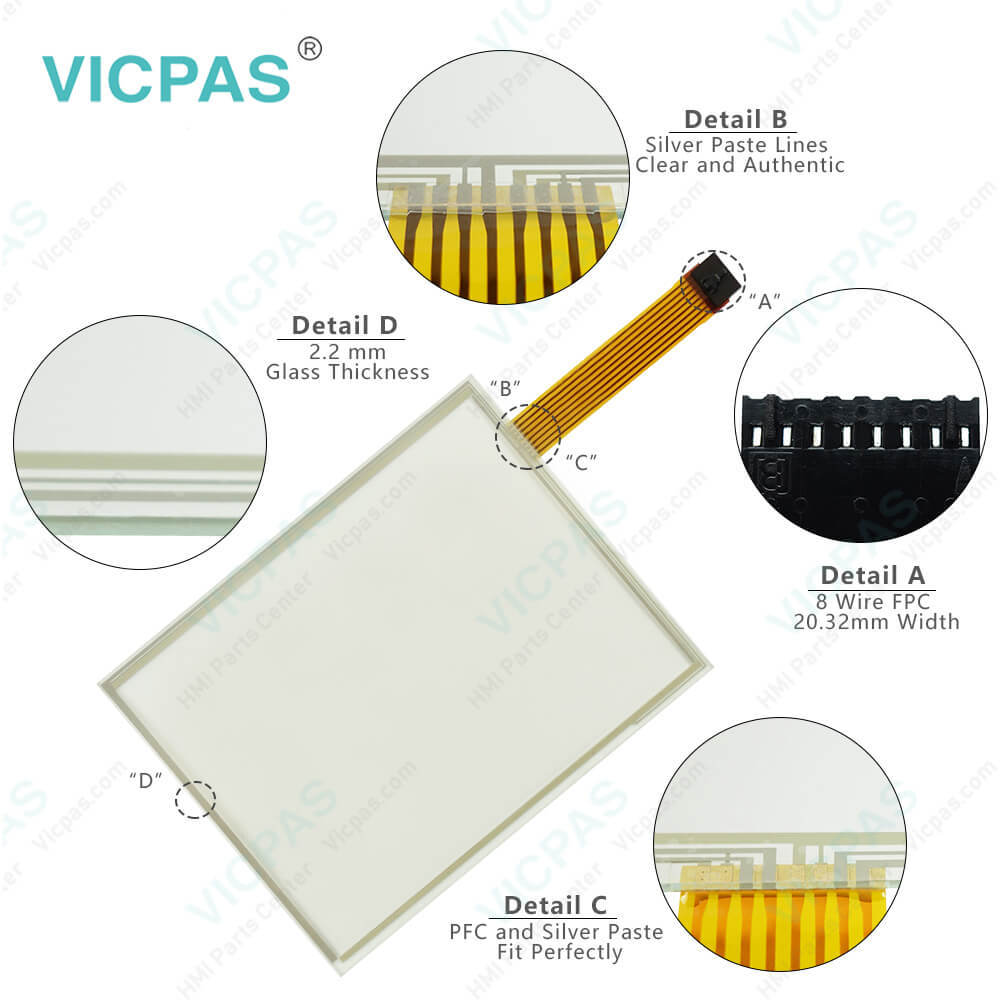

GUNZE USA 100-0731 HMI Panel Glass Replacement Repair

GUNZE USA 100-0731 HMI Panel Glass Replacement Repair
GUNZE USA 100-0731 HMI Panel Glass Replacement RepairGUNZE USA 100-0731 HMI Panel Glass Replacement RepairGUNZE USA 100-0731 HMI Panel Glass Replacement Repair
BrandGunze
ModelGUNZE USA 100-0731
Warranty365 Days
Supply parts100-0731 Touch Membrane
Touch Screen Panel TypeResistance touch screen
Shipping2-4 workdays
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, T/T, PayPal, Credit Card
Download
Update Time2026-01-31 01:54:36
Leading Time{{selectedConditionObj.leading}}
{{item.value}}
{{nameObj.name}}{{nameObj.selectedValue}}
{{valueObj.name}}

Shipping

Free Shipping

Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.

Detail Information

100-0731 GUNZE Touch Digitizer Glass Replacement Repair


100-0731 GUNZE Touch Screen Panel repair replacement

100-0731 touch panels are used in countless devices and products. They are the foundation for every analog resistive touch product we manufacture, and are available in 4-, 5-, and 8-wire configurations. Gunze touch panels are of the highest quality, with Gunze's reputation for quality, and years of touch panel manufacturing experience, built into every one. Our Film/Glass touch panels are a cost-effective way to integrate Gunze quality into your product.


Gunze 100-0731 touch membrane offers excellent optical quality. We incorporate an anti-glare coating on the top film to minimize light reflected from the touch panel surface. We also have options for anti-fingerprint film, Anti-reflective film and different levels of Anti-glare. Gunze 100-0731 touch digitizer glass is available in a large number of standard touch panel designs. Odds are that we already have available a standard offering that can be incorporated into your designs. Offering a large selection of standard products enables Gunze to help provide you with options that help you minimize your project start-up costs. Gunze can also design custom Film/Glass touch panels for your specific application.






Specifications:

Product Line:Analog Resistive 8-Wire
Top Layer:Polyester film
Connection Tail:FFC or FPC (Optional)
Activation Force:≦80g(Stylus=R8)
Warranty:1-Year Warranty

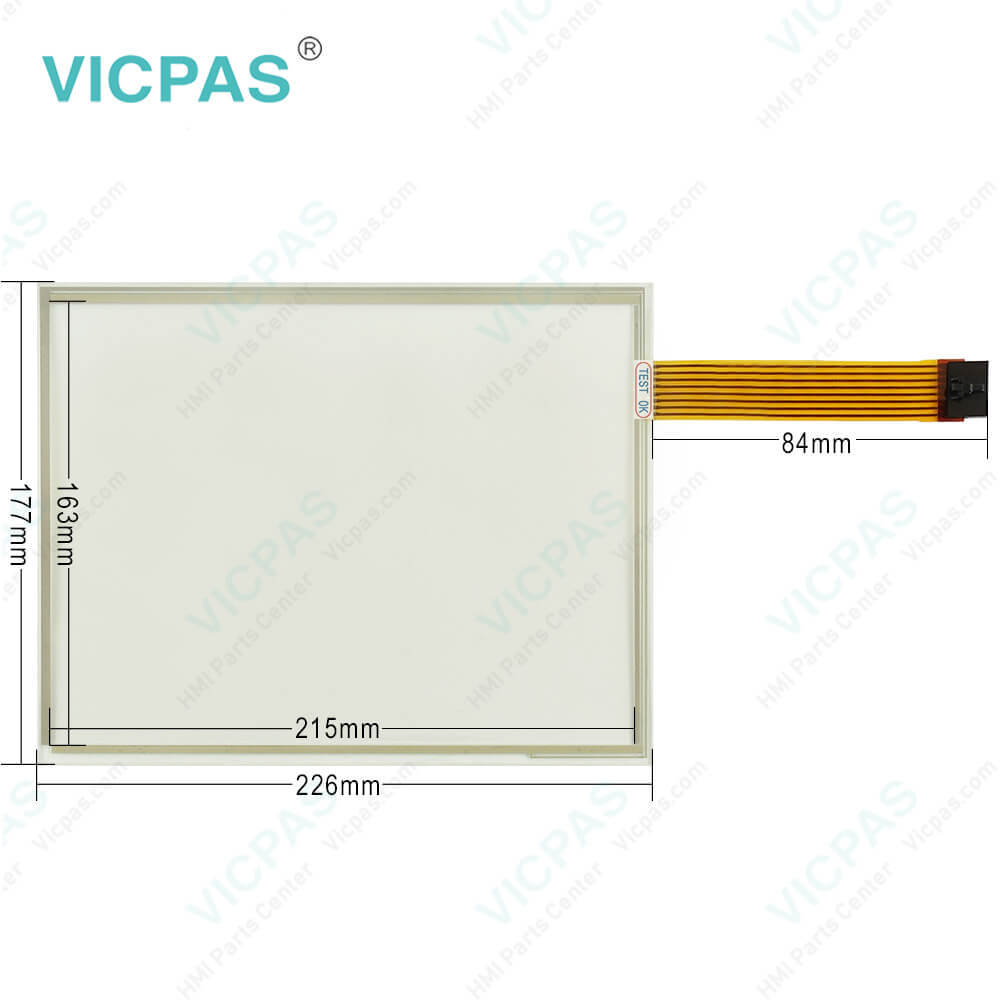

Touch Size:10.4 inch
Life Time:10~35 million touches
Operation Temperature:-30℃~+70℃
Storage Temperature:-40℃~+80℃
Transmittance:≥ 80 ± 5%, light transmission


Related BB Teach Pendant Part No. :

GUNZE USA 100-0731Description Inventory status
100-0341Gunze 8-Wire resistive Touch Screen Glass ReplacementIn Stock
100-0342GUNZE 8-Wire resistive Touchscreen Panel ReplacementAvailable Now
100-0351Gunze Analog Resistive 8-Wire HMI Panel Glass Repair PartAvailable Now
100-0352Gunze Analog Resistive 8-Wire HMI Touchscreen Repair PartIn Stock
100-0360GUNZE 8-Wire resistive HMI Touch Screen Glass RepairAvailable Now
100-0361GUNZE 8-Wire resistive Touch Screen Panel ReplacementIn Stock
100-0691Gunze Analog Resistive 8-Wire Touch Membrane ReplacementIn Stock
100-0692GUNZE Analog Resistive 8-Wire HMI Touch Glass ReplacementIn Stock
100-0731Gunze 8-Wire resistive HMI Panel Glass ReplacementAvailable Now
100-0770Gunze Analog Resistive 8-Wire Touch Digitizer Glass RepairAvailable Now
100-0790Gunze Analog Resistive 8-Wire Touch Screen Monitor RepairIn Stock

GUNZE USA 100-0731 HMI Panel Glass Replacement Repair PDF Download:

  • 100-0691 Drawing
  • 100-0692-Rev.0_17.0D_8-wire Drawing
  • 100-0731-Rev.-A-10.4D_8wire Drawing
  • 100-0731 Drawing
  • 100-0770-Rev.-0-8.4D_8wire Drawing
  • 100-0770_PL8_8_4E2 Drawing
  • 100-0790_R8 15_0 Drawing
  • 100-0791 Drawing
  • Tough Touch Data Sheet
  • Low Reflective Data Sheet
  • High Transmissive Data Sheet
  • Film Glass Data Sheet

  • FAQ:

    Question: Can the addition of a decorative overlay cause activation force to increase?

    Answer: Yes, there will be a slight increase.

    Question: Does a change in flex location require new tooling?

    Answer: Yes, a change in flex location will require new tooling, but it should be minimal.
