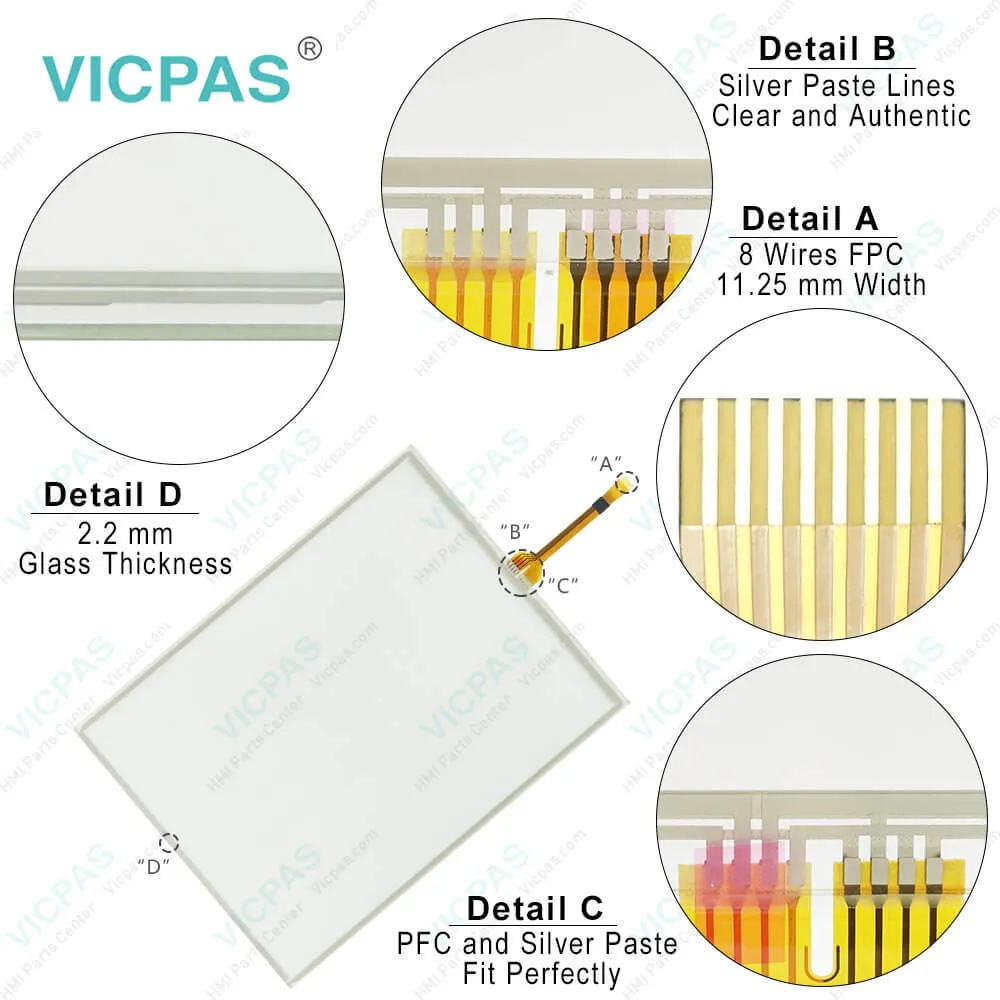

Gunze 100-2030 Touch Screen Monitor Replacement

Gunze 100-2030 Touch Screen Monitor Replacement
Gunze 100-2030 Touch Screen Monitor ReplacementGunze 100-2030 Touch Screen Monitor ReplacementGunze 100-2030 Touch Screen Monitor Replacement
BrandGunze
ModelGUNZE USA 100-2030
Warranty365 Days
Supply parts100-2030 Touch Membrane
Touch Screen Panel TypeResistance touch screen
Shipping2-4 workdays
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, T/T, PayPal, Credit Card
Download
Update Time2026-01-31 01:55:27
Leading Time{{selectedConditionObj.leading}}
{{item.value}}
{{nameObj.name}}{{nameObj.selectedValue}}
{{valueObj.name}}

Shipping

Free Shipping

Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.

Detail Information

100-2030 GUNZE Touch Digitizer Glass Replacement Repair


100-2030 GUNZE Touch Screen Panel repair replacement

Gunze 100-2030 touch membrane offers excellent optical quality. We incorporate an anti-glare coating on the top film to minimize light reflected from the touch panel surface. We also have options for anti-fingerprint film, Anti-reflective film and different levels of Anti-glare. Gunze 100-2030 touch digitizer glass is available in a large number of standard touch panel designs. Odds are that we already have available a standard offering that can be incorporated into your designs. Offering a large selection of standard products enables Gunze to help provide you with options that help you minimize your project start-up costs. Gunze can also design custom Film/Glass touch panels for your specific application.


100-2030 touch panels are used in countless devices and products. They are the foundation for every analog resistive touch product we manufacture, and are available in 4-, 5-, and 8-wire configurations. Gunze touch panels are of the highest quality, with Gunze's reputation for quality, and years of touch panel manufacturing experience, built into every one. Our Film/Glass touch panels are a cost-effective way to integrate Gunze quality into your product.

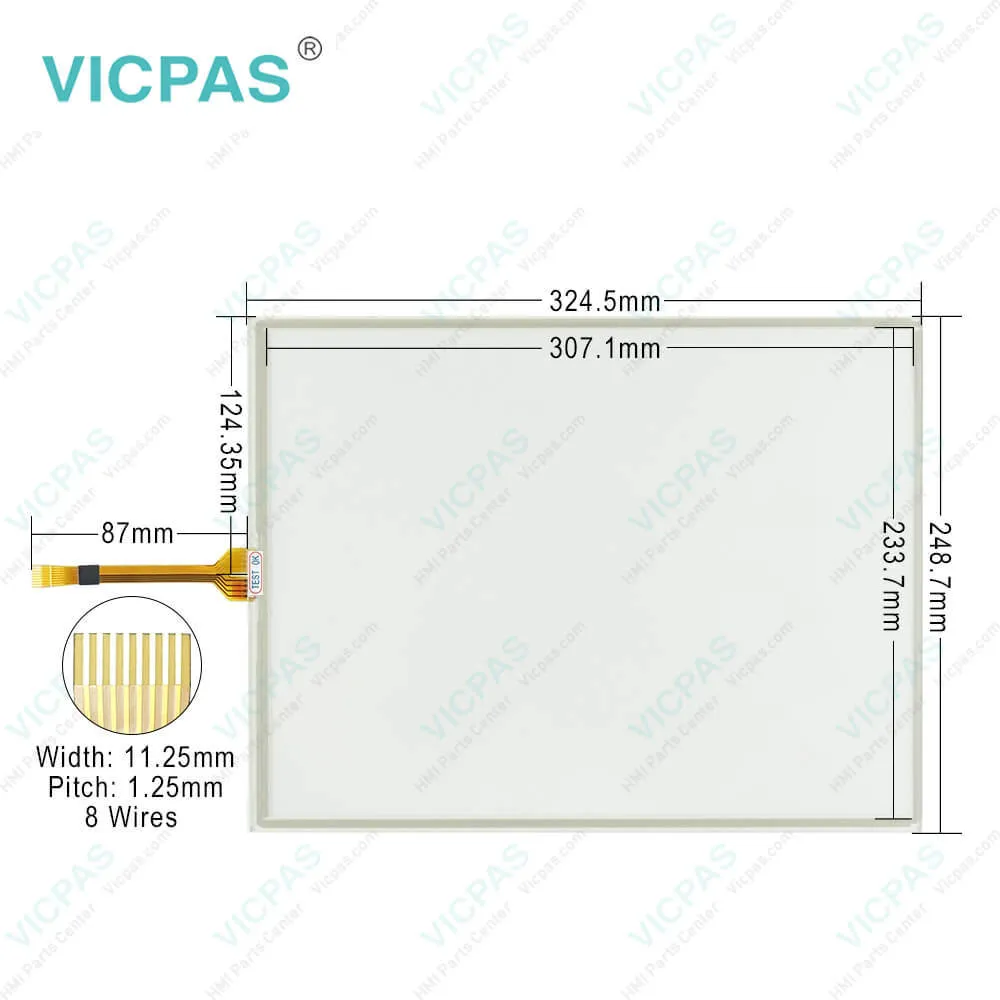

Specifications:

Product Line:Analog Resistive 8-Wire
Top Layer:Polyester film
Connection Tail:FFC or FPC (Optional)
Activation Force:≦80g(Stylus=R8)
Warranty:1-Year Warranty
Touch Size:15 inch
Life Time:10~35 million touches
Operation Temperature:-30℃~+70℃
Storage Temperature:-40℃~+80℃
Transmittance:≥ 80 ± 5%, light transmission


Related BB Teach Pendant Part No. :

GUNZE USA 100-2030Description Inventory status
100-1680Gunze 8-Wire resistive Touch Screen Glass ReplacementIn Stock
100-1700GUNZE 8-Wire resistive Touchscreen Panel ReplacementAvailable Now
100-1703Gunze Analog Resistive 8-Wire HMI Panel Glass Repair PartAvailable Now
100-1710Gunze Analog Resistive 8-Wire HMI Touchscreen Repair PartIn Stock
100-1720GUNZE 8-Wire resistive HMI Touch Screen Glass RepairAvailable Now
100-2020GUNZE 8-Wire resistive Touch Screen Panel ReplacementIn Stock
100-2021Gunze Analog Resistive 8-Wire Touch Membrane ReplacementIn Stock
100-2030GUNZE Analog Resistive 8-Wire HMI Touch Glass ReplacementIn Stock
100-2031Gunze 8-Wire resistive HMI Panel Glass ReplacementAvailable Now
100-2250Gunze Analog Resistive 8-Wire Touch Digitizer Glass RepairAvailable Now

Gunze 100-2030 Touch Screen Monitor Replacement PDF Download:

  • 100-2020_(G057-01__5.7D_8w_-FG) Drawing
  • 100-2021-Rev.-0-5.7D_8wire Drawing
  • 100-2030 (G150-01 15 0D 8w -FG) Drawing
  • 100-2031-Gunze-USA-15.0D_8wire-FG Drawing
  • 100-2250_Rev._B_(G104-02-1D_10.4D_8w_-FG) Drawing
  • 100-2320-Rev.-A-14.2D_8wire Drawing
  • 100-2320_(G33-01_14.22D_8w_-FG) Drawing
  • 100-2760_(G104-03_10.4D_8w_-_FG)_G104-03F2D-V2-02 Drawing
  • 100-2761_Rev_0 Drawing
  • Tough Touch Data Sheet
  • Low Reflective Data Sheet
  • High Transmissive Data Sheet
  • Film Glass Data Sheet

  • FAQ:

    Question: Does a change in flex location require new tooling?

    Answer: Yes, a change in flex location will require new tooling, but it should be minimal.

    Question: Can the addition of a decorative overlay cause activation force to increase?

    Answer: Yes, there will be a slight increase.
