2711-K3A5L1 PanelView 300 Membrane Keyboard Keypad

Order each part separately is available

The2711-K3A5L1is an electronic operator interface that provides functionality through color, grayscale or monochrome displays and through pixel graphics. The PanelView Standard 300 is available in several varieties of sizes and configurations to meet specific application requirements.
All these variations improve operator productivity and simplify the programming process. The2711-K3A5L1 Panelview Standard 300has an Operator keypad input with eight function keys and anLCD monochrome colordisplay, with anLED backlight. It has adisplay dimensionof 73 x 42 millimeters (2.87 x 1.67 inches), and a display resolution of 128 x 64, and the LED backlight has a standby life of 100,000 hours.

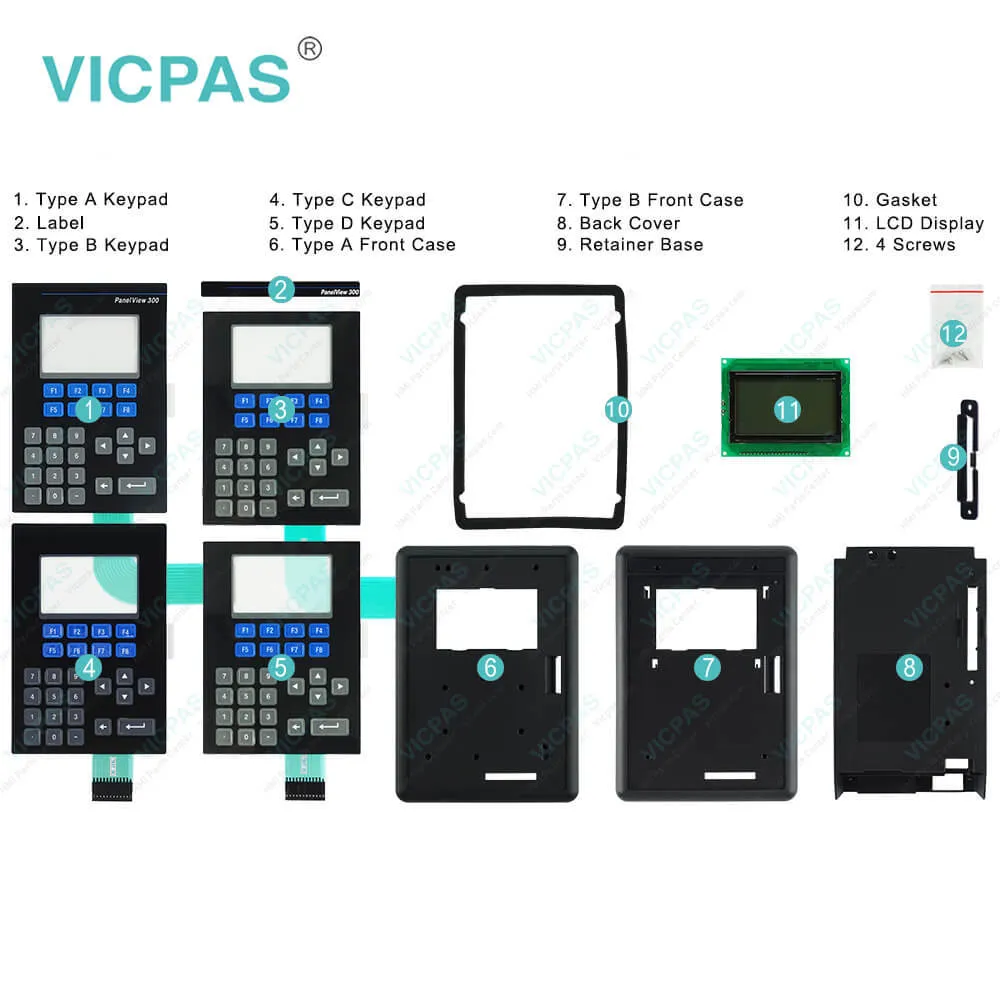

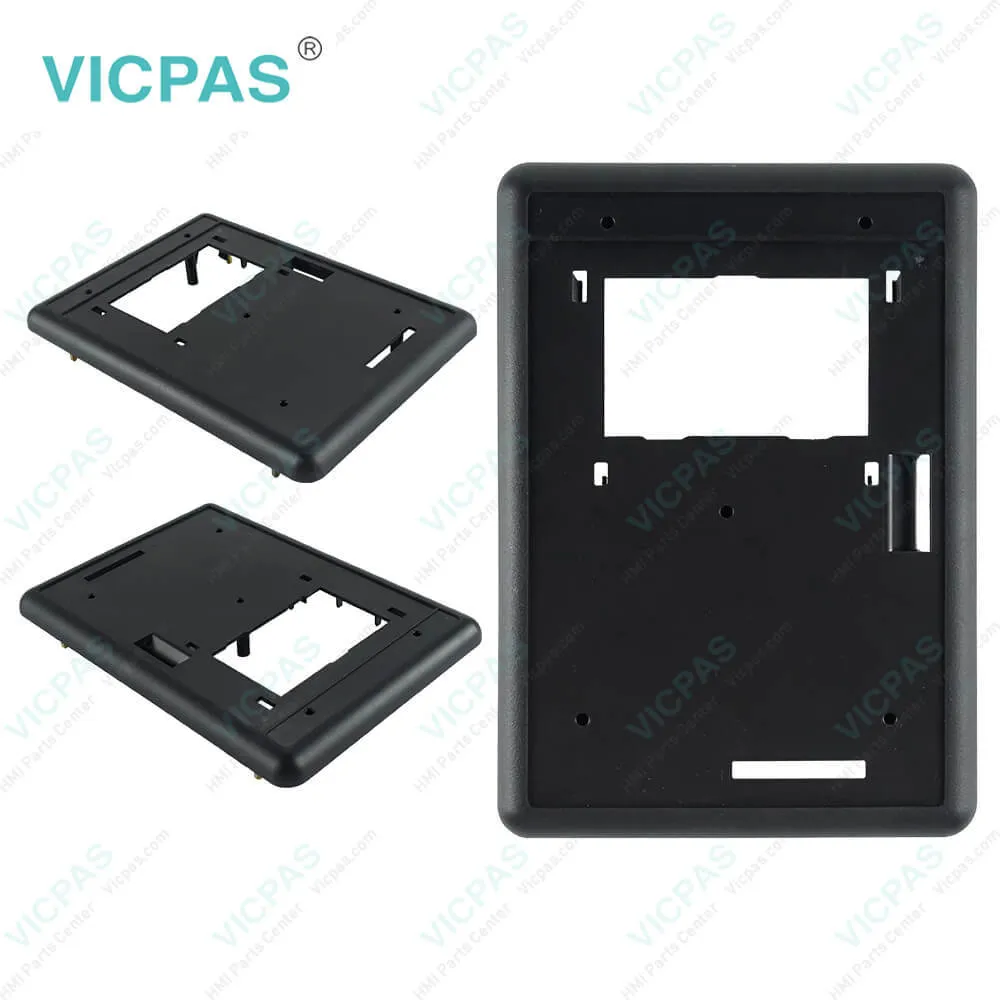

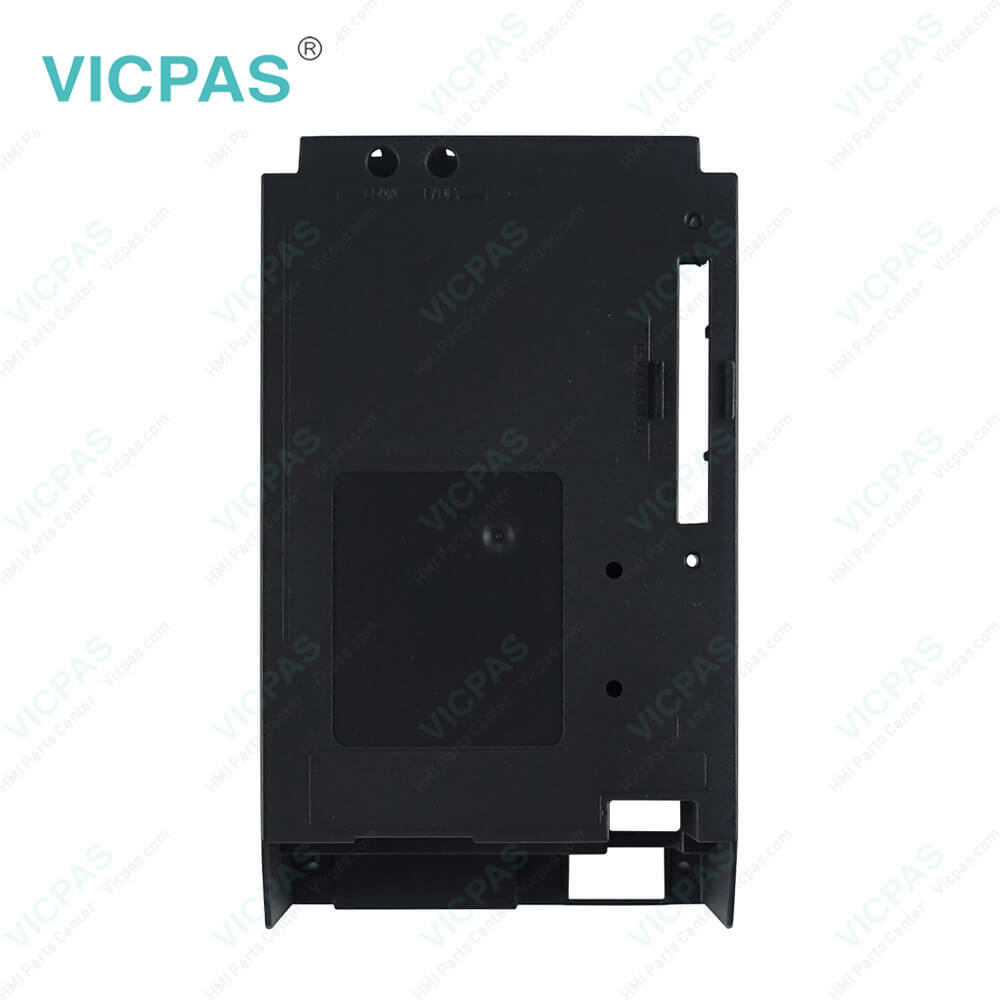

Kernfix supply AB 2711-K3A5L1 HMI parts, membrane keypad switch, Plastic Case, LCD Display, Gasket, Label, Memory Card Retainer Base, Screws. All of them with Kernfix 180 days warranty and support Urgent Worldwide Shipping.

The2711-K3A5L1comes with an irreplaceable battery and aruntime application memoryof 170 KB. It runs on aPanelBuilder32 software. It has a DH-485 (RS-232)communication portand supports anATA Memory card. Theinput voltageof the2711-K3A5L1is between 18 to 32 Volts DC (24 Volts DC nominal), with a maximumpower consumptionof 10 Watts (0.42 amps at 24 Volts DC). With aweightof 673 grams (1.48 pounds,) the2711-K3A5L1has adimensionof 197 x 140 x 82 millimeters (7.76 x 5.53 x 3.21 inches) (length, breadth, and height). The2711-K3A5L1soperating temperatureis between 0 and 55 degrees Celsius(32 and 131 degrees Fahrenheit), and itsstorage temperatureis between -20 and 85 degrees Celsius(-4 and 185 degrees Fahrenheit), and aworking relative humidityrange from 5 to 95% noncondensing at 0-55 degrees Celsius(32-131 degrees Fahrenheit) working temperature. It has aShock ratingof 30g andoperational vibrationof 2g.
