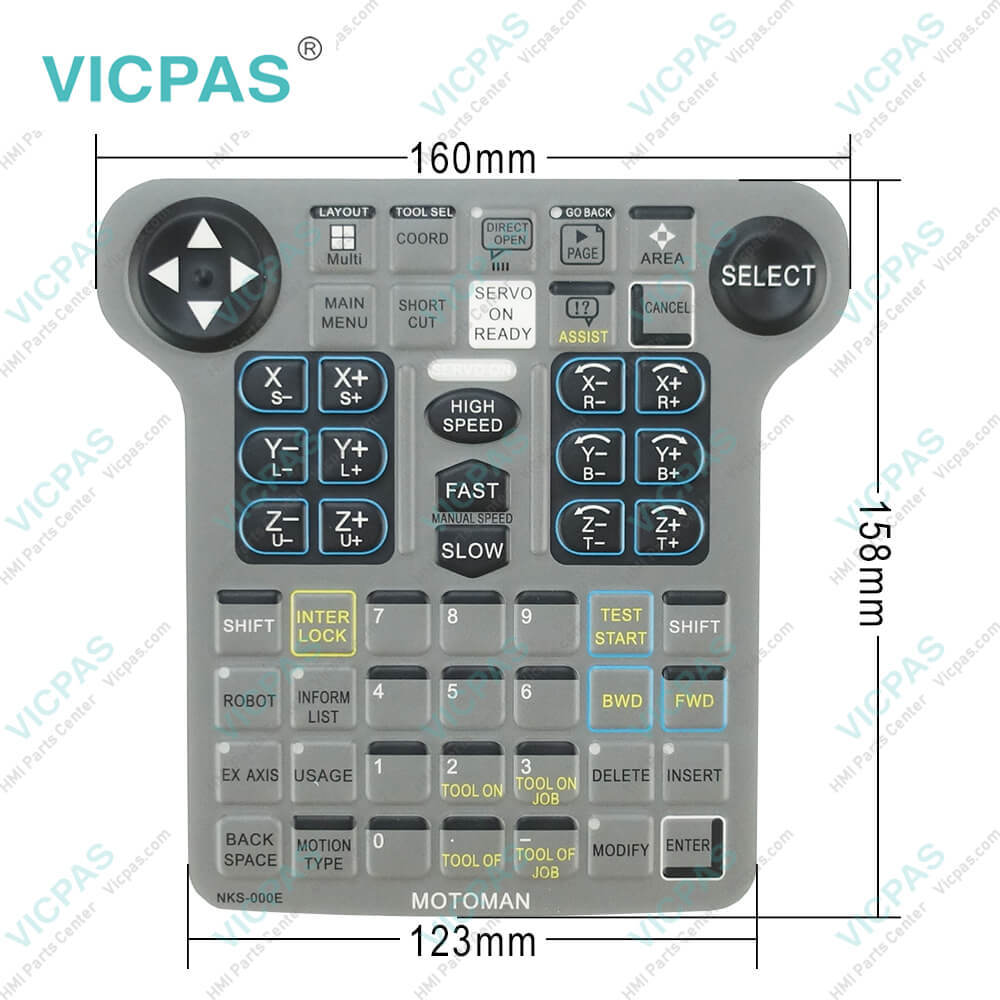

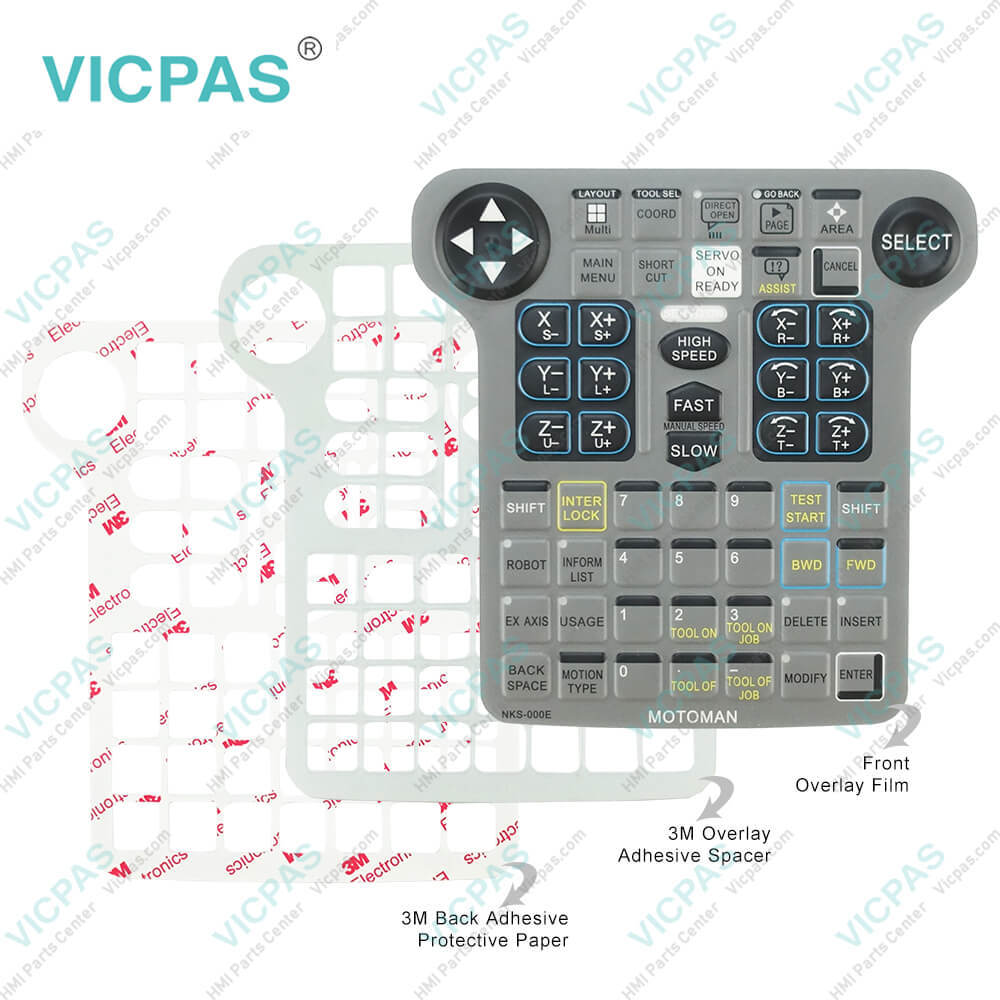

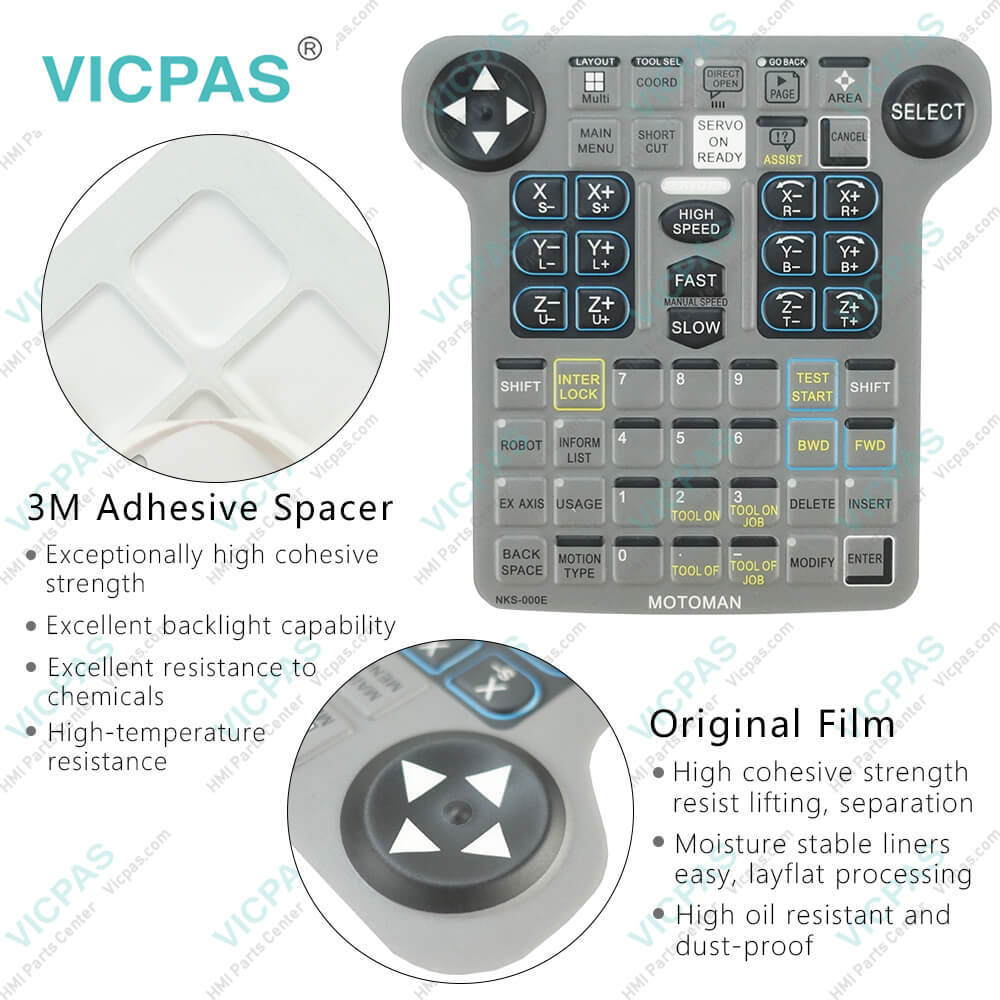

YASKAWA NX100 Teach Pendant NKS-000E Keypad Membrane

The Motoman YASKAWA NX100 teach pendant parts, touch screen panel, NKS-000E membrane keypad, protective case, E-Stop Button Label, Hanger, Case Accessories, Enable Switch Cover, Main Board, Key Board, Enabling Controller Switch, Screws, Mode Select Switch, Start Button, Hold Button, Emergency Stop Switch, Cable, Hand Strap, Silicone Gasket, Screen Gasket, Key Buttons and LCD display screen are used to repair YASKAWA Programming Pendant controller panels.

Descriptions of the Programming Pendant NKS-000E keys, buttons, and displays are shown below as follows:
It is important to note that the YASKAWA can be damaged of it is left in the P-point maximum envelope of the manipulator, on the floor, or near fixtures. Always return the programming pendant to the hook on the DX100 cabinet after use.

The YASKAWA programming pendant can also show a number of alarms. When these occur, the manipulator stops immediately and the ALARM window appears on the pendant. Minor and major alarms classify alarms. Minor alarms can be released by selecting RESET in the alarm window. Major alarms automatically turn on the servo power off on the DX100. Turn off the main power supply, remove the cause of the alarm, and then turn on the power supply again to restart the operation.
