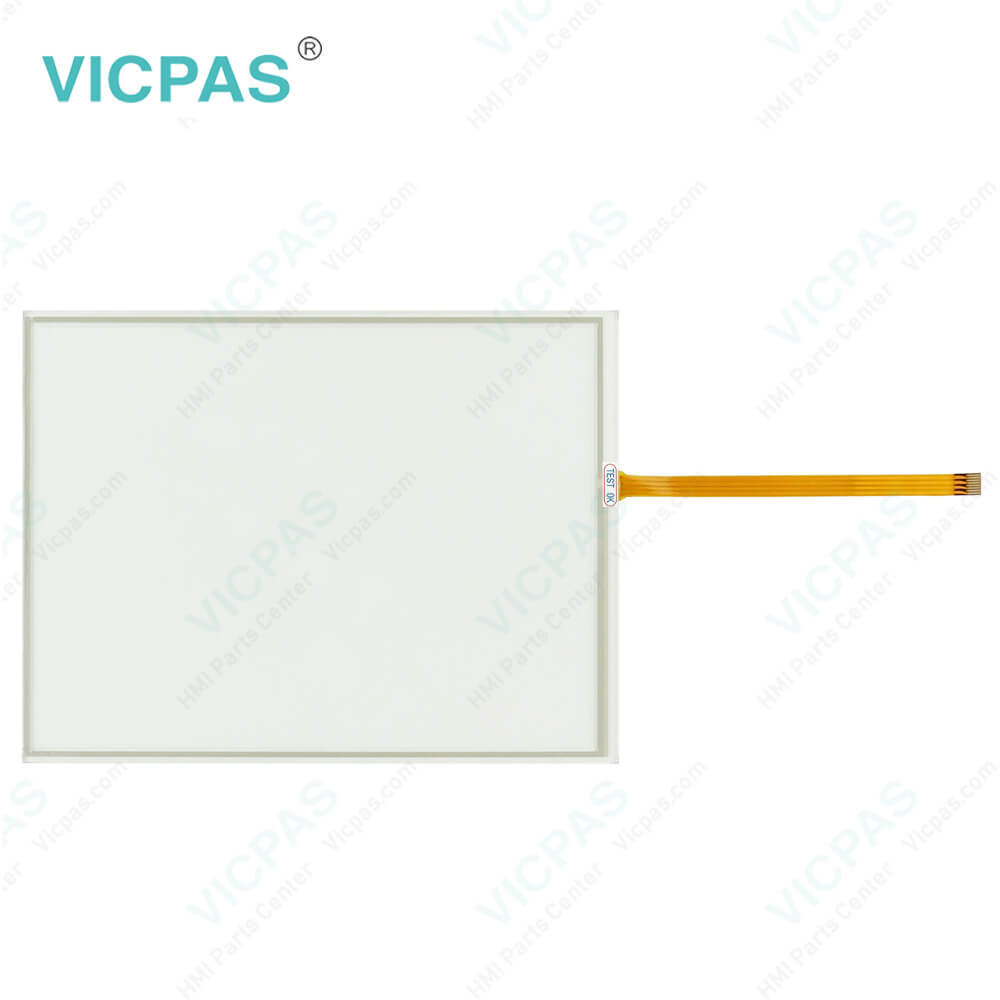

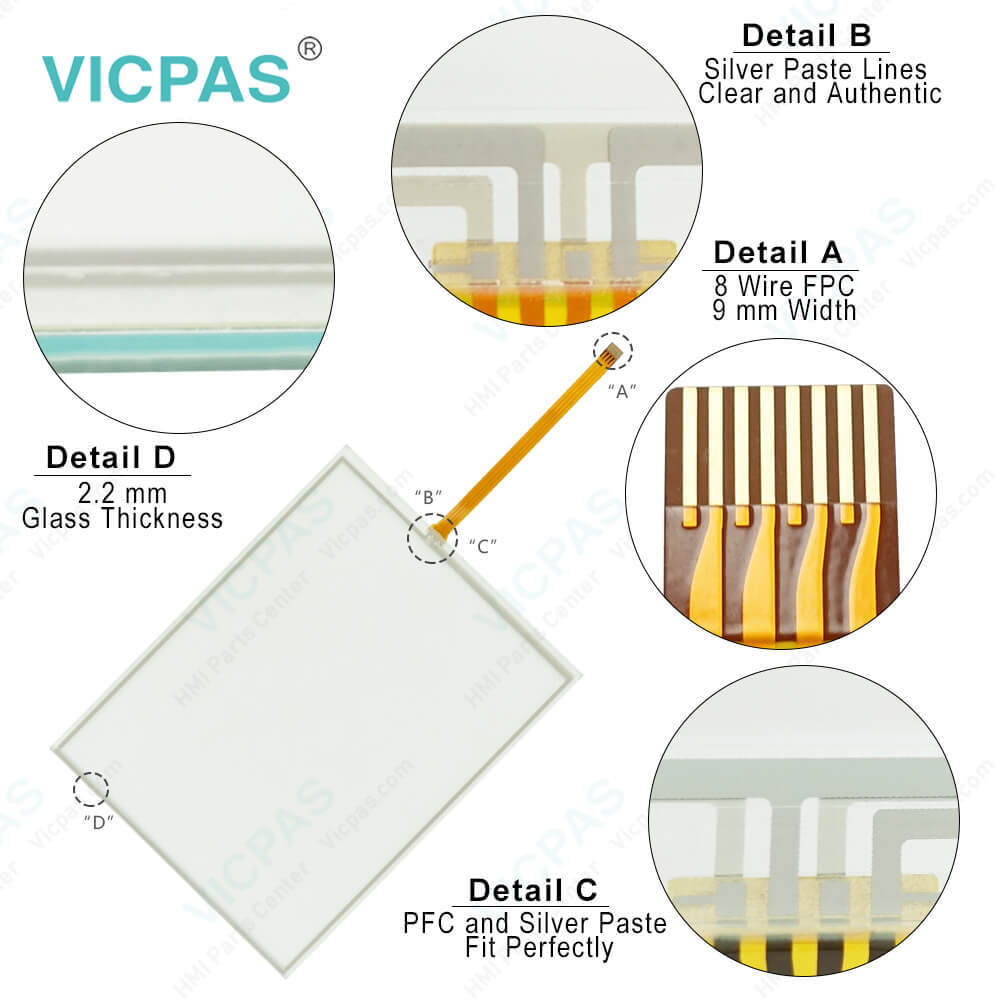

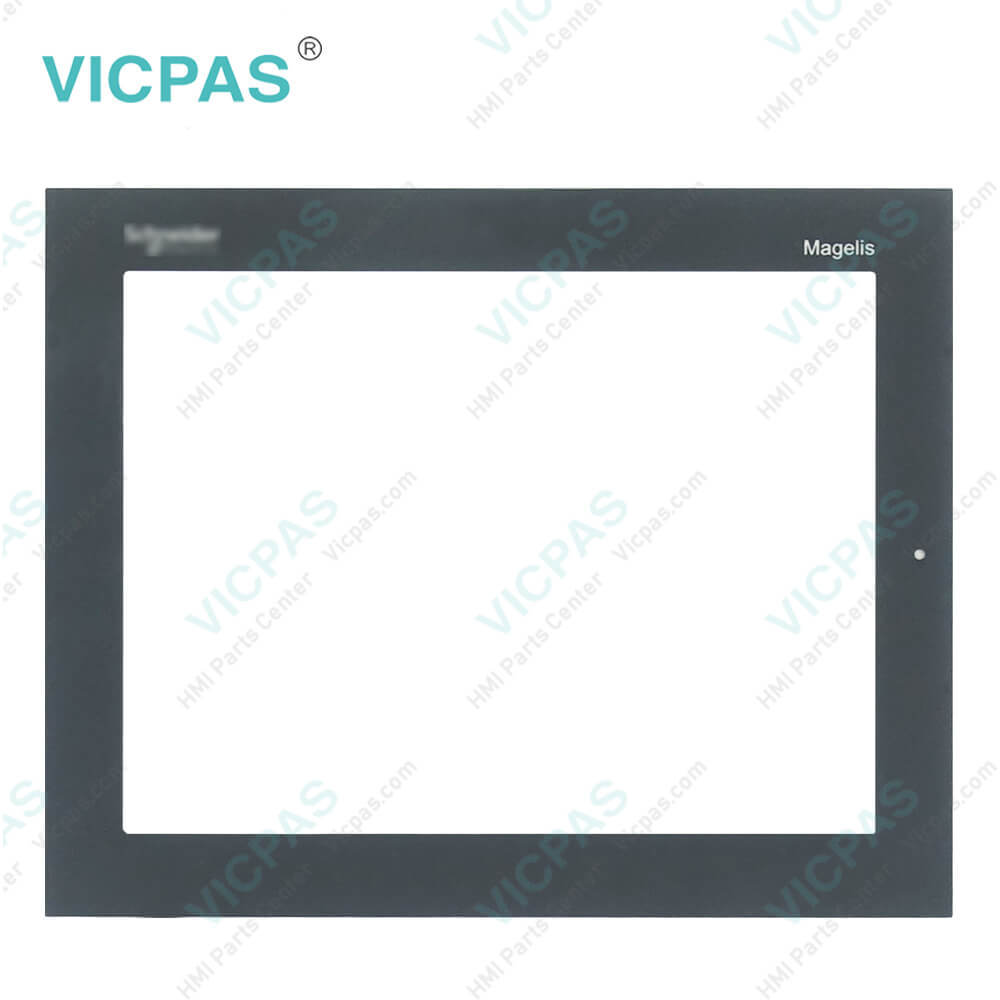

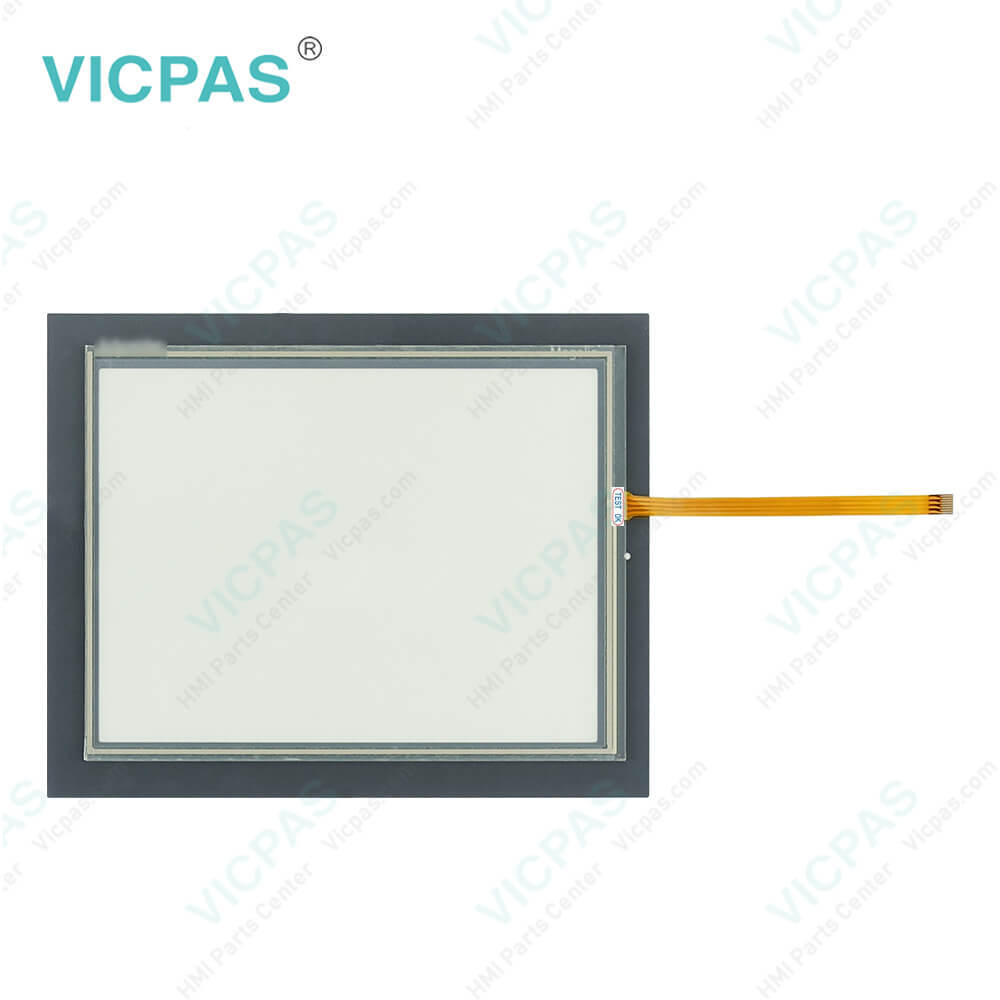

XBTOT5220 XBTOT5320 Touch Screen Panel Protective Film
| Model | Schneider XBTOT5220 XBTOT5320 |
|---|---|
| Warranty | 1 Year VICPAS Warranty |
| Shipping | DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX |
| FOB port | Guangzhou, Shenzhen, Hongkong |
| Terms of Payment | Western Union, MoneyGram, T/T, Paypal, PayPal, Credit Card |
| Download | |
| Update Time | 2026-02-04 03:07:44 |
Shipping
Free Shipping
Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.
Magelis XBTOT5220 XBTOT5320 Touch Screen Panel Protective Film repair replacement
Order each part separately is available
The Magelis XBTOT5220 and XBTOT5320 are basis HMI panel of Schneider XBT OT series, which allows users to graphically view the machine status and to monitor and manage machine functions. Users can input and set the machines parameters through the 45K color trans-missive, thin-film transistor color active matrix, 10.4-inch LCD screen with a display dimension of 10.65in x 8.37in and a resolution of W640 X H480 pixels.
The Schneider XBTOT5220 and XBTOT5320 lithium batterys lifetime is 10 years when the batterys ambient temperature is 40C [104F] or less. 4.1 years when the batterys ambient temperature is 50C[122F] or less. 1.5 years when the batterys ambient temperature is 60C[140F] or less.
The XBTOT5220 interface Specifications connecting an external device to the OT using the SG terminal, be sure to check that no short-circuit loop is created when you setup the system. The same type of connector is used for the different signal types on COM1 and COM2 of the OT. Be careful not to mistake one for the other. Connecting them incorrectly disables communication.
Specifications:
| Part Number: | XBTOT5220 XBTOT5320 |
| Product Line: | Magelis XBTOT Series |
| Touchscreen Size: | 10.4 in. |
| Warranty: | 1-Year Warranty |
| Touch Technology: | Resistive Film (analog) |
| Resolution: | DC 5V 1mA |
| Operating Temp.: | 1024 X 1024 |
| Storage Temp.: | -20℃～+70℃ |
| lineation test: | ≥1.000.000 times |
| Input Type: | ≥100.000 times |
Related BB Teach Pendant Part No. :
| Schneider XBTOT5220 XBTOT5320 | Description | Inventory status |
| XBTOT2110 | basis touch panel -5.7-inch | In Stock |
| XBTOT2210 | basis touch panel -5.7-inch | In Stock |
| XBTOT4310 | basis touchscreen -7.5-inch | Available Now |
| XBTOT4320 | basis touch screen -7.5-inch | Available Now |
| XBTOT5220 | basis touchscreen -10.4-inch | In Stock |
| XBTOT5320 | basis touchscreen -10.4-inch | Available Now |
XBTOT5220 XBTOT5320 Touch Screen Panel Protective Film PDF Download:
