XBTGT1105 XBTGT1135 Schneider Electric HMI Part Replacement

XBTGT1105 XBTGT1135 Schneider Electric HMI Part Replacement
XBTGT1105 XBTGT1135 Schneider Electric HMI Part ReplacementXBTGT1105 XBTGT1135 Schneider Electric HMI Part ReplacementXBTGT1105 XBTGT1135 Schneider Electric HMI Part ReplacementXBTGT1105 XBTGT1135 Schneider Electric HMI Part ReplacementXBTGT1105 XBTGT1135 Schneider Electric HMI Part Replacement
ModelSchneider XBTGT1105 XBTGT1135 XBTGT 1105 XBTGT1135
Warranty1 Year VICPAS Warranty
ShippingDHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Download
Update Time2026-02-04 03:08:15
Leading Time{{selectedConditionObj.leading}}
{{item.value}}
{{nameObj.name}}{{nameObj.selectedValue}}
{{valueObj.name}}

Shipping

Free Shipping

Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.

Detail Information

XBTGT1105 XBTGT1135 Schneider Electric HMI Part Replacement

Order each part separately is available

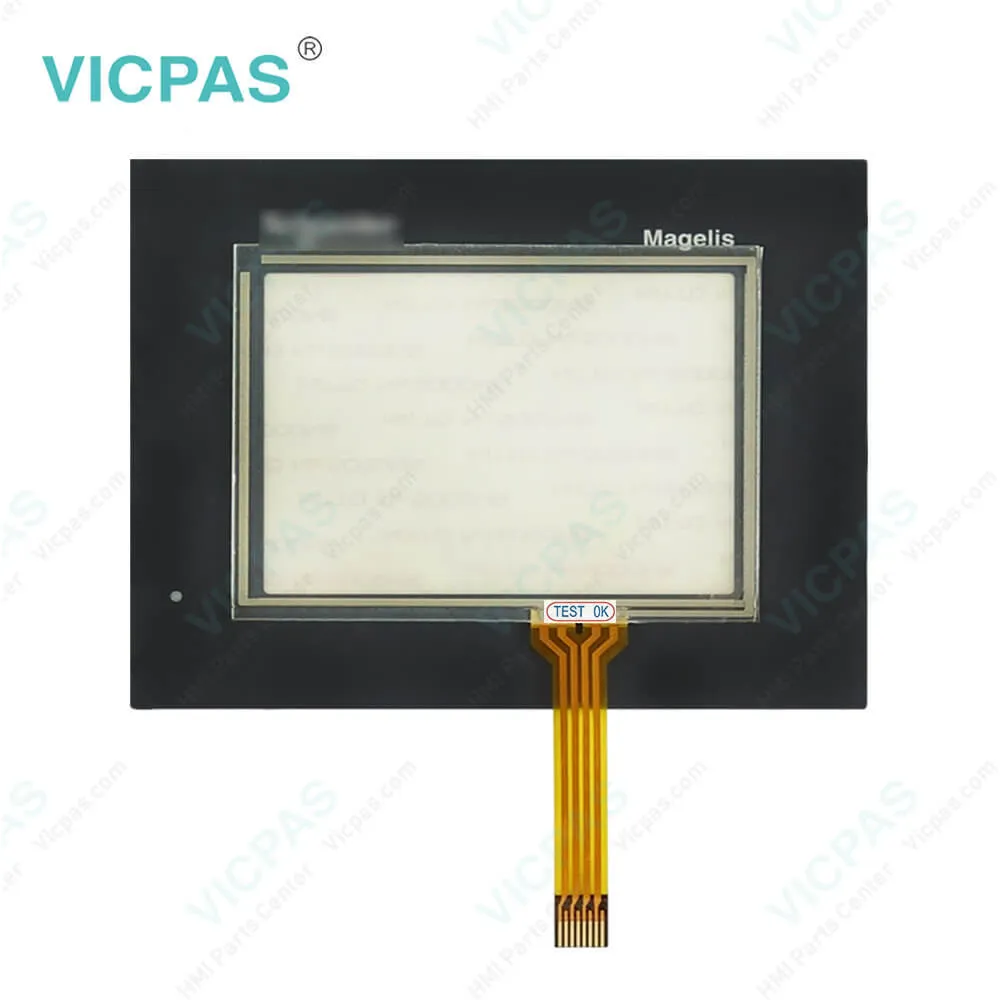

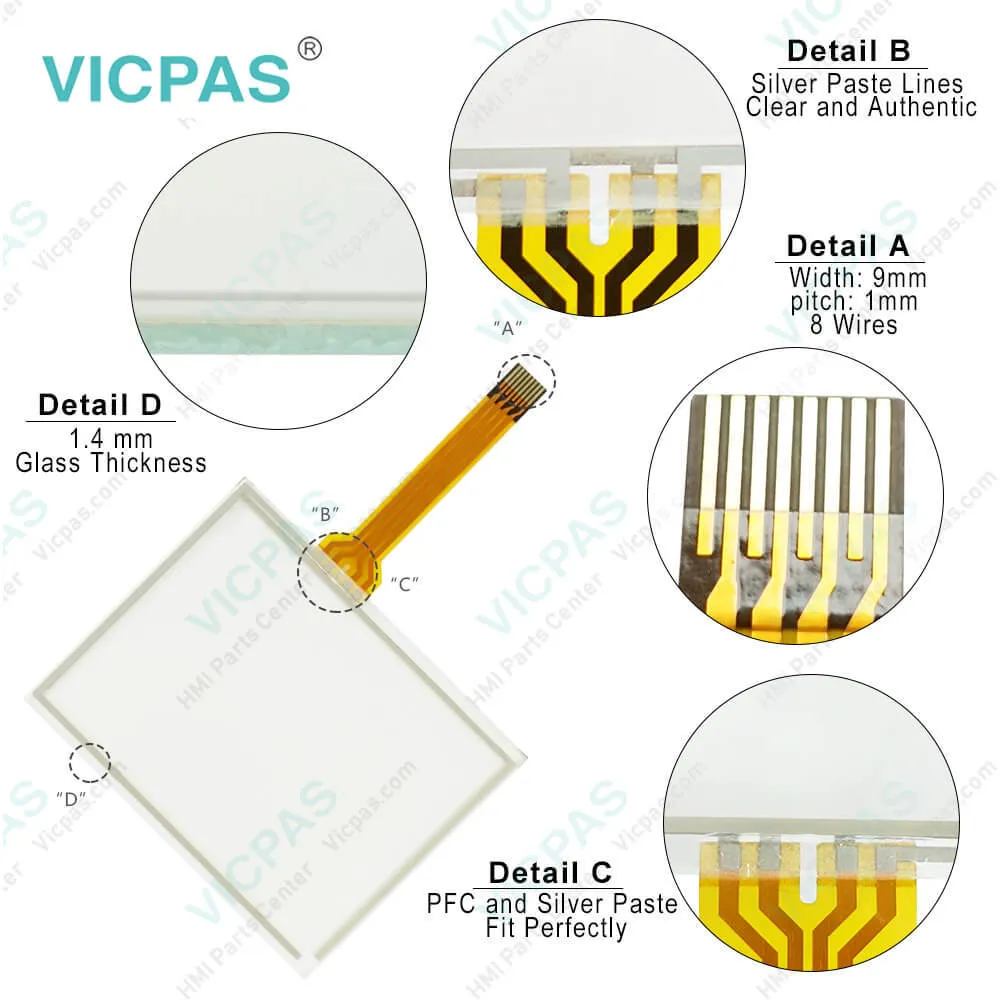

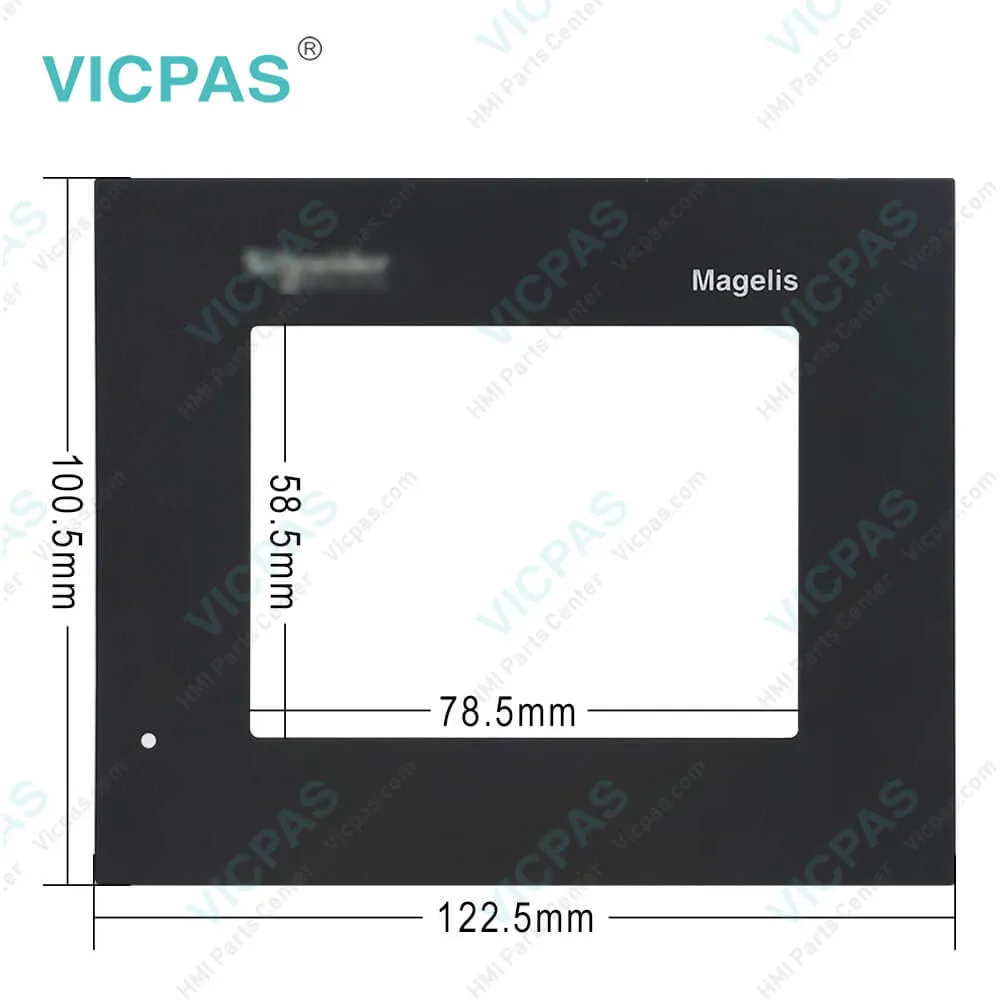

XBTGT1105 XBTGT1135 Schneider Electric Touch Screen Panel protective film front overlay

The XBTGT1105 XBTGT1135 HMI Part is a Schneider Magelis XBT GT 3.8-inch HMI that make use of an Analogue resistive touch panel. Its dimensions are 87 mm long and 68.6 mm wide and the length of the cable is 58mm. Users can input and set the machines parameters through the 65536 colours trans-missive, thin-film transistor colour active matrix, 3.8-inch LCD display screen with a display dimension of 6.6in x 5.32in and a touch sensitive zone of 320 x 240 pixels QVGA LCD Display.


This Schneider Magelis XBT GT is powered using 24 VDC power. The most common series is Series A. The Magelis HMI XBTGT product line contains a group of panel-mount display units that have both keypad or touch-screen offering for the user input method. These HMI terminals are available in 3.8-inch, 5.7-inch, 7-inch, and 10-inch display sizes. The XBTGT1105 XBTGT1135 user manual product date sheet and you can send an email for best price.


The HMI Magelis XBTGT1105 XBTGT1135 has an analogue resistive surface touch and a LED backlight with a standby time of up to 50,000 hours. It has a battery-backed real-time clock with a battery lifespan of 6 years when used at a temperature below 80 F. It also has a factory-built internal cache memory of 256 MB for storing the user settings and application parameters.




  Contact Best Price

Specifications:

Part Number:XBTGT1105 XBTGT1135
Product Line:Magelis XBTGT Series
Touchscreen Size:3.8 in.
Warranty:1-Year Warranty
Touch Technology:Resistive
Rated Voltage:DC 5V 1mA
Operating Temp.:-10℃～+80℃
Storage Temp.:-20℃～+70℃
lineation test:≥1.000.000 times
Input Type:≥100.000 times


Related BB Teach Pendant Part No. :

Schneider XBTGT1105 XBTGT1135 XBTGT 1105 XBTGT1135Description Inventory status
XBTGT1100advanced touchscreen panel- 3.8" TFT LCD - 24 V DCIn Stock
XBTGT1130advanced touch panel glass- 3.8" TFT displayIn Stock
XBTGT1335advanced touch glass- 3.8" TFT displayIn Stock
XBTGT2110Touch Screen Replacement-5.7''In Stock
XBTGT2120Touch Membrane Screen-5.7''In Stock
XBTGT2130Touch Panel Glass -5.7-inch HMI PartsIn Stock
XBTGT2220Touch Screen Panel-5.7'' HMI PartIn Stock
XBTGT2330advanced touchscreen panel- 5.7" TFT LCD - 24 V DCIn Stock
XBTGT2930advanced touchscreen panel- 5.7" TFT LCD - 24 V DCIn Stock
XBTGT2430touchscreen panel- 5.7" TFT LCD displayIn Stock
XBTGT4230advanced touchscreen panel - 320 x240 QVGA - 7.5"In Stock
XBTGT4330Touch Screen Panel-7.5'' displayIn Stock
XBTGT4340Touch Screen Glass-7.5'' LCD DisplayIn Stock
XBTGT5230Touchscreen Panel Glass-10.4'' Lcd DisplayIn Stock
XBTGT5330Touch Panel Repair-10.4'' for ReplacementIn Stock
XBTGT5340Touch Glass Membrane -10.4'' for RepairIn Stock
XBTGT5430Touch Screen Panel -10.4'' DisplayIn Stock
XBTGT6330advanced touchscreen panel - 800 x 600 pixels - 12.1"In Stock
XBTGT6340touchscreen panel glass - 12.1" LCD DisplayIn Stock
XBTGT7340Touch Screen Panel Glass-15'' HMI PartsIn Stock

XBTGT1105 XBTGT1135 Schneider Electric HMI Part Replacement PDF Download:

  • Magelis XBT GT/GTW/GK
  • Magelis XBT GT/GTW/GK
  • Magelis XBT GT/GTW/GK
  • Magelis XBT GT/GTW/GK
  • XBTGT1105 User Manual Product datasheet
  • XBTGT1135 User Manual Product datasheet

    • FAQ:

    Question: Is the internal backlight replaceable?

    Answer: No, the internal backlight of XBTGT1105 XBTGT1135 is not replaceable.

    Question: Is the battery replaceable?

    Answer: No, the battery of XBTGT1105 XBTGT1135 is not replaceable.

    Question: What is the price of XBTGT1105 XBTGT1135 HMI Parts?

    Answer: Submit a quote request, send us an email for our best price.
