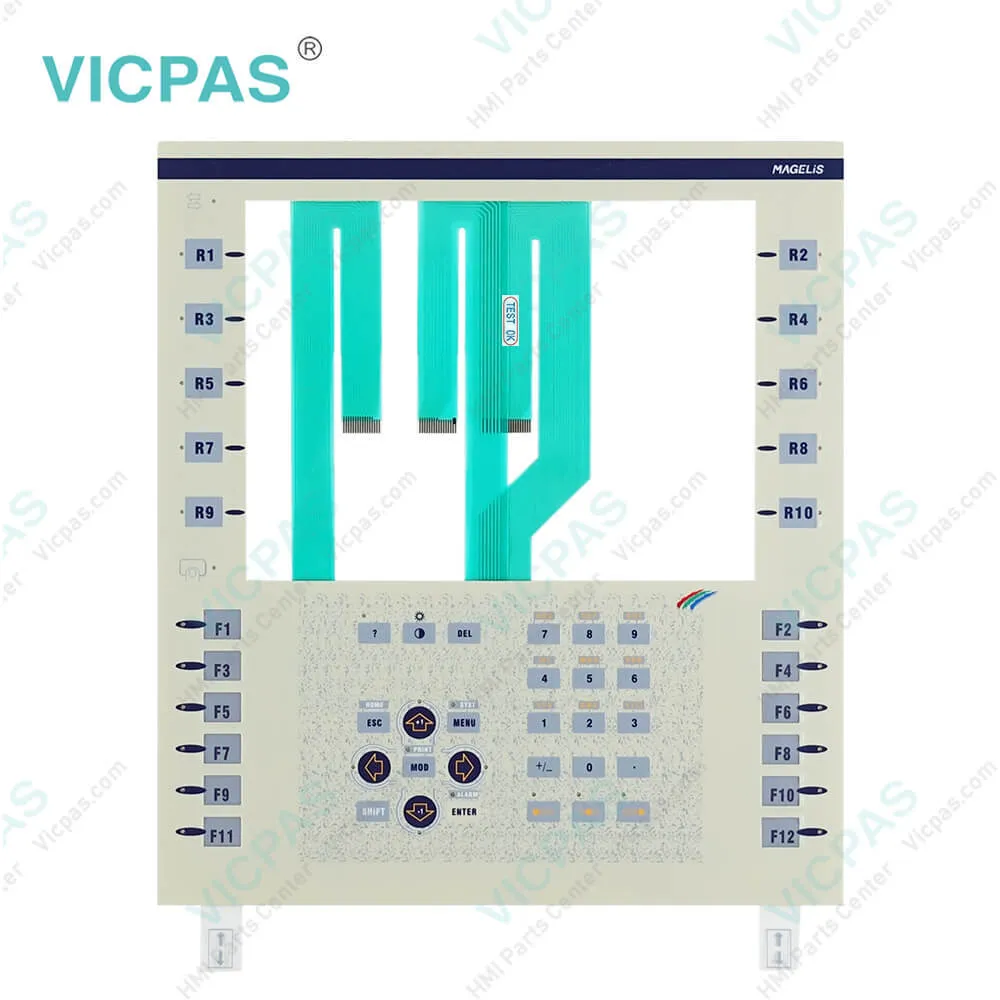

Membrane keyboard for XBTF023110 membrane keypad switch
| Brand | SCHNEIDER |
|---|---|
| Model | XBTF023110 |
| Warranty | 365 Days |
| Product Line | Schneider XBT F Series |
| Supply | XBTF023110 Magelis Membrane keypad keyboard |
| Terms of Payment | Western Union, T/T, PayPal, T/T ,Credit Card, Western Union |
| Download | |
| Update Time | 2026-02-04 03:09:05 |
Shipping
Free Shipping
Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.
Schneider Magelis HMI XBTF023110 HMI Membrane Keyboard Keypad Repair Part
Magelis Schneider XBTF023110 Keypad Membrane Terminal Features:
Terminals with LCD screen.
STN Monochrome
640x480 pixels.
12 static function keys.
10 dynamic function keys.
System and alphanumeric keys.
Downloadable protocols.
Printer output
The brightness and contrast of the screen can be adjusted. For Schneider Magelis XBTF023110 Membrane Keypad Keyboard terminals with keyboard, the adjustments are identical to those performed using the keyboard keys. On XBTF023110 Magelis HMI touchscreen terminals, brightness and contrast can be adjusted using the touch zones (depending on screen technology). A clearing page is provided on touchscreen terminals for de-activating the touchscreen pad in order to clear the screen surface. Simultaneously press the two opposite touch zones to re-activate the pad and exit the clearing page.
Specifications:
| Part Number: | XBTF023110 |
| Display device: | STN monochrome LCD |
| Display diagonal: | 9.5 in |
| Warranty: | 365 Days |
| Product Line: | Schneider XBT F Series |
| Rated Voltage: | DC 5V 1mA |
| Operating Temp.: | -10℃～+80℃ |
| Storage Temp.: | -20℃～+70℃ |

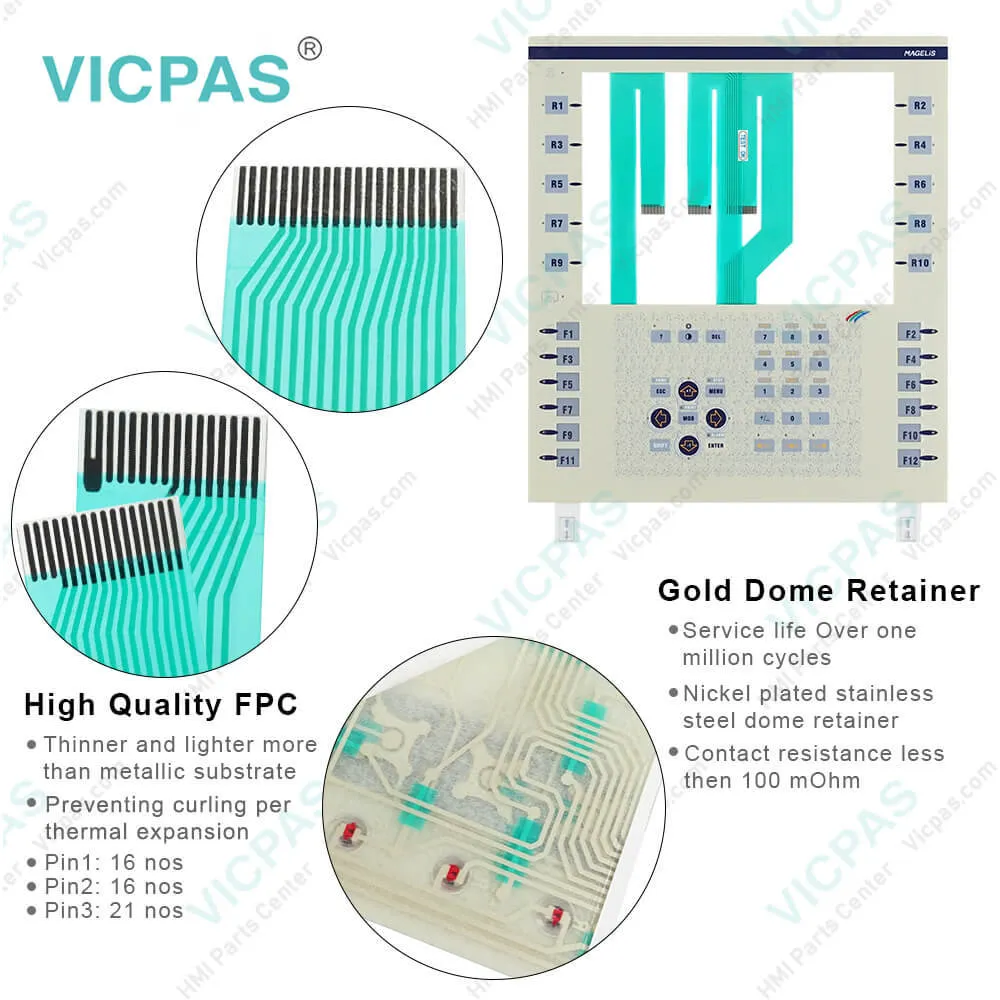

| Conductive Trace: | Silver or Copper |
| Life Cycle: | 5 Million Cycles(up to) |
Related BB Teach Pendant Part No. :
| XBTF023110 | Description | Inventory status |
| XBTF011110 | Operator Terminals with 5.7-inch Operator Keypad | In Stock |
| XBTF011310 | 5.7-inch Terminals with Membrane Keypad Switch | In Stock |
| XBTF011310TA | Operator Terminals 5.7'' Terminal Keypad | Available Now |
| XBTF023110 | 9.5-inch Terminals with Keypad Switch | In Stock |
| XBTF023310 | Operator Terminals with 9.5'' Terminal Keypad | Call |
| XBTF024110 | Operator Terminals with Membrane keypad Keyboard | In Stock |
| XBTF024310 | Terminals keyboard with 10.4'' Graphic touchscreen | In Stock |
| XBTF024510 | Operator Terminals Switch with 10.4 in. Graphic Panel | In Stock |
| XBTF024510PR | Operator Terminals Switch with 10.4 in. Graphic Panel | In Stock |
| XBTF024610 | Terminals Keypad with 10.4 in. Graphic Panel | Available Now |
| XBTF032110 | 5.7'' Graphic Panel Touchscreen Protective Film | In Stock |
| XBTF032110TA | 5.7'' Graphic Panel Front Overlay MMI Touch Glass | In Stock |
| XBTF032310 | Operator Terminals 5.7'' Graphic Touch Panel | Available Now |
| XBTF032310TA | Protective Film 5.7'' Graphic Panel Glass | Available Now |
| XBTF034310 | Operator Terminals 10.4 Graphic Touch Screen | In Stock |
| XBTF034110 | Terminals 10.4 Graphic Touchscreen Overlay | In Stock |
| XBTF034510 | 12.3'' Front Overlay Touchscreen Panel | In Stock |
| XBTF034610 | Protective Film 12.3'' Graphic Touch Screen | Call |
| XBTF10CK | Membrane Keypad for Operator Panel | In Stock |
Membrane keyboard for XBTF023110 membrane keypad switch PDF Download:
FAQ:
Question: What is the size of XBTF023110 Keyboard Membrane?
Answer: The Schneider Terminal XBTF023110 Keyboard Membrane is 9.5-inch.
Question: What is the keys type for the Schneider XBTF023110 HMI Terminal?
Answer: The Magelis XBT F023110 has multiple static and dynamic keys on keypad units.
Question: Is the keyboard of the unit replaceable?
Answer: Yes, the membrane keypad of XBTF023110 can be replaceable.
