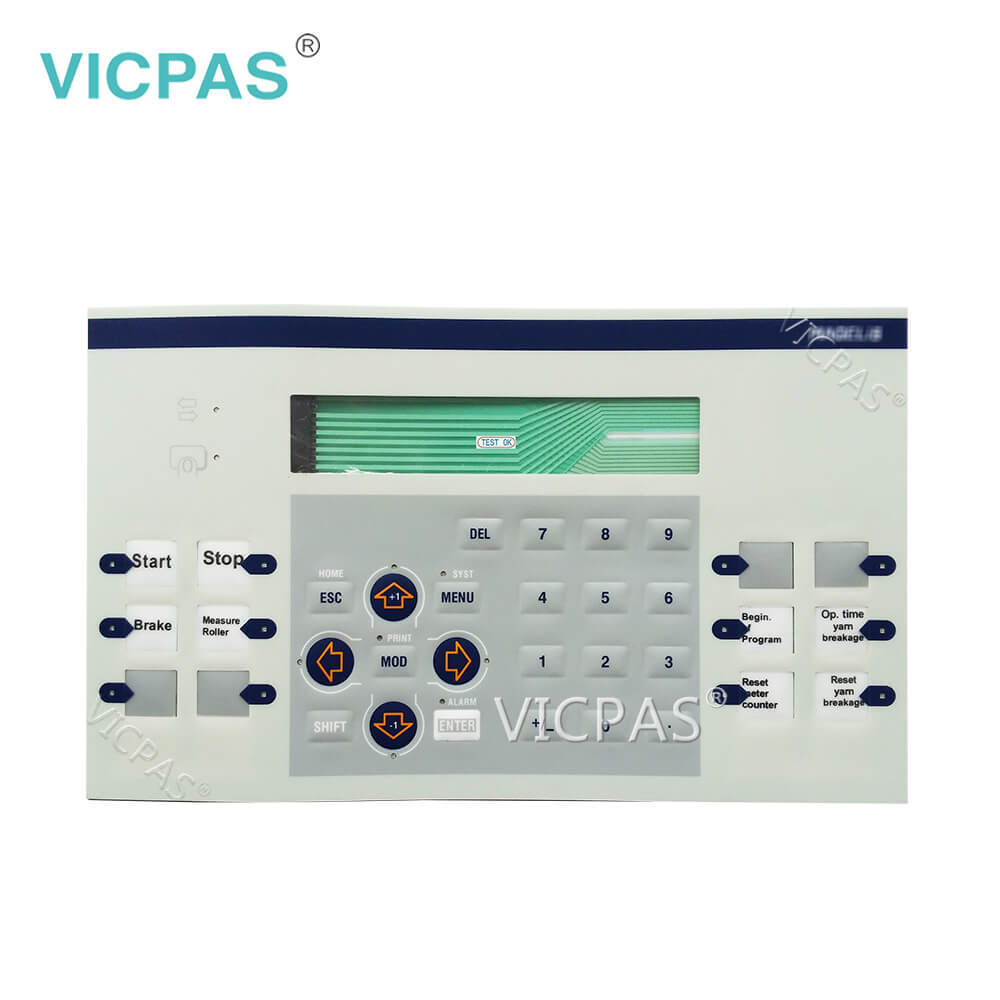

XBTHM007010 XBTHM017110 Operator Terminals Keypad Switch
| Model | Magelis XBTHM007010 XBTHM017110 |
|---|---|
| Warranty | 180 days |
| Touch Screen Panel Type | Resistance touch screen |
| Shipping | 2-4 workdays |
| FOB port | Guangzhou, Shenzhen, Hongkong |
| Terms of Payment | Western Union, MoneyGram, T/T, Paypal, PayPal, Credit Card |
| Download | |
| Update Time | 2026-02-04 03:10:31 |
Shipping
Free Shipping
Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.
Magelis XBTHM007010 XBTHM017110 Operator terminals parts repair replacement
The Schneider XBTHM007010 and XBTHM017110 are magelis operator terminals. MAGELiS XBT-HM message displays are an excellent match for your PLC, providing optimal functionality in a matrix level product. It features an high visibility fluorescent or cost-effective LCD technology, an LCD display with an adjustable LED backlight that handles up to 4 lines of text with 20 characters using an ASCII input type, a keypad input made up of 25 color-coded embossed sealed membrane keys with a stainless-steel dome, and 3 LED indicators.
The XBTHM007010 and XBTHM017110 modules display has a size of 7.953x 4.375 inches and a character size of 7.28 x 3.7 inches. This module also has communications ports present, specifically a remote I/O port and a configurable RS-232/RS-485 port, and there is a 6-position DIP switch placed under the removable cover. It has an input voltage of 18-30V DC and a maximum current of 500 mA. Its operating temperature ranges from 0oC-45oC, while its non-operating temperature is from -20-65 oC.
Specifications:
The table below describes the parameters of the Magelis XBTHM007010 XBTHM017110 operator Parts.
| Part Number : | XBTHM007010 XBTHM017110 |
| Product Line: | Magelis XBT-HM Series |
| Terminals Size: | 3.8-15 inch |
| Warranty: | 180 Days Warranty |
| Touch Technology: | Resistive |
| Rated Voltage: | DC 5V 1mA |
| Operating Temp.: | -10+80 |
| Storage Temp.: | -20+70 |
| lineation test: | 1.000.000 times |
| Input Type: | 100.000 times |
PDF Download:
Magelis XBT-HM Series Part No.
| Magelis XBT-H/HM Series | Description | Inventory status |
| XBTH001010 | Terminals with Alphanumeric Screen | In Stock |
| XBTH002010 | Terminals with Text Display | In Stock |
| XBTH011010 | Terminals with Alphanumeric Screen | In Stock |
| XBTH012010 | Terminals with Text Display | Call |
| XBTH012110 | Terminals with Alphanumeric Screen | Call |
| XBTH021010 | Terminals with Text Display | In Stock |
| XBTH022010 | Display Units with matrix screen | In Stock |
| XBTH811050 | Display Units with matrix screen | In Stock |
| XBTHM007010 | Display Units with matrix screen | In Stock |
| XBTHM017010 | Display Units with matrix screen | In Stock |
| XBTHM017110 | Display Units with matrix screen | In Stock |
| XBTHM027010 | Display Units with matrix screen | In Stock |
| XBTHM017010A8 | Display Units with matrix screen | In Stock |
| Schneider XBT-H/HM | Description | Inventory status |
FAQ:
Question: How large is the memory of the Schneider XBTHM007010 XBTHM017110operator Terminal?
Answer: The Magelis HMI has 128 Kb Flash EPROM and200 application pages approximately (2 lines per page).
Question: Are there keys on theXBTHM007010 XBTHM017110 terminal?
Answer: Yes, the operator has 4 functionkeys and 1 service.
Question: What is the price of XBTHM007010 XBTHM017110 operator terminal Parts?
Answer: Submit a quote request, send Kernfix an email for best price.
