DOP11B-60 SEW EURODRIVE Overlay HMI Touch Panel Repair
| Brand | SEW EURODRIVE |
|---|---|
| Model | 18220282 |
| Warranty | 365 Days |
| Supply | SEW EURODRIVE Resistive touch screen Film |
| Parts | touchpad and front overlay |
| Shipping | 2-3 workdays |
| FOB port | Guangzhou, Shenzhen, Hongkong |
| Terms of Payment | Western Union, MoneyGram, T/T, Paypal, PayPal, Credit Card |
| Download | |
| Update Time | 2026-02-04 03:21:24 |
Shipping
Free Shipping
Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.

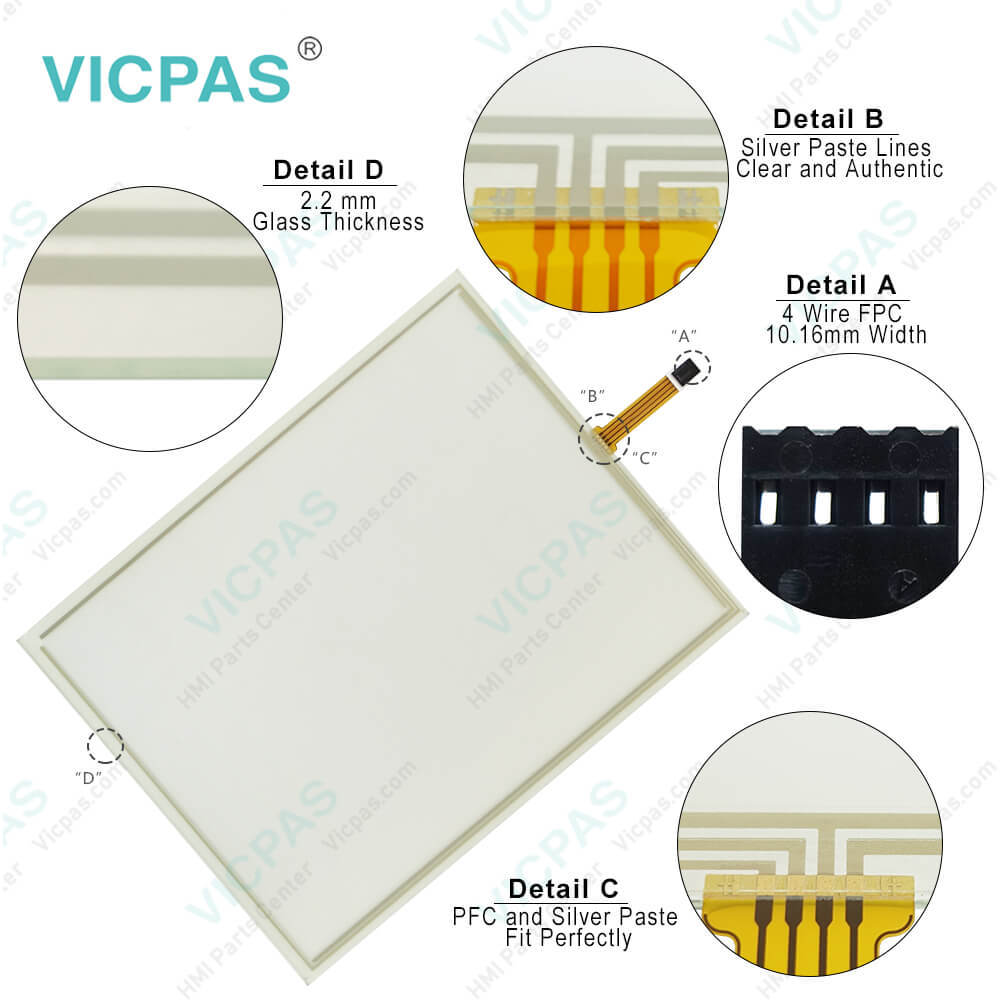

SEW EURODRIVE HMI DOP11B-60 18220282 Touch Panel Glass Front Overlay Repair Kit
Order each part separately is available
The Functions of SEW EURODRIVE DOP11B-60 18220282 Touch Screen monitor Protective Film:
1024 x 768 pixels
Touch display (64k colors, TFT, 15'') with CCFL backlighting
24 V voltage supply, max. 1.7 A
2 serial interfaces (RS-232, RS-422/RS-485)
Horizontal or vertical installation
USB
Ethernet 10/100 Mbit
12 MB application memory
When drive electronics from SEW-EURODRIVE, such as intelligent MOVIDRIVE inverters with motion control functionality integrated as option, MOVI-PLC compact controllers or MOVITRAC B frequency inverters are involved, the technical functions of the SEW EURODRIVE DOP11B-60 18220282 Touch Screen monitor Front Overlay operator terminals are increased as they access the inverter parameters directly. The recipe management function can be used to configure the system for a new product at the push of a button. This is possible because all the necessary parameters are transmitted from the SEW EURODRIVE DOP11B-60 18220282 Resistive touch panel Protective Film operator terminal to the connected inverter. Communication between the drive electronics and the SEW EURODRIVE DOP11B-60 18220282 HMI Touch Screen Front Overlay operator terminal is made possible by means of serial communication via RS485 connections or Ethernet TCP/IP. Both interfaces are available as standard with all new units.
Kernfix supply SEW EURODRIVE HMI DOP11B-60 Touch Screen Digitizer Protective Foil with 365 Days warranty and support Urgent Worldwide Shipping.
Specifications:
| Part Number: | DOP11B-60 18220282 |
| Graphics Resolution (pixels): | 1024 × 768 pixels |
| Operating Temperature: | -10 ° to + 60 °C |
| Storage Temperature: | -20 to + 70 °C |
| Product Line: | SEW EURODRIVE Series |
| Series Interfaces: | RS232, RS422/RS485 |
| Display Type: | TFT Color LCD |
| Voltage Supply: | 24 VDC, 1.7 A |
| Types: | Touchscreen, Overlay |
| Memory: | 12MB |
Related BB Teach Pendant Part No. :
| 18220282 | Description | Inventory status |
| DOP11B-10 | DOP11B-10 SEW EURODRIVE Membrane Keypad Repair Part | In Stock |
| DOP11B-15 | DOP11B-15 SEW EURODRIVE Operator Panel Keypad Repair | Available Now |
| DOP11B-20 | DOP11B-20 SEW EURODRIVE Keyboard Membrane Repair Replacement | In Stock |
| DOP11B-25 | DOP11B-25 SEW EURODRIVE Touch Protective Film Repair | Available Now |
| DOP11B-30 | DOP11B-30 SEW EURODRIVE Touchpad Front Film Repair Kit | In Stock |
| DOP11B-40 | DOP11B-40 SEW EURODRIVE Switch Membrane Replacement | In Stock |
| DOP11B-50 | DOP11B-50 SEW EURODRIVE Film Touch Screen Glass Repair | In Stock |
| DOP11B-60 | DOP11B-60 SEW EURODRIVE Overlay HMI Touch Panel Repair | Available Now |
| DOP11B-M70 | DOP11B-M70 SEW EURODRIVE Touchpad Membrane Keypad Repair | Available Now |
DOP11B-60 SEW EURODRIVE Overlay HMI Touch Panel Repair PDF Download:
FAQ:
Question: The function of the LEDs?
Answer: DOP11B-20 to DOP11B-60 terminals are equipped as standard with an Ethernet interface. Two LEDs are integrated into the RJ-45 socket. The LEDs have the following functions:
Question: Installer for DOP11B-10 to DOP11B-60?
Answer: 1.Unpack the delivery and check it. Inform your supplier immediately in the event of damage.
