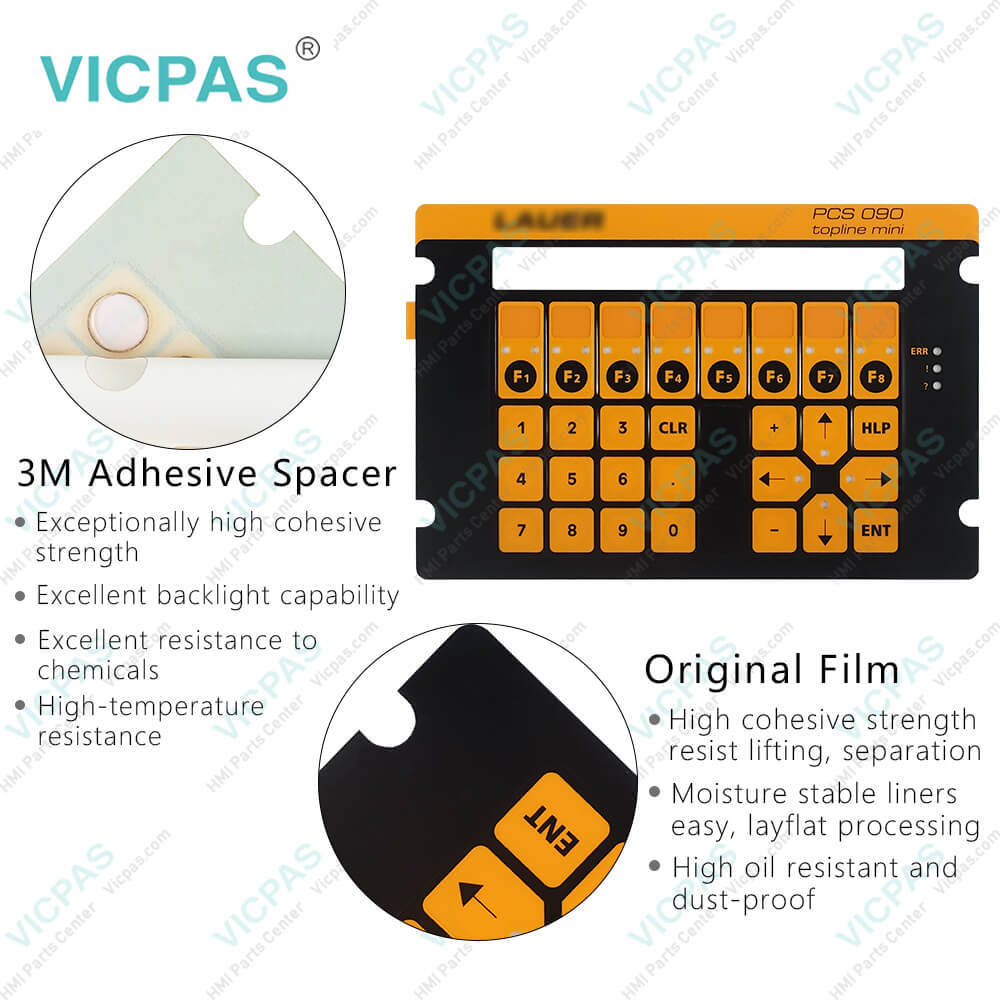

Elektronik-Systeme Lauer PCS 090 WIN MMI Membrane Switch

Order each part separately is available

PCS 090 WIN Keyboard Membrane PCS is a universal operating concept for a variety of PLC systems. The PCS 090.s WIN PCS 090.m WIN PCS 090.p WIN PCS 090.c WIN PCS 090.i WIN Operator Keyboard operating panels come with a large number of predefined operating and monitoring functions and tools:

8 or 16 function keys with 2 yellow/green warning lights (OFF, ON, FLASHING).
650 switches with blank labelling for functions and switch setting.
Key lock or code lock for assigning different access authorizations.
233 selectors with up to 256 switch settings with blank labelling for functions and switch setting.
Digital BCD/BIN-nominal value input with ten key keyboard or key: 233 nominal value variables for 4 digit BCD or 5 Digit BIN or 116 nominal value variables for 8 digit BCD or 10 digit BIN.
127 menus with max. 255 nodes or menu items. At PCS 090.s WIN PCS 090.m WIN PCS 090.p WIN PCS 090.c WIN PCS 090.i WIN Operator Panel Keypad PCS 090 each node is written into a 2-line menu text (with max. 8 variables)
For menu and default texts there are 128, 2(4)-line operating texts combined with 8 (16) variables.
Notation and alteration of the bit configuration of a word in the PCS 090 WIN PCS is possible at any time.
Actual value analog indicator.
Actual value digital indicator selection of up to 5 digits (0...65.535) or 10 digits (0...4.294.967.295).
128 message lines, 32 lines combined with 128 variables in 3 message priorities, with 2 indicator and 4 deletion modes.
Automatic change of the nominal and actual values of the BCD/BIN in decimal and back with algebraic sign, limits and scale.
Analog nominal value input
Digital ASCII nominal value input with key: 28 nominal value variables with 16 or 112 nominal value variables with 4 characters.
128 soft key bars
255 soft key actions
For each of the Default, Menu, Note and Trouble priorities one help text is available.
