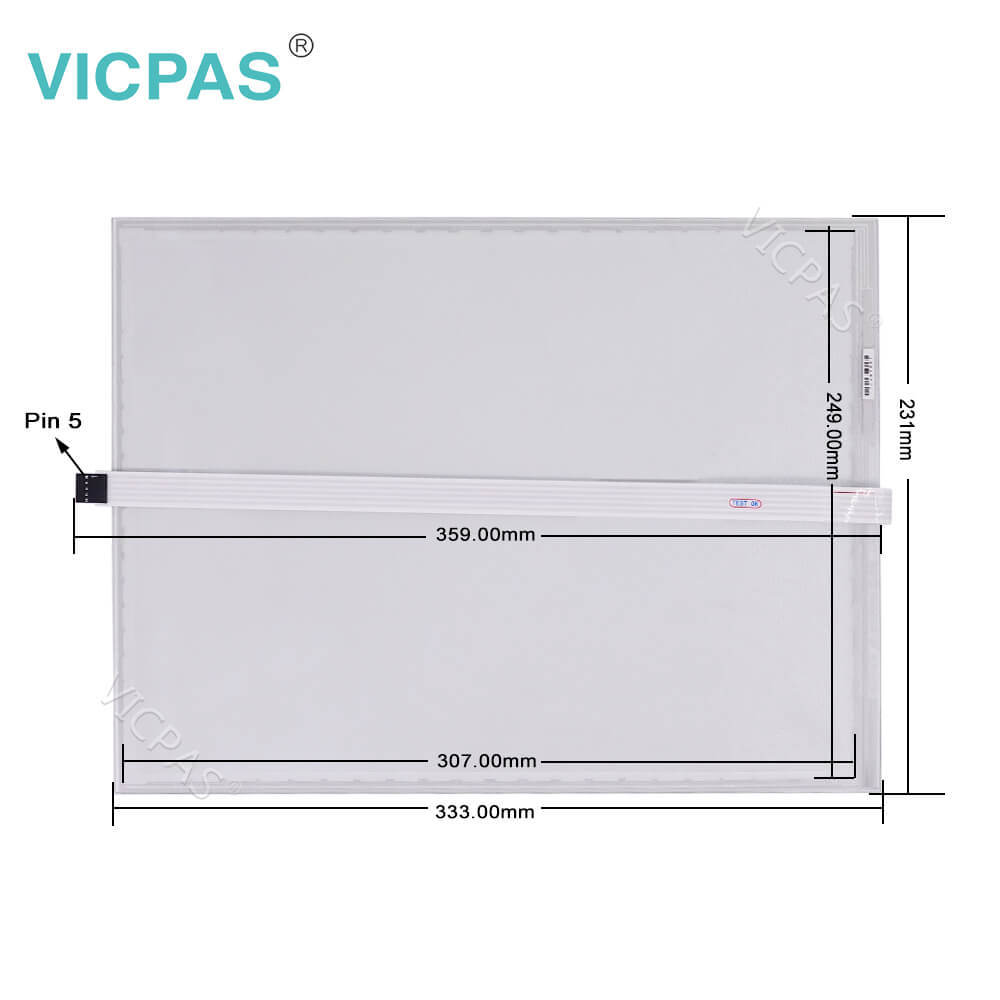

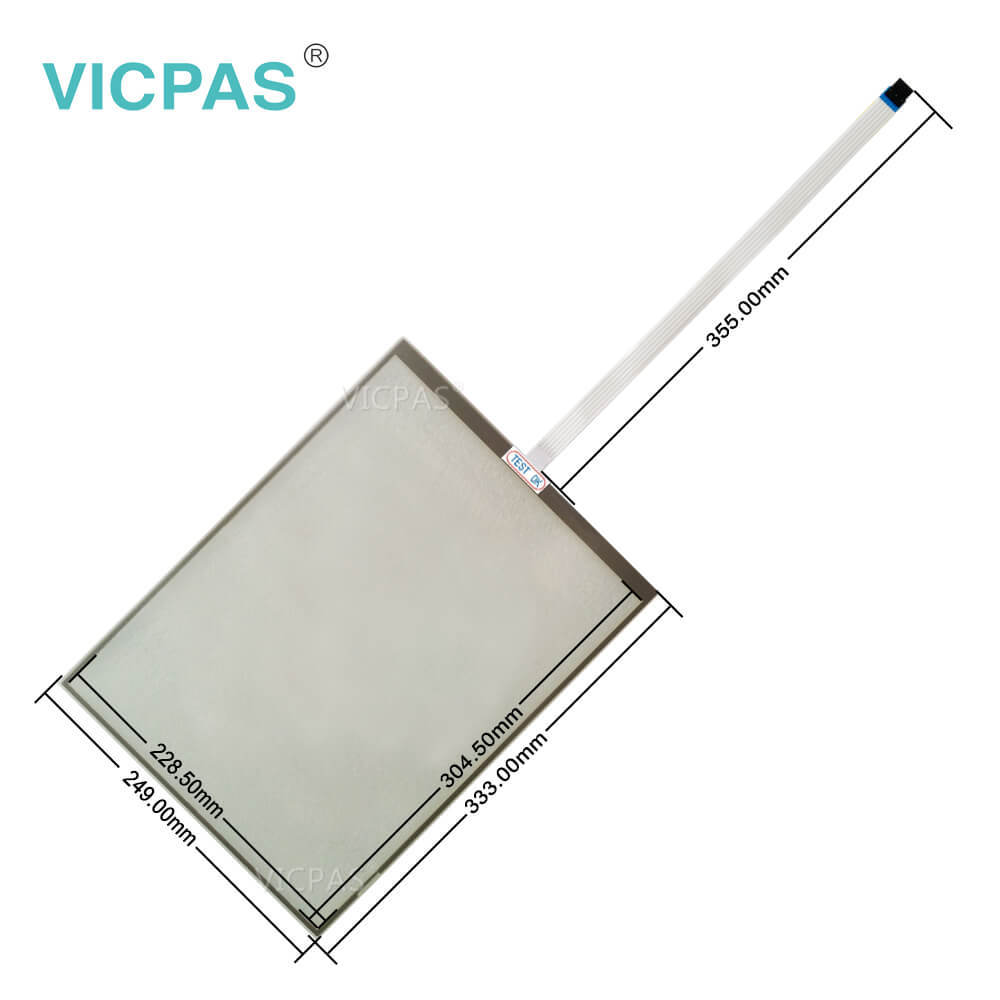

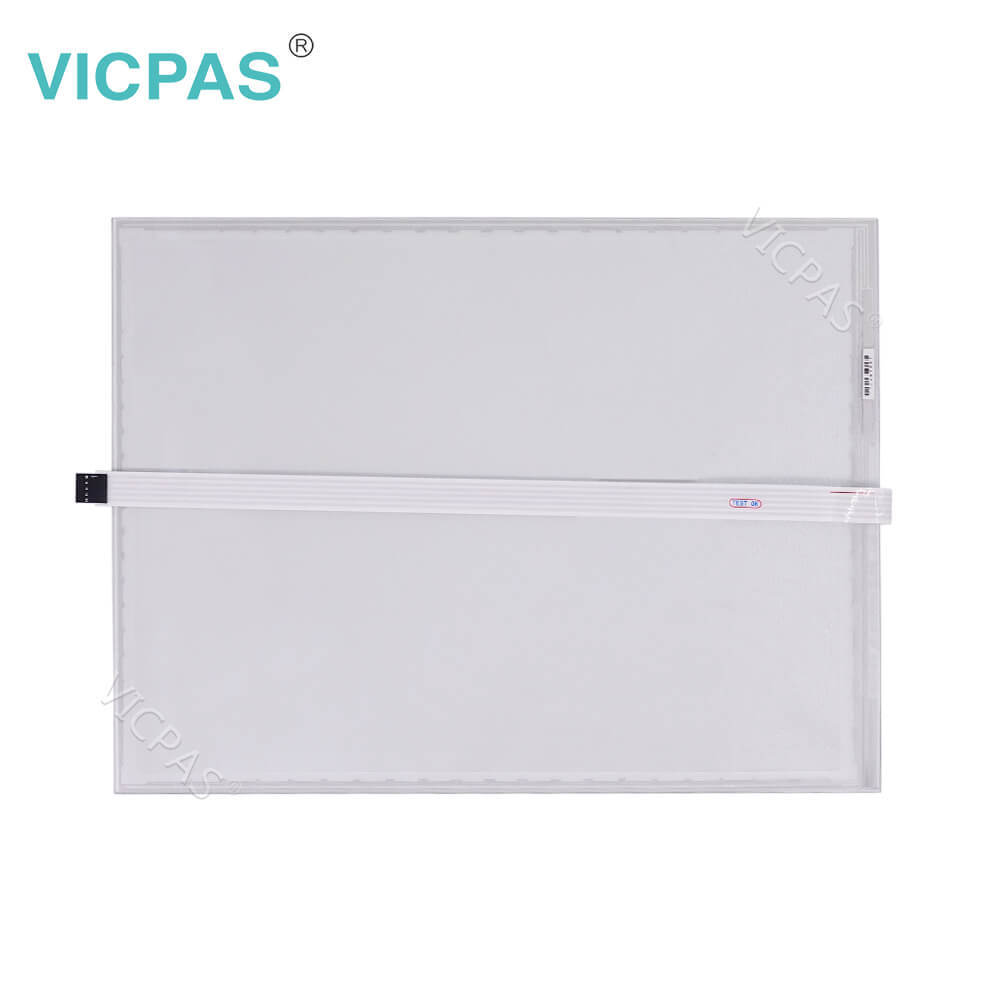

E452025 SCN-AT-FLT15.1-005-0H1-R Touch Screen Panel
| Brand | VICPAS |
|---|---|
| Model | E452025 SCN-AT-FLT15.1-005-0H1-R |
| Warranty | 365 days |
| Touch Screen Panel Type | Resistance touch screen |
| Shipping | 2-4 workdays |
| FOB port | Guangzhou, Shenzhen, Hongkong |
| Terms of Payment | Western Union, MoneyGram, T/T, Paypal, PayPal, Credit Card |
| Update Time | 2026-02-05 16:20:36 |
Leading Time{{selectedConditionObj.leading}}
{{item.value}}
{{nameObj.name}}{{nameObj.selectedValue}}
{{valueObj.name}}
Shipping
Free Shipping
Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.
Detail Information
E452025 SCN-AT-FLT15.1-005-0H1-R Touch Screen Panel repair
E452025 SCN-AT-FLT15.1-005-0H1-R touch screen size: inch. and other general size is 3.0'' to 22'' . E452025 SCN-AT-FLT15.1-005-0H1-R touchscreen adopt to panel display device. E452025 SCN-AT-FLT15.1-005-0H1-R touch panel touch times are more than 1 million touches. E452025 SCN-AT-FLT15.1-005-0H1-R touch screen monitor Current: 5mA~25mA, E452025 SCN-AT-FLT15.1-005-0H1-R HMI touch screen temperature operating range: -10 C ~ 60 C, E452025 SCN-AT-FLT15.1-005-0H1-R MMI touch screen Operation Voltage : Typical +DC 5V. E452025 SCN-AT-FLT15.1-005-0H1-R touch membrane operation system including: Linux / DOS / Windows ME/95/98 / NT4.0/XP/2000/Mac OS etc.
ProductDetails:
Size : 15.1 inch;
Shipping : 2~3 Workdays
Warranty : 365 Days
Surface Hardness : 3H
Circuit Rating : 5VDC @ 35mA
Light Transmission : Film + Film 77%, Film + Glass 83%
Shipping : 2~3 Workdays
Warranty : 365 Days
Surface Hardness : 3H
Circuit Rating : 5VDC @ 35mA
Light Transmission : Film + Film 77%, Film + Glass 83%
* Electrical
Contact Bounce : Rersolution : 4096 x 4096
Linearity : 1.5%(Life Expectancy : > 35 million touch on single point
Contact Bounce : Rersolution : 4096 x 4096
Linearity : 1.5%(Life Expectancy : > 35 million touch on single point
Specifications:
E452025 SCN-AT-FLT15.1-005-0H1-R Touch Screen Panel PDF Download:
