2711-TA4
| Brand | Allen Bradley |
|---|---|
| Model | 2711-TA4 |
| Warranty | 365 Days |
| Product Line | Panelview 1200 |
| Supply | Panelview 1200 Terminals Touchscreen |

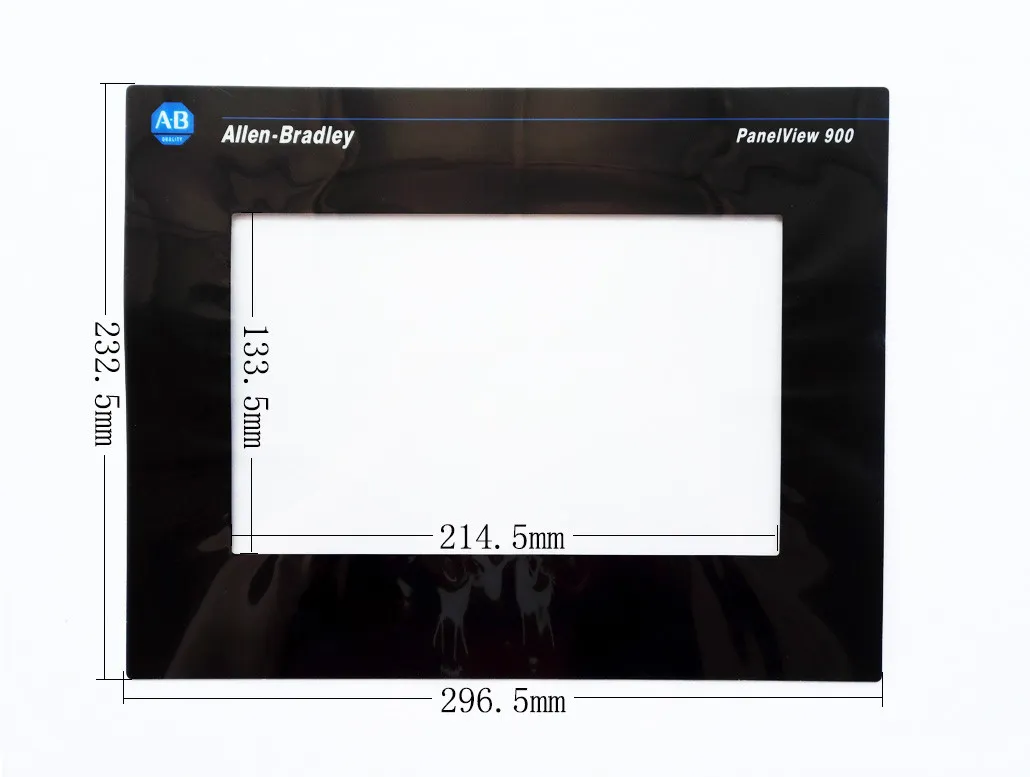

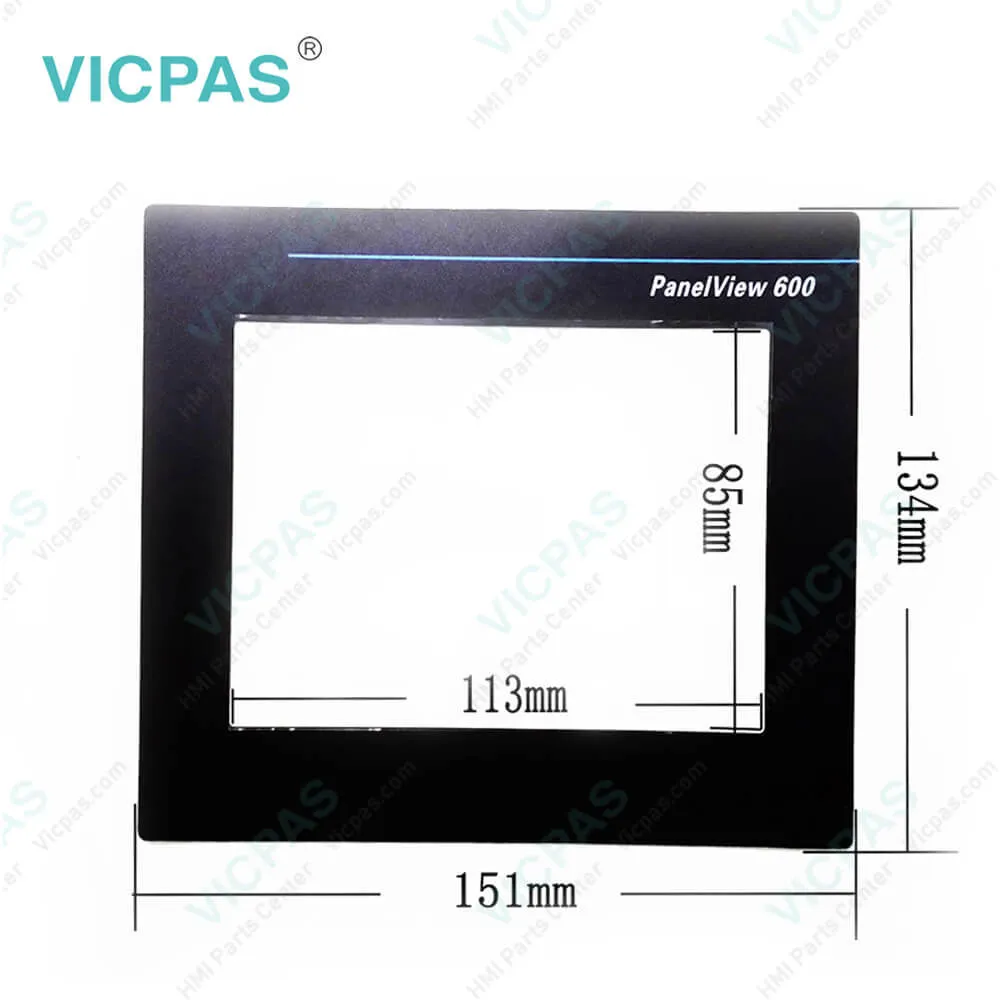

| Parts | Touchscreen Panel Glass Protective Film |
| Terms of Payment | Western Union, MoneyGram, T/T, Paypal, PayPal, Credit Card |
| Download | |
| Update Time | 2026-02-09 15:19:49 |
Shipping
Free Shipping
Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.
2711-TA4 Panelview 1200 Terminals Touchscreen Panel Protective Film LCD Display Repair Replacement
The 2711-TA4 touch screen is a PanelView 1200 clip-mount operator terminal with a 12-inch display size and a 16-Color CRT. The interface comes with the user configurable 64 KB battery-backed RAM which can be upgraded to 128 KB. The panelview 1200 2711-TA4s display format includes 24 rows x 80 columns (normal size characters) while the touchscreen format includes a matrix of 120 touch cells (10 across by 12 high).
The 2711-TA4s touchscreen has a matrix of 120 touch cells (10 across by 12 high). It offers communications through remote I/O and an RS-232 printer port. The module runs on an input voltage of 90-264V AC at 47-63 Hz with a remote I/O baud rate of 57.6/115.2/230.4 kilobaud and an RS-232 port baud rate of 300-19.2 kilobaud.
The communication process includes a remote I/O and an RS-232 port. The module uses 90-264V AC at 47-63 Hz and has a NEMA 12 enclosure type. The 2711-TA4 includes PanelBuilder32 software for development and configuration.The screens are created on a developmentcomputer running PanelBuilder] Development Software or PanelBuilder] 1200 Configuration Software for Windows, and then saved in an application file on the development computers disk. The application file is then downloaded to a PanelView 1200 terminal where it stays in battery-backed RAM.
The 2711-TA4s touchscreen has a matrix of 120 touch cells (10 across by 12 high). It offers communications through remote I/O and an RS-232 printer port.Kernfix supply panelview 1200 2711-TA4 Touchscreen Panel and LCD display. All of them with Kernfix 180-day warranty and support Urgent Worldwide Shipping.
Specifications:
| Part Number: | 2711-TA4 |
| Display Size: | 12.1 inches |
| Display Color: | Amber |
| Warranty: | 180 days Warranty |
| Product Line: | Panelview 1200 |
| Input Type: | Touchscreen |
| Mounting Position: | vertical |
| Key Features: | Touch screen support |
| Language: | Worldwide |
| : | NEMA 4X |
Related BB Teach Pendant Part No. :
| 2711-TA4 | Description | Inventory status |
| 2711-KA1 | Allen Bradley PanelView 1200 Membrane Keypad Switch LCD | In Stock |
| 2711-KC1 | PanelView 1200 Keypad Membrane Switch LCD Display | Available Now |
2711-TA4 PDF Download:
FAQ:
Question: What is the strong magnetic fields on panelview 1200 2711-TA4?
Answer: Since the PanelView 1200 2711-TA4 terminal display contains a CRT (cathode ray tube), the presence of strong magnetic fields near the terminal will distort the image on the screen. Magnetic fields stronger than 80 milligauss at the front surface of the terminal should be avoided.
Question: How to change the filter on color units of 2711-TA4?
Answer: Clean the filter on your color terminal whenever it appears to be in danger of clogging up. Remove the filter cover from the back of the terminal by popping it free of its plastic side clips. Remove the filter and clean it by removing the dust with a vacuum cleaner and washing with warm water and soap. Be sure the filter is dry before you replace it. The filter itself is made of flame-retardant urethane foam 0.13” (3.3mm) thick, and measures 3.64” by 3.54” (92.5mm by 89.9mm). If your filter should become unusable, replace it with part number 09362-M/45 from Hitachi or Qualtek Electronics.
Question: What is the size of 2711-TA4 Membrane Keyboard?
Answer: The 2711-TA4 touchscreen glass is 12.1-inch.
Question: What are the specifications of the AB Panelview 1200 2711-TA4 terminal CRT display?
Answer: The following tables provide details of the display specifications.Display Format: 24 Rows x 80 Columns (normal size characters)Character Cell Pixel Format: 8 wide x 10 highDisplay Alignment: User-configurable, stored in non-volatile memory, 12 character horizontal range, 2.4 character vertical rangeDisplay Intensity: Low to high range adjustment on back of unitScreen Saver: User-configurable, 1-999 minute timeoutDisplay Size: 12" Diagonal
